Habotest HT125B universal digital multimeter
description of

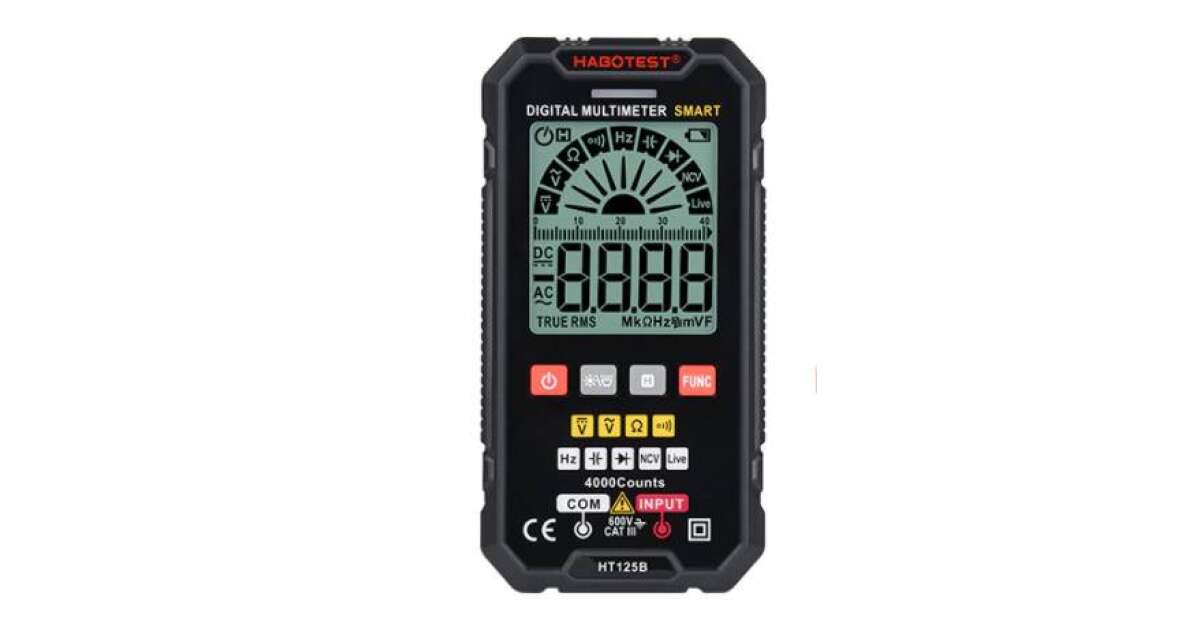

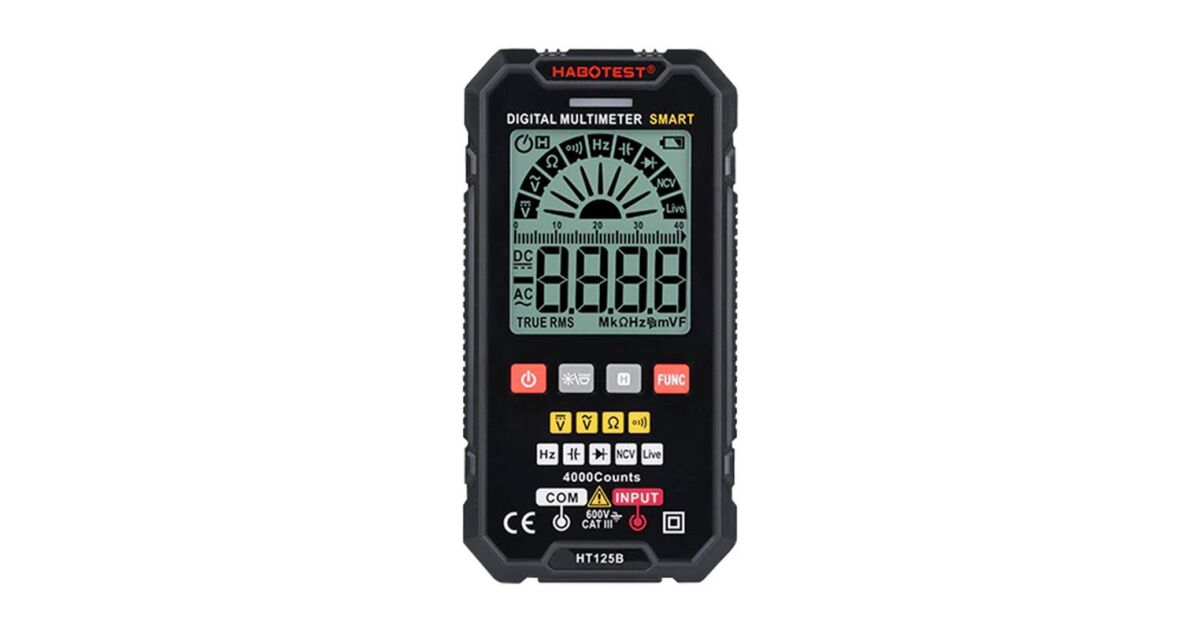

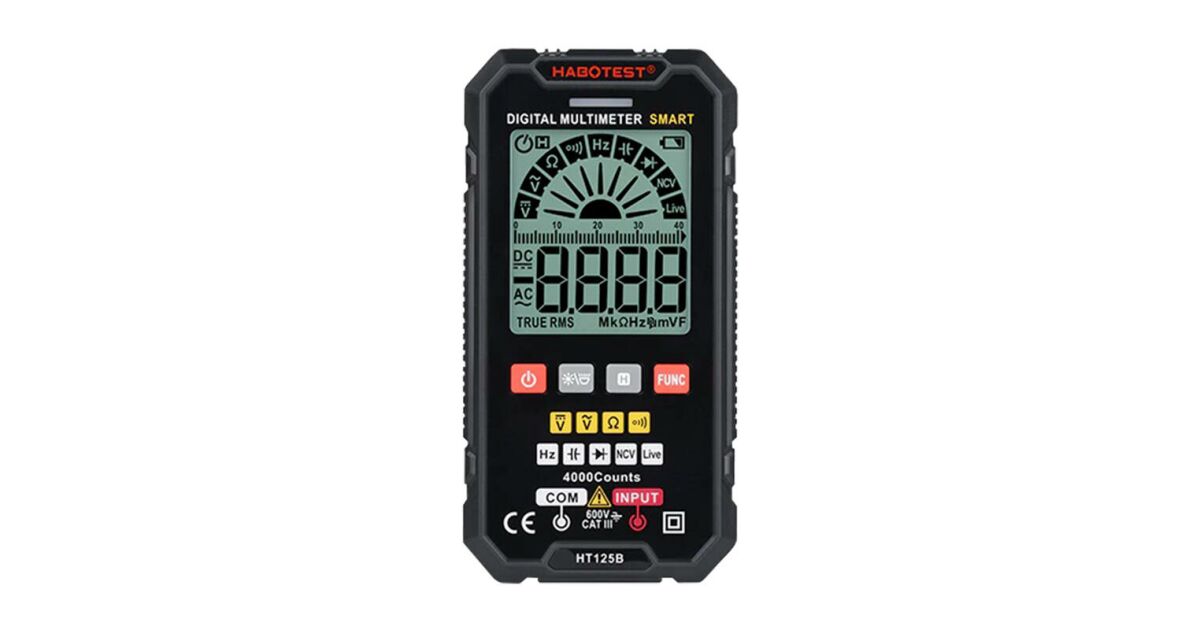

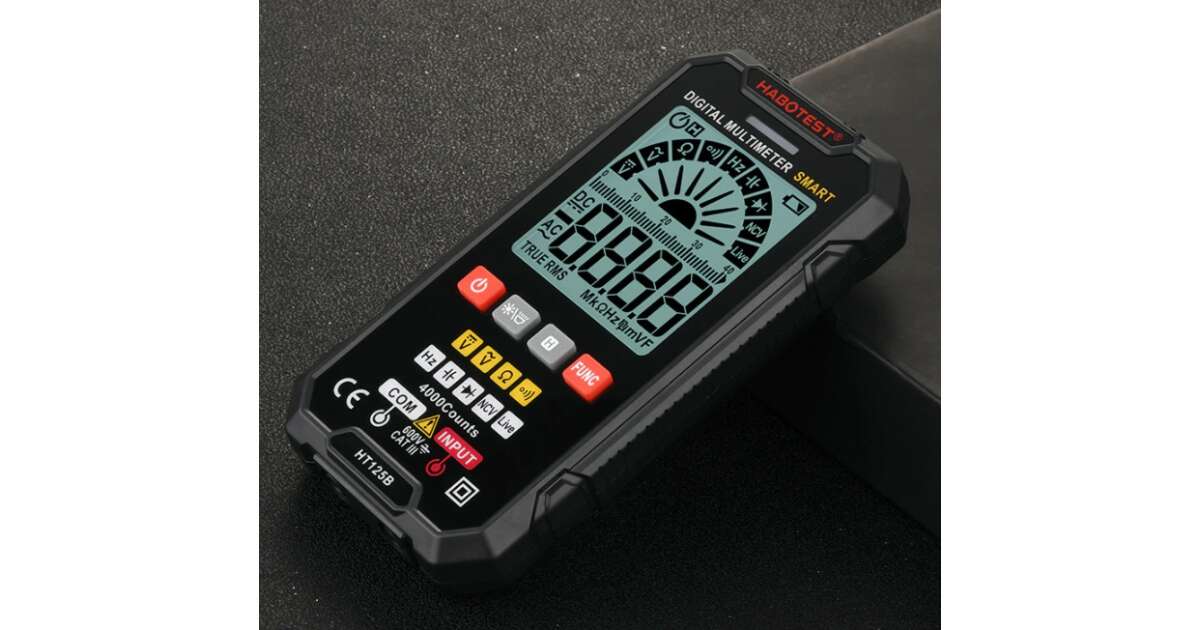

Universal Habotest HT125B multimeter
HT125B is a smart and rugged multimeter by Habotest. It features high precision measurements, which means you can also use it outdoors. Equipped with a large display and silicone buttons - it is simple and comfortable to use. Compact and lightweight - it also has a LED flashlight that allows you to work even in dark places. Two AAA 1.5V batteries are required to power it. However, these are not included and must be purchased separately. You can use it to measure voltage, resistance, capacitance, etc.
Convenience of use

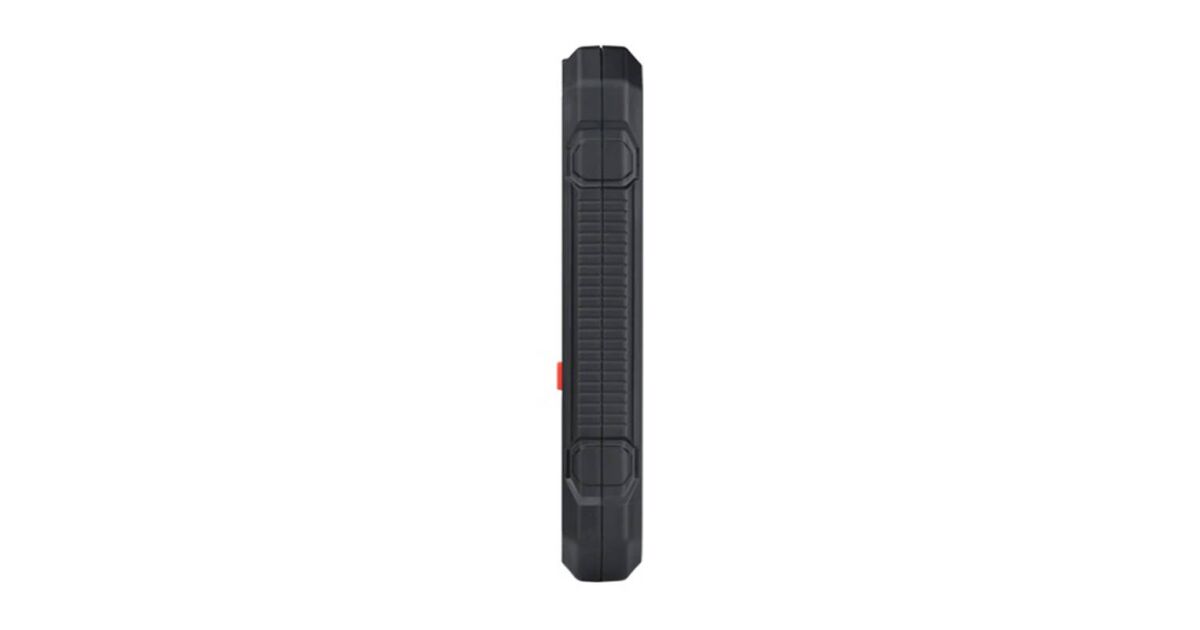

Multimeter is designed to provide you with maximum comfort of use. Small and handy - its thickness is only 19 mm. Large display allows for convenient access to all important information. In addition, silicone buttons for easy operation of the device.
Functional and reliable
The Habotest brand multimeter is distinguished by its incredible precision. It accurately measures AC and DC voltage and current, resistance and capacitance, among other things. You can also check the activity of cables. With its help you can test diodes, check continuity and true RMS value. It also enables non-contact voltage detection (NCV). Use the arrows to change the mode of the device, then the LED indicator around the jack input port will light up green.
User-friendly

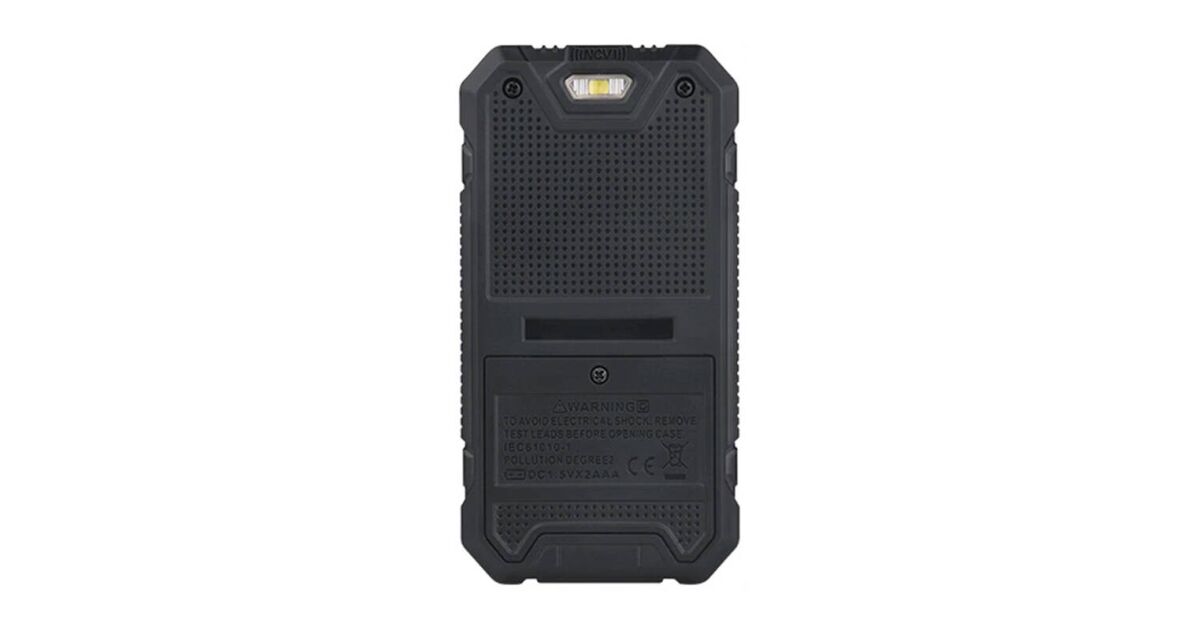

This is not the end of the multimeter's advantages. The built-in LED flashlight will provide you with illumination when working in dark rooms. The soft protective case not only protects the unit from damage, but also makes it easy to transport and store. Replacing the HT125B battery is quick and easy, so you won't have any problem.
Specification:
Producer
Habotest
Model
HT125A
HT125B
DC voltage measurement range
400mV/4V/40V/400V/600V
400mV/4V/40V/400V/600V
AC voltage measurement range
4V/40V/400V/600V
AC 4V/40V/400V/600V
Resistance measurement range
400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ
400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mkꭥ
Capacitance measurement range
-
4nF/40nF/400nF/4µF/40µF/400µF/4mF
Frequency measurement range
40Hz/400Hz/4kHz/40kHz
40Hz/400Hz/4kHz/40kHz/400kHz/4MHz
Live Test
Yes, sound and light alarm
Yes, sound and light alarm
NCV
Yes, sound and light alarm
Yes, sound and light alarm
Diode testing
Yes, 0~2V
Yes, 0~2V
Continuity
50ꭥ
50ꭥ
Number of counts
4000
4000
Data storage
Yes
Yes
True RMS value
Yes
Yes
Low battery indicator
Yes
Yes
Automatic power off function
Yes
Yes
Illumination
Yes
Yes
Flashlight
Yes
Yes
Power supply
2x battery 1.5V AAA
2x battery 1.5V AAA
