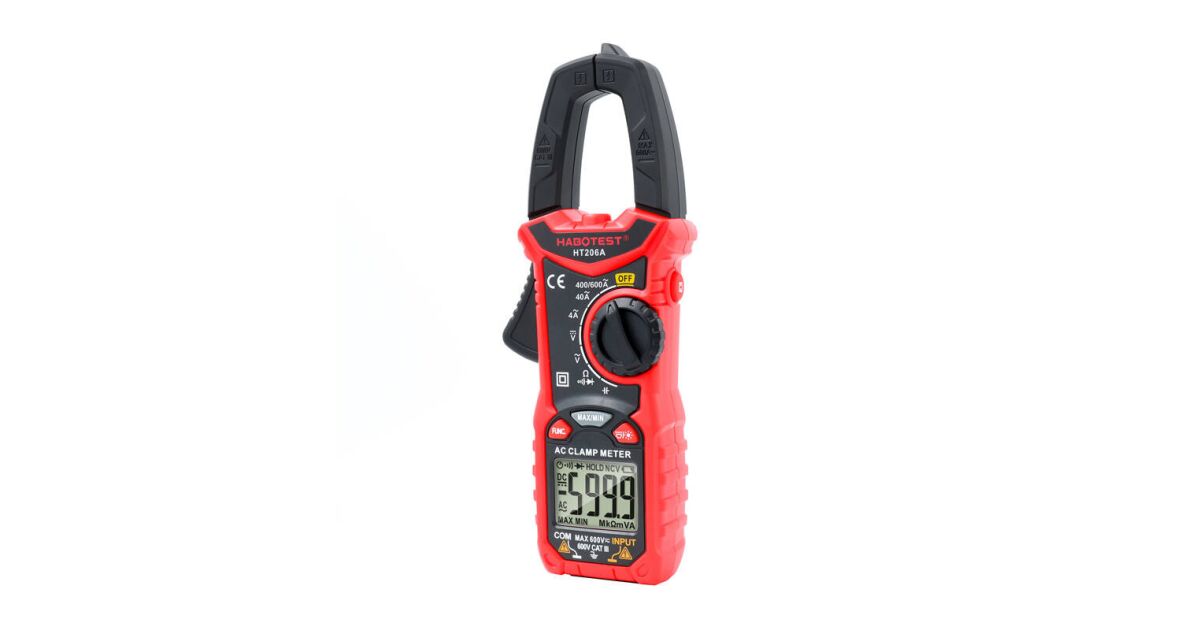

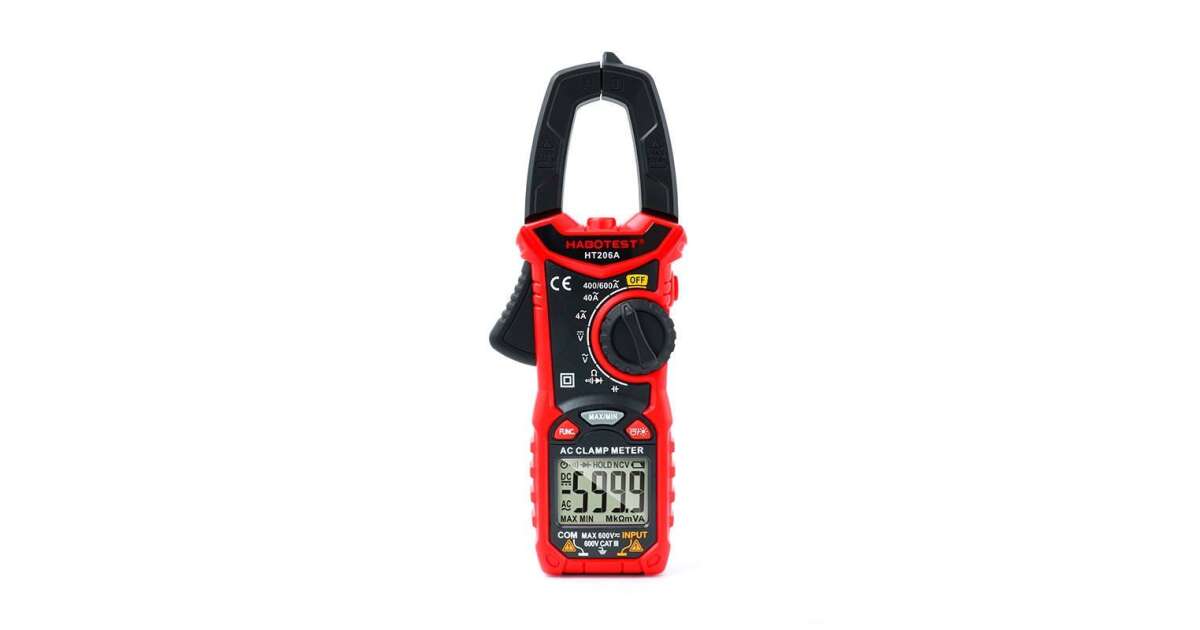

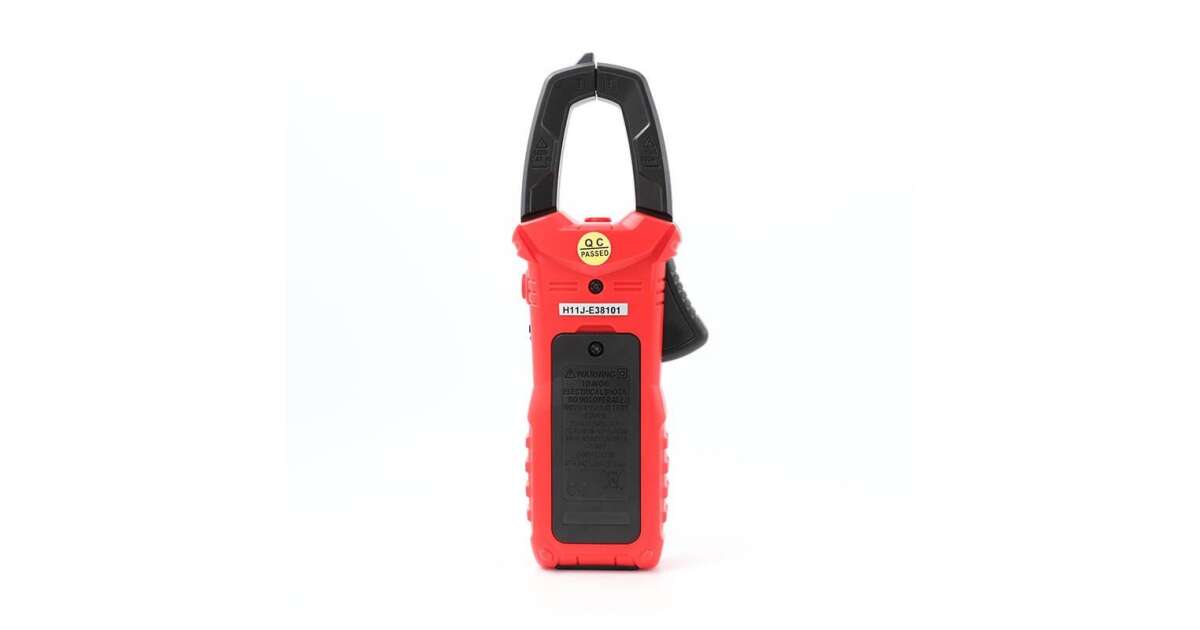

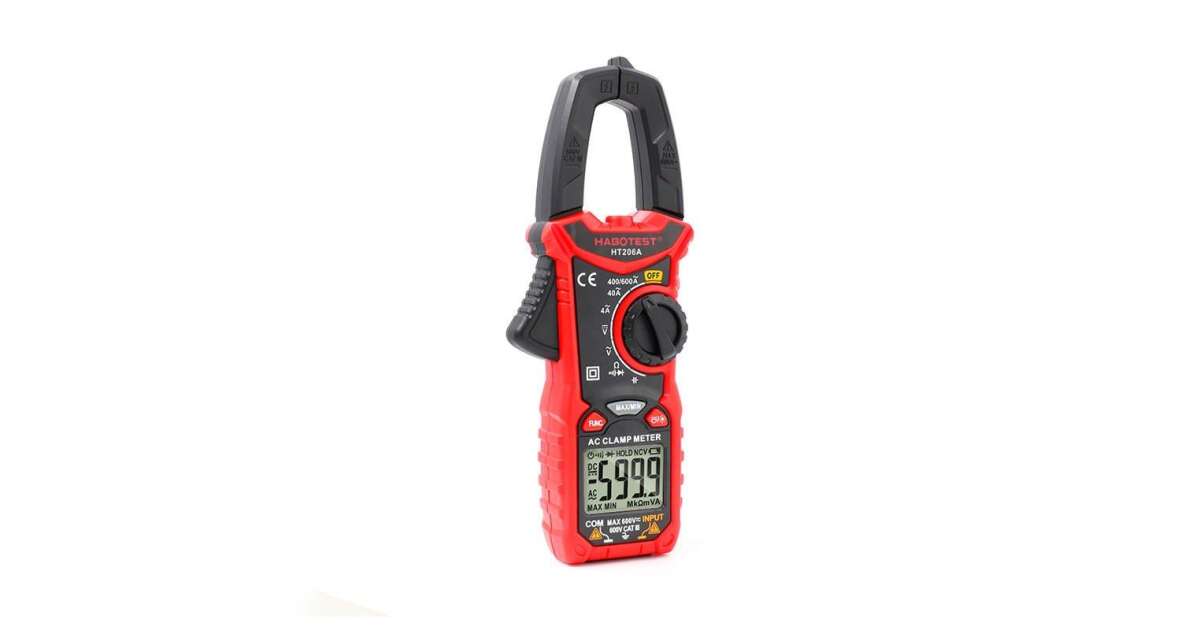

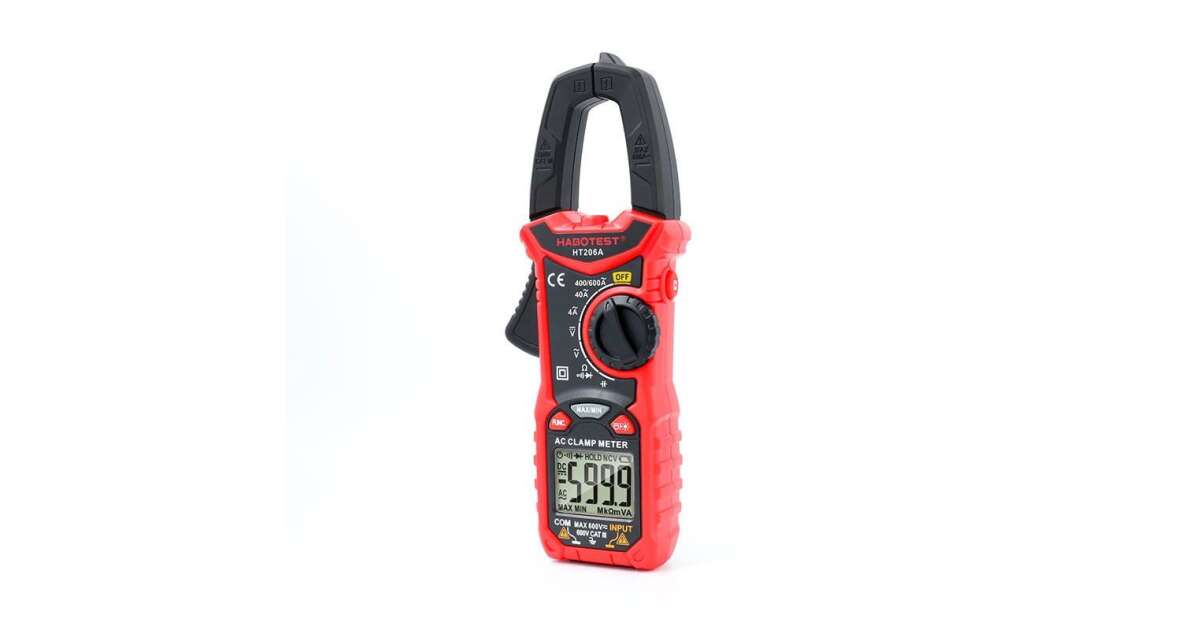

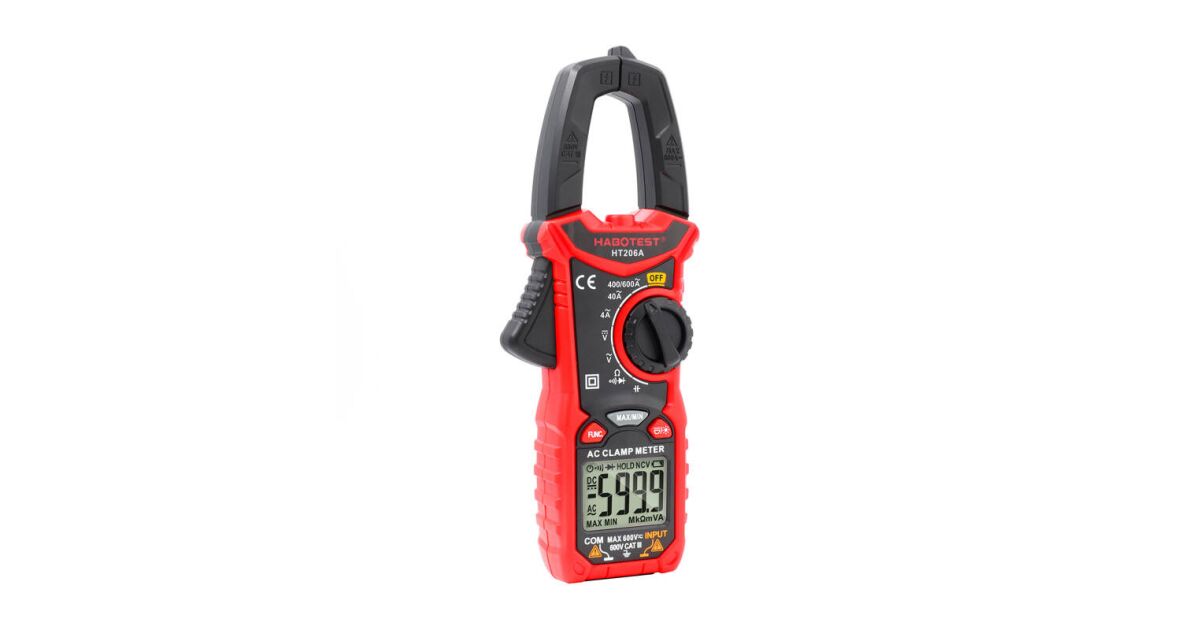

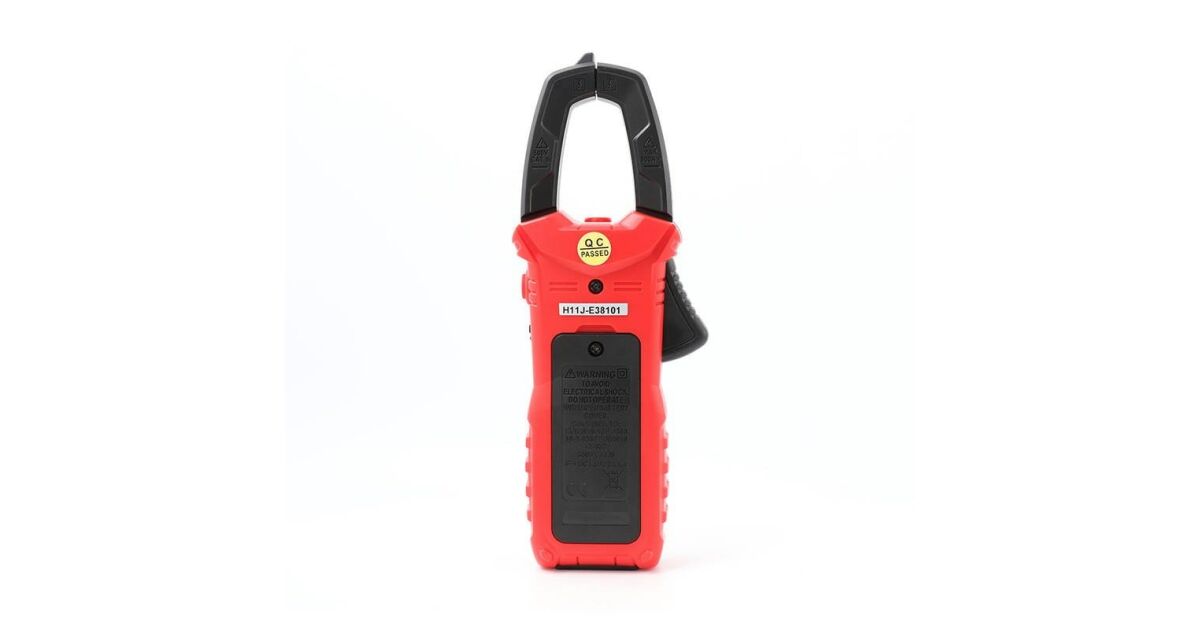

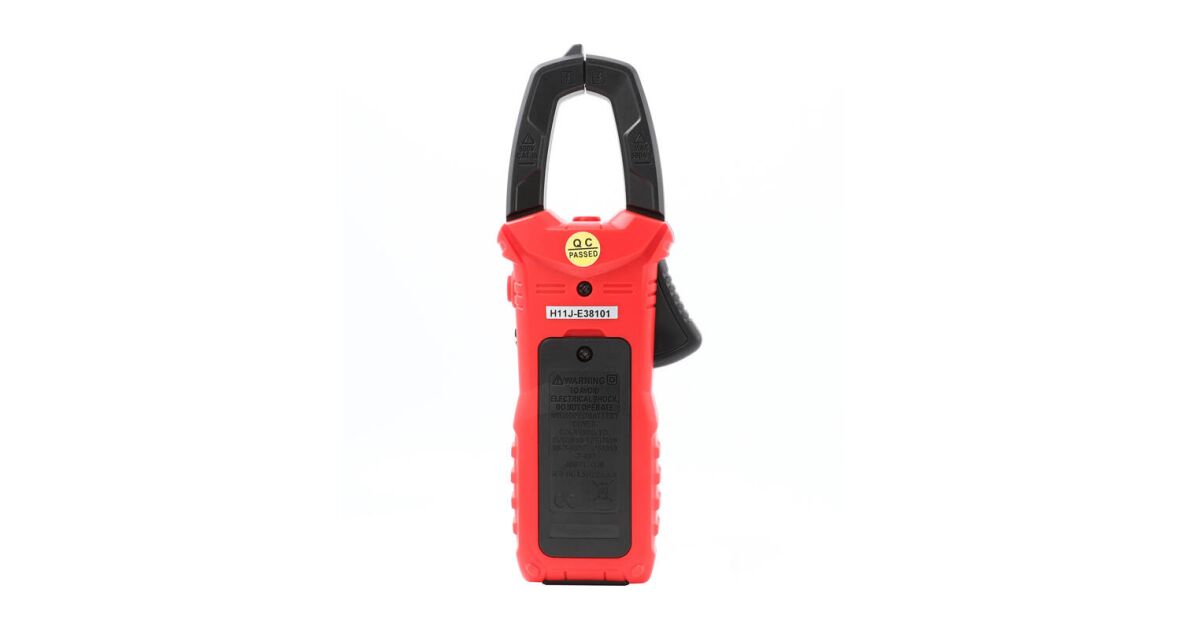

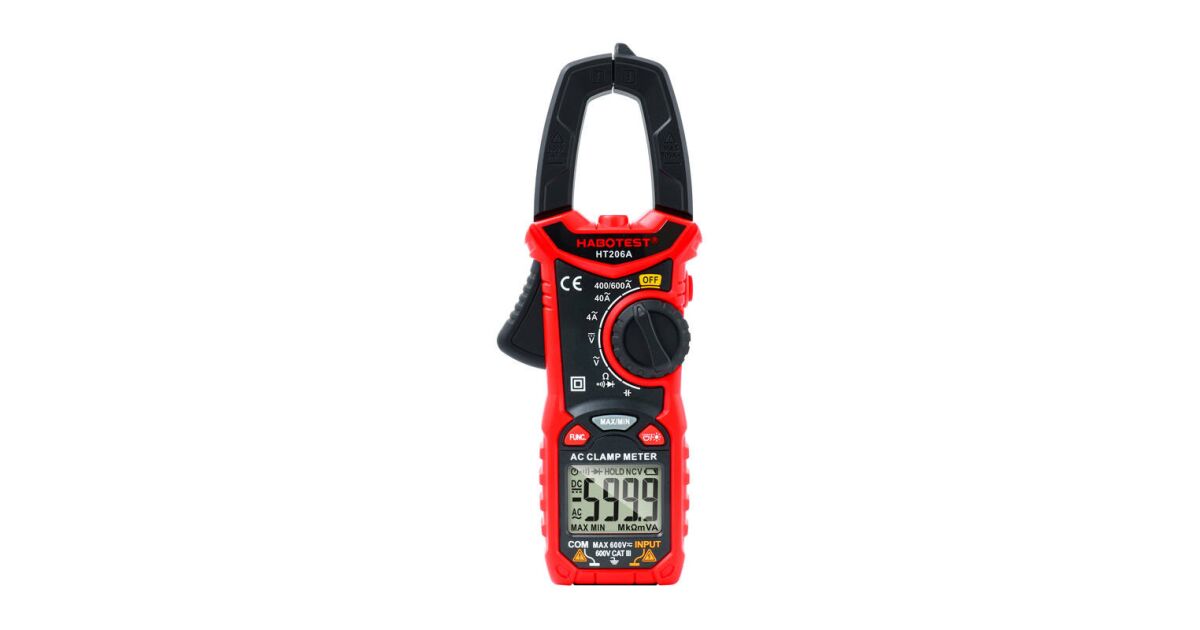

Habotest HT206A Digital Clamp Meter
-
Out of stock
Habotest HT206A Digital Clamp Meter description of
Habotest HT206A Digital Clamp Meter: Precise Measurements, Easy Use 💡
This versatile clamp meter provides accurate measurement results on an easy-to-read, backlit LCD display. The 26 mm jaw size makes it comfortable to use. Its built-in flashlight helps you work even in the dark.
What can you measure with it?
- AC and DC voltage
- AC current
- Resistance
- Capacitance
- Frequency
- Temperature
- Continuity test
- True RMS
Convenient Features:
- Backlit LCD display that turns orange if the measured voltage exceeds 80V or the current exceeds 3A.
- Built-in flashlight 🔦
- Intuitive buttons for function selection and MAX/MIN measurement
- Data hold
- Low battery indicator 🔋
- Auto power off
Technical Specifications:
| Parameter | Measurement Range | Accuracy |
|---|---|---|
| DC Voltage | 400mV/4V/40V/400V/600V | ±(0.5%+5) |
| AC Voltage | 4V/40V/400V/600V | ±(1.0%+5) |
| AC Current | 4A/40A/600A | ±(2.5%+8) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0%+5) |
| Capacitance | 4nF/40nF/400nF/4µF/40µF/400µF/4mF | ±(4.0%+5) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
Other Features:
- 4000 count display
- Auto/manual range selection
- True RMS
- MAX/MIN measurement
- Data hold
- Safety standards: EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V
- Power supply: 2x AAA 1.5V batteries (included)
- Weight: approx. 260g
- Dimensions: 193x73x34mm
- Jaw size: 26x44mm
The Habotest HT206A clamp meter is an ideal choice for everyday electrical measurements, providing reliable and accurate results.
Article number: HT206A
