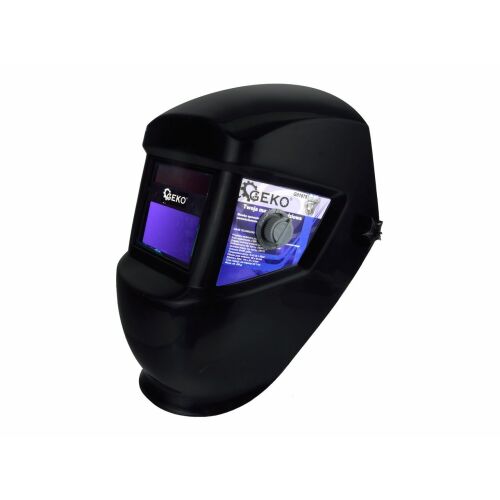

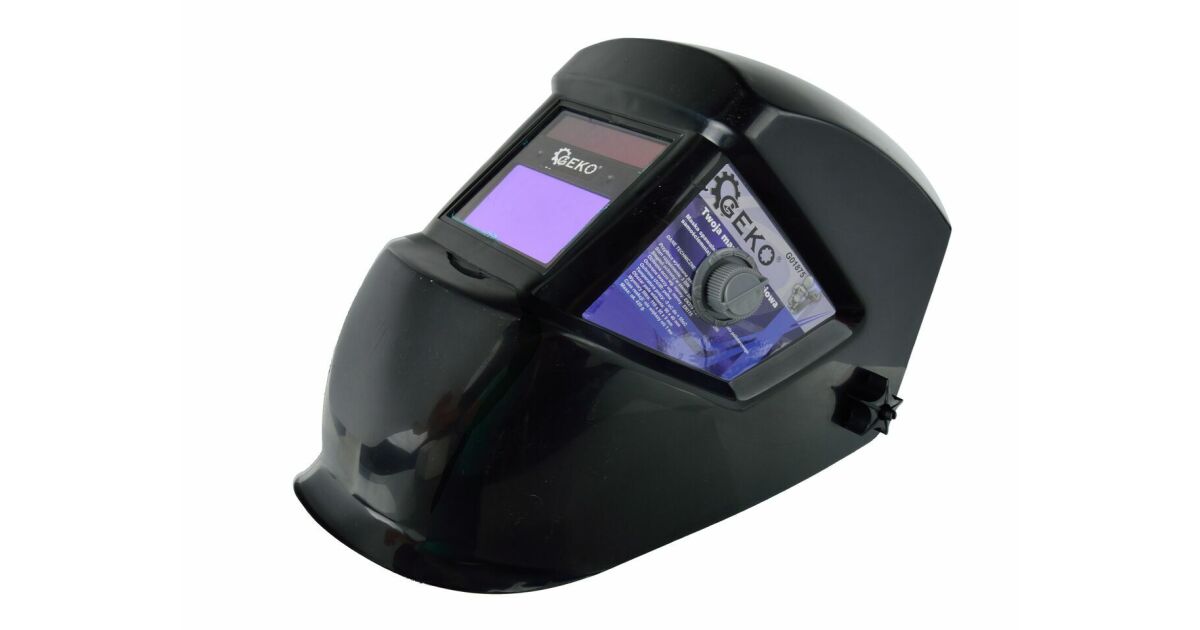

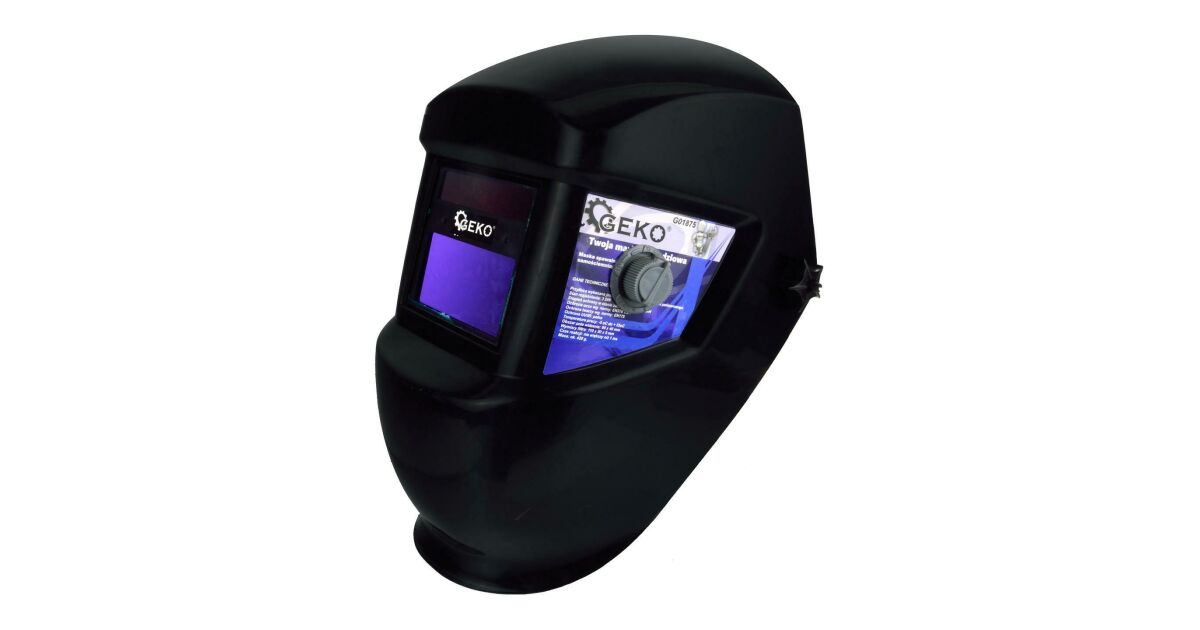

GEKO LCD DIN9-13 Automatic Welding Helmet
GEKO LCD DIN9-13 Automatic Welding Helmet description of
GEKO Automatic Welding Helmet DIN 9-13: Perfect protection during welding 🛡️
This auto-darkening welding helmet provides excellent protection for your eyes and face from sparks, spatter, and harmful UV/IR radiation during welding. It's a great choice for all welding processes, including MMA, MIG-MAG, and TIG welding (including low-current TIG welding, up to 20A).
Key Features:
- Automatic Darkening: Two photo sensors instantly detect the welding arc light and automatically darken the filter. After welding, the filter automatically returns to a light state.
- Excellent Protection: Offers complete UV and IR protection.
- Wide Viewing Area: 92.5 x 42.5 mm viewing area for better comfort and precision.

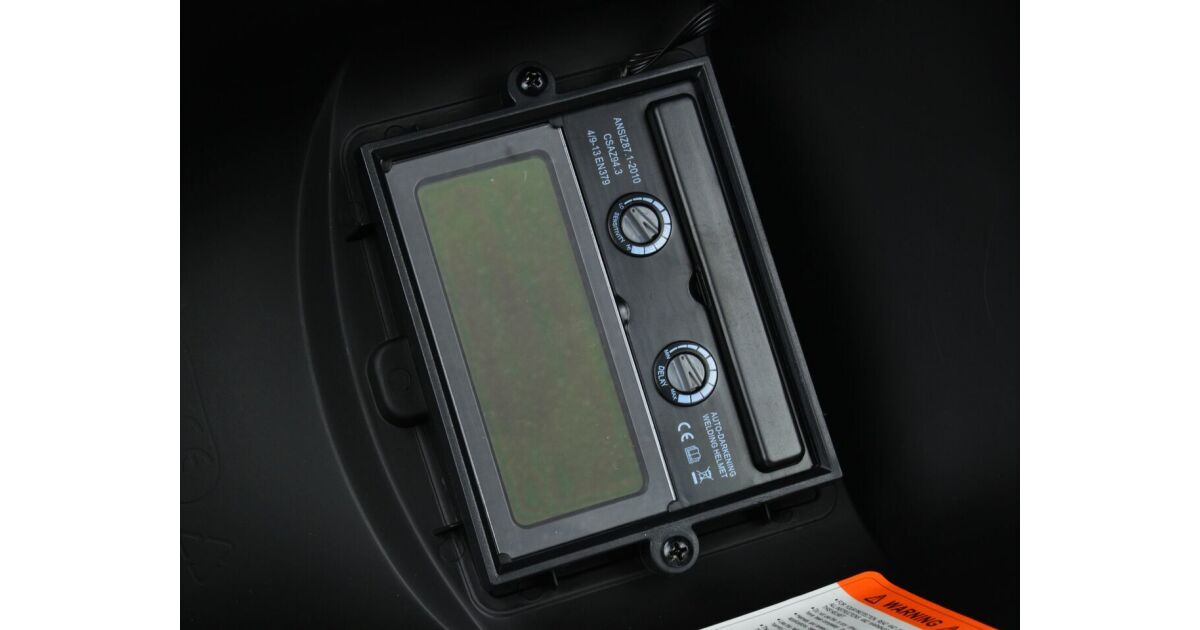

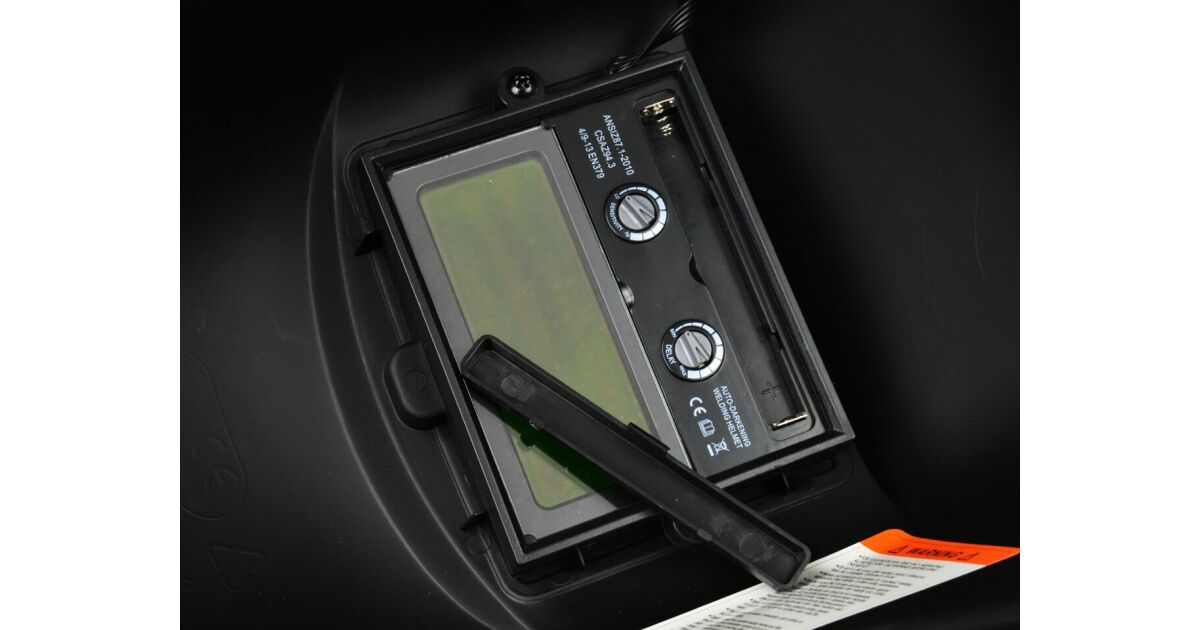

- Adjustable Parameters: Shade level (DIN 9-13), sensitivity, and delay time are adjustable to suit the welding method and individual needs.

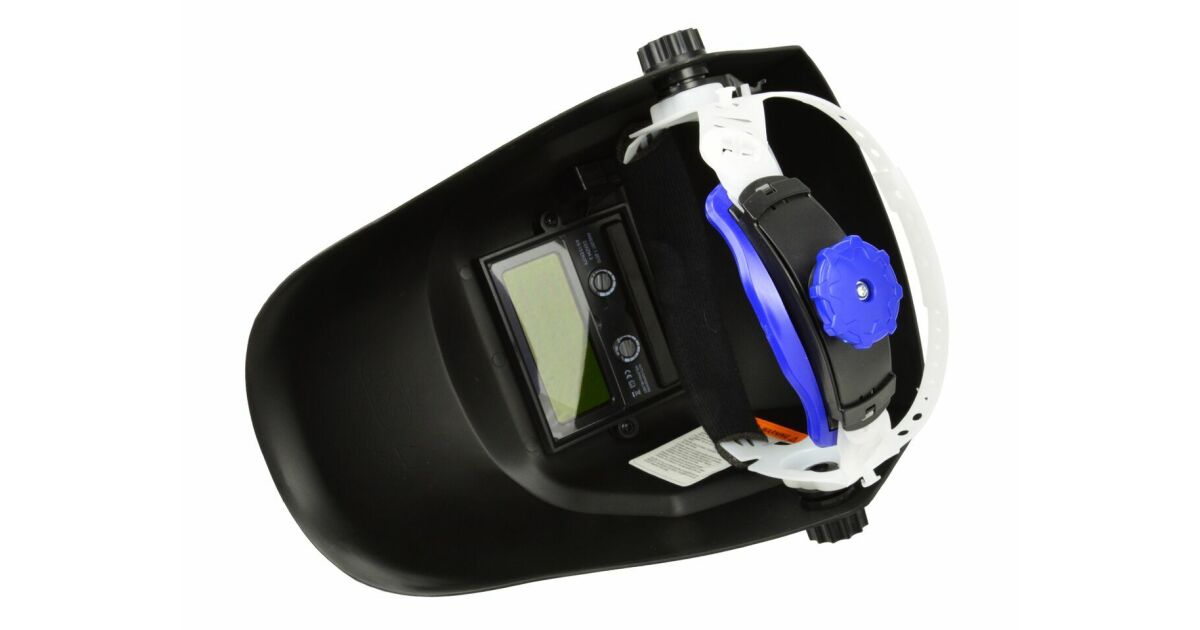

- Comfortable Wear: The mask size is easily adjustable to the user's head size.
- Durable Design: Made from robust polymer material.
Technical Data:
| Property | Value |
|---|---|
| Light Shade (DIN) | 4 |
| Shade Range (DIN) | 9 - 13 |
| Switching Delay (open/dark) | 1/10000 sec |
| Switching Delay (dark/light) | 0.1 - 0.8 sec |
| Eye Protection Standards | EN 379 |
| Face Protection Standards | EN 175 |
| UV/IR Protection | Complete |
| Operating Temperature | -10°C to +65°C |
| Viewing Area | 92.5 x 42.5 mm |
| Filter Dimensions | 110 x 90 x 9 mm |
Ensures safe and efficient welding, with comfortable wear and precise adjustment options.
