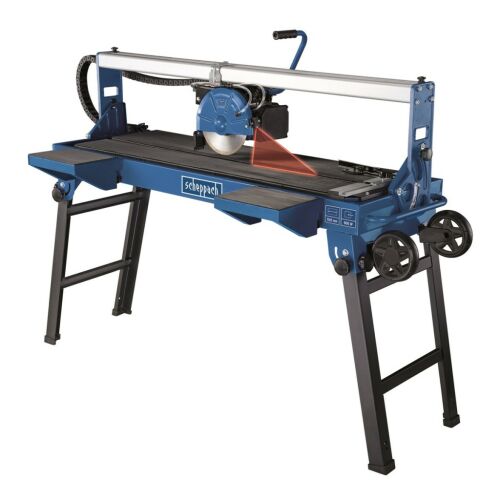

Scheppach FS 3600 Tile Cutter: Precise Cuts for Large Tiles 💎
The Scheppach FS 3600 tile cutter is an ideal choice for professional tilers and demanding DIY enthusiasts working with large-format tiles. The 900W induction motor effortlessly cuts tiles, granite, marble, and other covering materials.
Key Features:
- Large Cutting Length: Suitable for cutting tiles up to 920 mm (diagonally up to 650 x 650 mm).
- Precise Cutting: Laser guidance and two guide rails ensure precise cuts.
- Powerful Motor: 900W induction motor with thermal protection.

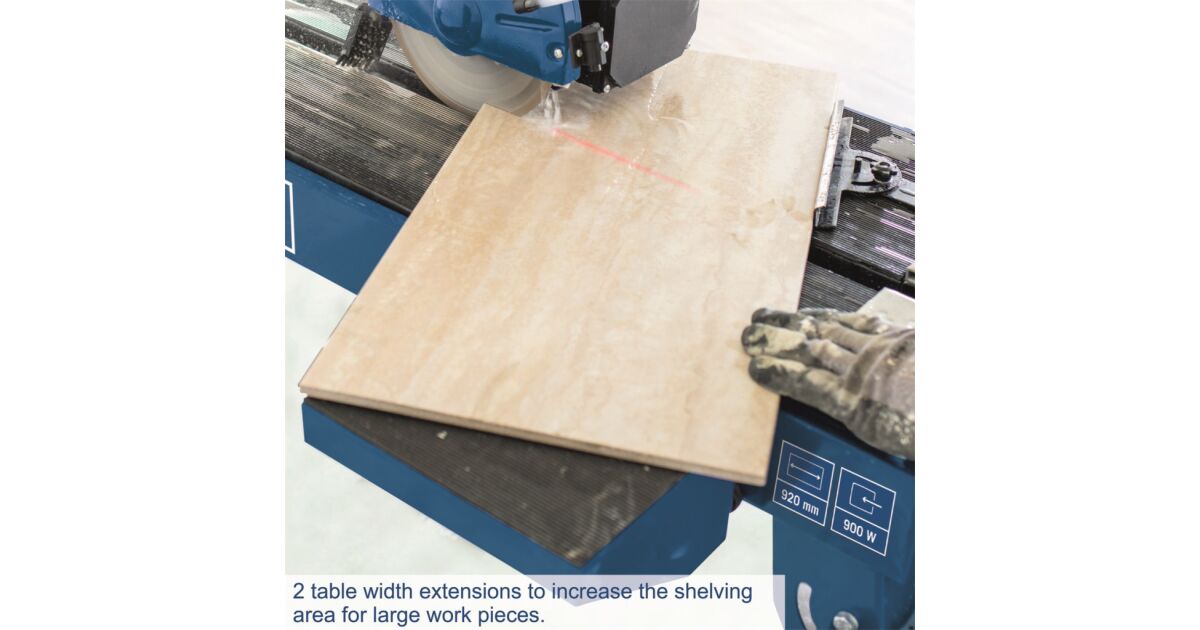

- Convenient Use: Extension tables for easier handling of large tiles.

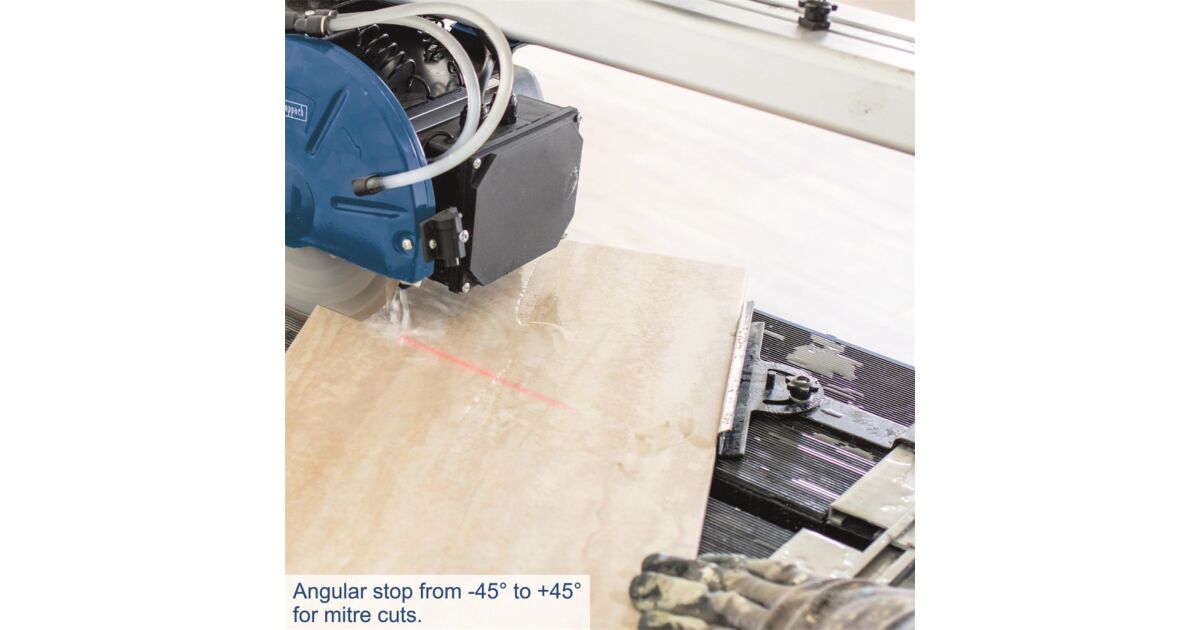

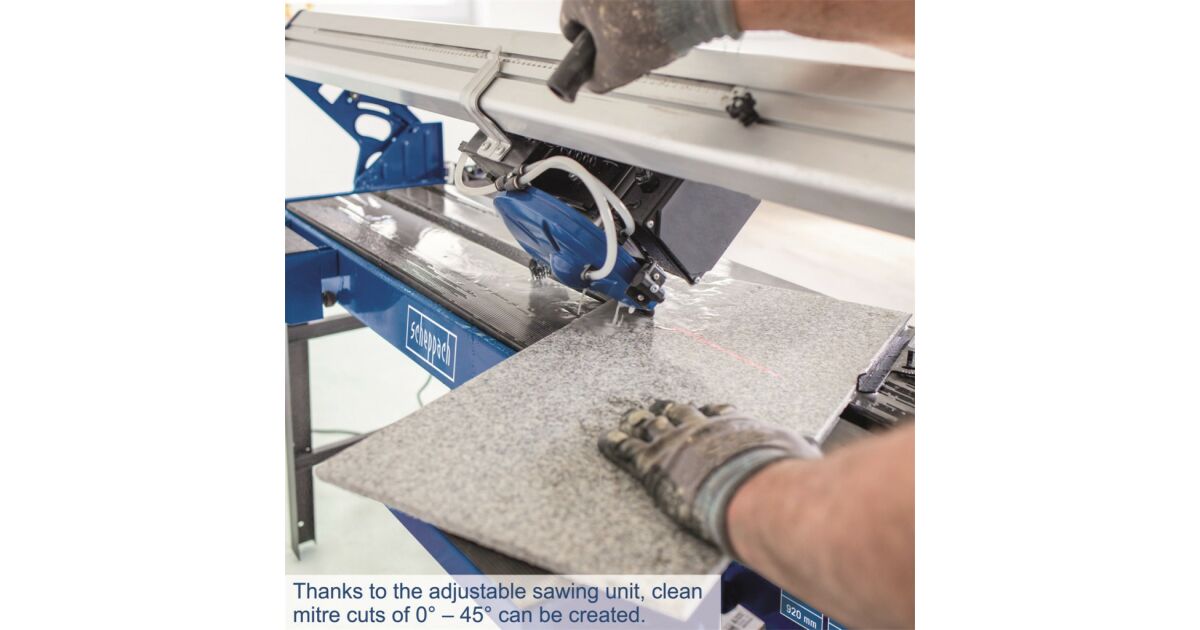

- Versatile: Angle and double angle cuts are possible.

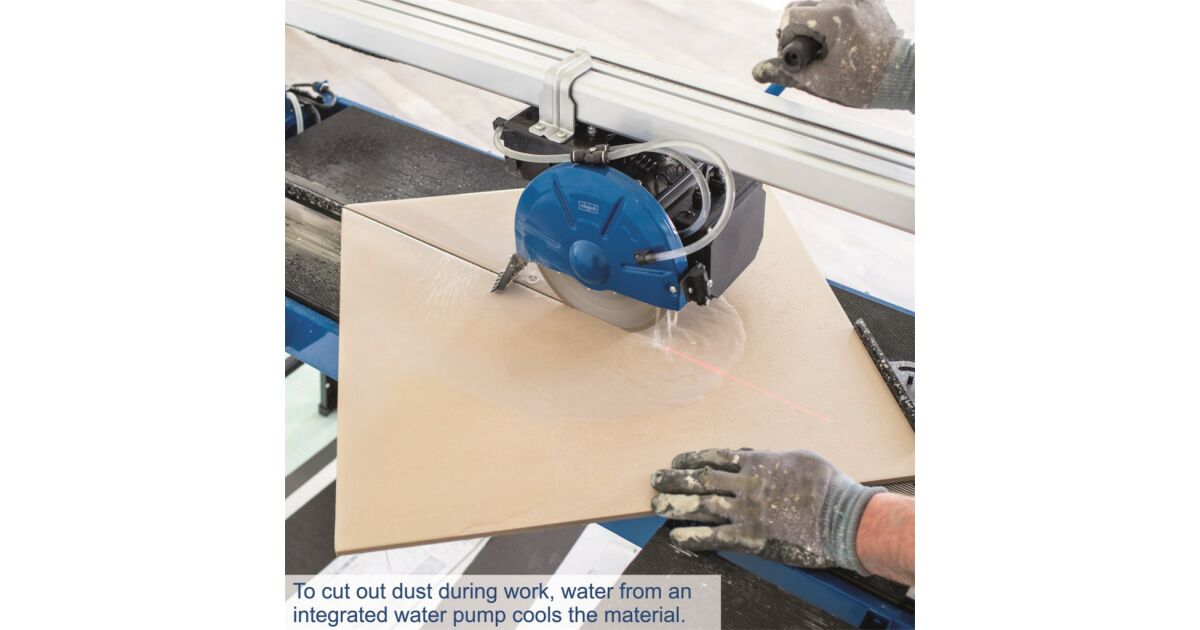

- Dust-Free Work: Integrated water pump and 30-liter water collection tray.
- Robust Design: Solid metal construction and foldable stand.
Technical Data:
| Feature | Value |
|---|---|
| Motor | 230 V / 50 Hz, induction |
| Power (W) | 900 |
| Speed (rpm) | 3000 |
| Saw Blade Diameter (mm) | 200 |
| Arbor Size (mm) | 25.4 |
| Cutting Disc Tilt (degrees) | 0-45 |
| Work Table Dimensions (mm) | 1290 x 400 |
| Cutting Depth at 90° (mm) | 36 |
| Cutting Depth at 45° (mm) | 29 |
| Max. Cutting Length (mm) | 920 |
| Max. Tile Size (mm) | 650 x 650 |
| Water Pump | Yes |
| Water Tank (l) | 30 |
| Weight (kg) | 50 |
| Dimensions (L x W x H) (mm) | 1560 x 1140 x 440 |
Easy to transport thanks to the wheels. The precise dimension scale, angle adjuster, and longitudinal stop aid in precise work. The machine features modern electrical shock protection.
Article number: 5906706901
