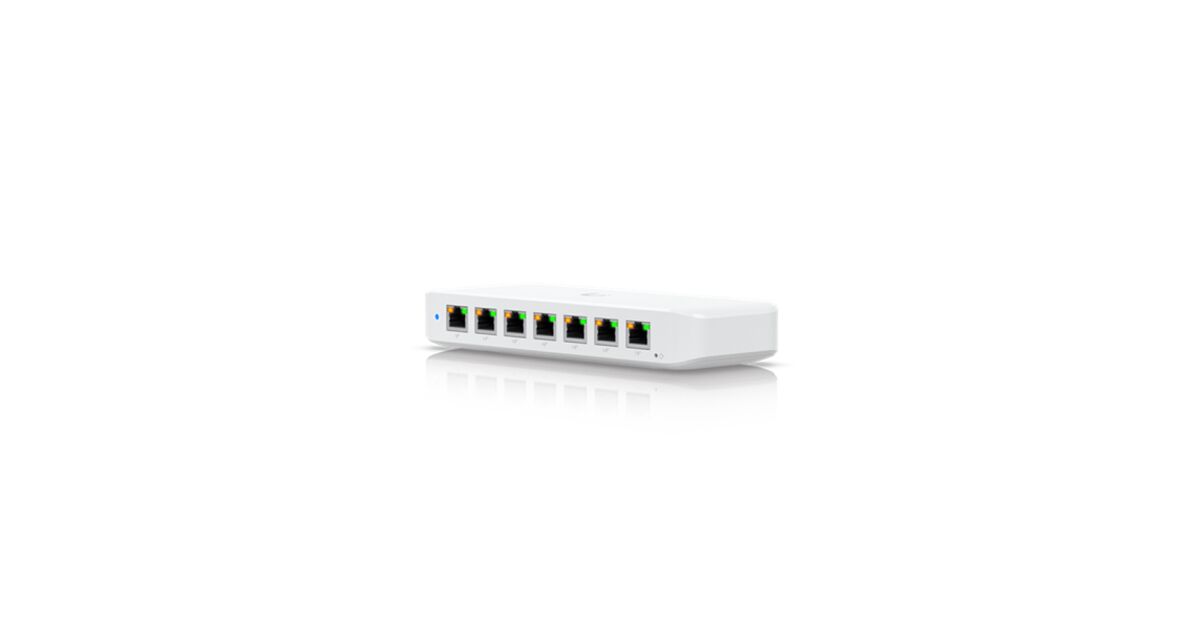

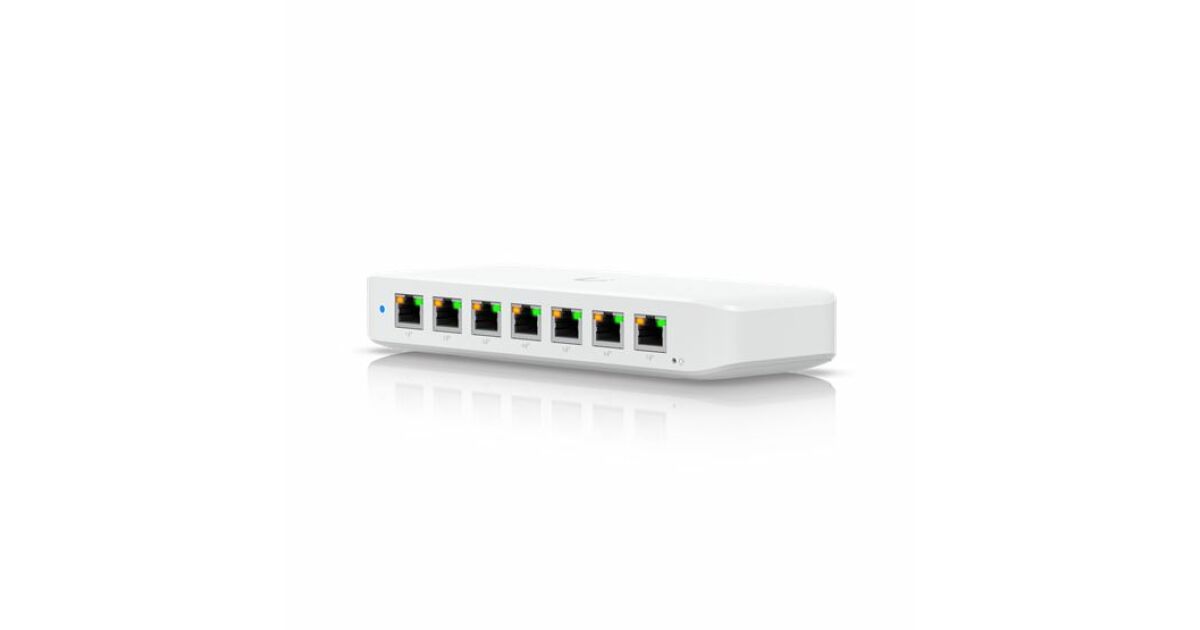

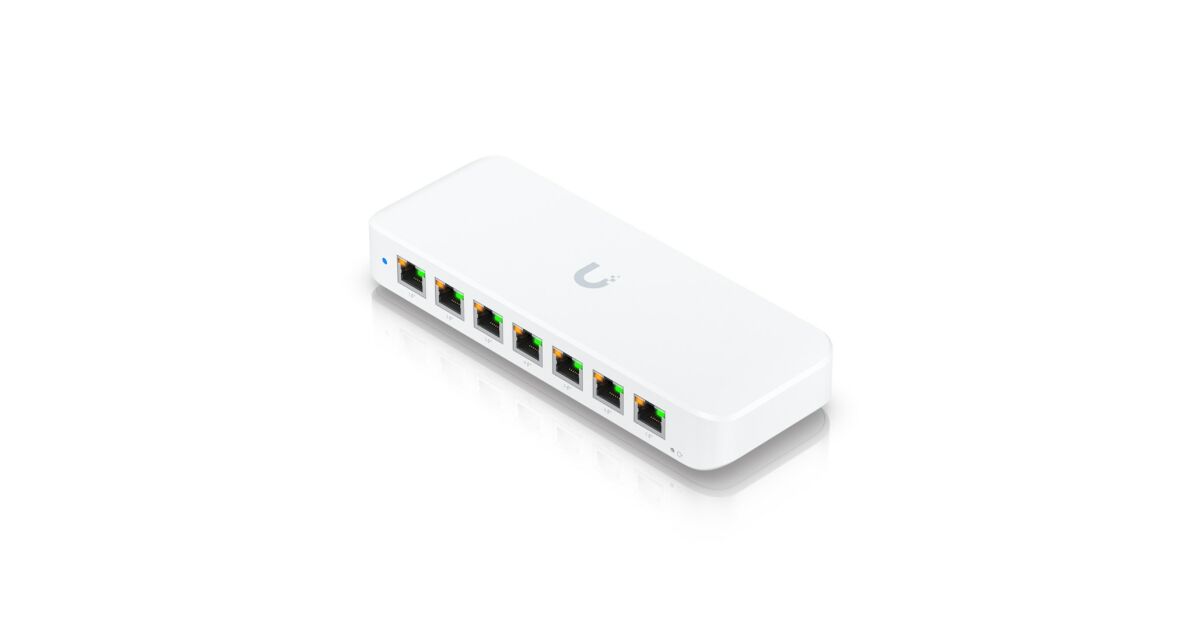

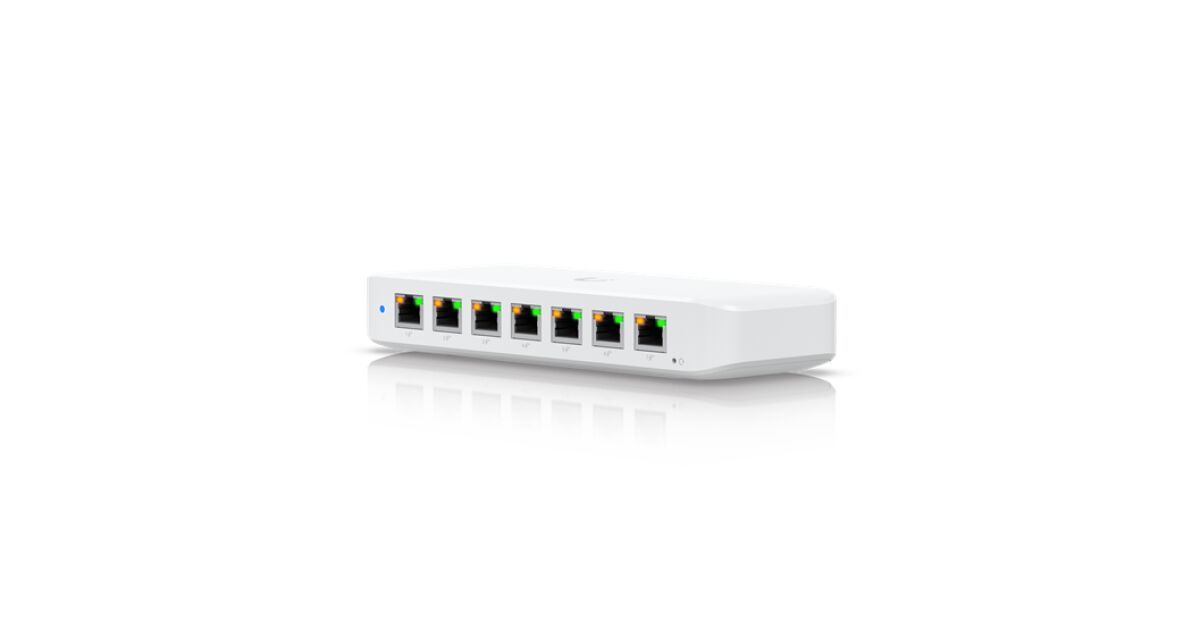

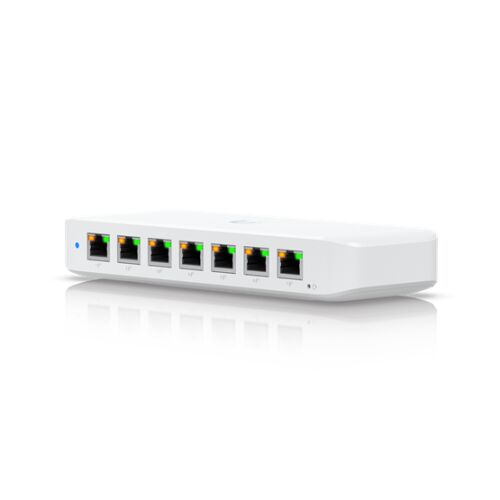

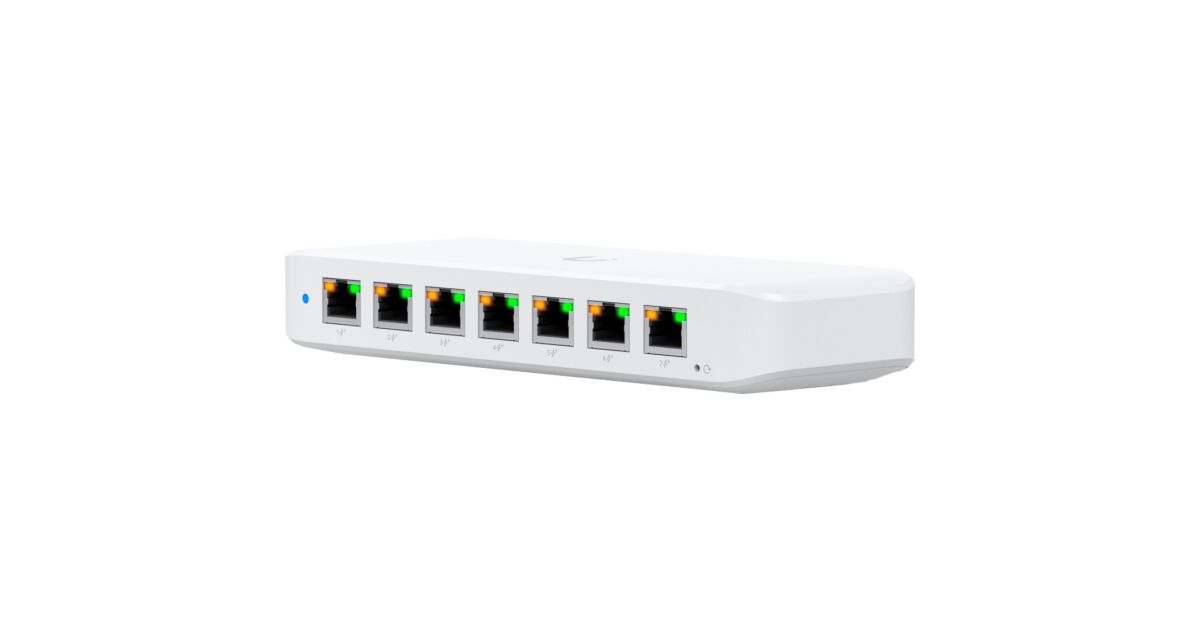

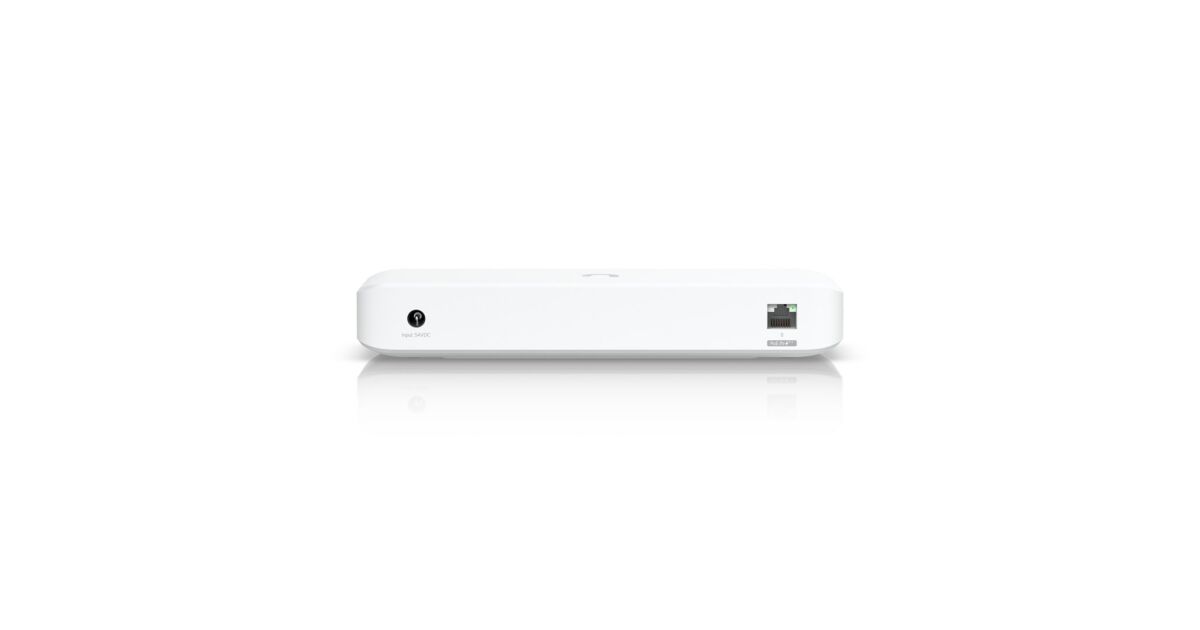

Ubiquiti UniFi USW-Ultra-60W 8xGbE LAN port 7x PoE+ (52W) L2 managed switch
Ubiquiti UniFi USW-Ultra-60W 8xGbE LAN port 7x PoE+ (52W) L2 managed switch
165,84 €
Distributor
Ubiquiti UniFi USW-Ultra-60W 8xGbE LAN port 7x PoE+ (52W) L2 managed switch description of
Specifications
Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")
Weight
Device: 320 g (11.3 ounces)

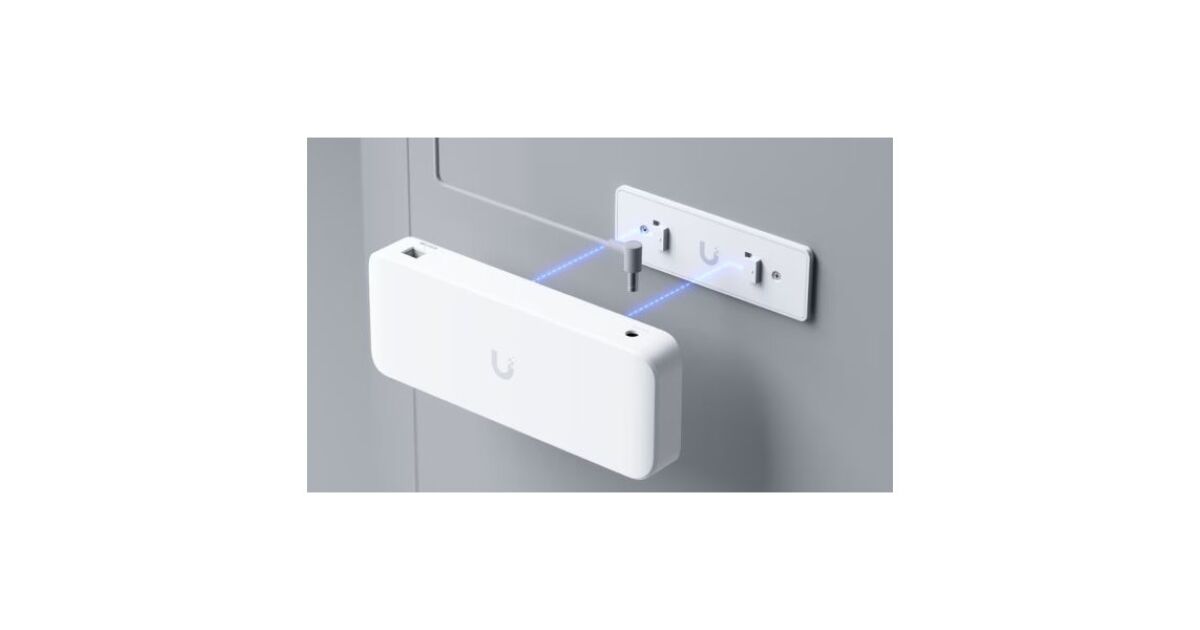

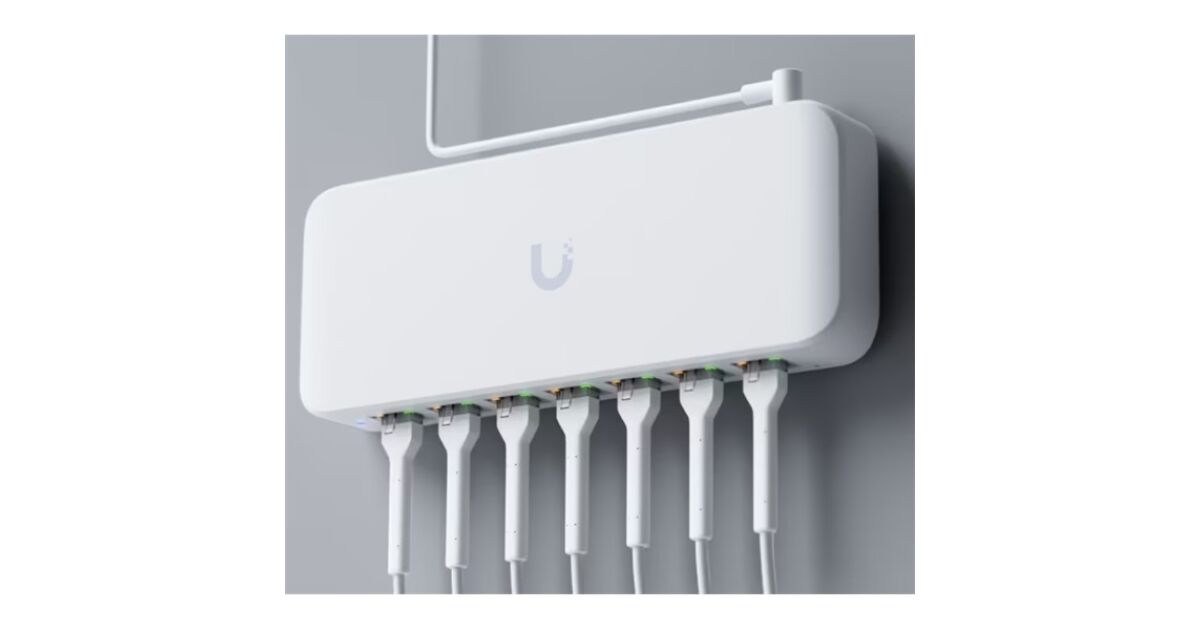

Wall mount: 45 g (1.6 ounces)
60W adapter: 330 g (11.6 ounces)
Enclosure material
Polycarbonate
Hardware
Interface
Ethernet in-Band
Network interface

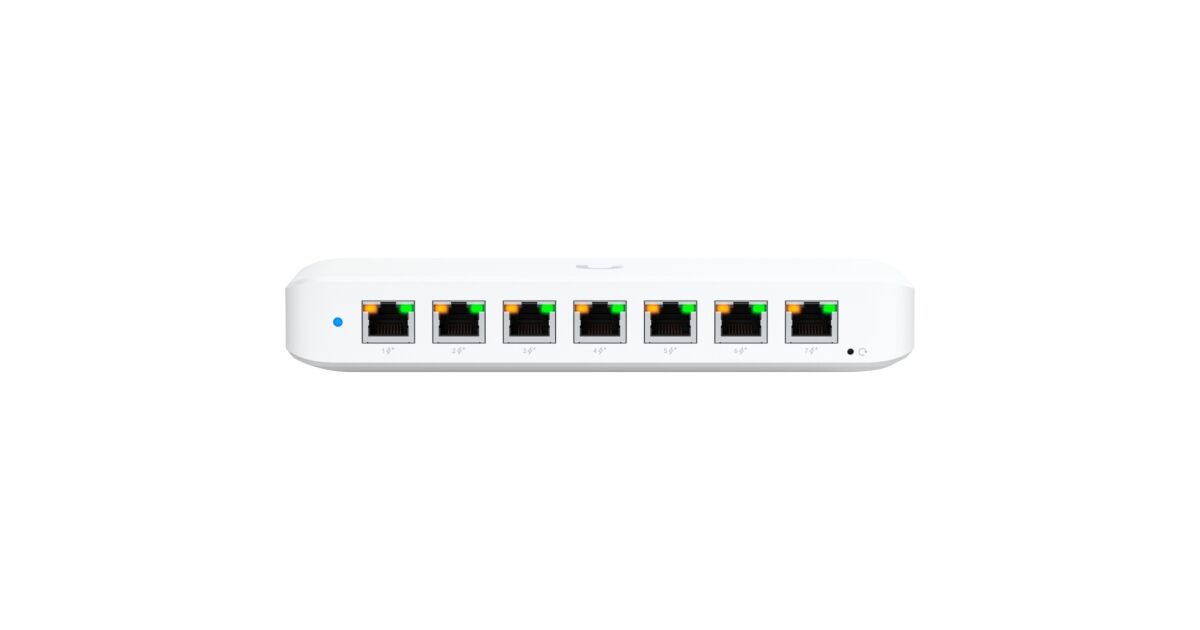

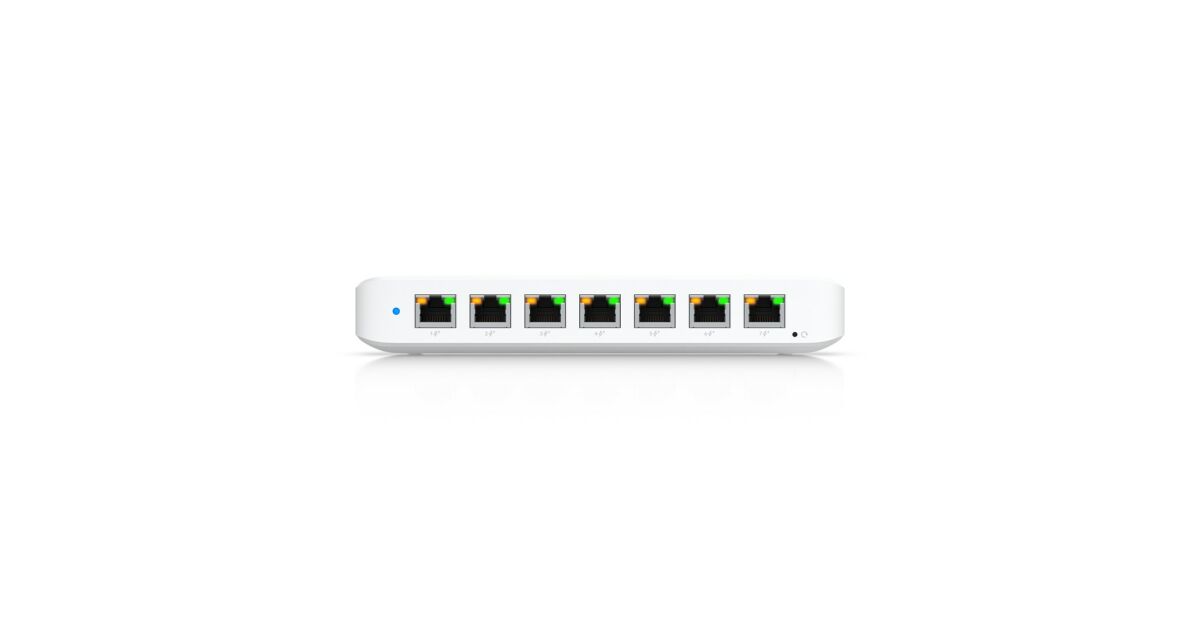

(8) GbE RJ45 ports
PoE interface
(7) PoE/PoE+ (1, 2+; 3, 6-)
Full non-blocked transmission
8 Gbps
Connection capacity
16 Gbps
Power supply

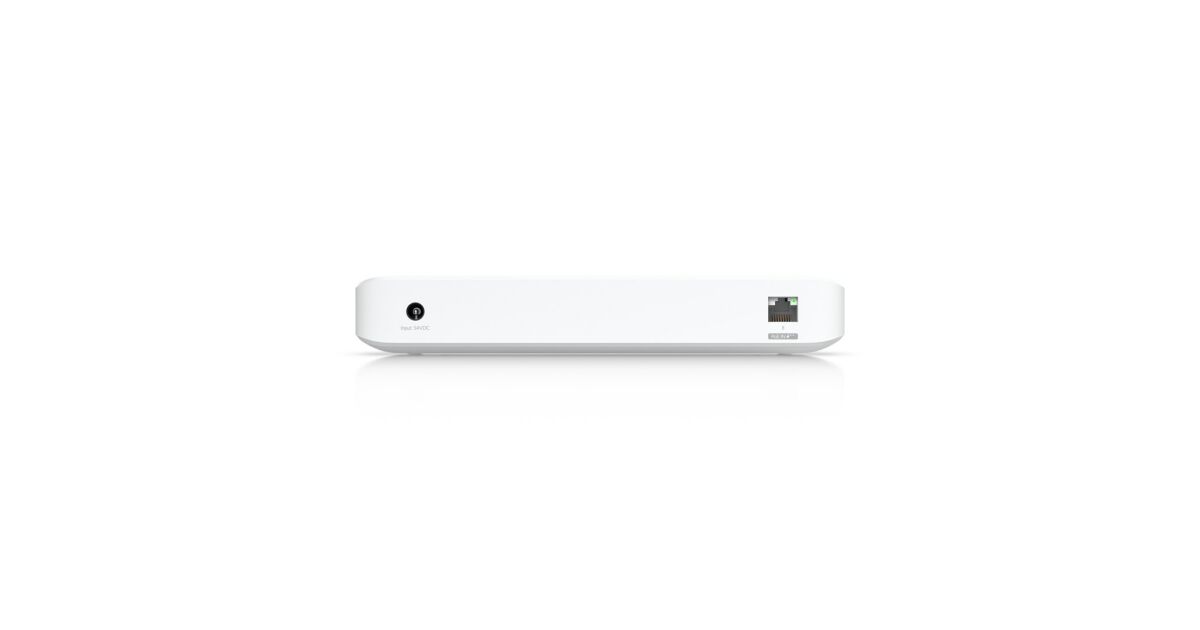

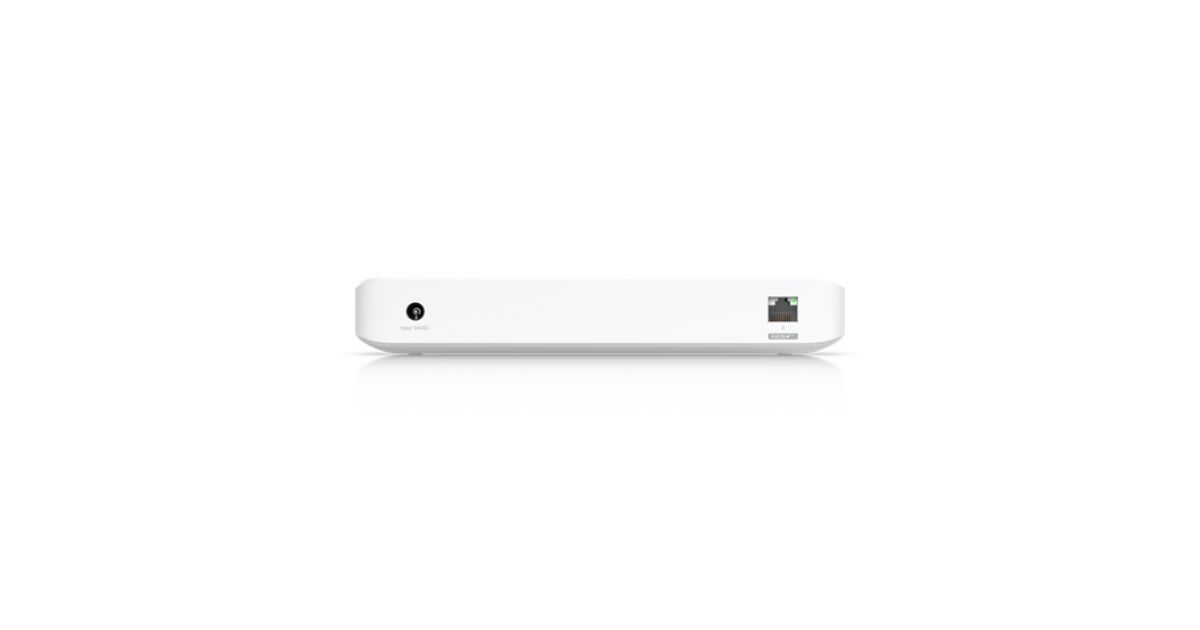

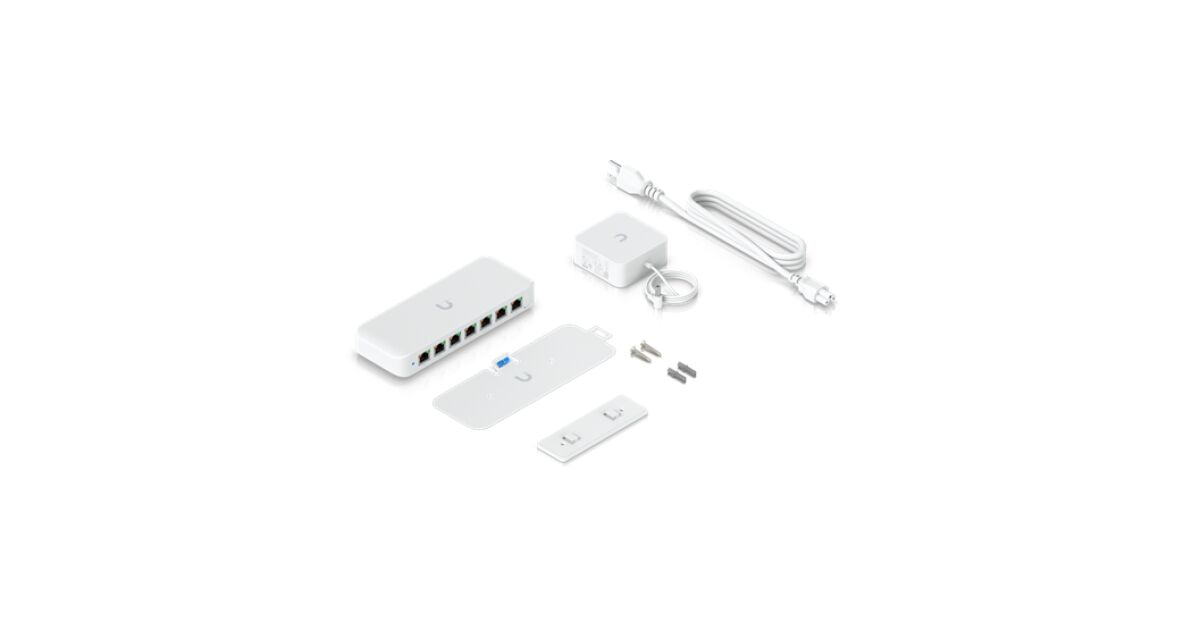

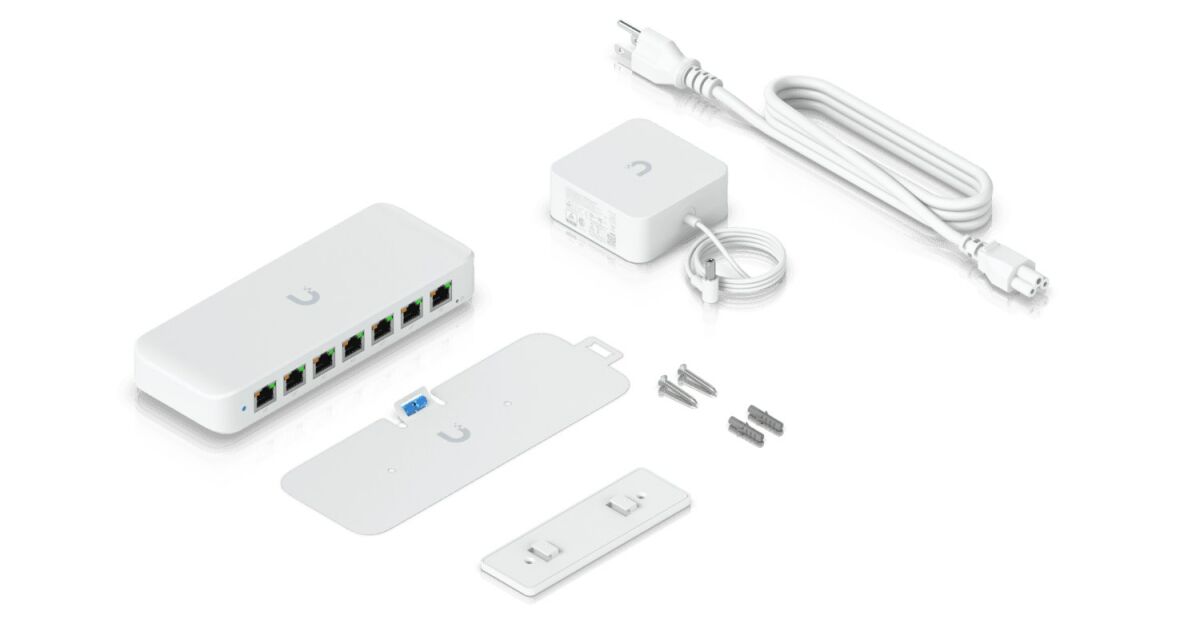

(1) 54 V, 1.1 A mains adapter (included)

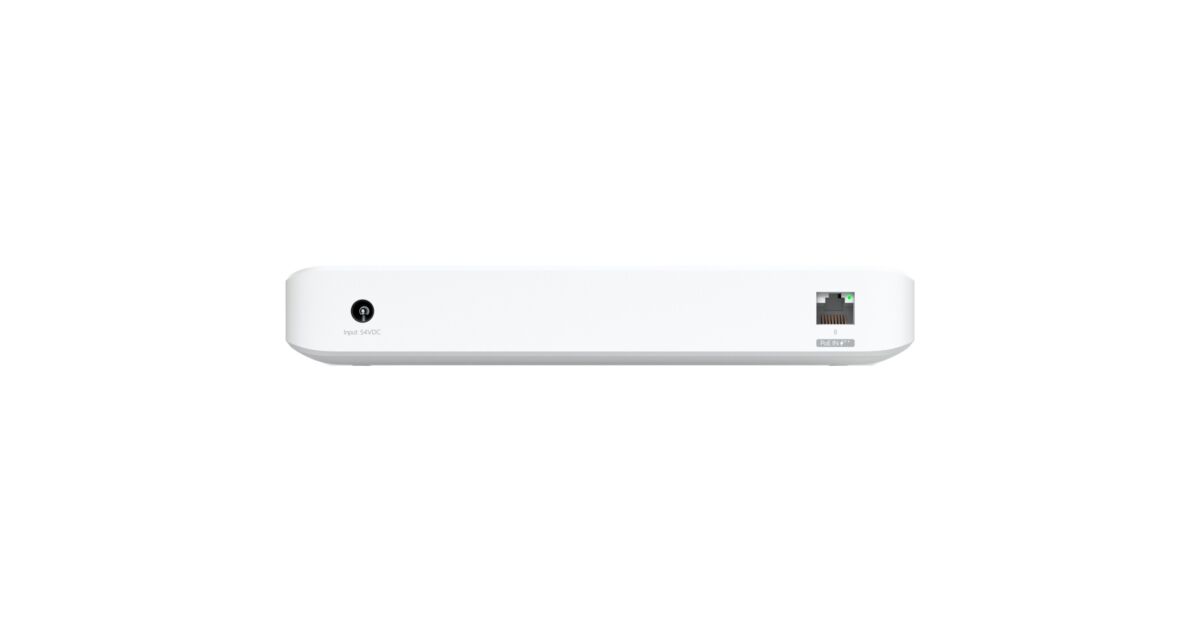

PoE++ (1, 2+; 3, 6- and 4, 5+; 7, 8-)
Power supply
54V, external, 1.1A/60W
Supported voltage range
44-57V DC
Max. power consumption
9 W with PoE input (excluding PoE output)
8 W with AC adapter input (excluding PoE output)
Total available PoE
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
* 45°C (113°F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60°C (140°F)
Max. PoE+ power per port by PSE
30W
Button
Reset to factory settings
Ambient operating temperature
PoE++ input: -30-60 °C (-22-140 °F)
60W AC adapter input: -20-45 °C (-4-113 °F)
210W AC adapter input: -20-60 °C (-4-140 °F)
Ambient humidity
10-90% non-condensing
Certificates
CE, FCC, IC
Connection functions
Layer 2 features
STP / RSTP with priority and port-level blocking
Isolation of ports
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Exit speed limit
Layer 3 features
-
Led
System
Status
Ethernet
PoE
connection/activity
Application requirements
UniFi Network
8.0.7 and later versions
Article number: USW-ULTRA-60W
