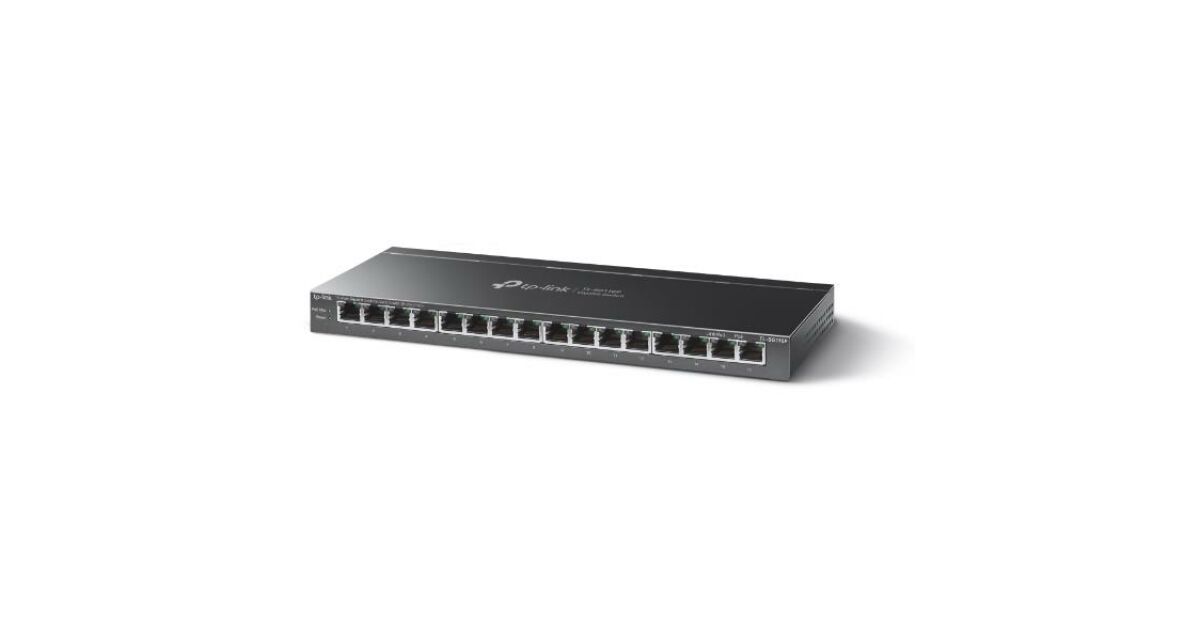

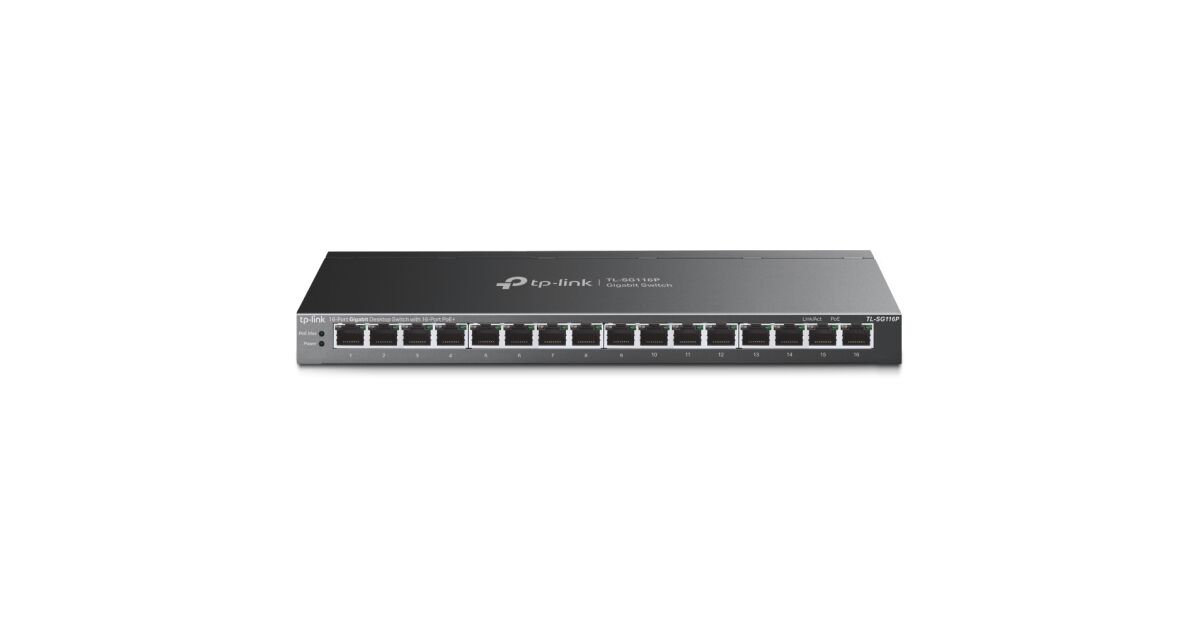

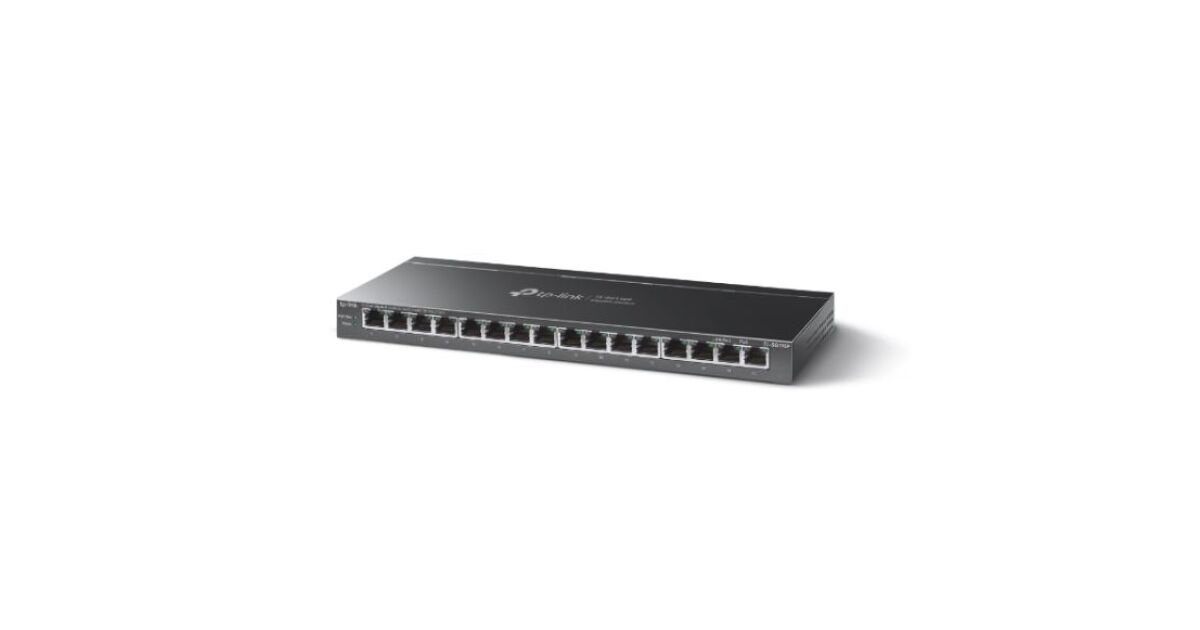

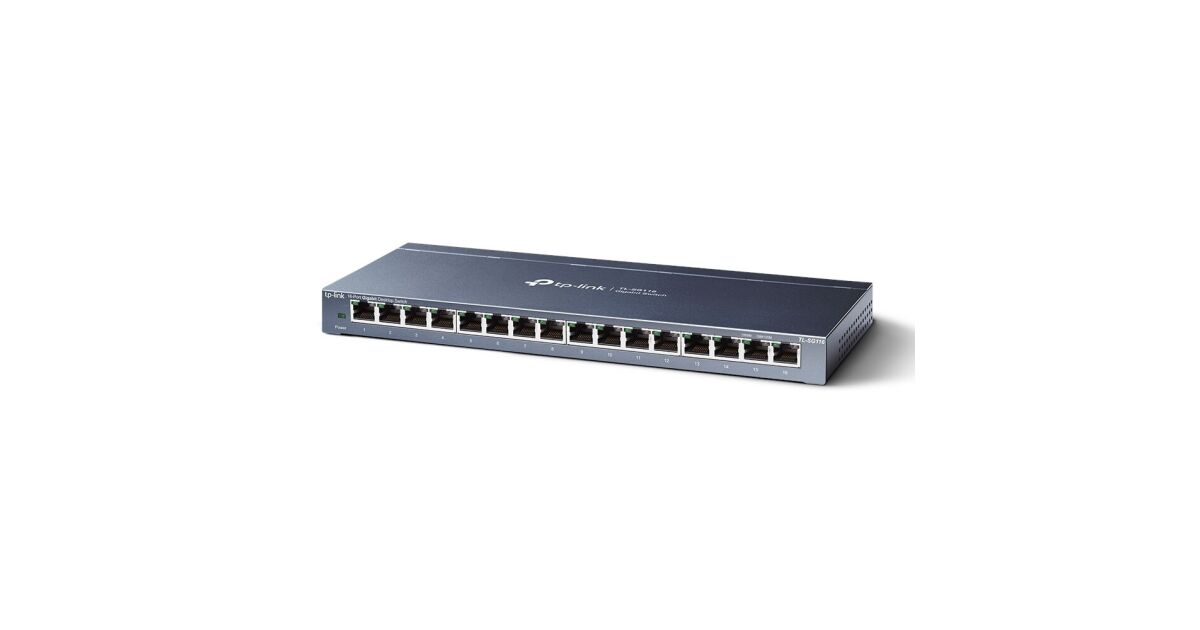

TP-Link 16 ports 1000Mbps POE+ switch (TL-SG116P) (TL-SG116P)
-
Out of stock
TP-Link 16 ports 1000Mbps POE+ switch (TL-SG116P) (TL-SG116P)
You missed it
Out of stock
140,99 €
Distributor
Be the first to know when the product is available to buy again! Subscribe!
TP-Link 16 ports 1000Mbps POE+ switch (TL-SG116P) (TL-SG116P) description of
| HARDWARE FEATURES | |
| Interface | - 16× 10/100/1000Mbps RJ45 ports - AUTO Negotiation - AUTO MDI/MDIX |
| Network Media | - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) - EIA/TIA-568 100Ω STP (maximum 100m) - 100BASE-TX: UTP category 5, 5e cable (maximum 100m) - EIA/TIA-568 100Ω STP (maximum 100m) - 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) - EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate | 23.8 Mpps |
| PoE Ports (RJ45) | - Standard: 802.3 af/at compliant - PoE Ports: Ports 1-16 - Power Supply: 120 W |
| Mac Address Table | 8K, Auto-learning, Auto-aging |
| Switching Capacity | 32 Gbps |
| Dimensions ( W x D x H ) | 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm) |
| Max power consumption | - 11.72 W (220 V / 50 Hz no PD connected) / 11.56 W (110 V / 60 Hz no PD connected) - 142.51 W (220 V / 50 Hz with 120 W* PD connected) / 144.28 W (110 V / 60 Hz with 120 W* PD connected) |
| Max heat dissipation | - 39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected) - 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected) |
| SOFTWARE FEATURES | |
| Advanced features | - Compatible With IEEE 802.3af/at Compliant PDs - Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission) - Priority Mode Button (Ports 1-4) - Isolation Mode Button (Ports 1-7 / 8-14) - PoE Auto Recovery (Ports 1-16) - Mac Address Auto-Learning And Auto-Aging - IEEE 802.3x Flow Control - 802.1p/DSCP QoS - IGMP Snooping |
| Transfer Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | - TL-SG116P - Power adapter - Installation Guide |
| Environment | - Operating Temperature: 0-40 ℃ (32-104 ℉); - Storage Temperature: -40-70 ℃ (-40-158 ℉) - Operating Humidity: 10-90% RH non-condensing - Storage Humidity: 5-90% RH non-condensing |
Article number: TL-SG116P
