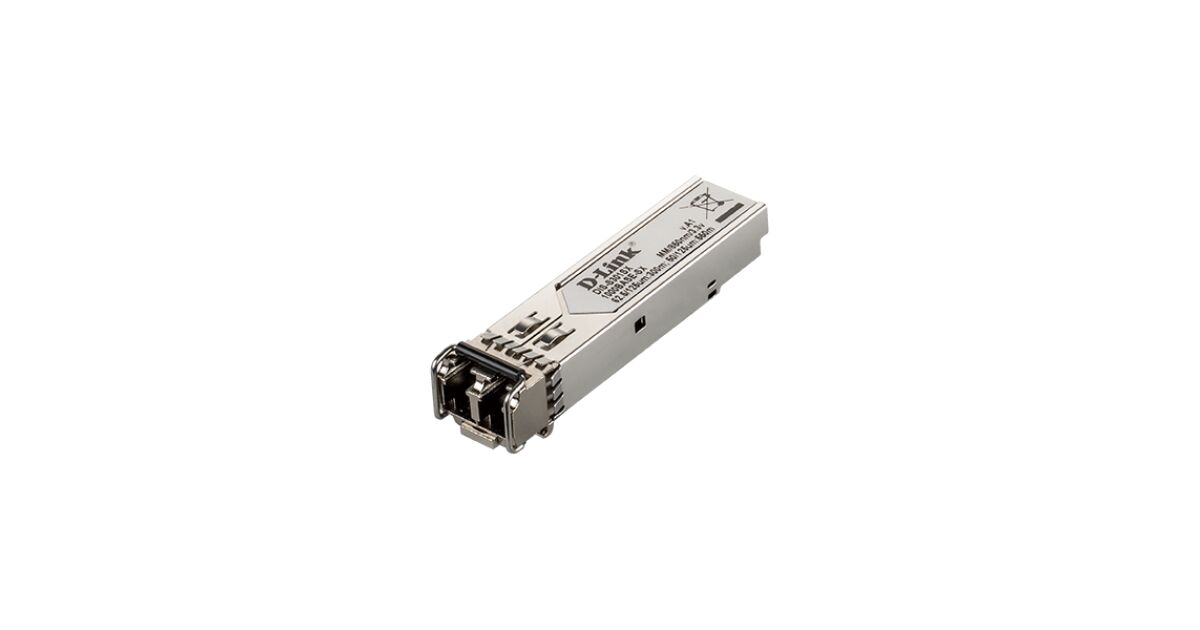

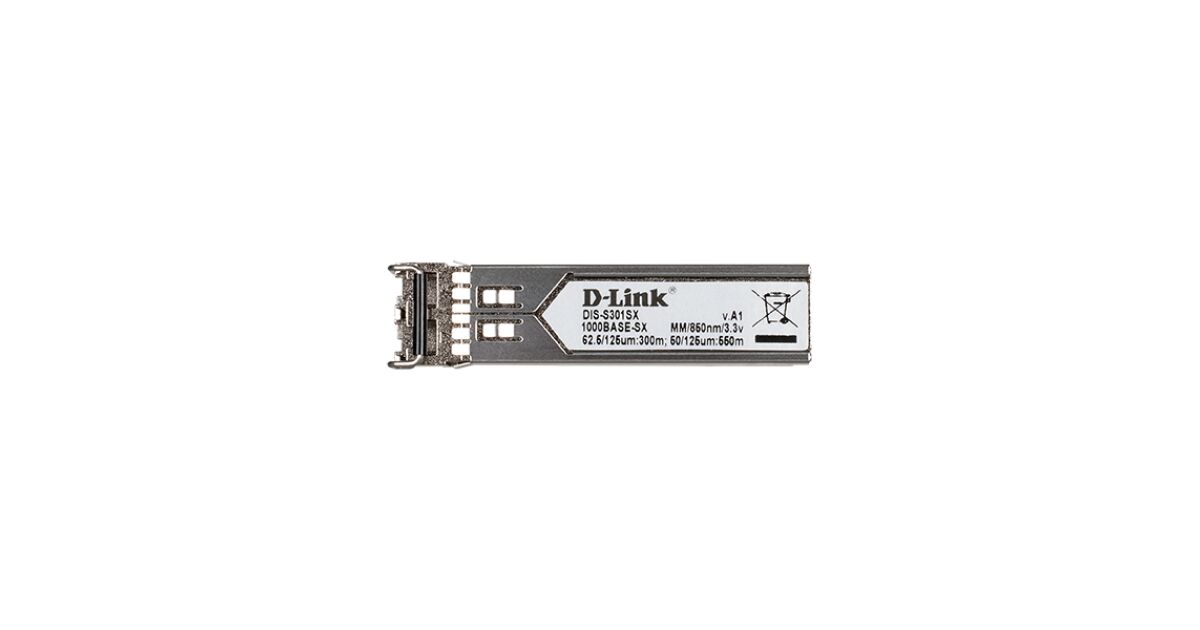

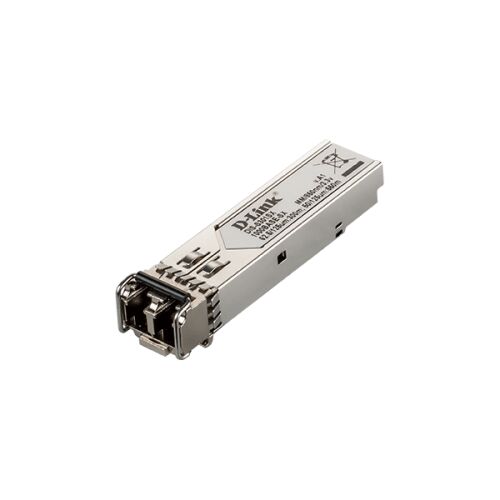

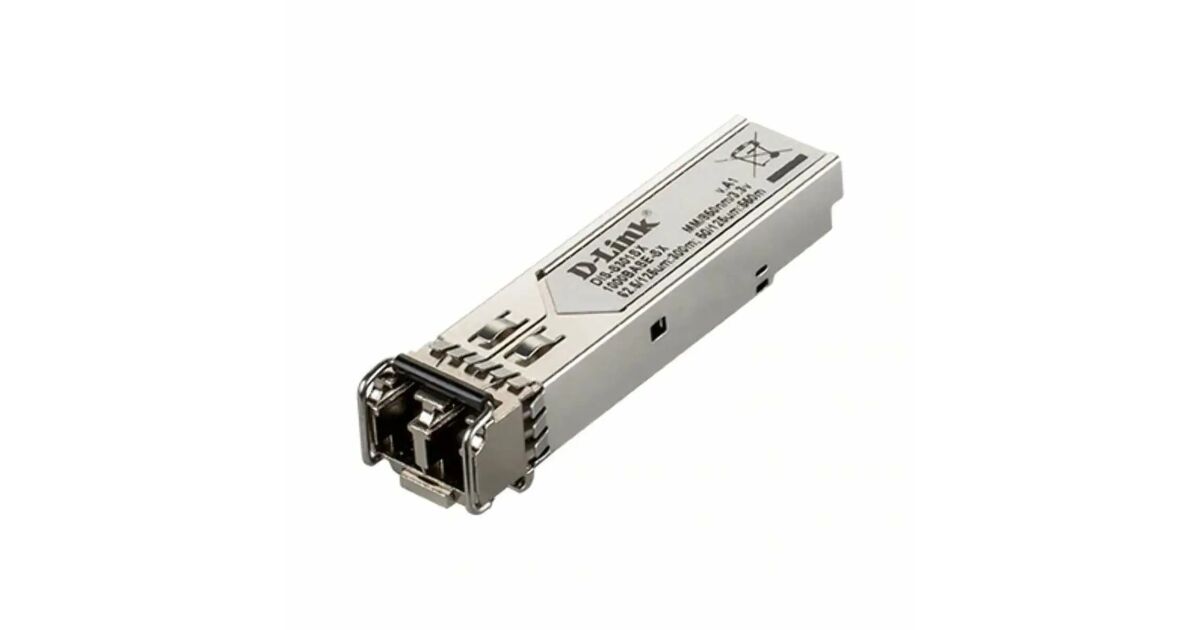

D-Link DIS?S301SX Fiber Optic 1000 Mbit/s mini-GBIC transceiver module

Features


Hot Pluggable
MSA Compliant
RoHS Compliant


Standard

Compliant Standard


IEEE802.3z
1000BASE-SX


Transceiver Type


SFP


Fiber Channel FC-PI standard


100-M6-SN-I/100-M5-SN-I


Fiber Media support


Multi-Mode


Distance


62.5/125um: 300m
50/125um: 550m


Speed


1.25Gbps


Interface

Connector


Duplex LC Connector


Single/bi Direction


Single-direction


Wavelength


850nm


Output Optical Power (TX Optical Power)


MAX: -3dBm
MIN: -8 dBm


Input Optical Power (RX Optical Power)


MAX: - 3 dBm
MIN: - 22 dBm


Sensitivity


-22dBm


Cable Type


Multi-mode 50/125um or 62.5/125um fibre


Operating

Power


3.3V


Max input current


300mA


Power Budget (MIN Power Budget)


14d B


MAX Power Budget


19d B


Heat generated


1.782kJ/h


MTBF (hours)


224,167 hours


Physical & Environment

Operation Temperature


-40~85?


Storage Temperature


-40~85?


Humidity (Operating)


5%~95%


Humidity (Storage)


5%~95%


Dimension ( W x D x H )


13.7 x 55.4 x 8.5mm


Weight(g)


20g


Bail latch colour


Black


Emission (EMI) and Safety Certifications

EMI


CE, FCC, VCCI


Safety


LVD, EN60825-1, EN 60825-2
