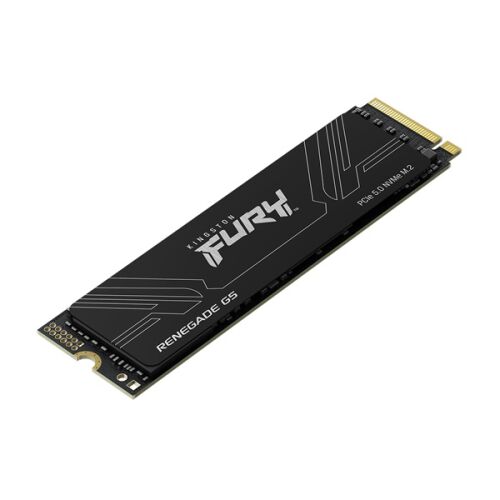

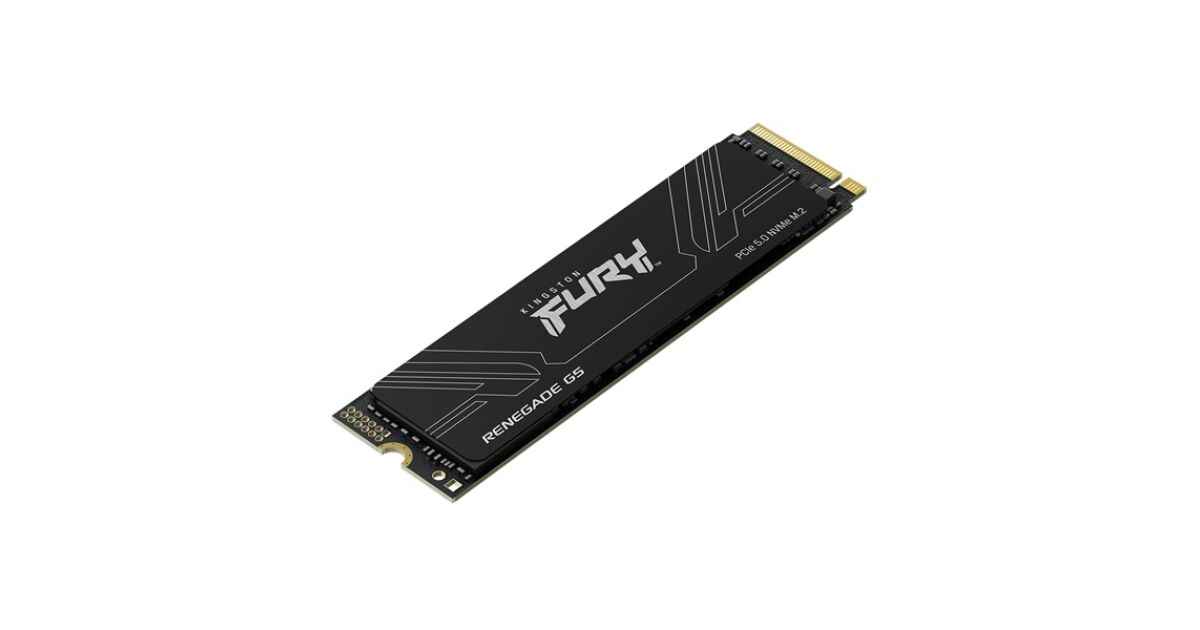

Kingston ssd m.2 pcie 5.0 nvme 1024gb fury renegade g5 SFYR2S/1T0

Form factor
M.2 2280


Interface
PCIe 5.0 x4 NVMe


Capacities2
1024GB, 2048GB, 4096GB


Controller
SM2508


NAND
3D TLC


DRAM cache
Yes


DirectStorage supported
Yes


Sequential read/write1
1024GB - up to 14,200/11,000MB/s

2048GB - up to 14,700/14,000MB/s

4096GB - up to 14,800/14,000MB/s


Random 4K read/write1
1024GB - up to 2,200,000/2,150,000 IOPS

2048GB - 4096GB - up to 2,200,000/2,200,000 IOPS


Endurance (total bytes written)3
1024GB - 1.0PB

2048GB - 2.0PB

4096GB - 4.0PB


Power consumption4
1024GB - 0.27W avg / 6.6W @ 14.2G / 6.6W (MAX)

2048GB - 0.27W avg / 7.0W @ 14.7G / 7.0W (MAX)

4096GB - 0.27W avg / 7.1W @ 14.8G / 9.5W (MAX)


Storage temperature
-40°C~85°C


Operating temperature
0°C~70°C


Dimensions
80mm x 22mm x 2.3mm


Weight
1024GB - 7.3g

2048GB-4096GB - 7.7g


Vibration operating
2.17G peak (7-800Hz)


Vibration non-operating
20G peak (20-1000Hz)


MTBF
2,000,000 hours


Warranty/Support5
Limited 5-year warranty with free technical support
