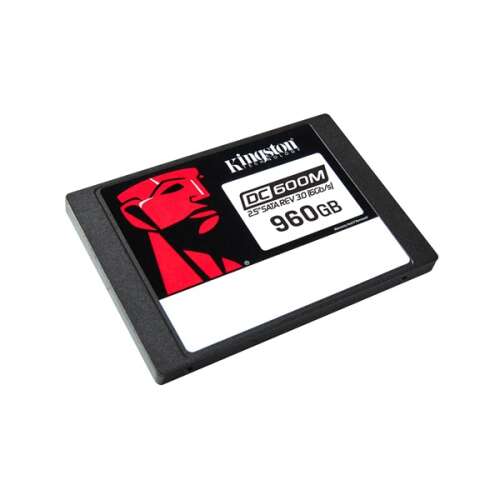

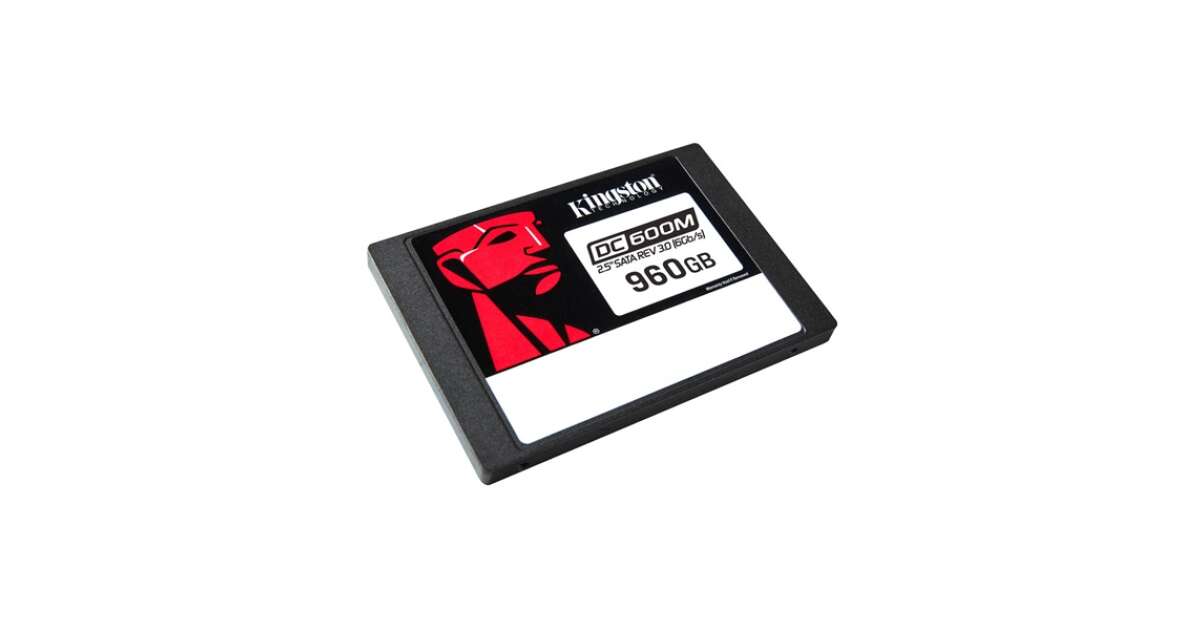

Kingston ssd 2.5" sata3 960gb dc600m (mixed-use) enterprise SEDC600M/960G

Form factor
2.5"


Interface
SATA Rev. 3.0 (6Gb/s) - with backwards compatibility to SATA Rev. 2.0 (3Gb/s)


Capacities1
480GB, 960GB, 1920GB, 3840GB, 7680G


NAND
3D TLC


Self-Encrypting Drive (SED)
AES 256-bit encryption


Sequential Read/Write
480GB - 560MBs/470MBs

960GB - 560MBs/530MBs

1920GB - 560MBs/530MBs

3840GB - 560MBs/530MBs

7680GB - 560MBs/530MBs


Steady-state 4k random read/write
480GB - 94,000/41,000 IOPS

960GB - 94,000/65,000 IOPS

1920GB - 94,000/78,000 IOPS

3840GB - 94,000/59,000 IOPS

7680GB - 94,000/34,000 IOPS


Quality of service (latency)3,4,5(99.999)
Read/Write

480GB - 180/110 uSec

960GB - 3840GB - 200/300 uSec

7680GB - 240/170 uSec


Typical latency - read/write
<200 µs / <30 us3,4,5


Hot-plug capable



Static and dynamic wear levelling



Enterprise SMART tools
Reliability tracking, usage statistics, life remaining, wear levelling, temperature


Hardware-based power loss protection



Endurance
480GB - 876TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7

960GB - 1752TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7

1920GB - 3504TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7

3840GB - 7008TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7 7

7680GB - 14016TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7


Power consumption
Idle: 1.30W

Average: 1.45W

Max read: 1.6W

Max write: 3.6W


Storage temperature
-40? ~ 85?


Operating temperature
0? ~ 70?


Dimensions
69.9mm x 100mm x 7mm


Weight
92.34g


Vibration operating
2.17G Peak (7-800Hz)


Vibration non-operating
20G peak (10-2000Hz)


MTBF
2 million hours


Warranty/support
Limited 5-year warranty with free technical support8
