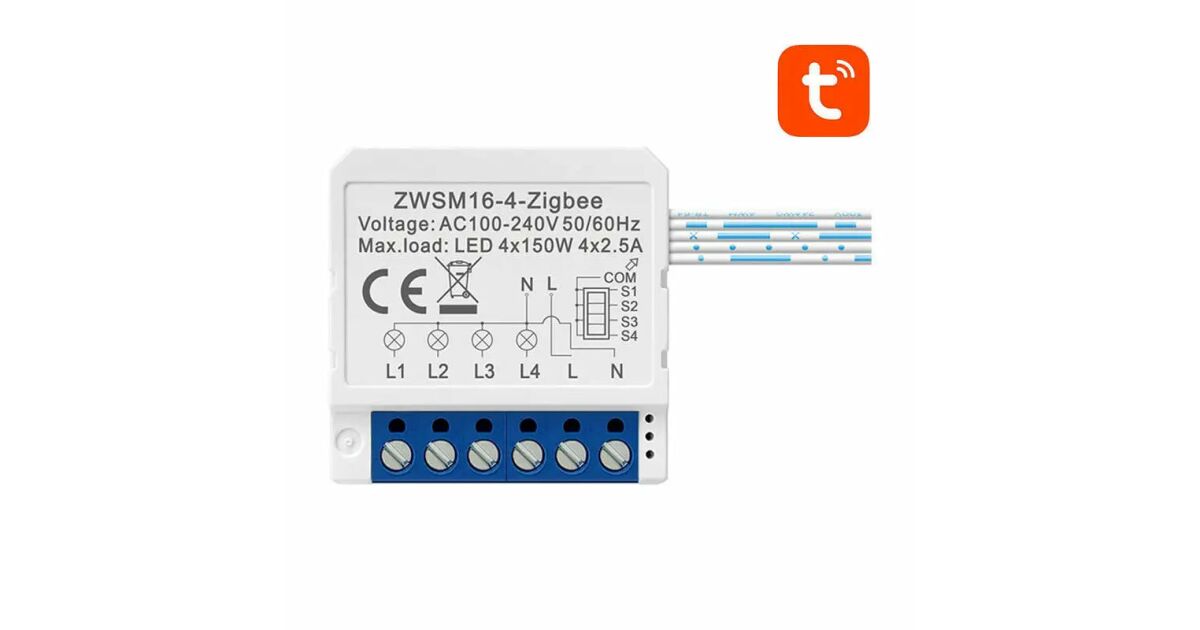

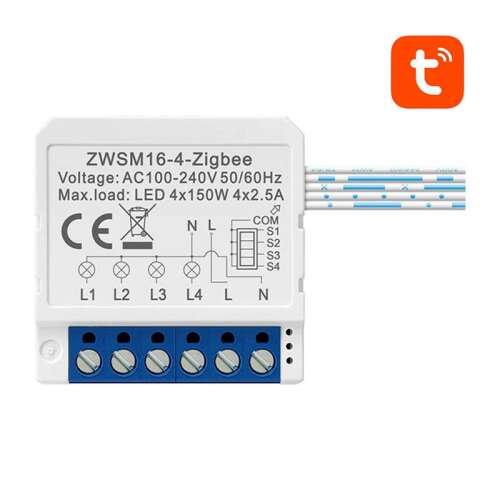

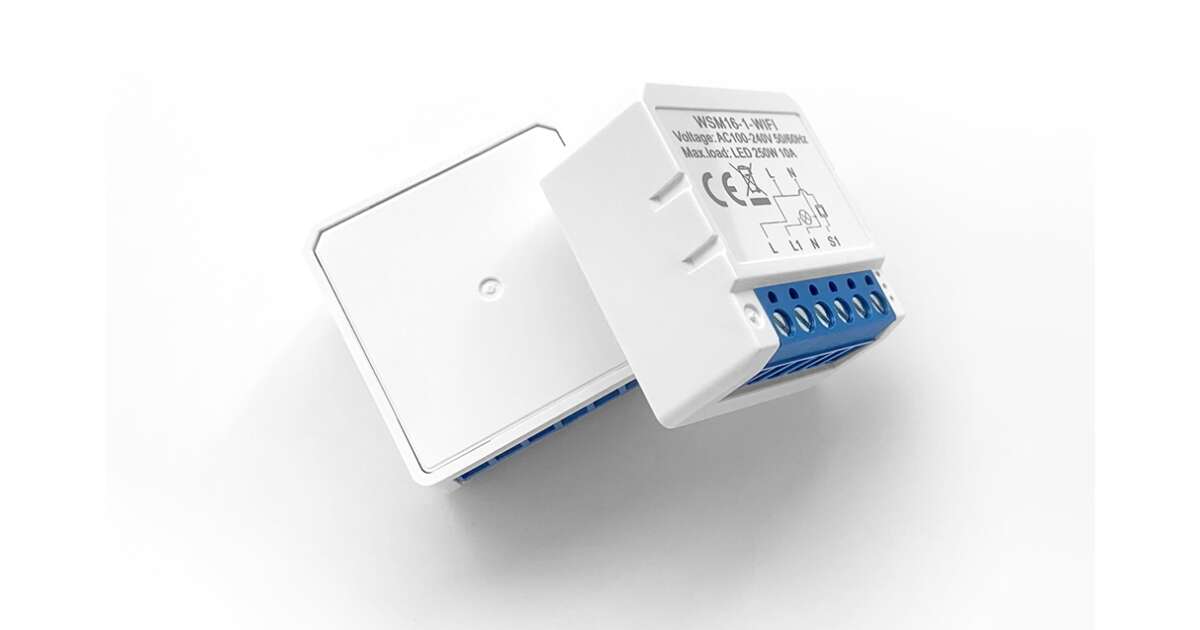

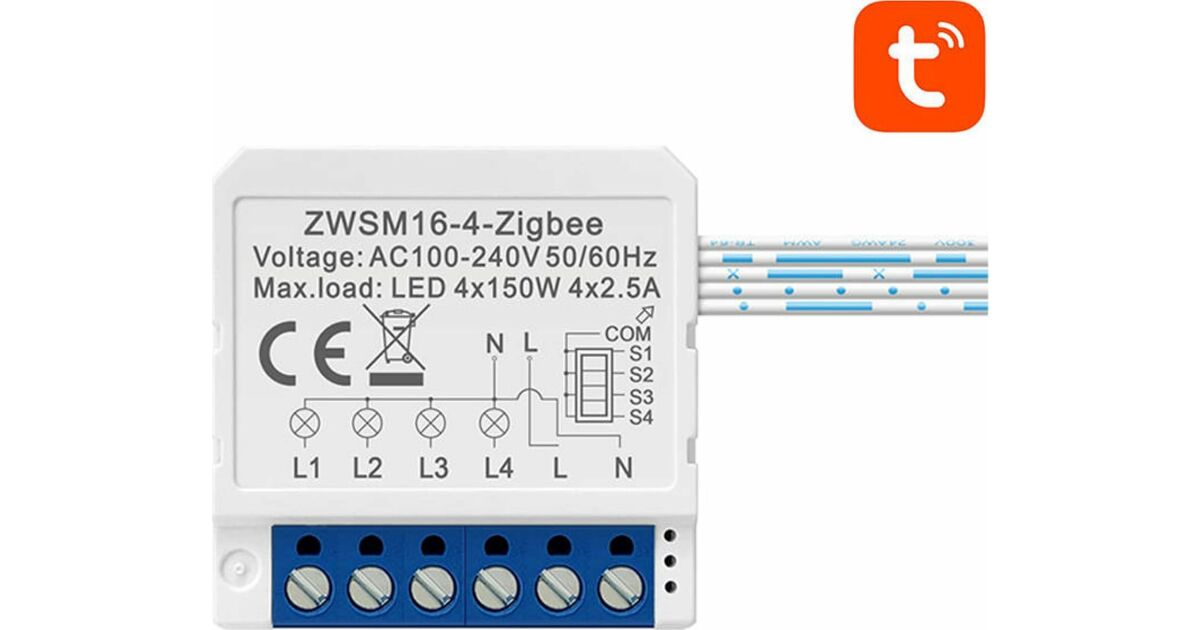

Smart Switch Module ZigBee Avatto ZWSM16-W4 TUYA
Smart Switch Module ZigBee Avatto ZWSM16-W4 TUYA description of
Avatto 4-Channel Smart Switch Module: For Your Smart Home 💡
Easily control your home lighting with this handy Avatto 4-channel smart switch module! You can control your lights remotely using the TUYA/Smart Life app or with voice control (Google Assistant, Amazon Alexa) 🗣️. You can also set timers, schedules, and automations. Its compact size and easy installation make it an ideal choice. It uses the ZigBee 3.0 protocol; a ZigBee gateway is required for operation (sold separately).
App Features:
- Remote Control: Turn lights on or off from anywhere using your phone! 📱
- Group Control: Control multiple switches simultaneously.
- Sharing: Share the device with other family members! 👨👩👧👦
- Latch Function: Special features for safer use.
Additional Features:
- Timer and Scheduling: Set automatic on/off times to fit your daily routine! ⏰
- Automation: Connect it with other devices for your smart home! 🏡
- Power Failure Restoration: The switch remembers the last settings.
Easy Installation:
- Compact Size: Compatible with many switch types, fits in most junction boxes (95%).
- Light Fixture Mounting: Easily attached to a light fixture.
- Dual Switch Use: A single light can be controlled by two switches (e.g., in a stairwell).
Voice Control:
- Compatible with Amazon Alexa and Google Assistant: Control your lighting with simple voice commands! ✨
Technical Specifications:
| Property | Value |
|---|---|
| Color | White |
| Number of Channels | 4 |
| Voltage | AC 100-240 V 50/60 Hz |
| Max. Load Capacity | LED 4 x 150 W / 4 x 2.5 A |
| Operating Frequency | 2.405-2.480 GHz IEEE 802.15.4 |
| Operating Temperature | -10°C to 40°C |
| Communication Protocol | ZigBee 3.0 |
| Range | Up to 100 m |
| Dimensions | 39 x 39 x 20 mm |
| Protection Class | IP20 |
| App | TUYA / Smart Life |
| Compatibility | Amazon Alexa, Google Home |
Article number: ZWSM16-W4
