Shelly sensor adapter for shelly plus smart relay, to connect other sensors - shelly plus add-on SHELLY PLUS ADD-ON
Shelly sensor adapter for shelly plus smart relay, to connect other sensors - shelly plus add-on SHELLY PLUS ADD-ON
29,06 €
Distributor
Shelly sensor adapter for shelly plus smart relay, to connect other sensors - shelly plus add-on SHELLY PLUS ADD-ON description of

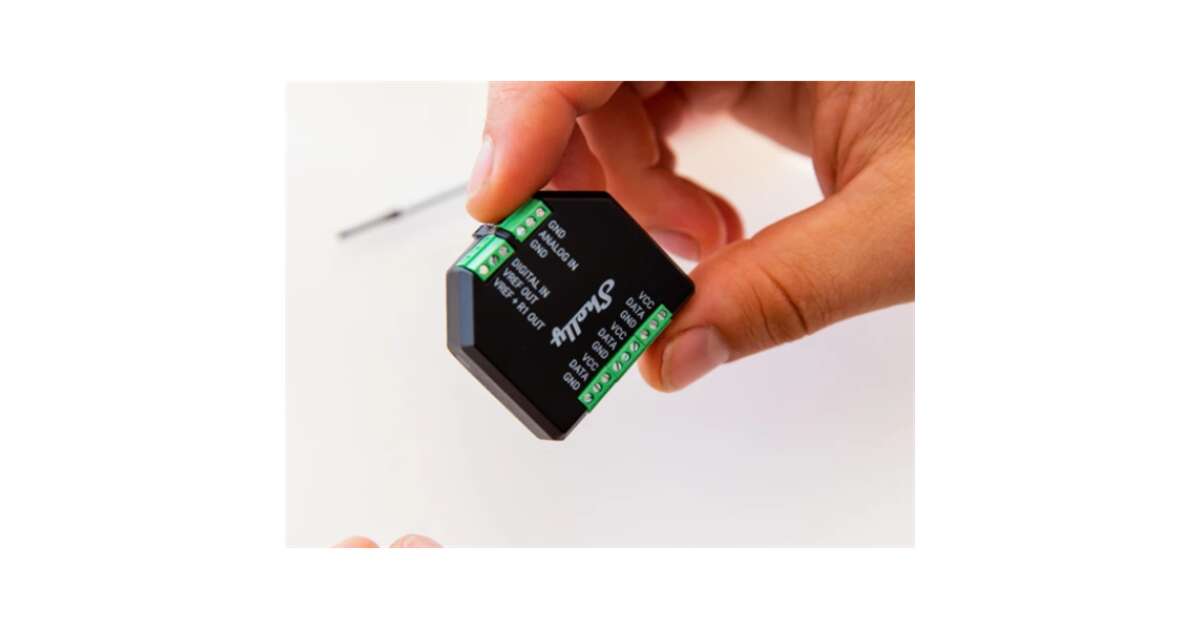

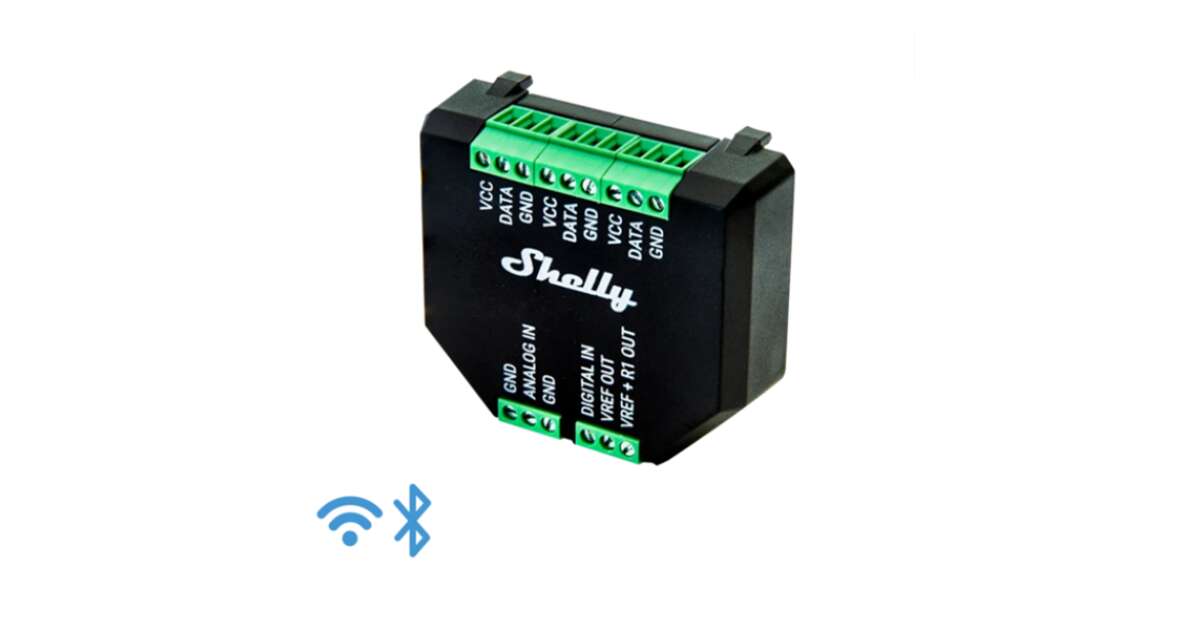

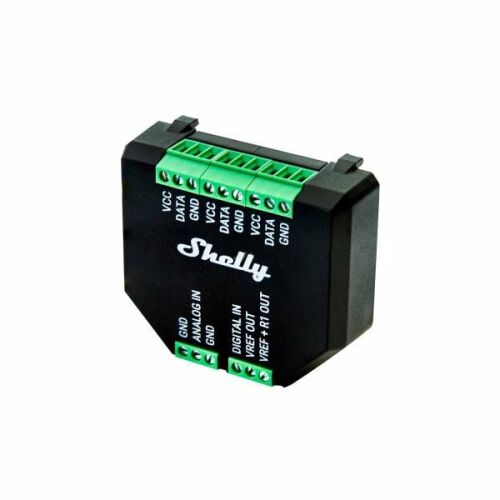

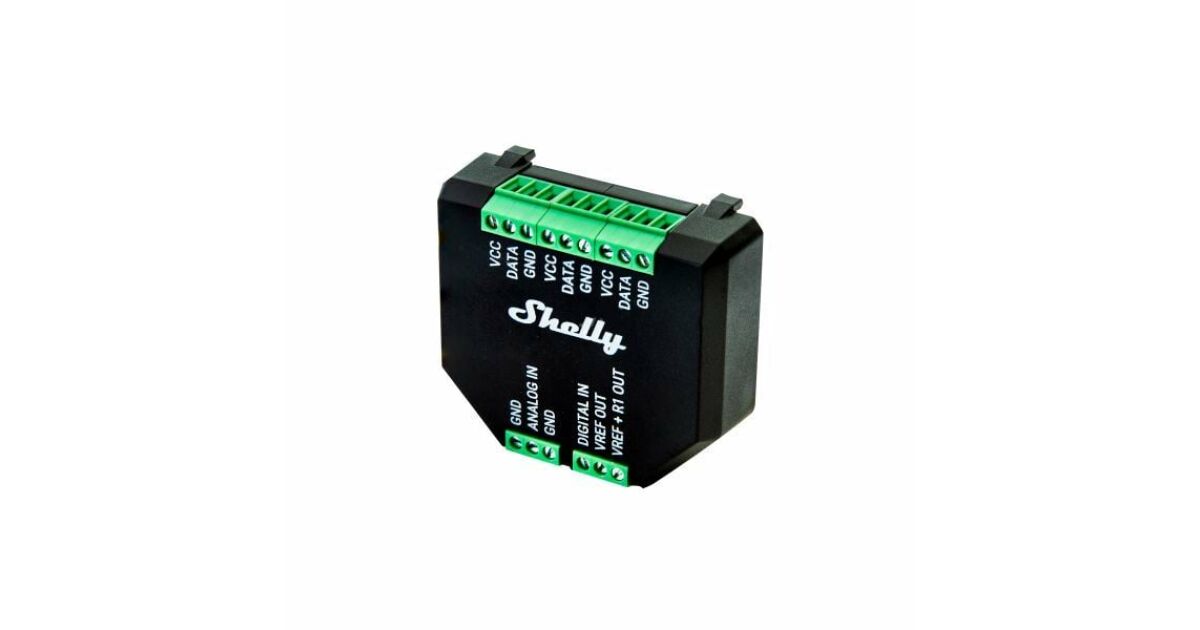

Shelly Plus Sensor Adapter: Expand your smart home with sensors! 🏡

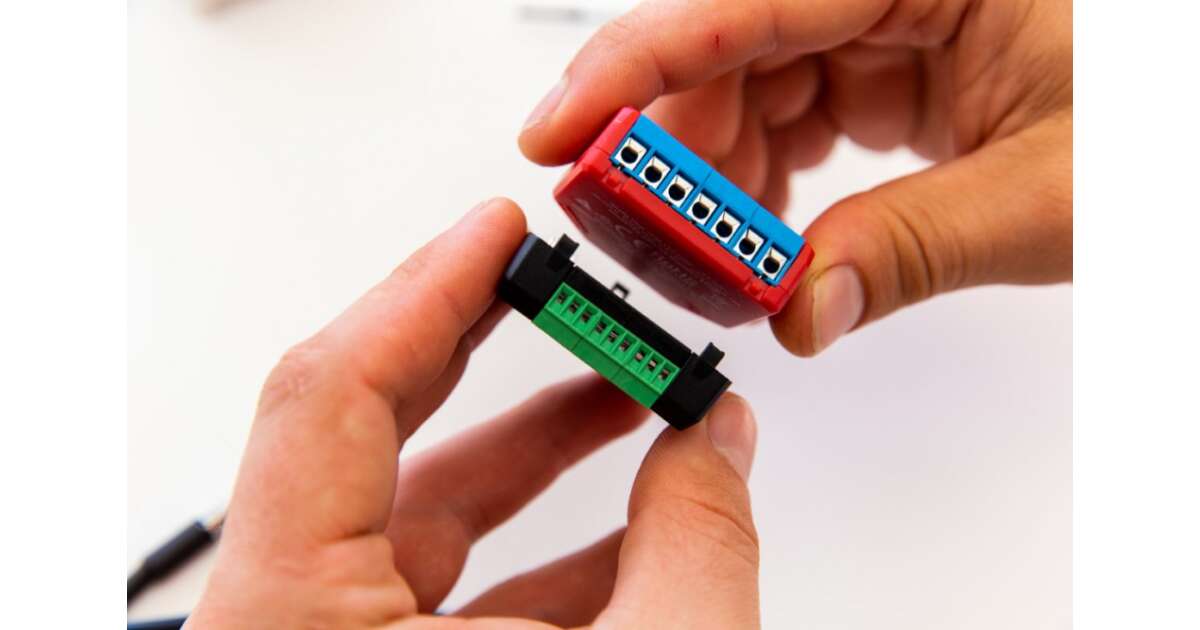

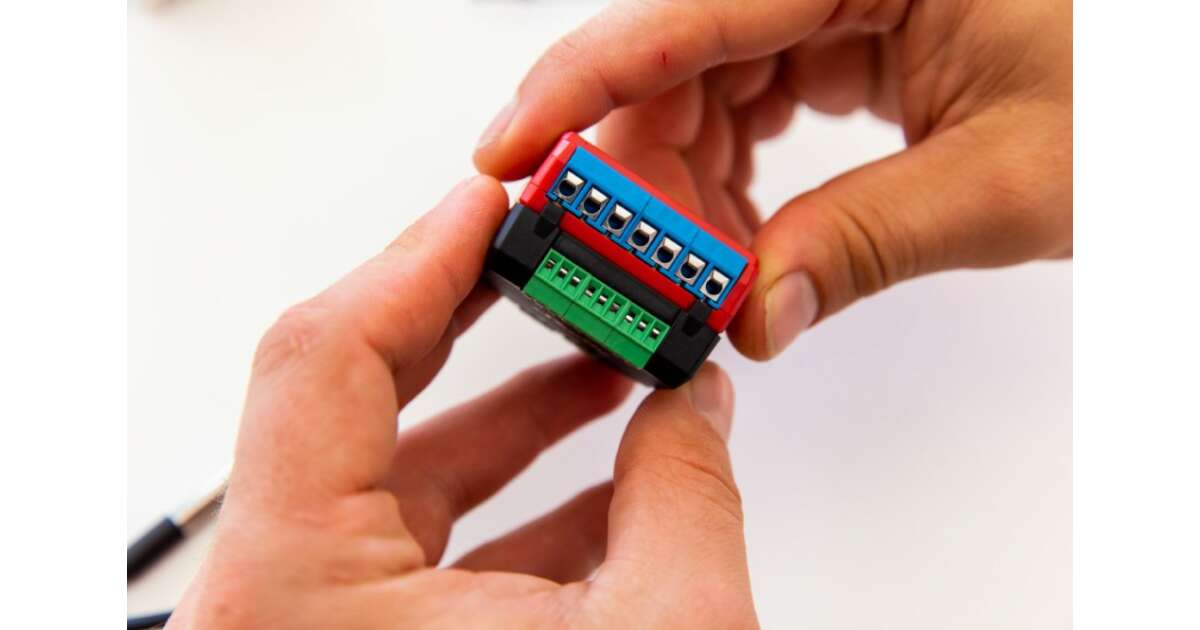

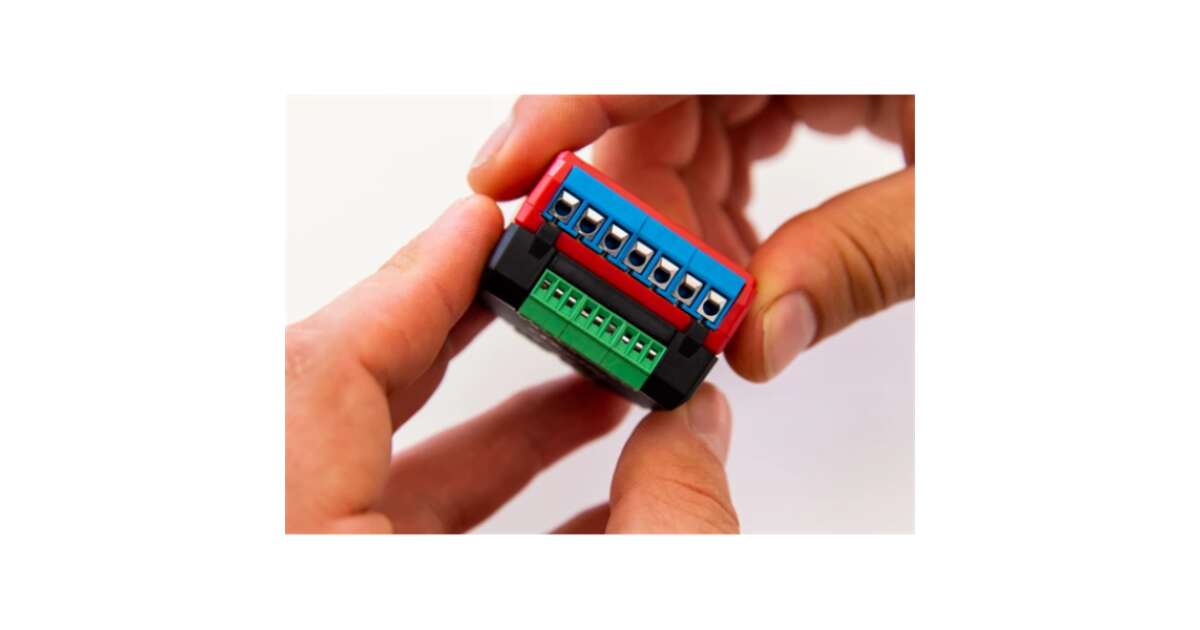

This Shelly Plus sensor adapter is the perfect addition to your Shelly Plus relays (Shelly PLUS 1, Shelly PLUS 1PM, Shelly PLUS 2PM) and Plus i4 module, allowing you to easily connect analog and digital sensors. It provides accurate measurements and control to make your home even smarter!
Key Features:

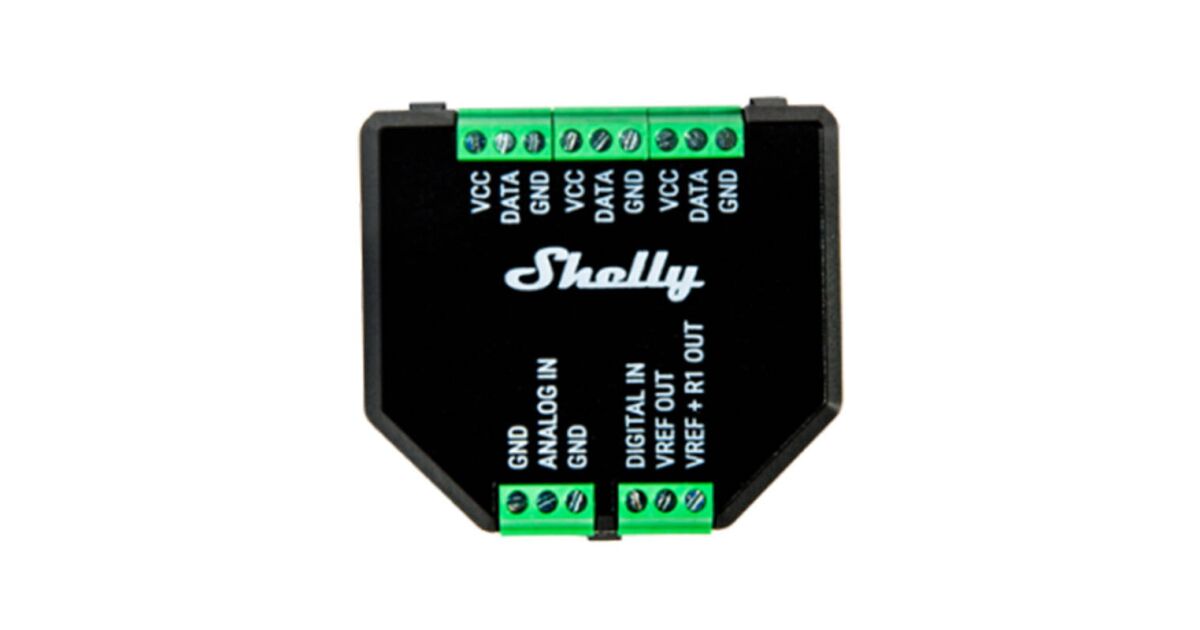

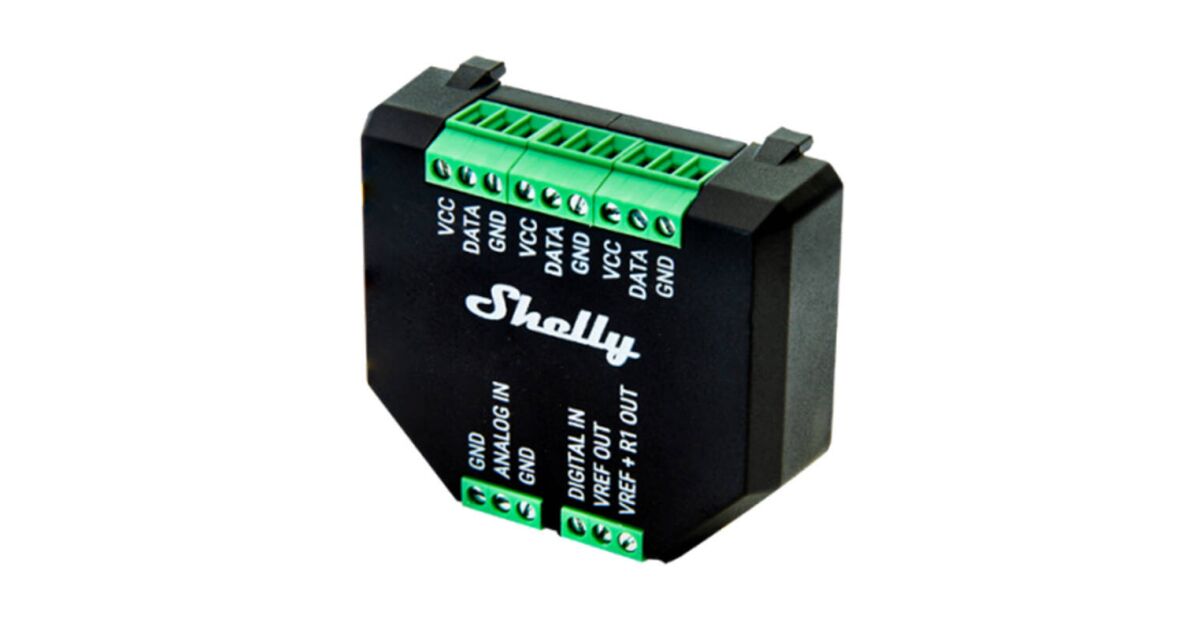

- 🌡️ Analog and digital inputs

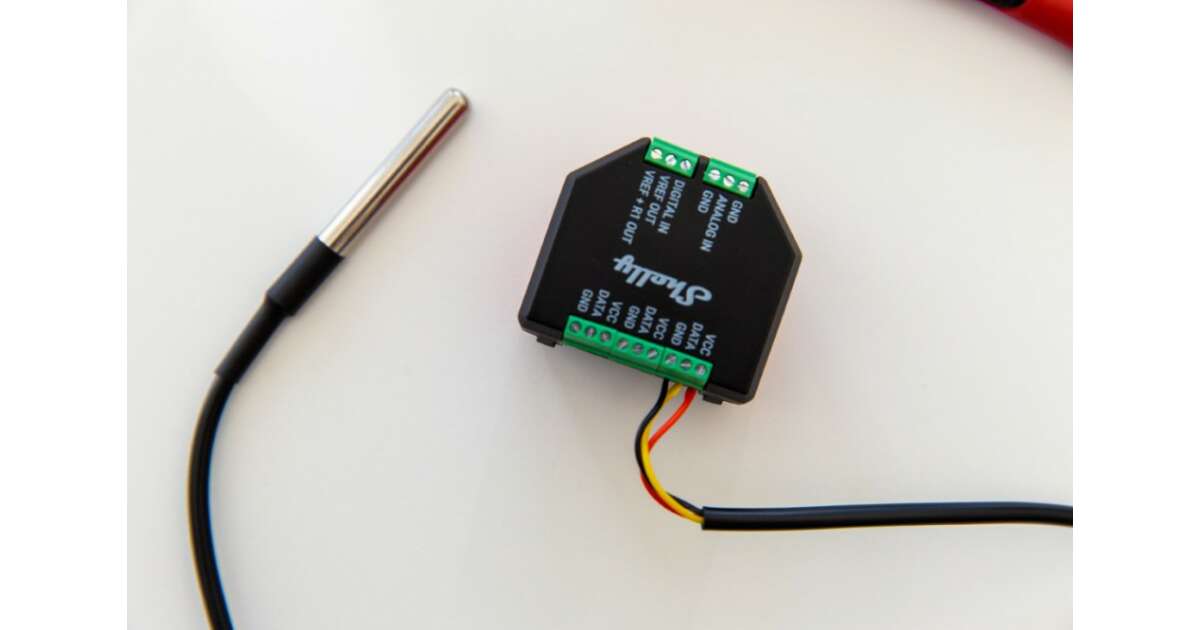

- Connect 5 DS18B20 temperature sensors or 1 DHT22 temperature and humidity sensor
- ⚙️ Compatible with most Arduino sensors
- Galvanically isolated sensor interface
- Usable for simple and complex automations
- ☁️ Shelly cloud integration
Technical Specifications:
| Property | Value |
|---|---|
| Dimensions (HxWxD) | 37x42x15 ±0.5 mm |
| Weight | 105 g |
| Housing Material | Plastic |
| Connector Max. Torque | 0.1 Nm / 0.89 lbIn |
| Wire Cross-section | max. 1 mm² / 17 AWG |
| Wire Stripping Length | 4.5 mm / 0.18 in |
| Color | Black |
| Operating Temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. Altitude | 2000 m / 6562 ft |
| Power Supply | 3.3 V (from Shelly Plus device) |
| Power Consumption | < 0.5 W (without sensors) |
Compatible Shelly Plus devices: Shelly Plus 1/1PM, Shelly Plus 2PM, Shelly Plus i4/i4DC
Article number: ALL-KIE-PLUSADDON
