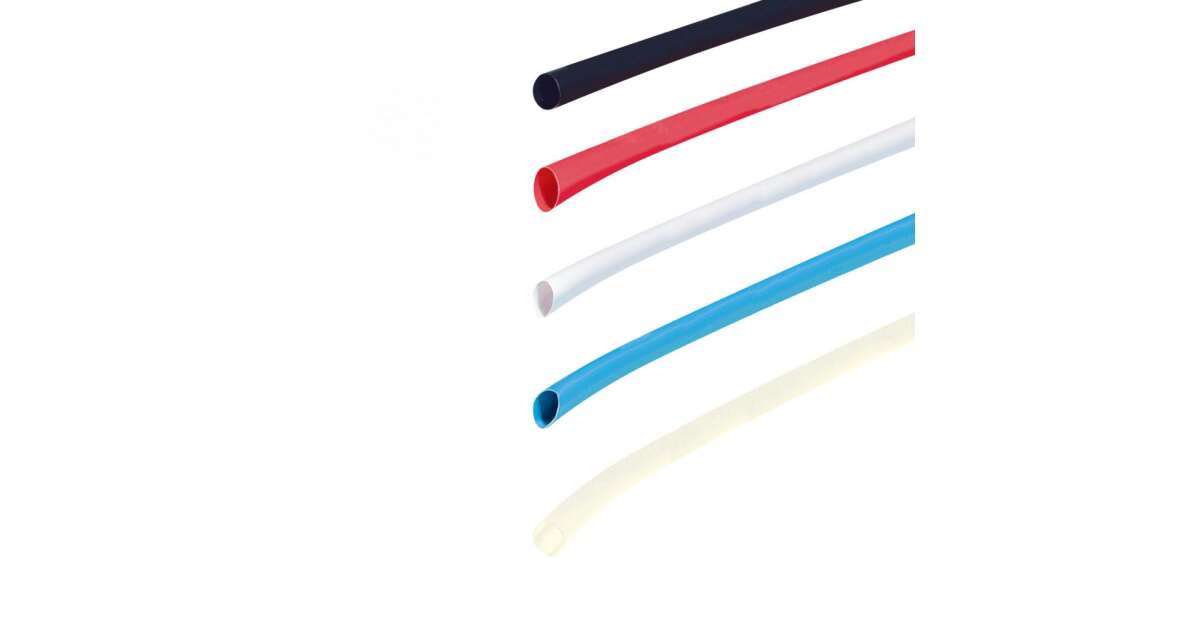

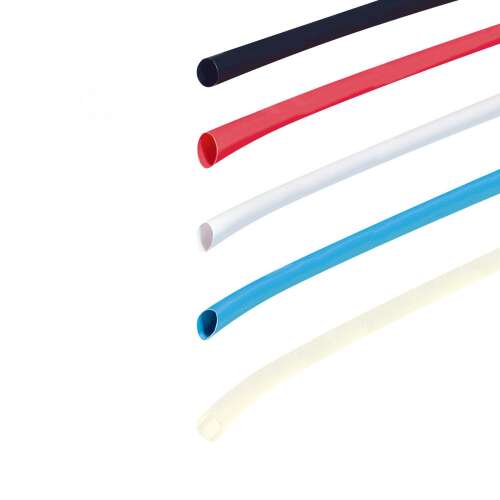

SMA Heat Shrink Tubing 20/10 Black
-SMA Heat Shrink Tubing 20/10 Black description of
Heat Shrink Tubing: Perfect Insulation and Protection 🌡️
This heat shrink tubing is the ideal solution for protecting and insulating wires, cables, and electronic components. When heated, its diameter shrinks to half its original size, ensuring a tight fit and maximum protection. 💪
Advantages:
- Versatile Use: Wire bundling, splicing, insulation, marking, corrosion protection, fracture prevention, strain relief, battery pack making, protection of electronic components, automotive electrics.
- Handles Large Diameter Differences: Suitable for protecting components with large diameter variations (e.g., cable lugs).
- High-Quality Material: UV-resistant polyolefin, ensuring a long lifespan.
- Wide Range of Colors: White, black, red, blue (this product is black).
- High Heat Resistance: Usable between -55°C and +125°C.
- Excellent Mechanical Properties: ≥ 12 Mpa tensile strength, ≥ 200% elongation at break, ≤ 5% length change.
- Outstanding Insulation: ≥ 20 kV/mm insulation strength.
- Flame Retardancy: According to VW-1.
Technical Data:
| Property | Value |
|---|---|
| Pre-Shrink Diameter | 20 mm |
| Post-Shrink Diameter | 10 mm |
| Length | 1 m |
| Color | Black |
This heat shrink tubing is an excellent choice for any task requiring reliable and durable insulation and protection. Try it now!
Article number: DRS 20-10/BK
