Habotest HT113C Universal Digital Multimeter
-Habotest HT113C Universal Digital Multimeter description of
Habotest HT113C Digital Multimeter: Multi-functional, Precise Measurement for Home and Professional Use 🛠️

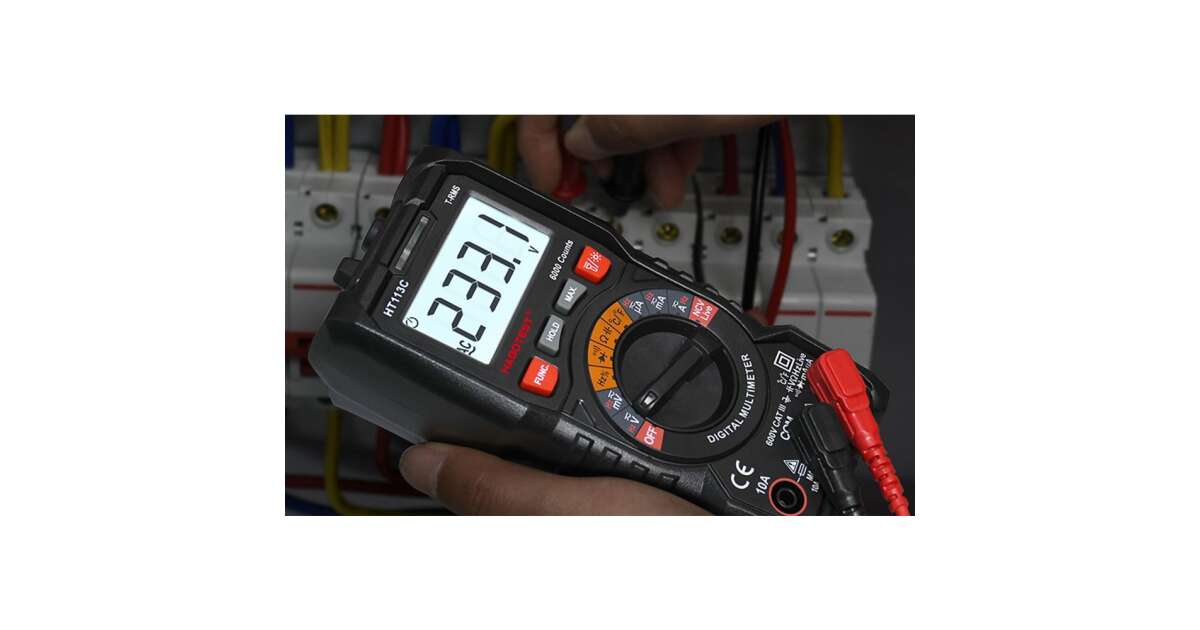

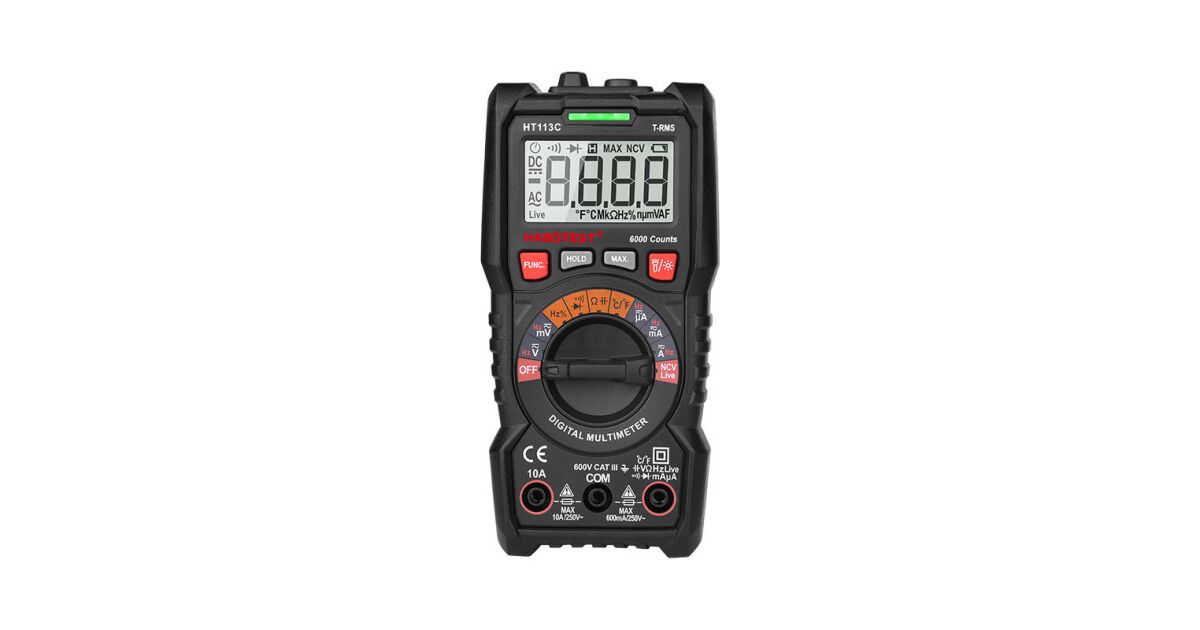

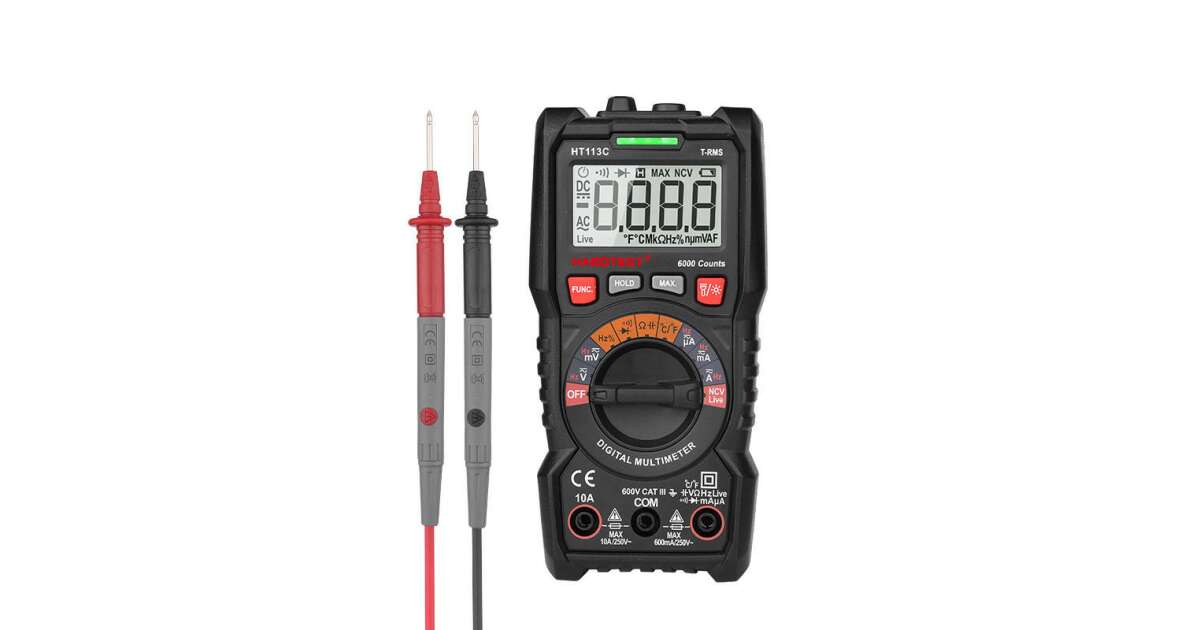

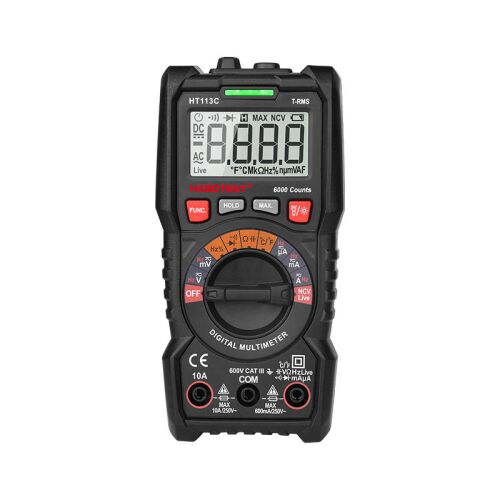

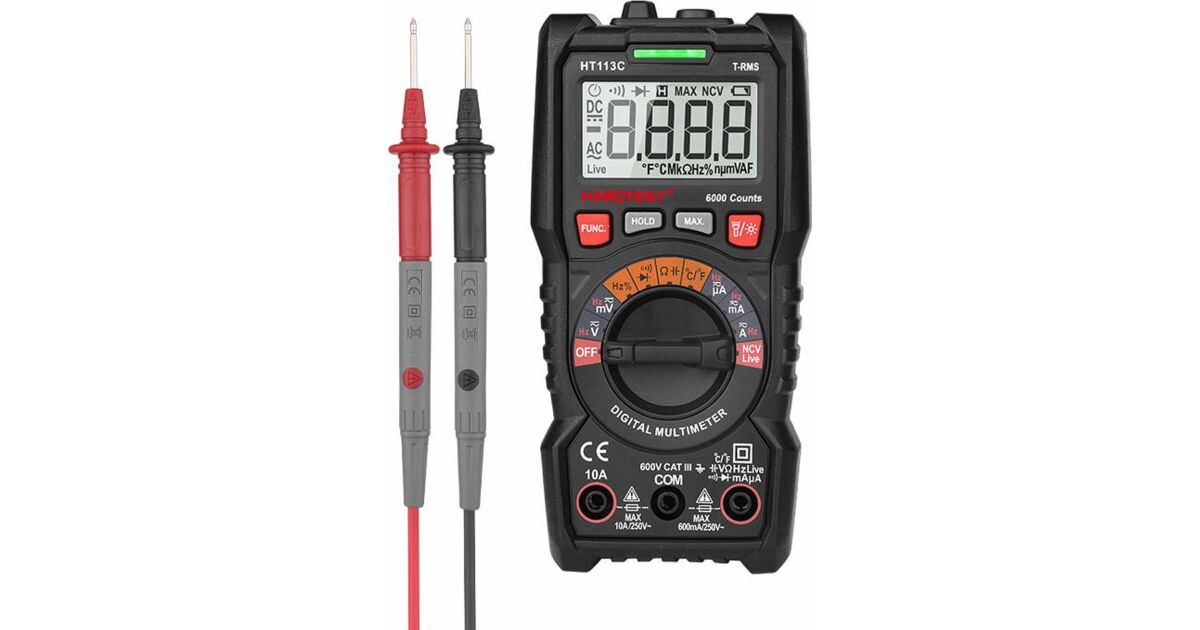

A lightweight, practical, and versatile digital multimeter for safely and conveniently measuring voltage, current, and resistance. The HT113C features a handy stand, a built-in flashlight, and an NCV function. The soft, durable casing feels great and resists wear and tear.
Lots of Useful Features:
- DC and AC voltage, current, and resistance measurement: Precise measurements over a wide range.
- Diode testing: Easily check the status of your diodes.
- NCV function: Non-contact voltage detection for safer work.
- Continuity test: Check your circuits for shorts.
- Duty cycle measurement: For analyzing signal quality.
- Data storage: Save your measurement results.
- 6000-count display: Accurate and easy-to-read measurement results.
- Backlight and low battery indication: Convenient use even in the dark.
Smart Design:

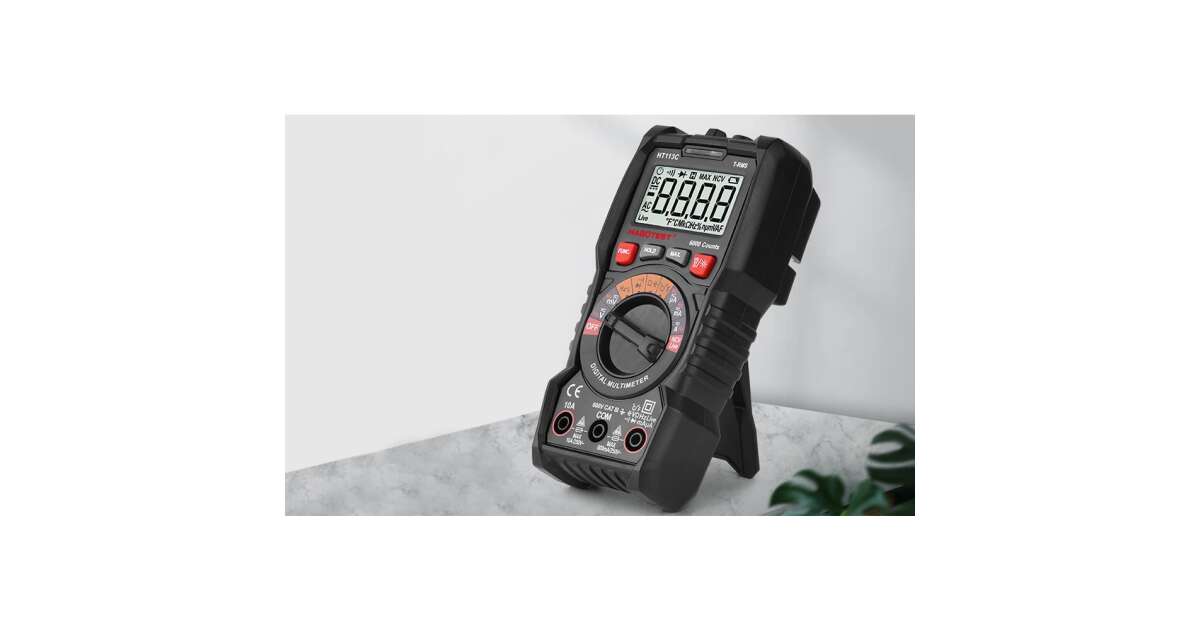

Weighing only about 220 g, it's easy to carry around, and the soft, durable case feels great in your hand. The stand allows for stable placement on a surface. The True RMS function ensures accurate measurement of alternating current.
Technical Specifications:
| Parameter | Measurement Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV/2V/20V/200V/600V | ±(0,5%+3) |
| AC Voltage | 200V/600V | ±(1,0%+3) |
| DC Current | 20mA/200mA/10A | ±(1,2%+3)/±(2,0%+3) |
| AC Current | 400µA/4mA/40mA/400mA/10A | ±(1,5%+3)/±(2,0%+3) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(1,0%+3) |
| Capacitance | 10nF/100nF/1µF/10µF/100µF/1mF/10mF/100mF | ±(4,0%+5)/±(5,0%+5) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(1,0%+3) |
| Duty Cycle | 1%~99% | ±(3,0%+3) |
Other Features:
- NCV function ✅
- Diode testing ✅
- Continuity ✅
- Data storage ✅
- True RMS ✅
- Flashlight ✅
- Powered by 2 x AAA batteries 🔋
- CAT III 600V safety rating ⚠️
- Dimensions: 151 x 75 x 48 mm
- Weight: approx. 220 g
Article number: HT113C
