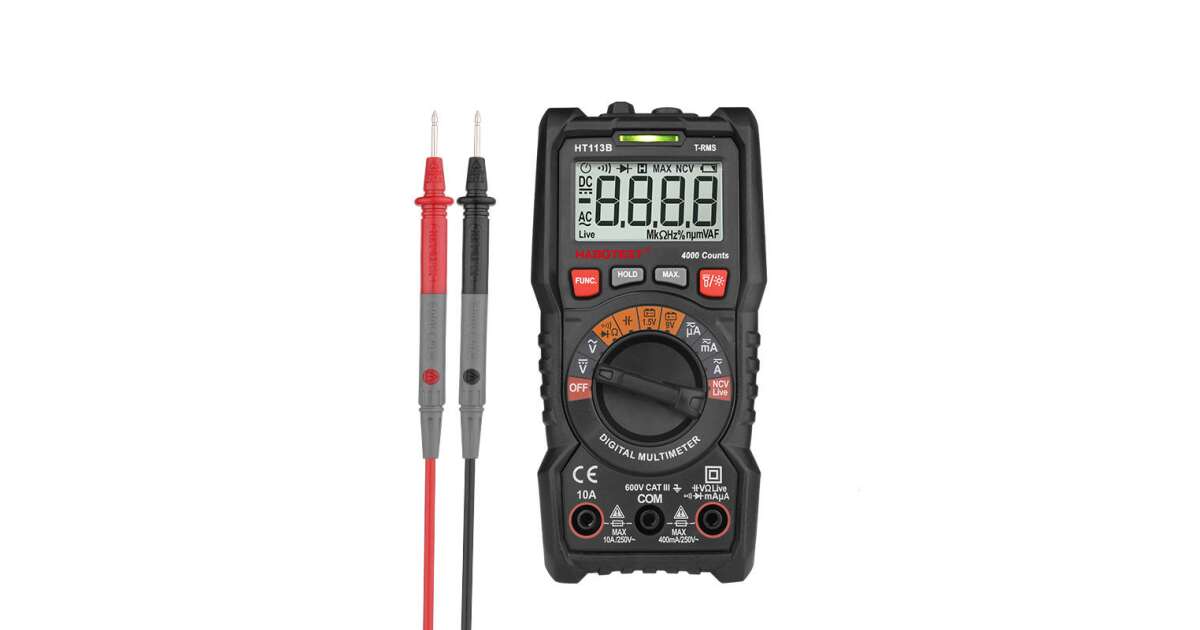

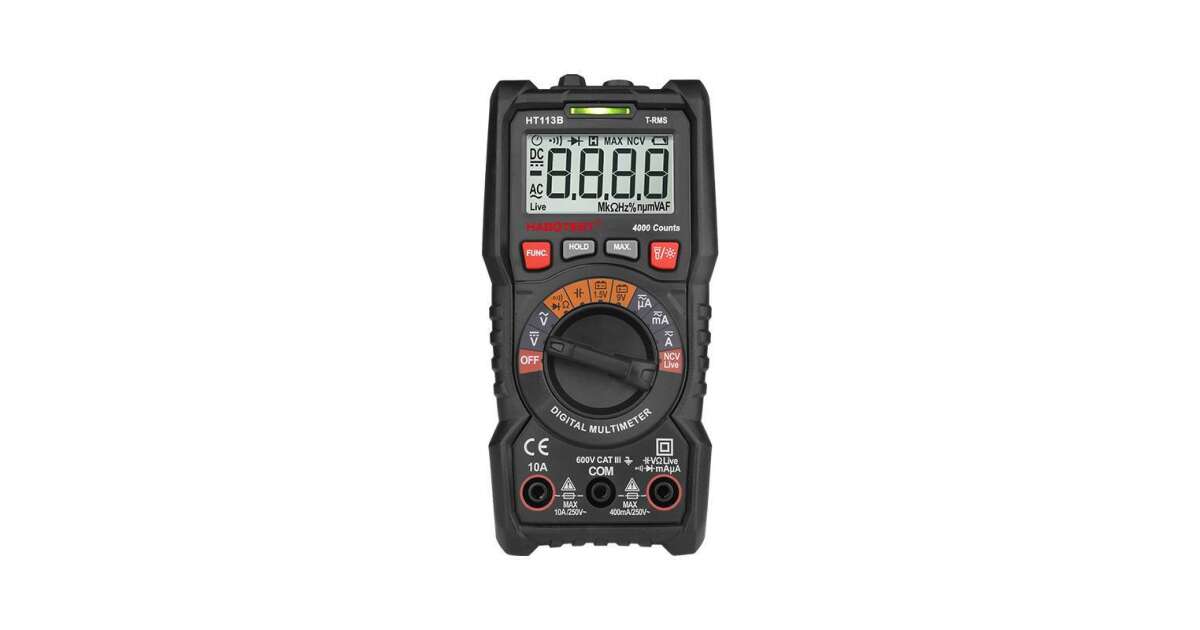

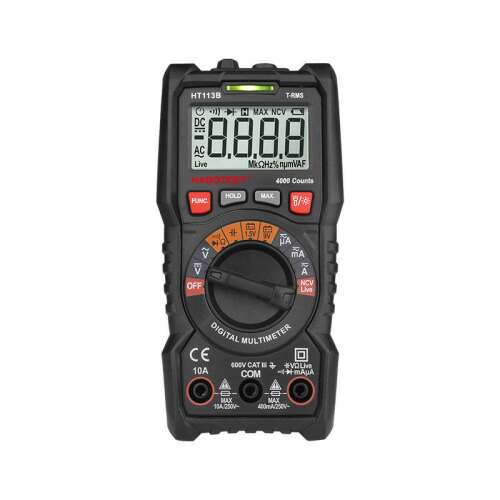

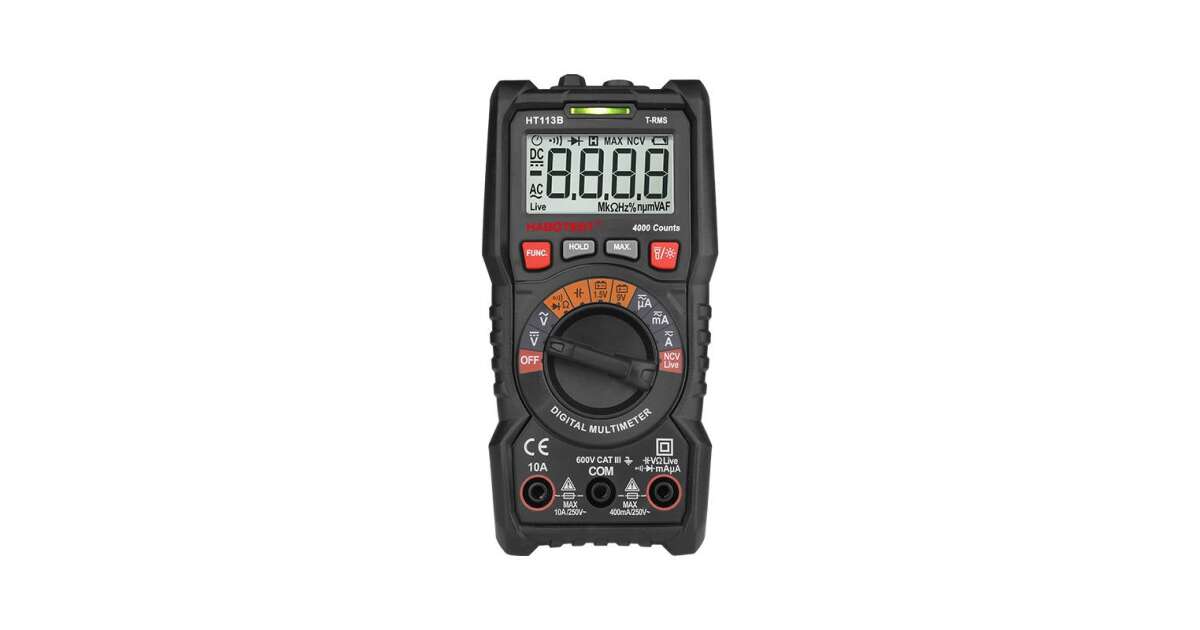

Habotest HT113B universal digital multimeter
-
Out of stock
Habotest HT113B universal digital multimeter description of
Habotest HT113B Digital Multimeter: Your Go-To Multifunctional Measurement Tool 🔬
Get ready for easy, practical, and safe measurements of voltage, current, and resistance. Thanks to its built-in stand, it's a breeze to set up. Plus, the NCV function, diode testing, and integrated flashlight give you that extra edge!
The soft, durable housing feels great in your hand and can handle wear, tear, and those accidental drops.
Packed with Useful Features:
- DC and AC Voltage Measurement
- DC and AC Current Measurement
- Resistance Measurement
- Diode Test
- NCV Function
- Continuity Test
- Data Hold
- 4000 Counts Display
- Backlight
- Low Battery Indicator
Thoughtfully Designed:
Weighing in at just about 220g, this device is super portable. The soft, durable housing not only feels good but also resists wear and drops. Need to keep it steady? The built-in stand has you covered.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Habotest |
| Model | HT113B |
| DC Voltage Measurement | 200mV/2V/20V/200V/600V ±(0.5%+3) |
| AC Voltage Measurement | 200V/600V ±(1.0%+3) |
| DC Current Measurement | 20mA/200mA ±(1.2%+3) 10A ±(2.0%+3) |
| AC Current Measurement | 400µA/4000µA/40mA/400mA ±(1.5%+3) 10A ±(2.0%+3) |
| Resistance Measurement | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1.0%+3) |
| Capacitance Measurement | 10nF/100nF/1µF/10µF/100µF/1mF/10mF ±(4.0%+5) 100mF ±(5.0%+5) |
| Frequency Measurement | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) |
| Duty Cycle | 1%~99% ±(3.0%+3) |
| Live Test | No |
| NCV | Yes |
| Diode Test | Yes |
| Continuity | Yes |
| Digit Count | 4000 |
| Data Hold | Yes |
| True RMS | Yes |
| Bandwidth | 1kHz |
| Low Battery Indicator | Yes |
| Auto Power Off | Yes |
| Backlight | Yes |
| Flashlight | Yes |
| Power Supply | 2x AAA batteries 1.5V |
| Safety | EN61010-2-030 EN61010-2-033 CAT III 600V |
| Weight | Approx. 220 g |
| Dimensions | 151 x 75 x 48 mm |
The Habotest HT113B multimeter is the perfect choice for DIY enthusiasts and electrical work!
Article number: HT113B
