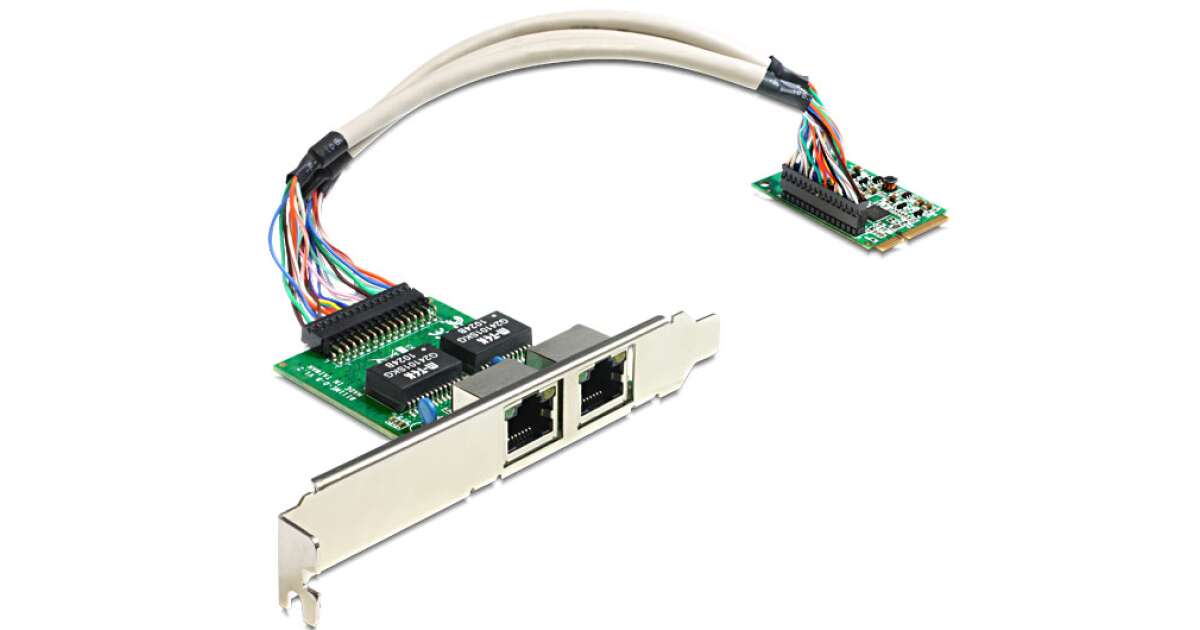

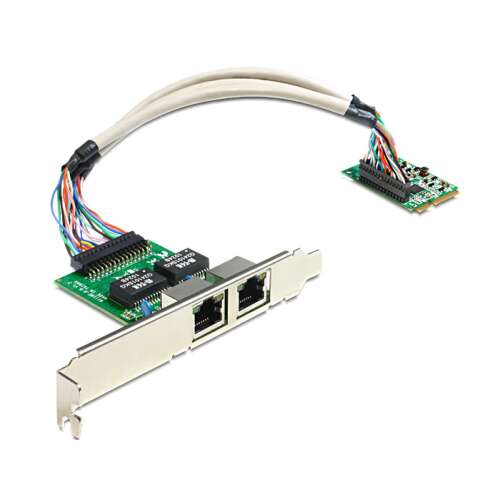

Delock MiniPCIe I/O PCIe full size 2 x Gigabit Lan

Product description
This Delock miniPCIe adapter expands your system with two Gigabit Lan interfaces that can be routed out through the frame openings.

Specification
o Chipset: Realtek RTL8111E
o Space requirement: miniPCIe axis size
o Interface: PCI Express Rev. 1.1
o Connector: 2 x Gigabit Lan
o Data transfer rate up to 10/100/1000 Mb/s
o Compatible: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
o Automatic MDI/MDI pass-through correction
o IEEE 802.1P layer 2 priority encoding support
o IEEE 8021Q VLAN insertion and removal support
o D3 Enhanced Power Down mode support
o Integrated switching regulator and 3.3 V power supply
o Cable length with connector: approx. 21.5 cm
o Operating temperature: -10 C ~ 80 C
o Storage temperature: -20 C ~ 95 C

System requirements
o Windows 2000/XP/Vista/7/7-64/8, Linux ex Kernel 2.6
o Motherboard with one free miniPCIe slot, PCIe interface
o Computer with one free PC slot

Contents of the package
o MiniPCIe module
o Connector cable
o Gigabit Lan frame
o Installation CD
o Instruction manual

Packaging
o Blister
