EN Rotary nozzle I-20-04-SS stainless steel 10cm, 50°-360°, 8+4 nozzles,
-EN Rotary nozzle I-20-04-SS stainless steel 10cm, 50°-360°, 8+4 nozzles, description of
HU Rotor Sprinkler Head: Efficient and Easy-to-Adjust Watering 💦
This HU Rotor sprinkler head is the ideal solution for watering your garden, thanks to its flexible adjustment options. The patented automatic angle memory ensures the sprinkler head always waters at the desired angle, even after accidental rotation. Adjustability from 50° to 360° makes it perfect for any garden design.
Key Features:
- 🔄 Automatic Angle Memory: The sprinkler head always stays at the set angle.
- 💪 Tamper-Proof Drive: It won't get damaged if accidentally rotated in the opposite direction.
- ⚙️ Adjustable and Rotating Sprinkler Head in One Housing: Reduces inventory and simplifies use.
- 🔧 Easy Installation: Easily installed with a standard screwdriver or Hunter wrench.
- 💧 FloStop Technology: One sprinkler head can be stopped for maintenance while the rest of the system continues to operate.
- 💨 Easily Replaceable Nozzles: The flat-top nozzles are quick and easy to replace.
- 🚫 Check Valve: Prevents water from flowing out when the system is shut off (up to 3m height difference).

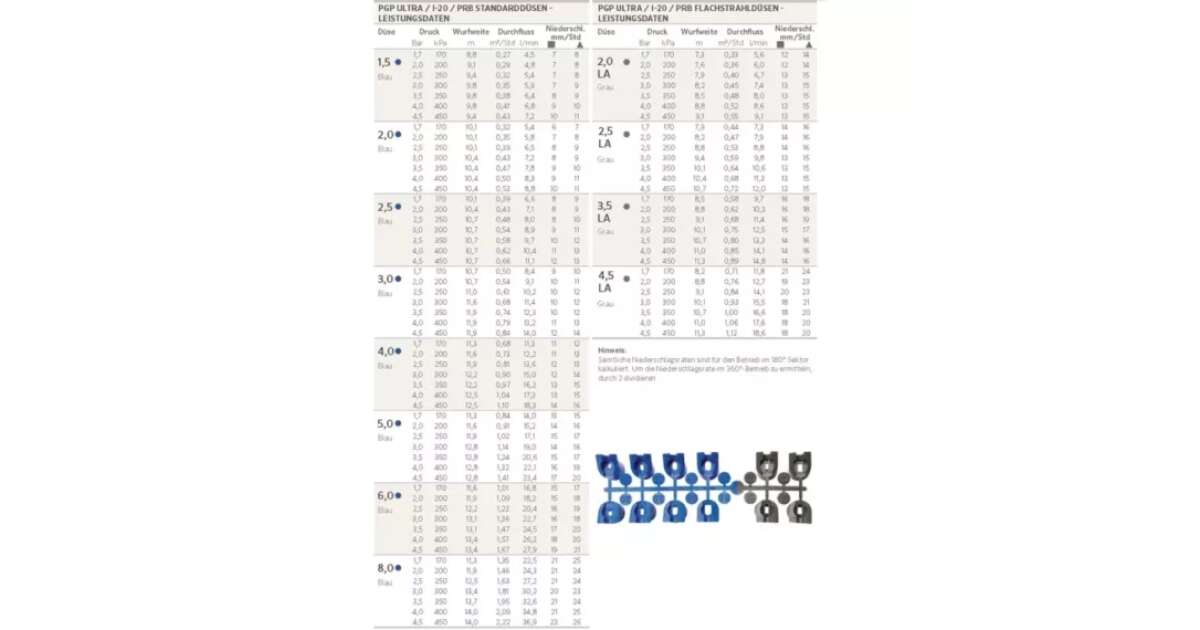

Technical Data:
| Feature | Value |
|---|---|
| Nozzle Selection | 34 |
| Watering Radius | 4.9 – 14 m |
| Water Flow Rate | 0.07 - 3.23 m³/hour; 1.2 - 53.8 l/min |
| Recommended Pressure | 1.7 - 4.5 bar (170-450 kPa) |
| Operating Pressure | 1.4 - 7.0 bar; 140 - 700 kPa |
| Watering Intensity | approx. 10 mm/hour |
| Exit Angle | 25° (normal), 13° (low) |

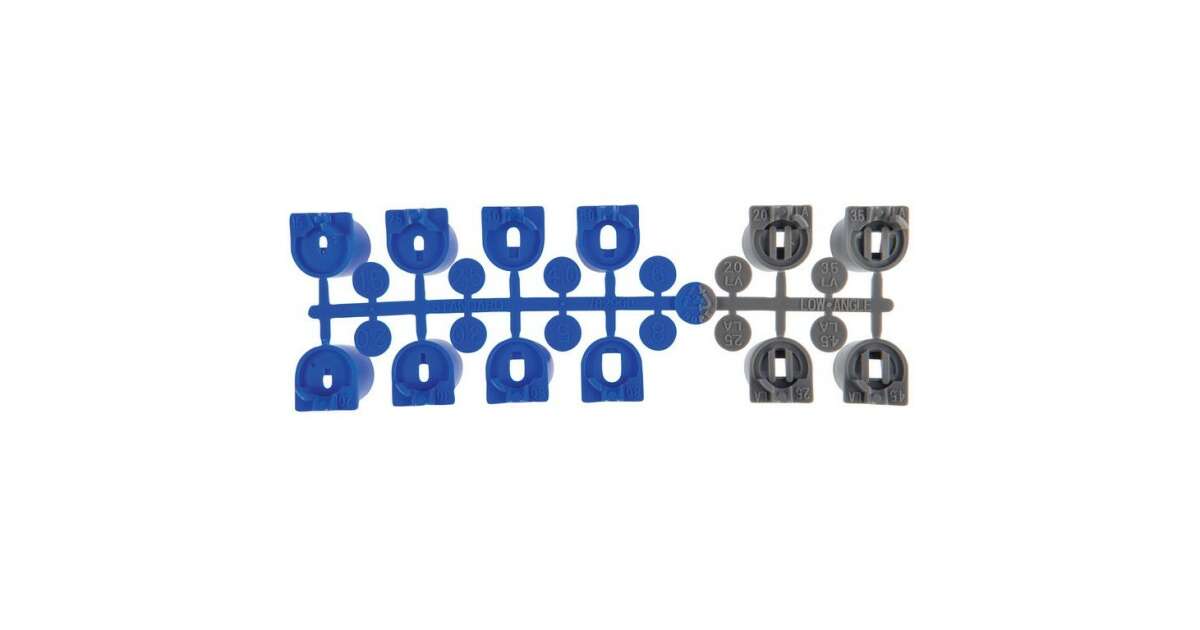

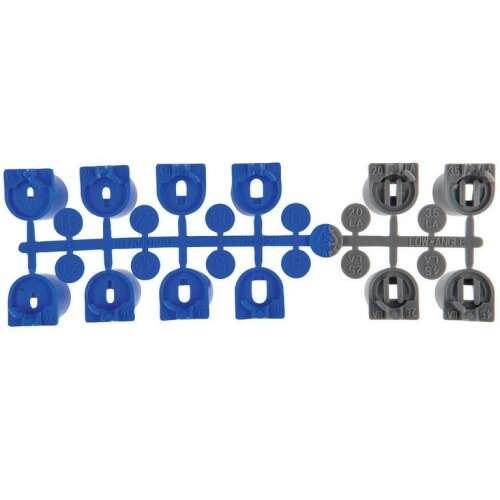

Nozzle Set: 1.5 - 8.0 blue, 2.0 - 4.5 low angle grey, 0.50 - 3.0 black, 6.0 - 13.0 green, MPR-25, MPR-30, MPR-35
Article number: 331150 - I-20-04-SS
