DIN Mortise Lock !!!!! 72 !!!! mm WC Symmetrical

Name: DIN Mortise Lock !!!!! 72 !!!! mm WC Symmetrical
Brand: Titan
SKU: 25-G00026-Z-78
Price: 9.89 EUR
Availability: InStock

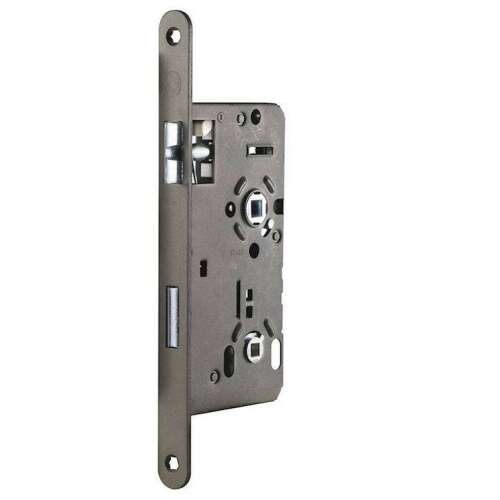

DIN WC lock for bathroom and toilet doors

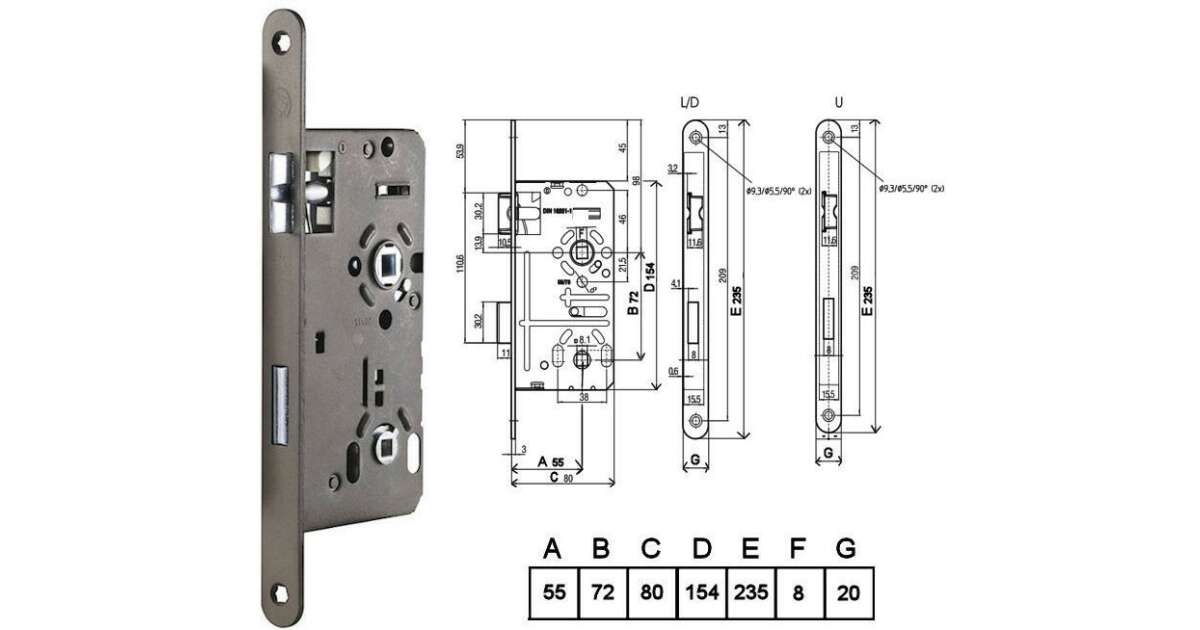

Technical drawing of a DIN WC lock with dimensions and labels

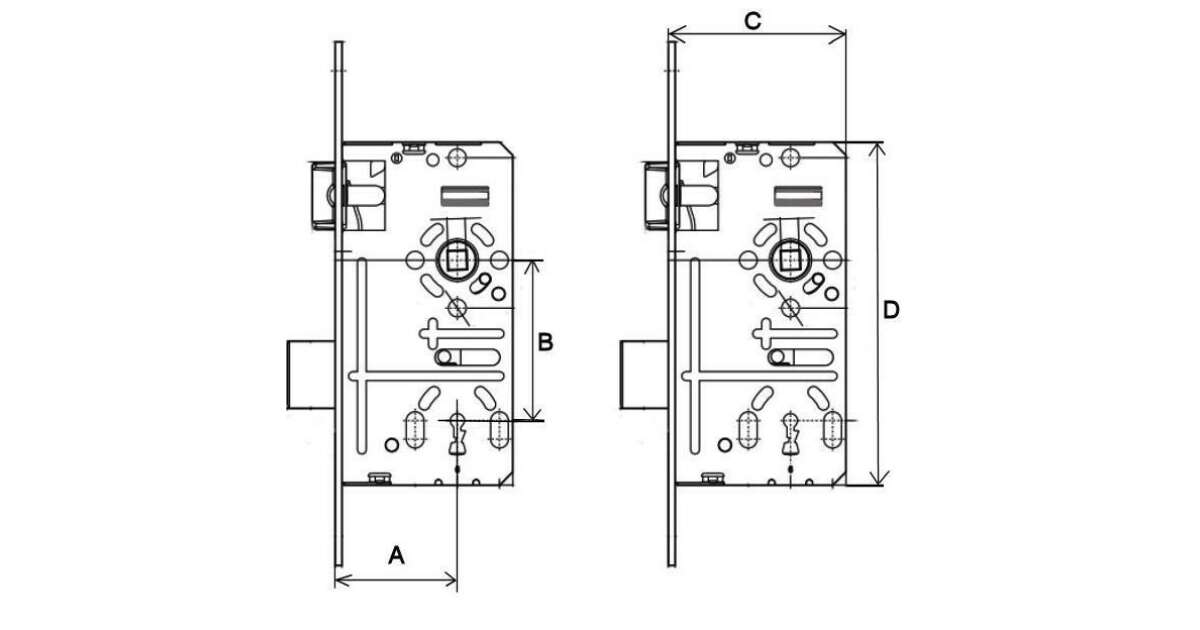

Technical drawing of a DIN WC lock with dimensions

DIN Mortise Lock !!!!! 72 !!!! mm WC Symmetrical 104821096

DIN Mortise Lock !!!!! 72 !!!! mm WC Symmetrical

4 business days

estimated delivery time

9^,89 €

In stock: 2 pcs

Maximum purchase: 100 pc

Price chart
In stock
estimated delivery time 4 business days

Home delivery by courier: 9 €
14 days return - info

Distributor

Perfekto Ajtókilincs

Brand:

Titan

Color:

Chrome

Size:

72 mm WC

Product description
Do you know the product? Write a review!

DIN Mortise Lock !!!!! 72 !!!! mm WC Symmetrical description of

Bathroom/Toilet Mortise Lock: 72 mm DIN Lock, Easy Installation 🛠️

This 72 mm DIN standard mortise lock is ideal for bathroom and toilet doors, up to 60 kg. It's easy to install and provides reliable operation.

DIN Mortise Lock !!!!! 72 !!!! mm WC Symmetrical 104821096

Key Features:

Dimensions: The exact dimensions are shown in the product images. Important! Matching the dimensions of your existing lock is essential for a proper fit.
Type: Single-point locking WC-turn mortise lock (DIN lock)
Material: White galvanized steel
Latchbolt: Universal (left/right, reversible)
Closing: Single throw
Faceplate: Rounded
DIN holes: Compatible with through-bolt rosettes and handles.
Maximum door weight: 60 kg

Size Chart:

Size Designation	Size (mm)
A	55
B	72
C	80
D	154

Note: The strike plate is not included. We recommend taking accurate measurements after removing your existing lock to avoid incorrect purchases.
