MAGI 2 Recirculation Pump 25-40/180, Ibo Dambat IB030018 description of
IBO MAGI 2 Circulator Pump: An Energy-Efficient Solution for Heating and Cooling Systems ⚙️
The IBO MAGI 2 circulator pump is a smart and energy-efficient solution that automatically adjusts its performance to meet system demands. Thanks to its built-in differential pressure control, it always delivers optimal performance while reducing energy consumption. The control panel makes it easy to monitor current energy usage.
Key Features:
- 8 Operating Modes: AUTO, BL1, BL2, HD1, HD2, HS1, HS2, HS3 - optimal settings for various systems
- Permanent Magnet Motor: Quiet and reliable operation

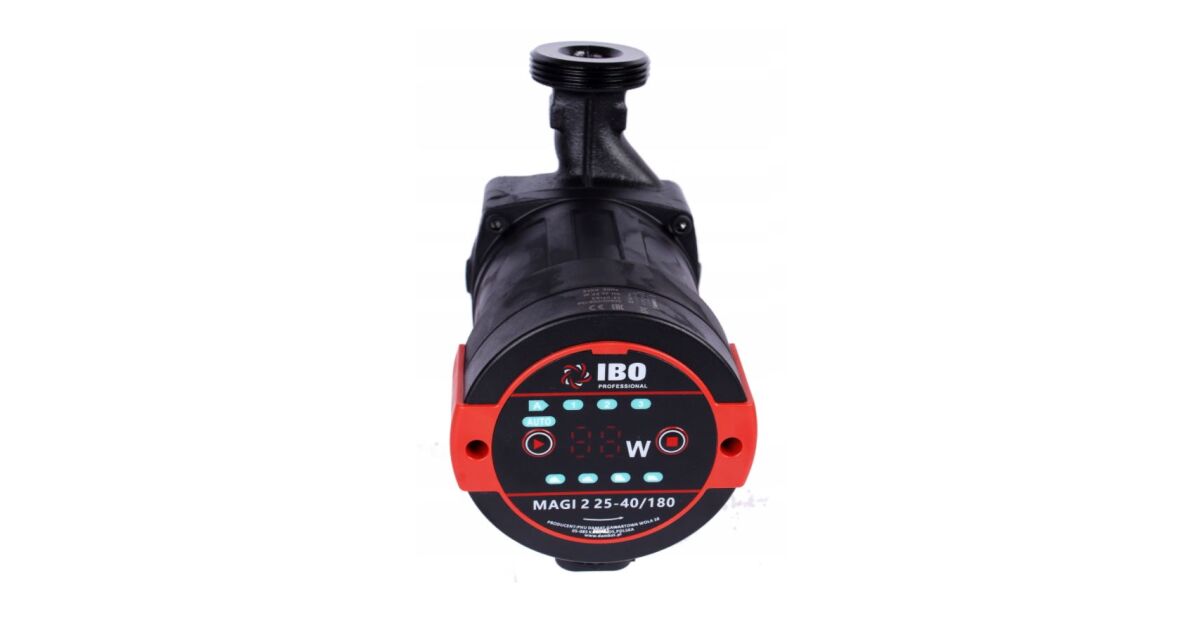

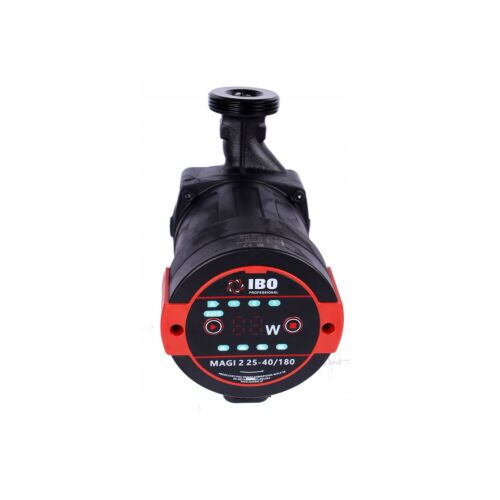

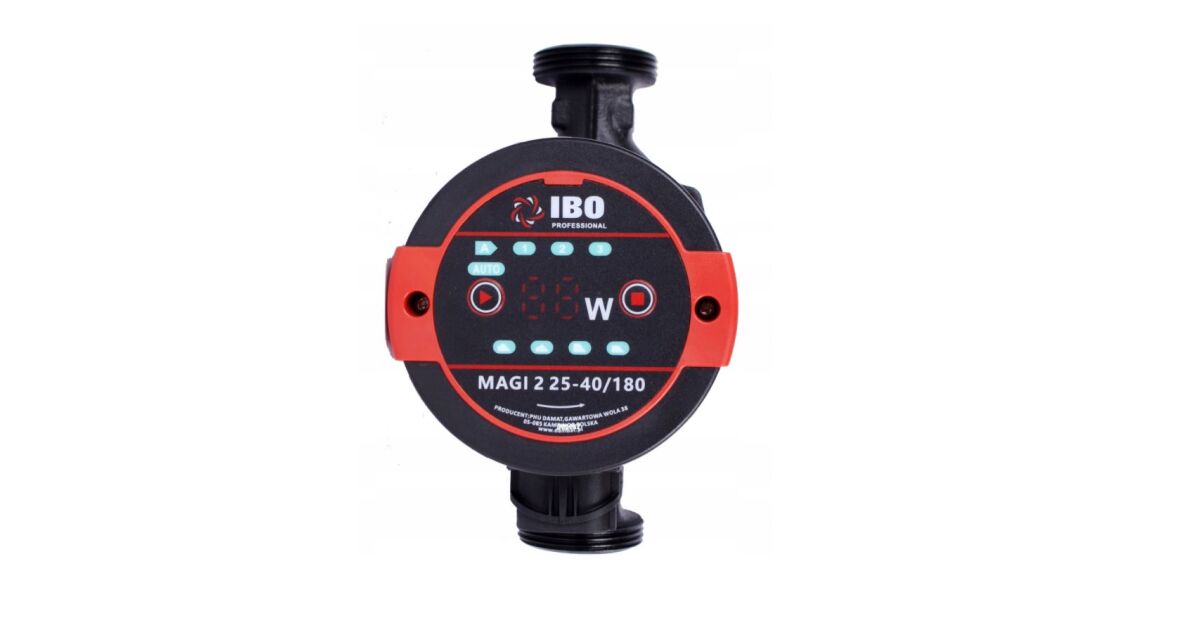

- Easy to Use: The control panel is located on top of the motor
- Energy Efficient: Reduces energy consumption
- Wide Range of Applications: Suitable for heating systems, air conditioners, industrial circulation systems, and CO systems
Technical Data:
| Property | Value |
|---|---|
| Motor Power (W) | 5-22 |
| Voltage (V) | 230 |
| Protection Class | IP42 |
| Motor Insulation Class | H |
| Max. Head (m) | 4 |
| Max. Flow Rate (l/min) | 50 |
| Connection (inch) | 1½"(DN40)/1"(DN25) |
| Connection Distance (mm) | 180 |
| Relative Humidity (%) | 95 |
| Pressure (MPa) | 1 |
| Fluid Temperature (°C) | +2 - +110 |
| Ambient Temperature (°C) | 0-40 |
| Energy Efficiency Index | EEI |
The IBO MAGI 2 circulator pump is an excellent choice for anyone looking for a reliable, energy-efficient, and easy-to-use pump for their heating or cooling system.
