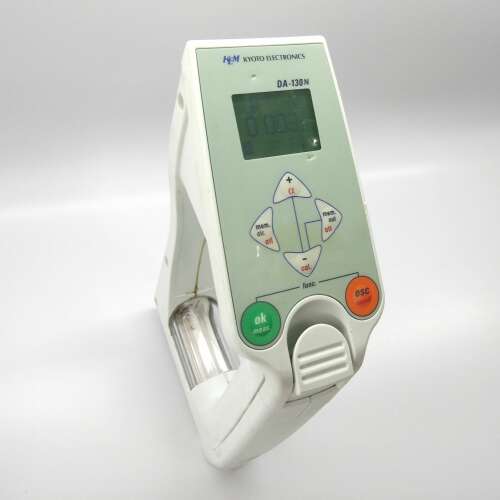

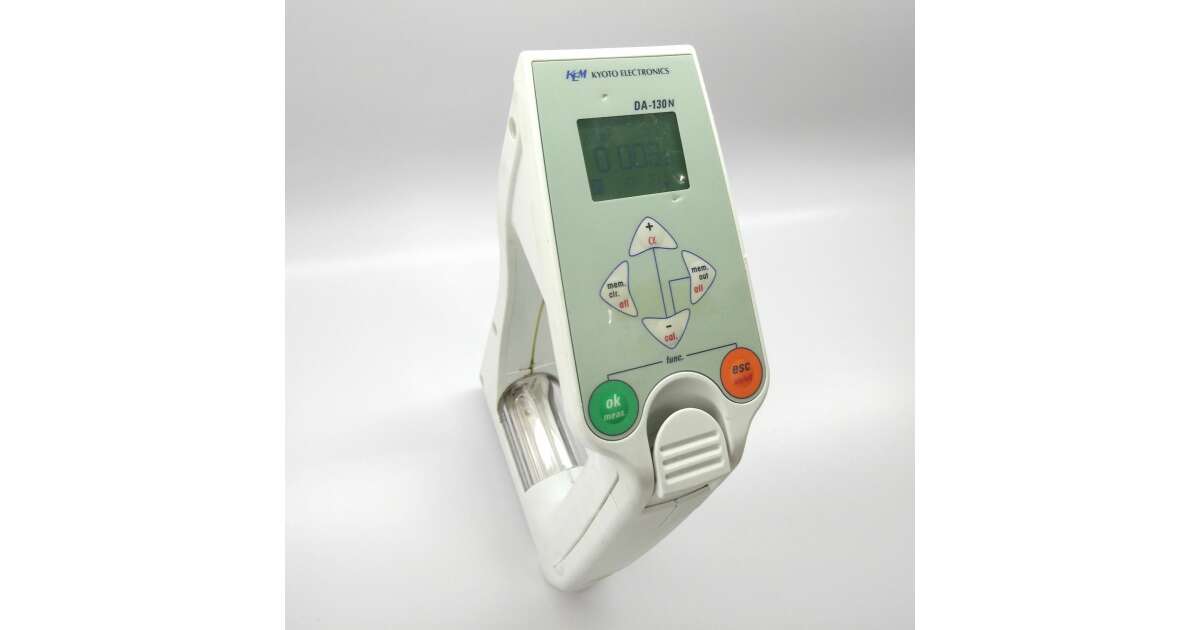

DA-130N Digital Density Meter
DA-130N Digital Density Meter description of
Kyoto Electronics DA-130N Digital Density Meter: Precise Measurements in the Lab and Field 🔬

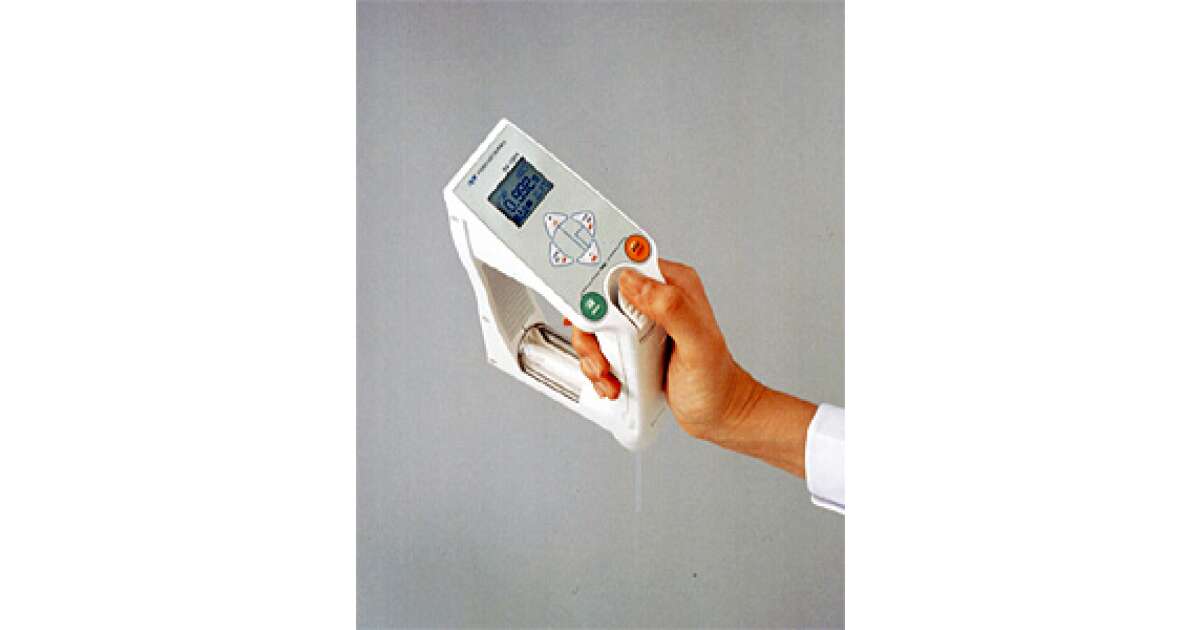

The DA-130N is a portable, digital density meter perfect for both lab and field measurements. It can be used to determine the density and relative density of various materials, including mineral oils, fats, vegetable oils, cosmetics, food, solutions, and spirits. The device is easy to use and provides accurate results.
Key Features:
- Automatic Measurement: Viscous samples (up to 2000 mPa·s viscosity) are automatically aspirated.
- Precise Measurements: 0.001 g/cm³ accuracy.
- Multiple Parameter Measurement: Measures both ambient and sample temperature in addition to density.
- Wide Measurement Range: 0-2,000 g/cm³
- Easy Data Handling: Stores 1100 measurement data points in its memory. Data can be read on the LCD display.
- Unit Conversion: Selectable between °C/°F and g/cm³/lb/gal units.
- Standards Compliance: Conforms to ASTM D1298 and ISO 758 standards.
- Temperature Correction: Measurement results are temperature-corrected.
- Additional Units: Brix%, alcohol content, sulfuric acid concentration, Baume degrees.
- Calibration: Calibratable with distilled water or dry air.
Technical Specifications:
| Feature | Value |
|---|---|
| Measurement Range | 0-2.000 g/cm³ |
| Resolution | 0.0001 g/cm³ |
| Accuracy | 0.001 g/cm³ |
| Operating Temperature | 0-40 °C (0.1 °C display) |
| Temperature Resolution | 0.1 °C |
| Data Display | LCD display |
| Data Storage | 1100 measurement data |
With the DA-130N digital density meter, you can perform fast, accurate, and reliable measurements, whether you're working in a laboratory or in the field.
