WAGO Push-Wire Connector, for connecting 4 wires
-
Out of stock
WAGO Push-Wire Connector, for connecting 4 wires description of

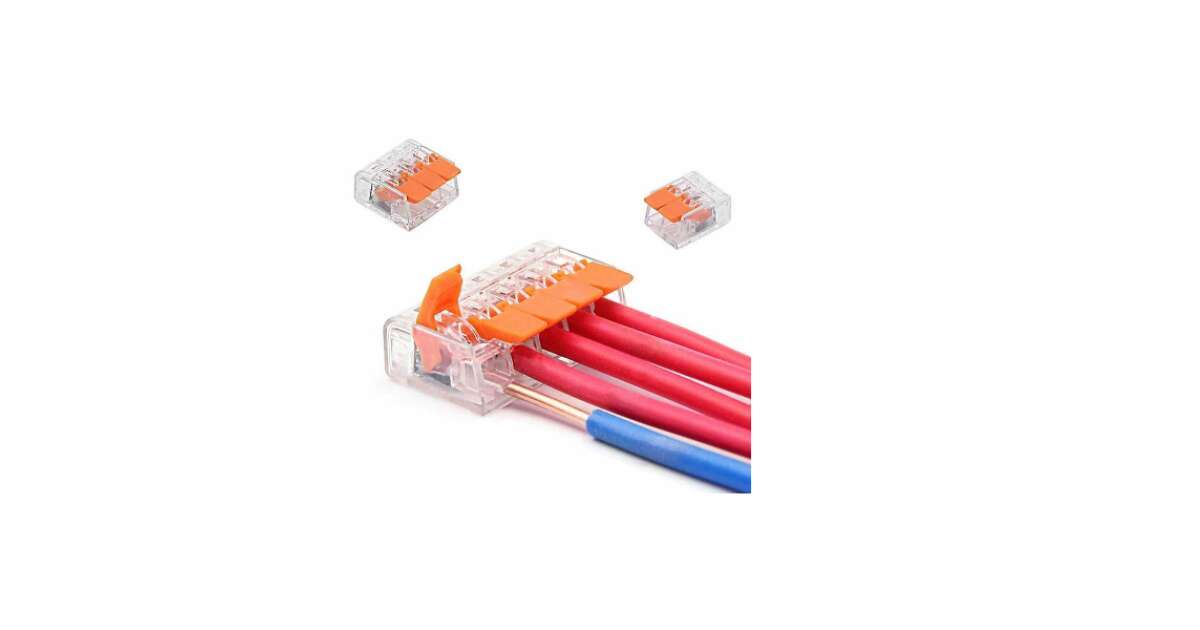

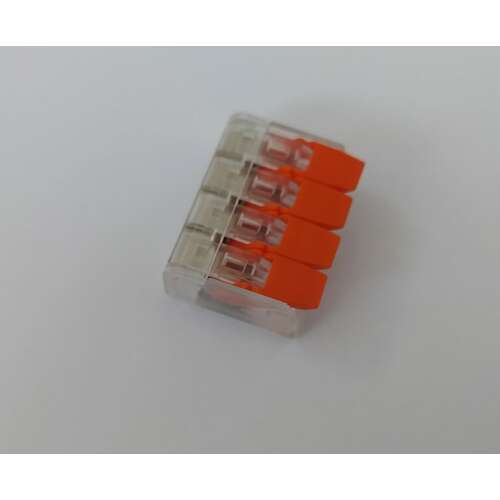

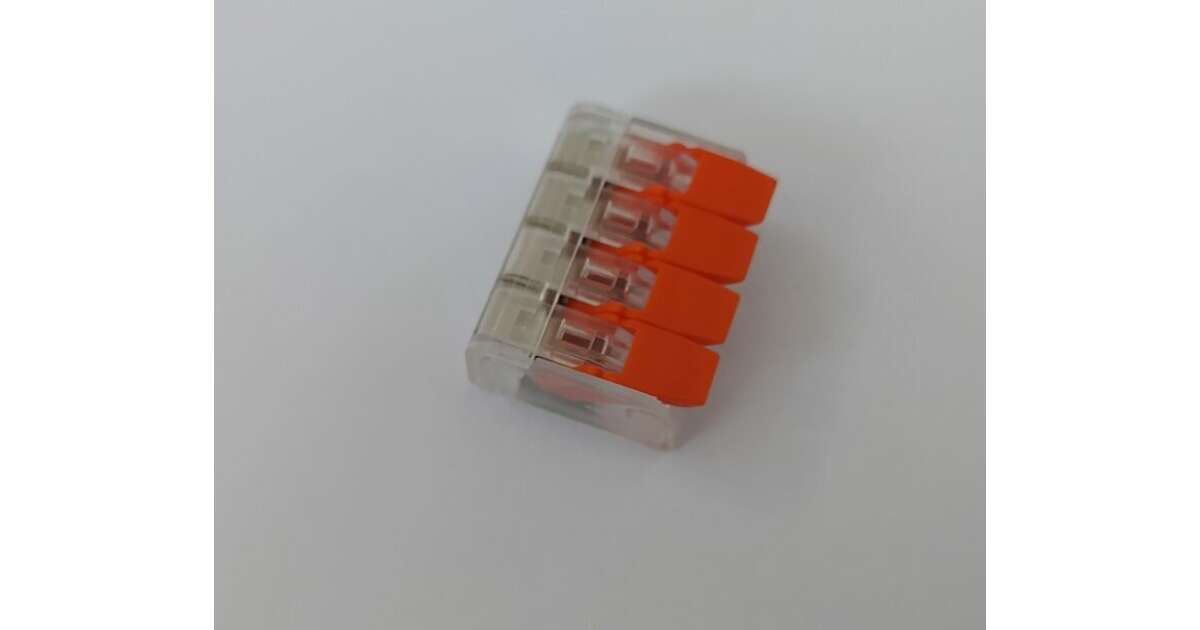

WAGO 2273-204 Push-Wire Connector: Simple and Safe Connection for 4 Wires

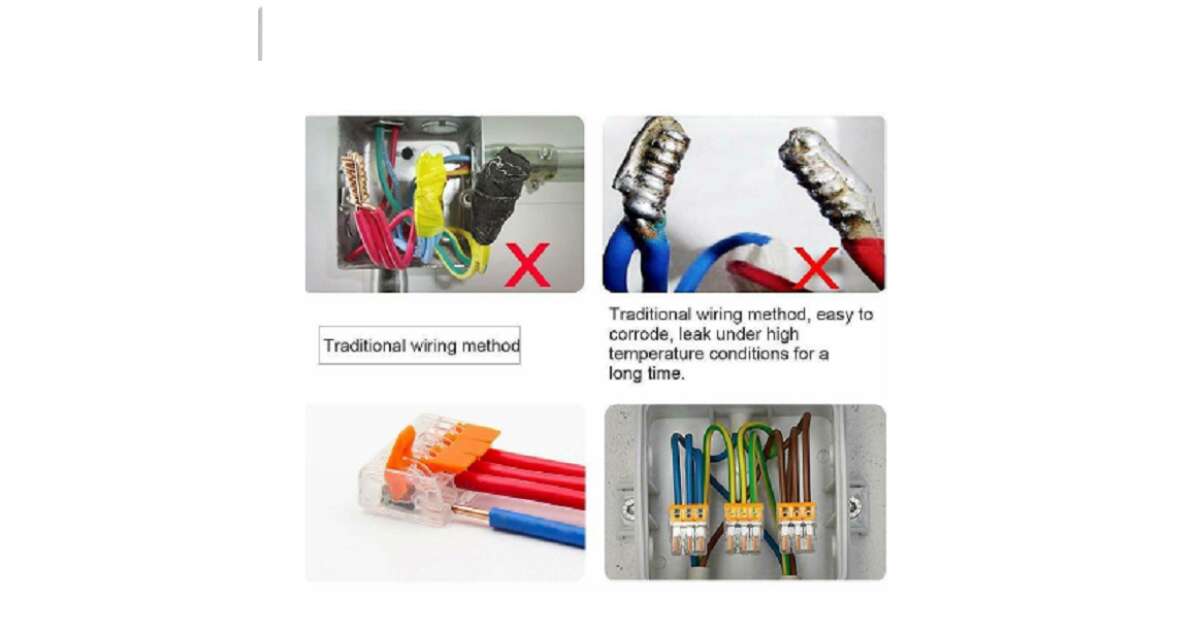

This WAGO push-wire connector revolutionizes wire connection! No more complicated soldering or time-consuming connections. Connect wires easily, quickly, and safely, even different types.
Key Features:
- Connects 4 wires simultaneously
- Easy to use: No expertise needed!

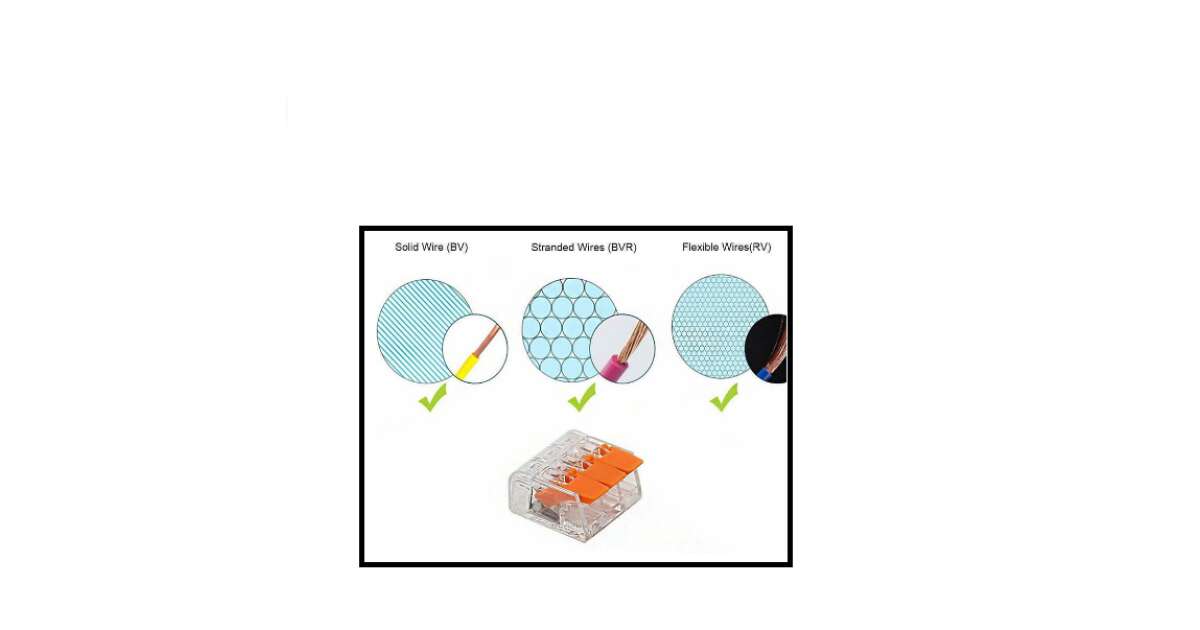

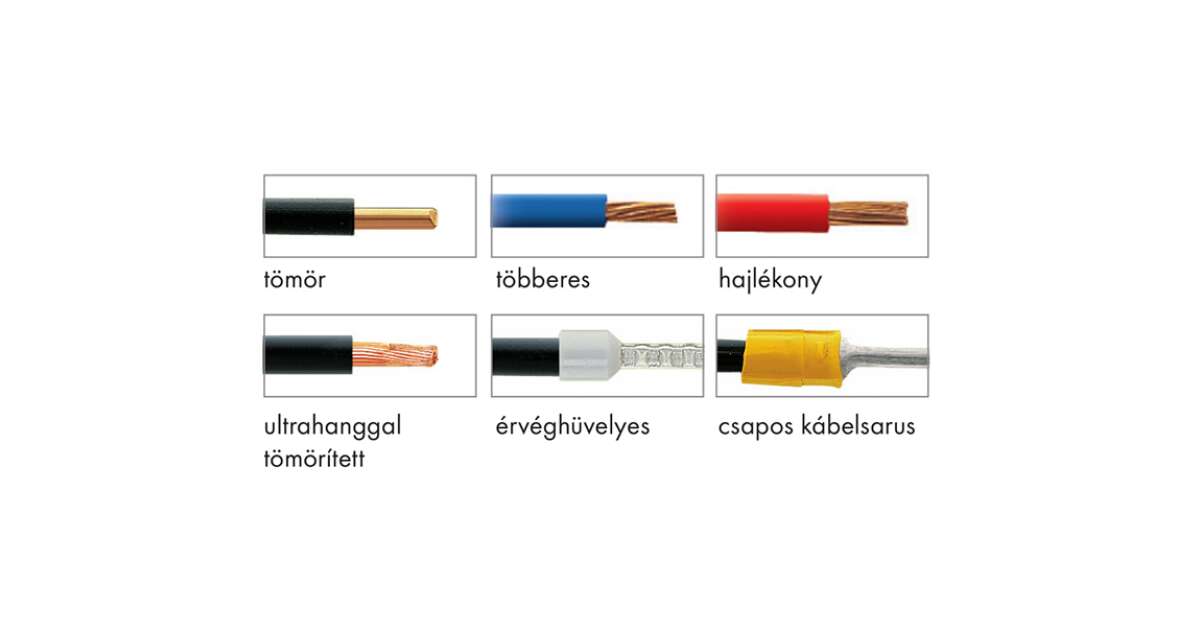

- Suitable for all wire types: solid, stranded, flexible, ultrasonic-welded, wires with cable lugs or ferrules
- Transparent housing: Easy to check the connections
- Time-saving: Fast and efficient solution
- Safe: Insulated up to 450V voltage, suitable for 12V LED strips and 230V luminaires
- Reusable: Wires can be easily disconnected at any time
- Different cross-sections: Wires with different cross-sections and types can be connected side-by-side
Technical Data:
| Feature | Value |
|---|---|
| Number of wires | 4 |
| Wire cross-section | 0.14 – 4 mm² (f-st) / 0.2 – 4 mm² (s+st) |
| Voltage | 450 V / 4 kV |
| Current | 20 A |
| Inspection openings | 2 |
| Stripping length | 11 mm |
| Max. operating temperature | 85 °C |
| Continuous operating temperature | max. 105 °C |
| Protection class | IP20 |
Package Contents:
- 1 x WAGO 2273-204 Push-wire Connector
