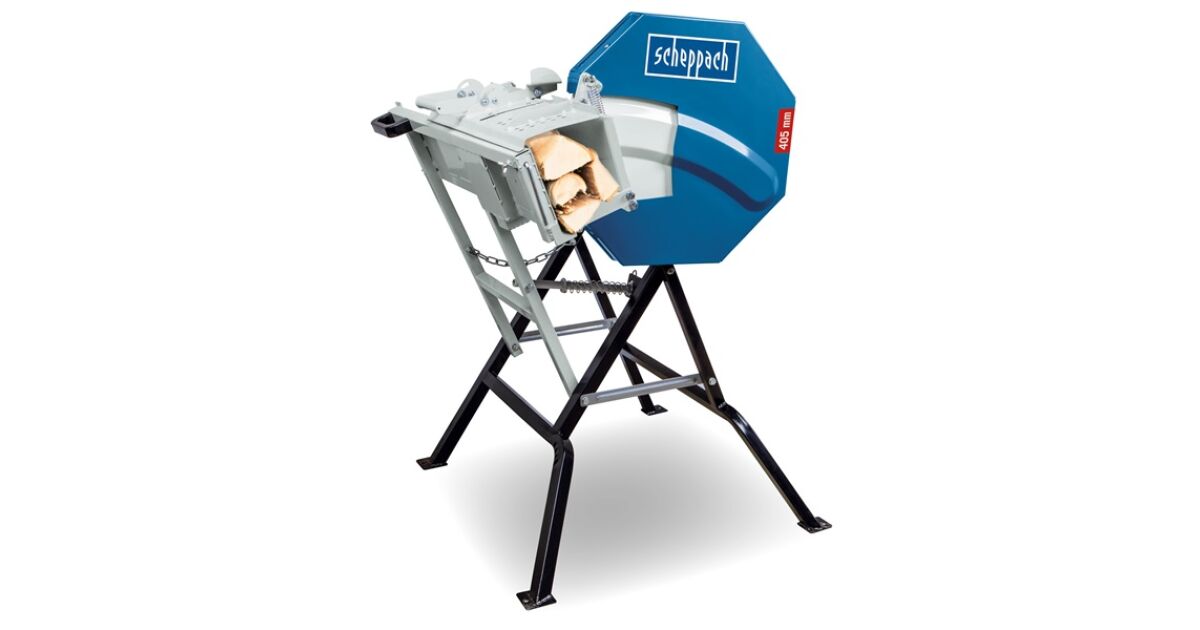

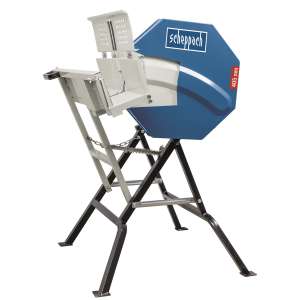

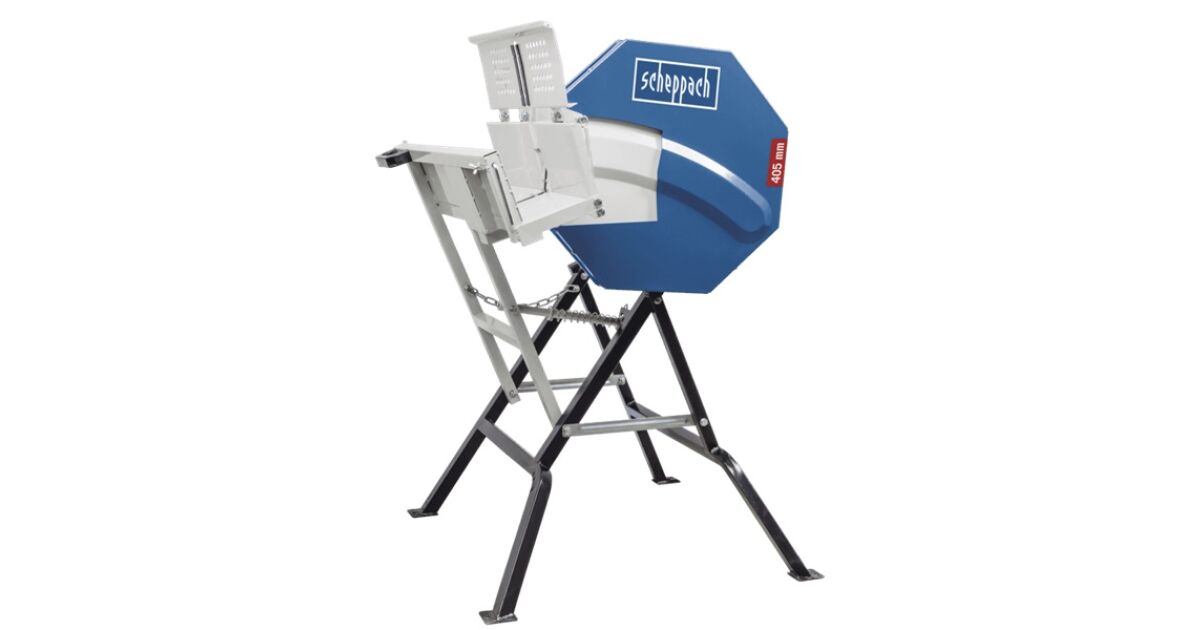

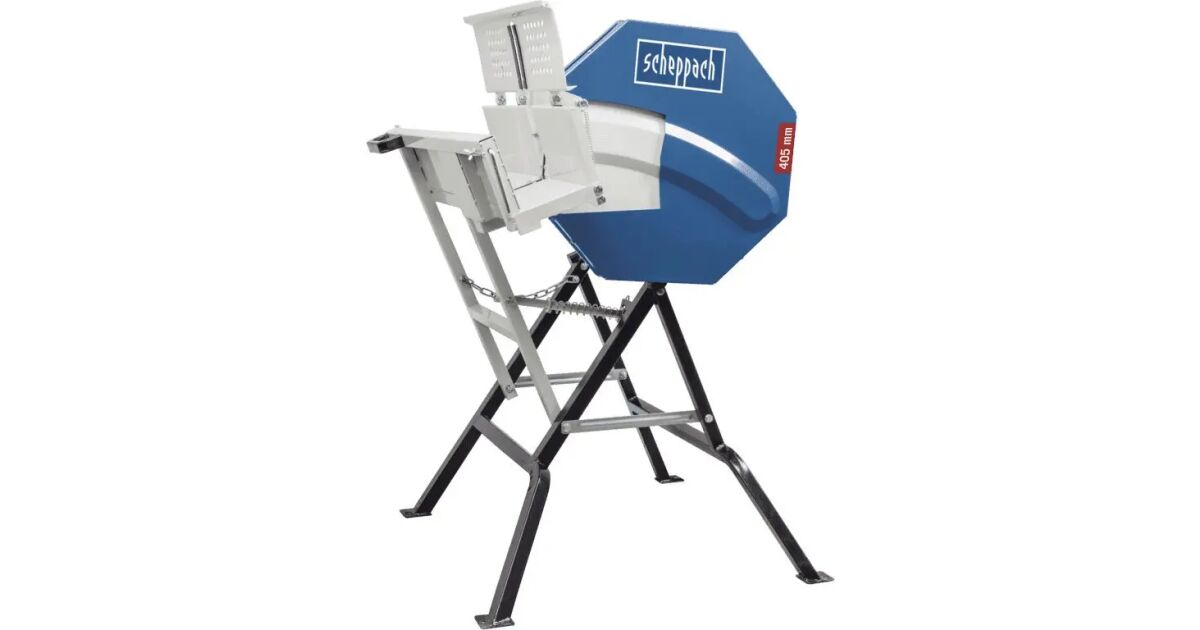

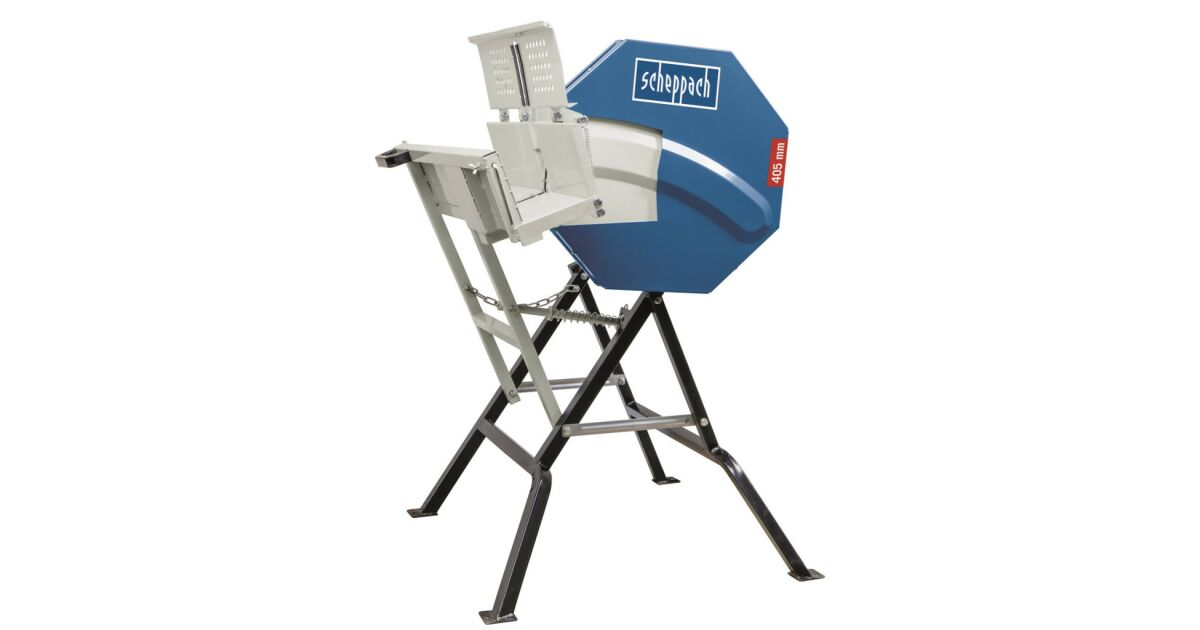

Scheppach HS 410 - Swing saw/tilting circular saw 400 mm

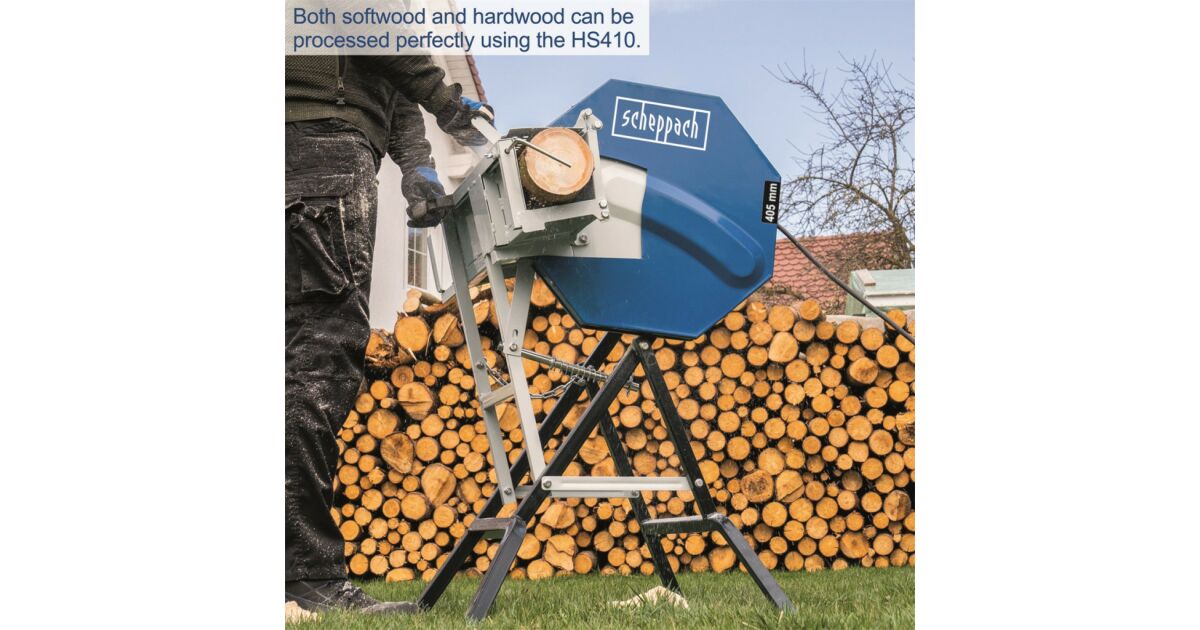

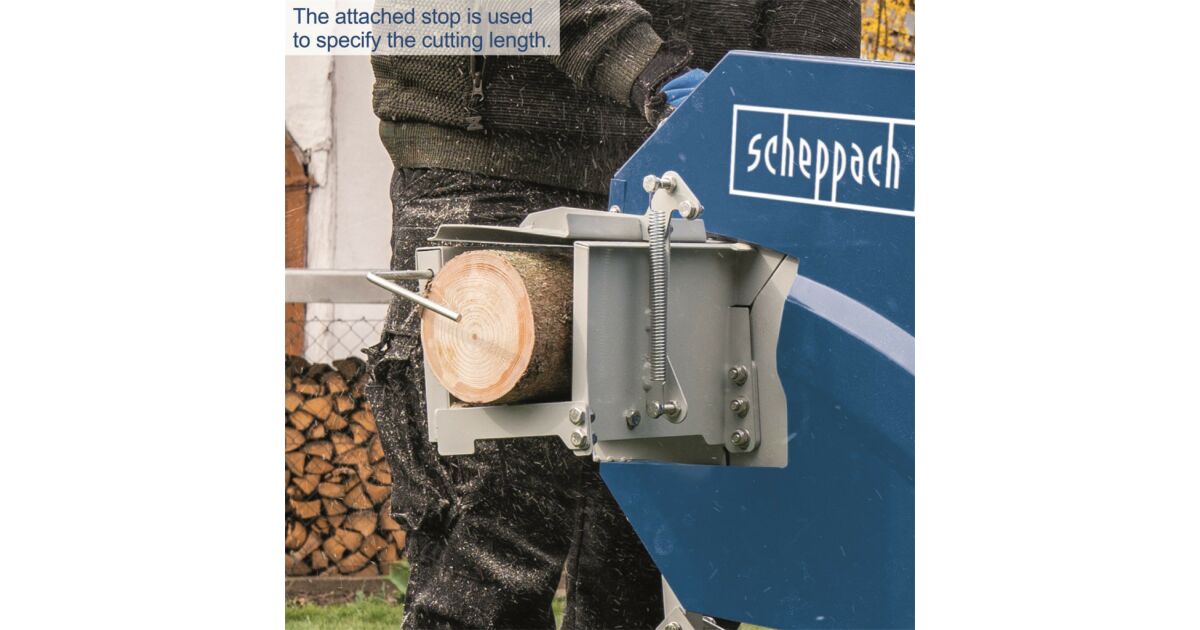

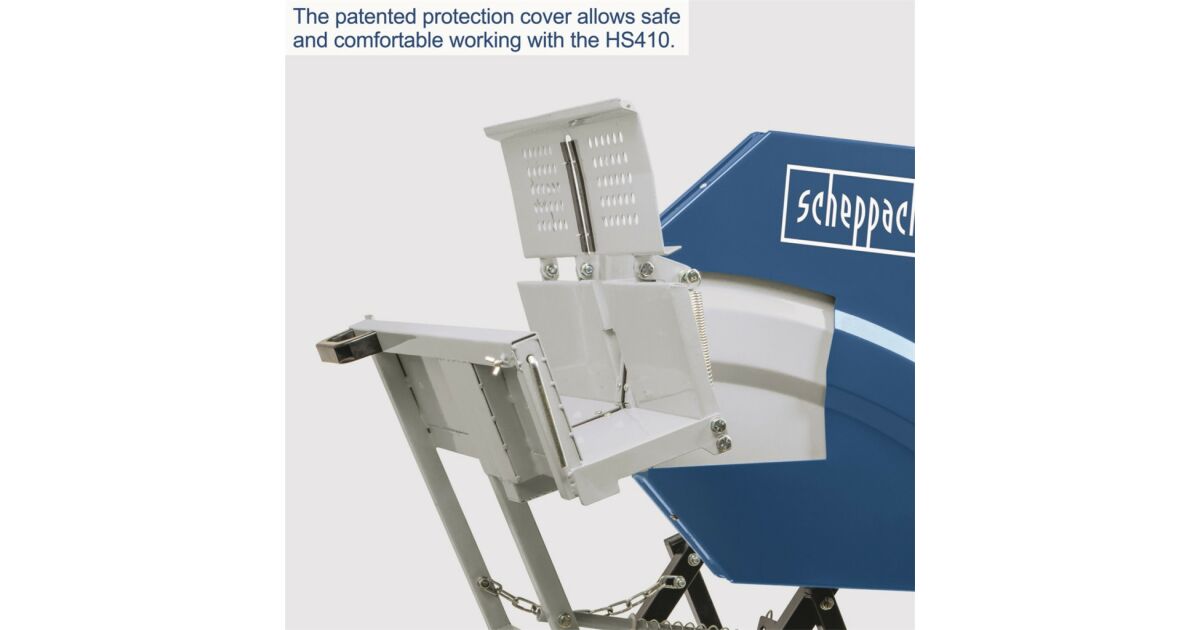

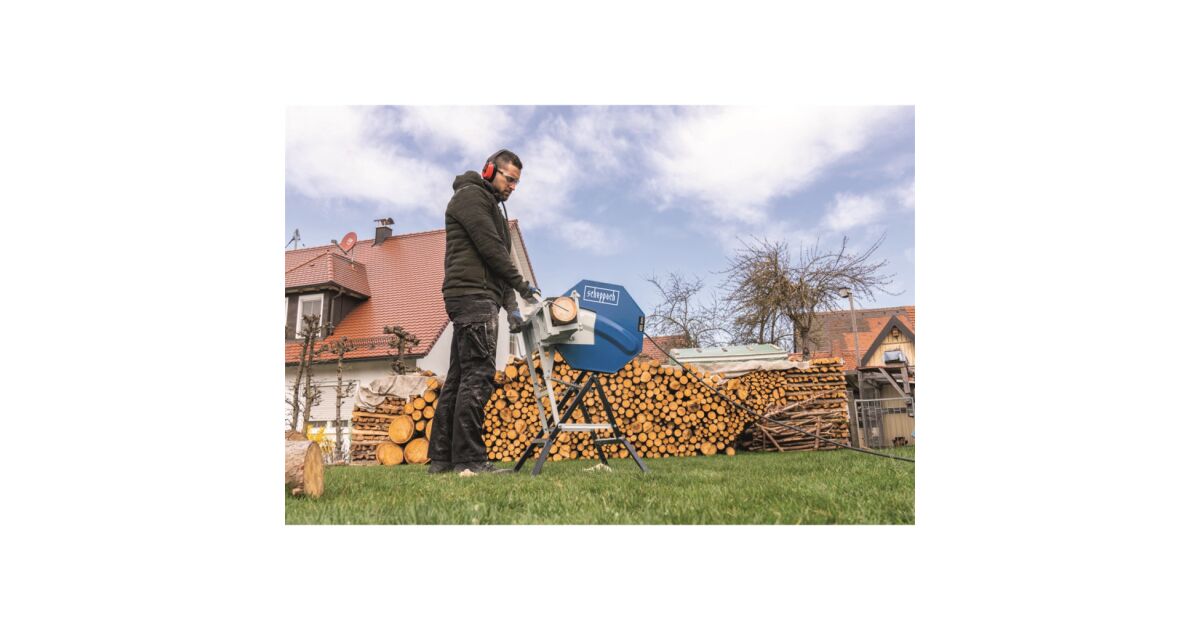

The Scheppach HS 410 swing saw is a modern and very popular safe sawing machine. Its operation is very fast and simple. Place the log, plank or log stump in the feeder, which you can grip with the wide handle and with a light movement you can push it against the cutting wheel that saws the wood. Thanks to the spring system, the feeder (the swing) returns to its initial position. You can continue pushing the piece of wood and the whole operation can be repeated and carried out very quickly. Hands are kept away from the saw blade throughout the operation. By adjusting the stop and the scale, you can saw pieces of equal length. The shape of the machine and its special spindles prevent the logs from shifting during sawing, and the shape also contributes significantly to cutting logs up to 140 mm long. At the heart of the machine is the quality TCT - carbide tipped tooth - saw blade, which ensures a smooth cut and whose correct sizing and positioning is a prerequisite for the long life of the whole machine. The saw blade is equipped with an efficient brake that can stop it very quickly. The saw has compact dimensions, so it does not take up much space, yet it is very stable and resistant to tipping. The welded steel frame profiles are made with powder coating technology, are finished with a quality lacquer coating and the whole saw is very stable and long, making it designed for trouble-free operation.



Technical data:
- Motor: 230 V / 50 Hz
- Power: 2200 W
- Speed: 2800 rpm
- Saw blade brake: Yes
- Saw blade diameter: 405 mm
- Blade size: 30 mm
- Number of saw blade teeth: Z 36
- Safety switch Yes
- Log diameter: 13,5 cm

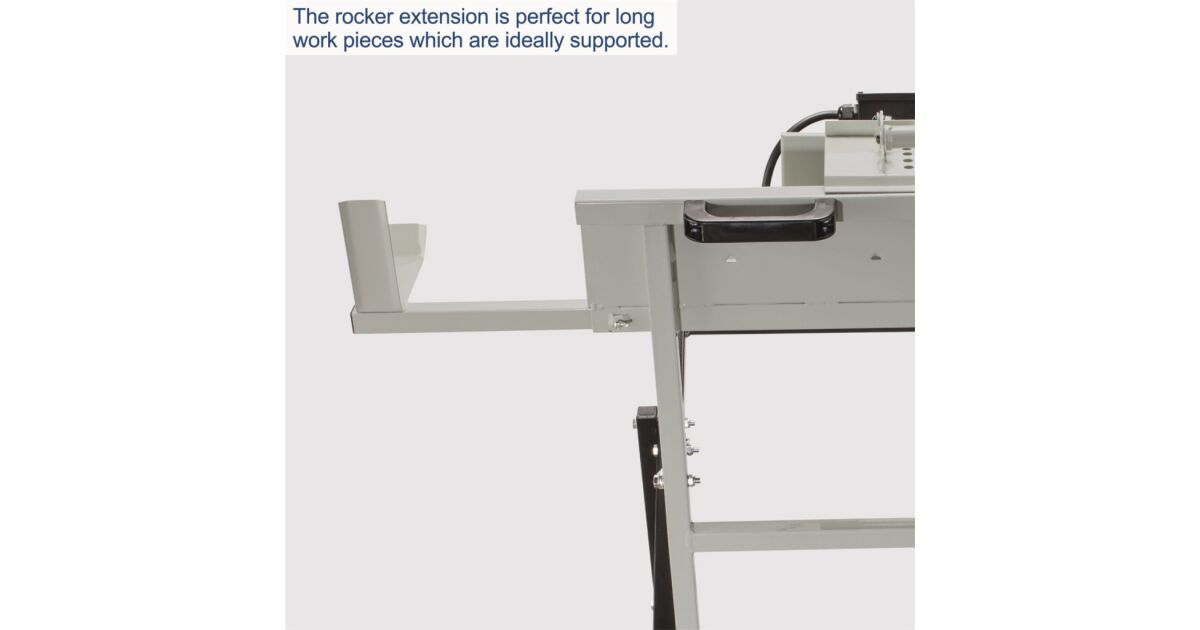

- Extension of tilting bar: Yes
- Length extension extension: Yes
