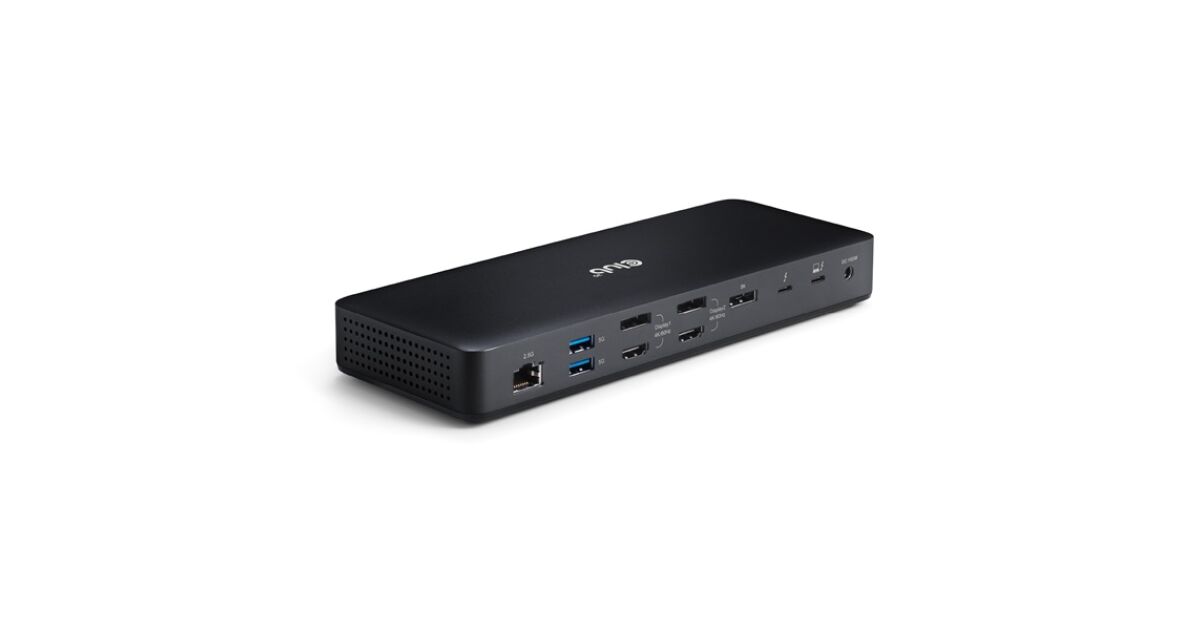

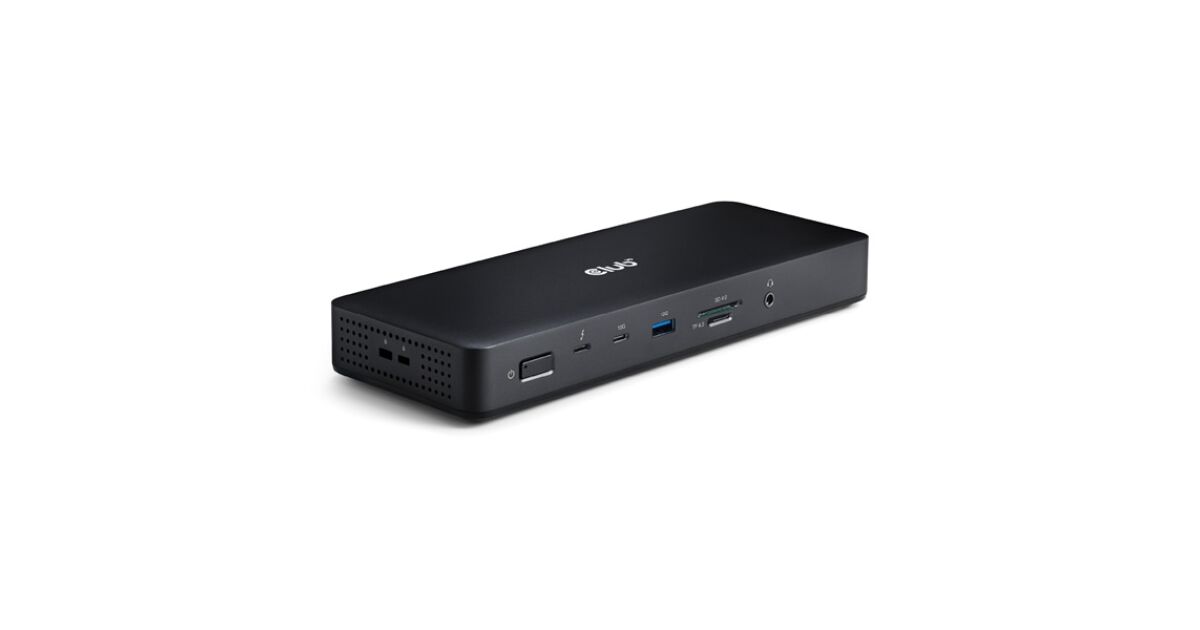

CLUB3D CSV-1583 Docking Station and Port Replicator Wired Thunderbolt 4 Black

Thunderbolt 4 16-in-1 Quadra(4) displays docking station

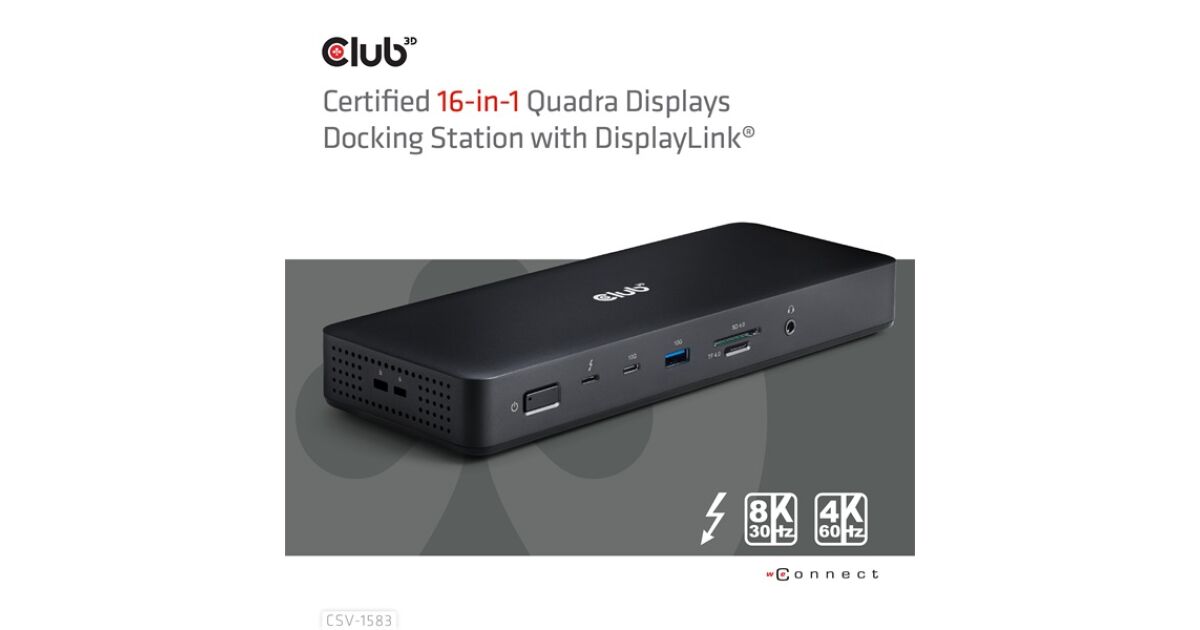

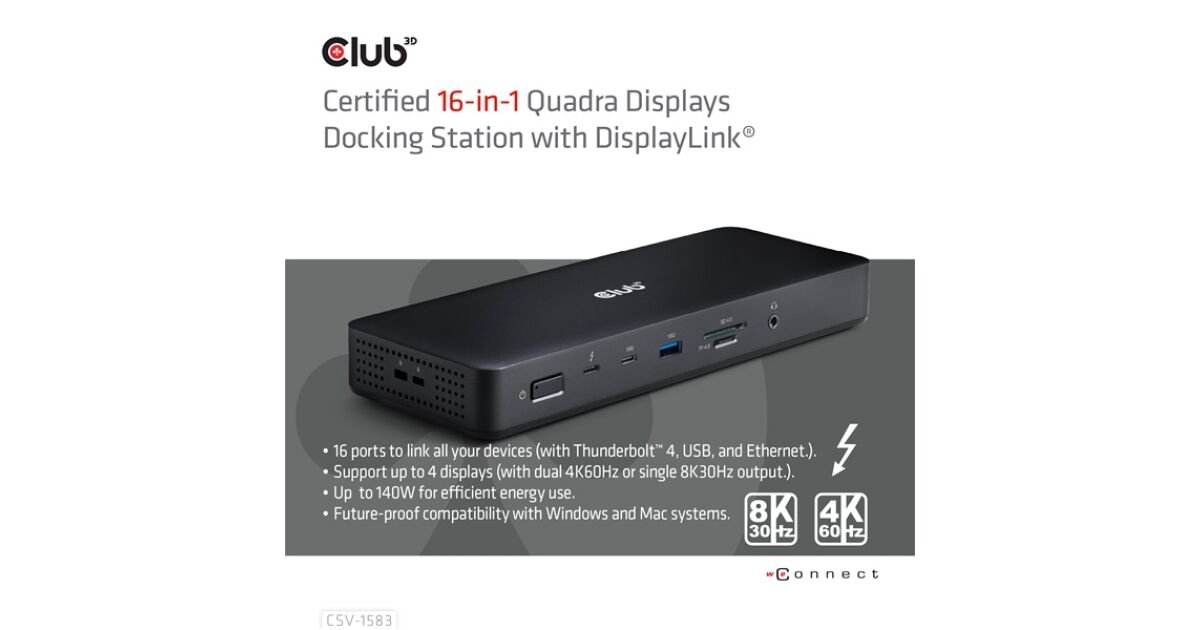

The Club 3D CSV-1583 is a Thunderbolt™ 4 certified 16-in-1 Quadra DisplayLink® docking station that offers the most advanced, efficient and versatile I/O solution with up to 40 Gb/s data and video transfer speeds. It provides up to 3 video outputs from each of 7 video ports when connected to M1, M2 and M3 connectors; 4 video outputs when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series notebooks and Windows notebooks. RJ45 supports up to 2.5G bandwidth. USB ports support up to 10G data transfer. It also supports the Smart Power feature, which allows you to distribute power according to the power consumption of the connected device, making full use of the external power supply. Designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt mode PCs.

SpecificationsProduct name:Thunderbolt™ 4 Certified 16-in-1 Quadra Display Docking StationProduct series:Universal DockProduct code:CSV-1583EAN code:8719214473044UPC code:841615103300

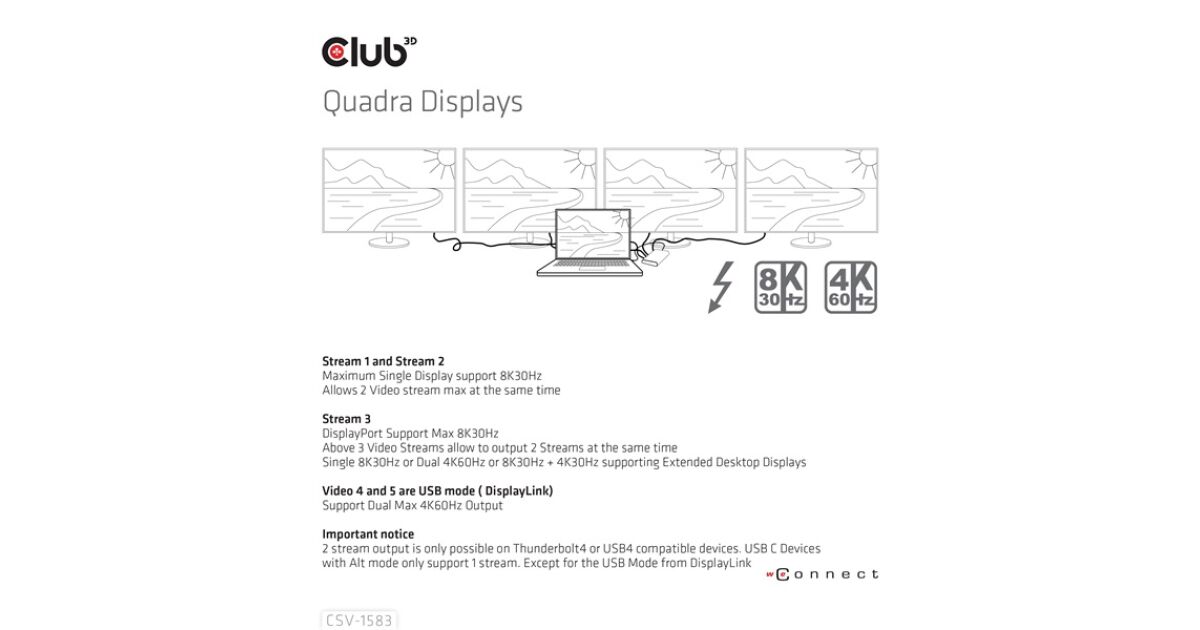

Features:- Adopt Goshen Ridge solution- Designed for TBT4™/USB4™ based PCs and compatible with TBT3™/DP-Alt mode PCs- Supports Thunderbolt™ 4 max. 40 Gbps for high-speed data transfer and excellent video transfer, compatible with TBT3™, USB4™, DP™Alt mode, USB protocol- Enable simultaneous output of 2 data streams out of 3, and enable a single 8K30Hz or dual 4K60Hz display output in extended mode on Windows-based systems- Of the 2 video streams (from DisplayLink®), enable dual 4K60Hz output in extended mode on Mac (including M1, M2, M3) and Windows-based systems- Each of the 7 video ports allows up to 4 video streams per Mac (including M1, M2, M3) and Windows-based systems. 3 videó kimenetét teszi lehetővé, ha M1, M2, M3 csatlakozókra van csatlakoztatva; 4 videó M1 Pro/Max, M2 Pro/Max, M3 Pro/Max és más Mac sorozatokhoz és Windows notebookokhoz csatlakoztatva• Az RJ45 legfeljebb 2,5 G sávszélességet támogat• Az USB portok maximum 10G adatátvitelt támogatnak• Az SD/TF támogatja az SD4.0-t maximum 312 MB/s sebességgel• Önellátás egyenáramú tápadapterről max. Supports self-powering with 96 W for host, up to 140 W for host and dock- Supports smart power supply, which allows flexible power distribution between PC and Hub in real-time according to the power consumption of connected devices- Compatibility specifications.Support for Windows 10 or later or Windows 5.2 (limitations may vary for different Apple proprietary Silicon)- Supports Kensington anti-theft lock as well as the standard Nano anti-theft lock (which uses only 70% of the physical space)

OS support:- Windows 11 or later, Mac 13.5.2 (Restrictions may vary for different Apple-proprietary Silicon)

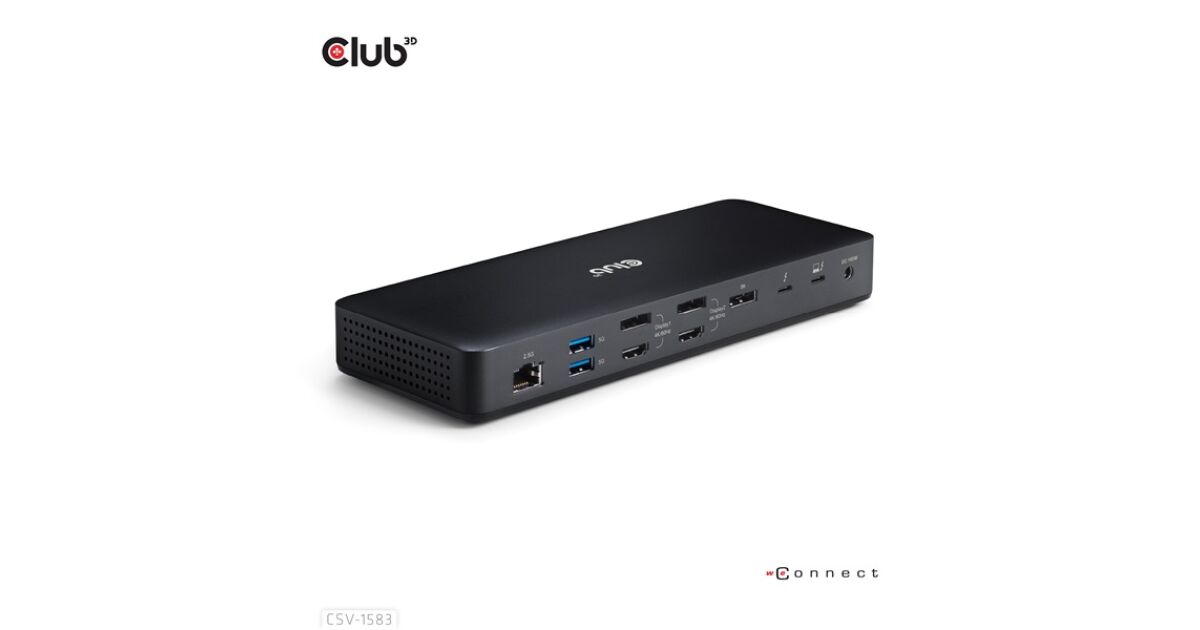

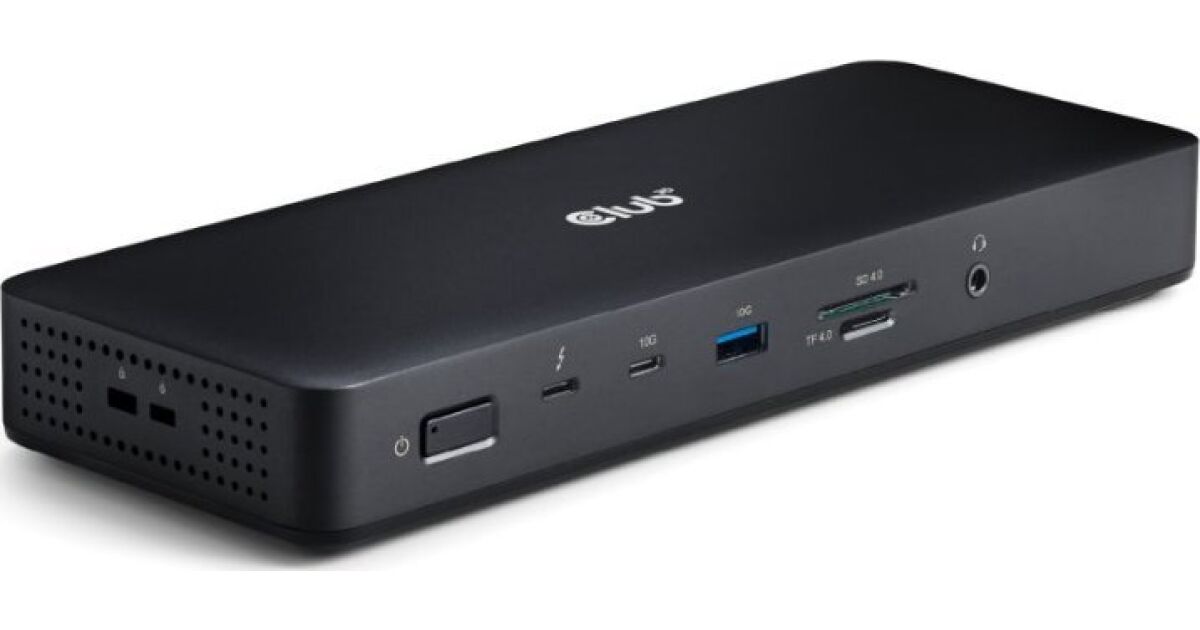

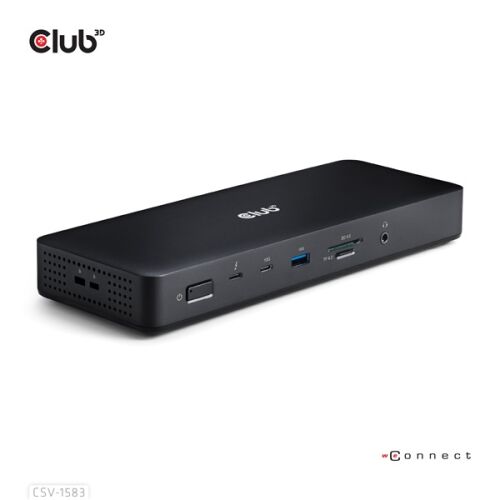

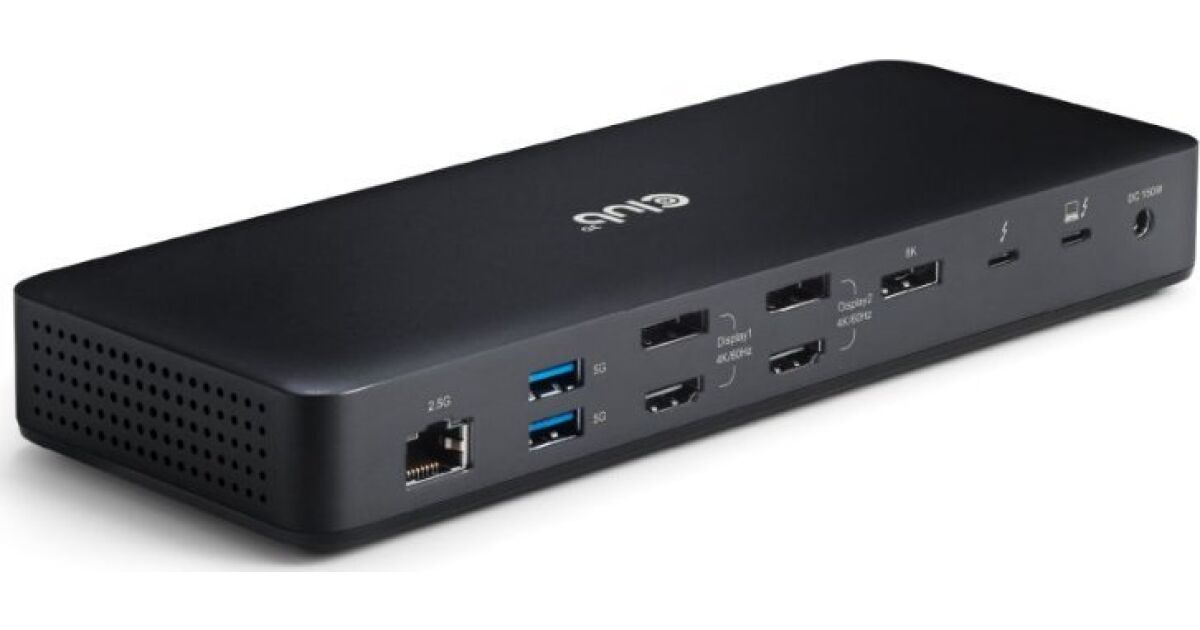

Available interfaces:Input:- 1x TB4™(40G) USB Type-C connector socketOutput:- 2x - Thunderbolt™ 4 female- 1x - DP™ (8K30Hz, DP Alt mode) female- 2x - DP™ (4K60Hz, USB mode) female- 2x - HDMI™ (4K60Hz, USB mode) female- 1x - USB-C (10G) socket- 1x - USB-A (10G) socket- 2x - USB-A 3.0 (5G) female- 1x - RJ45 (2.5G) female- 1x - SD/TF4.0 female- 1x - 3.5mm audio jack (384KHz)- 1x - DC power connector (150W)

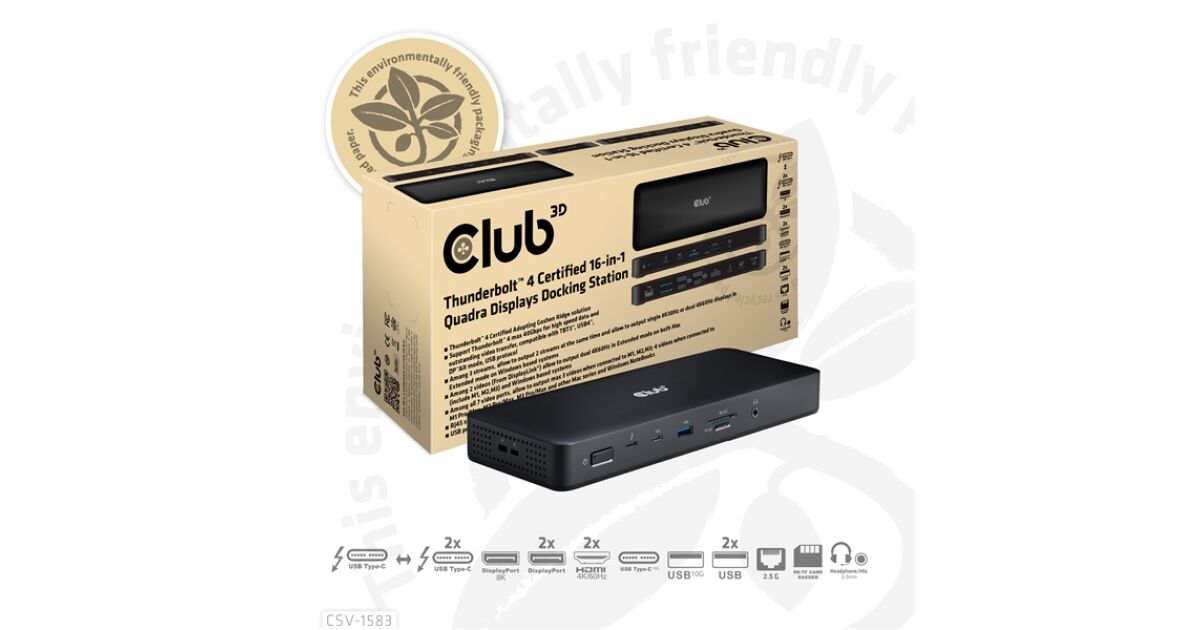

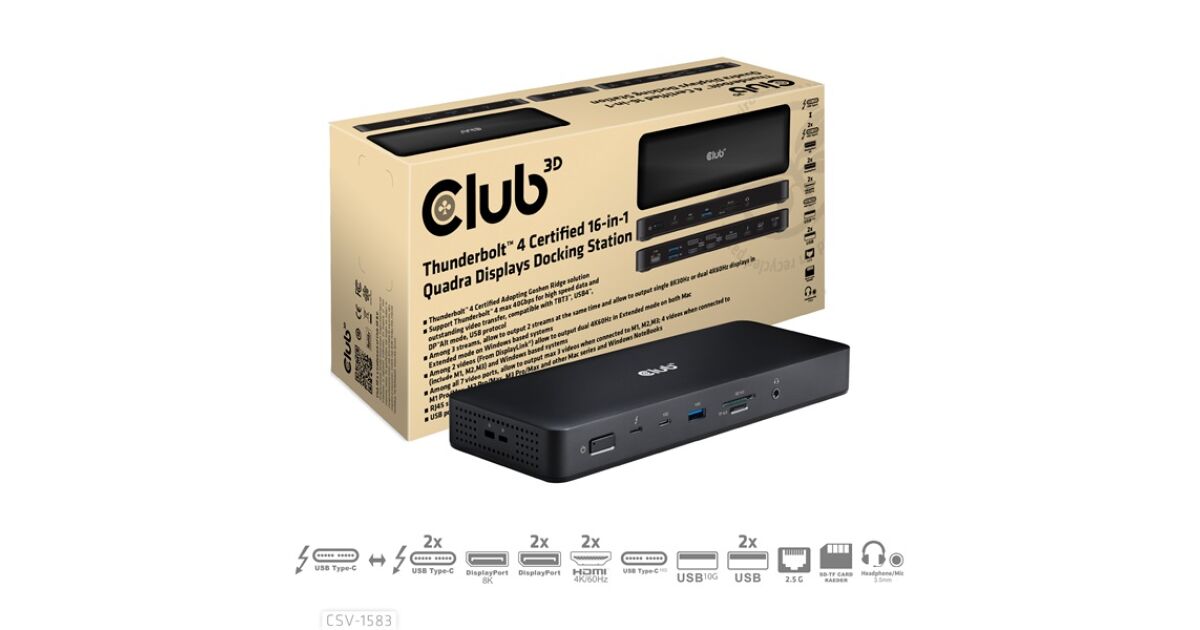

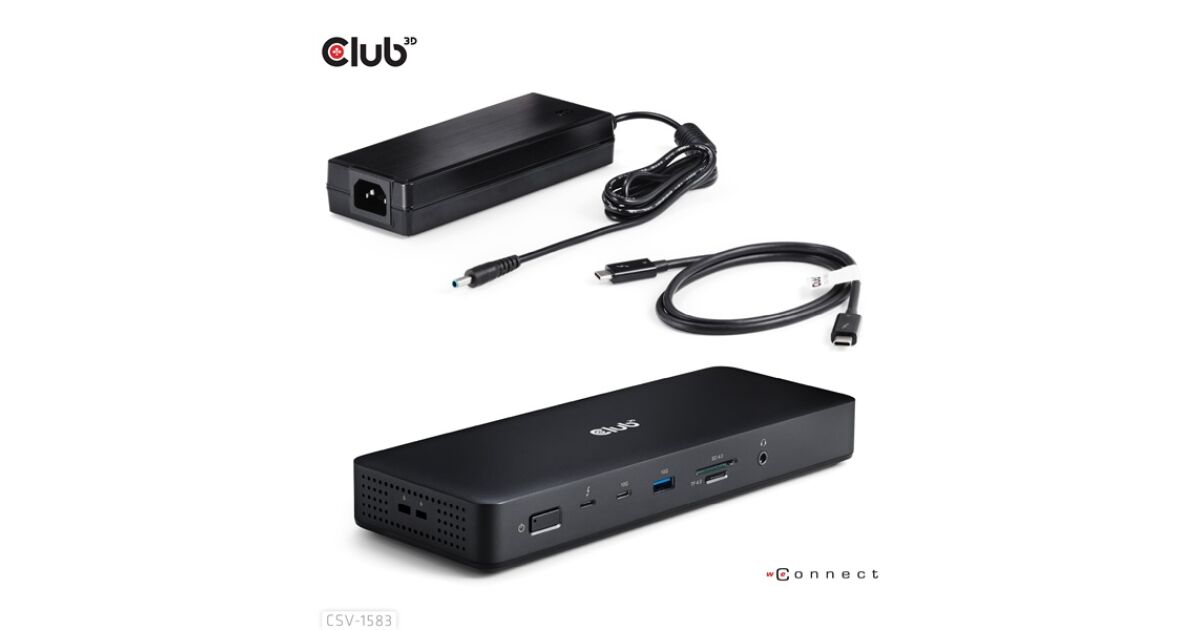

In the box:- CSV-1583 Thunderbolt™ 4 certified 16-in-1 Quadra Displays docking station- Power adapter 150 Watt- TB4™ cable 0.8 m / 2.62 ft M/M (for connection to host computer)- QR code for QIG (Quick Installation Guide)

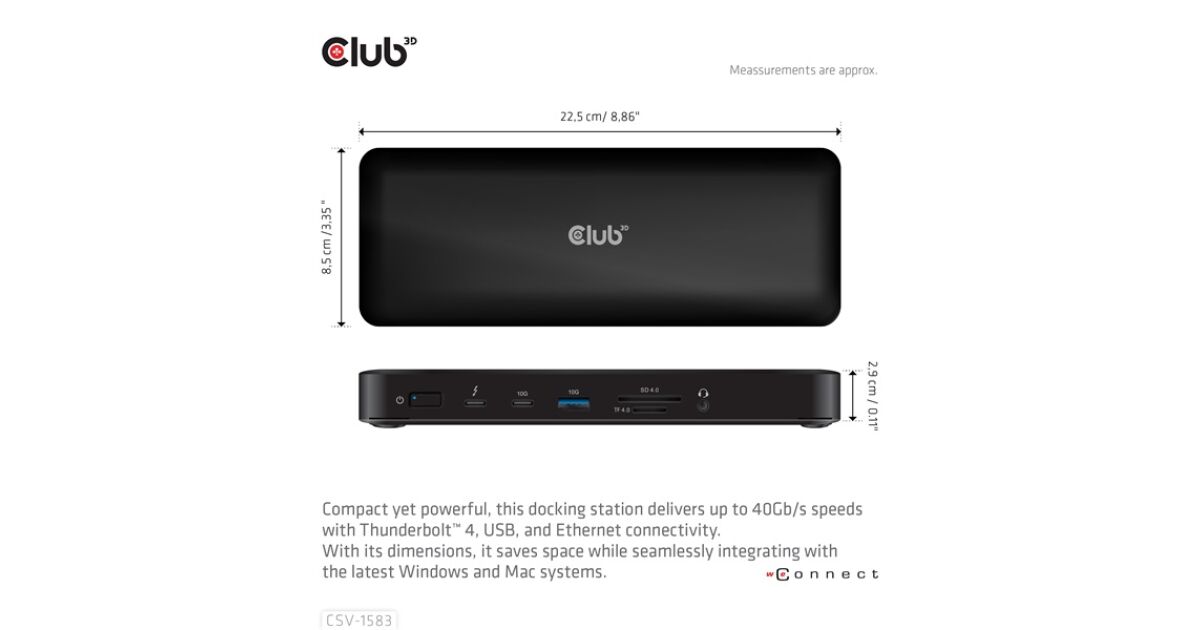

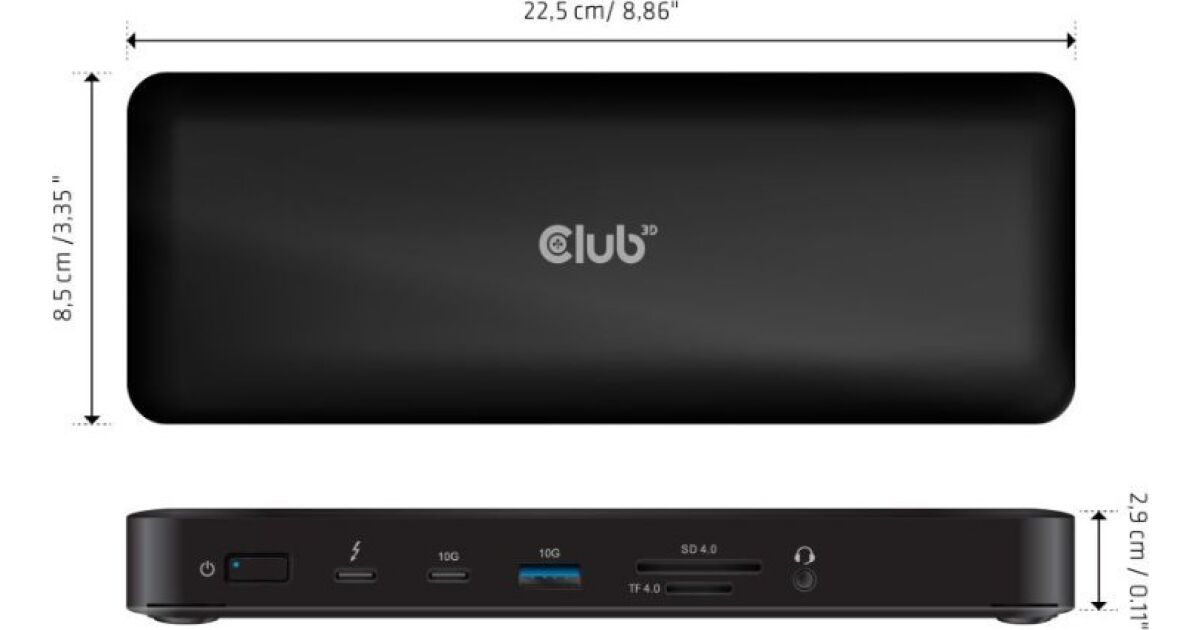

Other information:- Box dimensions: 27.5 x 12.5 x 8.7 cm / 10.83 x 4.92 x 3.42" - Dock dimensions: 22.5 x 8.5 x 2.9 cm / 8.86 x 3.35 x 0.86" - Power supply dimensions: 16 x 6.5 x 3 cm / 6.3 x 2.56 x 1.18" - Power cable length approx.: 1 m / 3.28 ft- Biodegradable bag dimensions: 16 x 24 cm / 6.3 x 9.45"- Biodegradable bag weight: 4 gr- TB4™ cable 0.8 m / 2.62 ft- TB4™ cable weight: 34 gr/1.2 oz (with biodegradable bag)- Product weight: 594 gr / 20.95 ounces- Power supply weight: 595 gr (depending on power connector)- Box weight: 163 gr / 5.75 ounces- Total weight: 1390 gr / 49.03 ounces- Complies with ROHS, FCC and CE EMI requirements

Note:Please update the firmware of your TV to the version that supports these resolutions/update frequenciesPlease update the graphics drivers on your computer and make sure that the DSC1.2 supports your devices to support these resolutions/update frequencies
