Air Filter, Separator, Oil Separator and Water Separator Technic AF5000-10 20 micron
Air Filter, Separator, Oil Separator and Water Separator Technic AF5000-10 20 micron description of

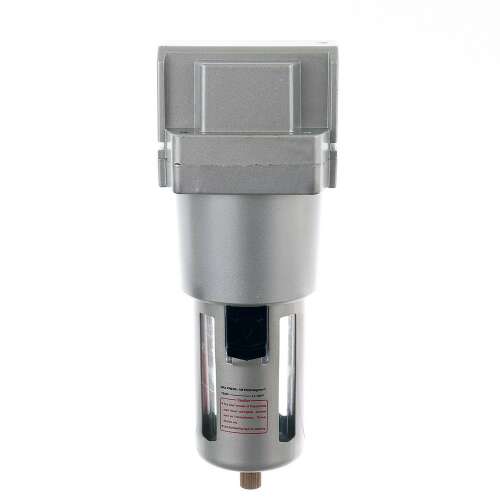

Technic AF5000-10 Pneumatic Air Filter: Clean, Dry Air for Your Pneumatic Systems 💨
This Technic AF5000-10 air filter is a must-have for any pneumatic system, protecting your equipment from moisture, oil, and other contaminants. Thanks to its 20-micron filtration, it ensures clean and dry air, preventing rust on tools, paint defects, and hose damage.
Key Features:
- Efficient Filtration: 20-micron filtration removes contaminants.
- Easy Maintenance: Water easily drains through the bottom valve.
- Robust Design: Durable construction with a metal tank cover.
- Simple Installation: No extra mounting needed, connects directly to the compressor.
- High Capacity: 5000 l/min maximum flow rate.
Technical Specifications:
| Property | Value |
|---|---|
| Height | 245 mm |
| Width | 90 mm |
| Filtration | 0.02 mm (20 micron) |
| Thread | 1" (approx. 30 mm outer) |
| Operating Pressure | 0-9.7 bar |
| Maximum Pressure | 14.7 bar |
| Maximum Flow Rate | 5000 l/min |
| Tank Volume | 130 ml |
| Weight | 1 kg |
Ensure the longevity and reliable operation of your pneumatic system with this high-quality air filter!
