ISO Connector Plug
ISO Connector Plug description of

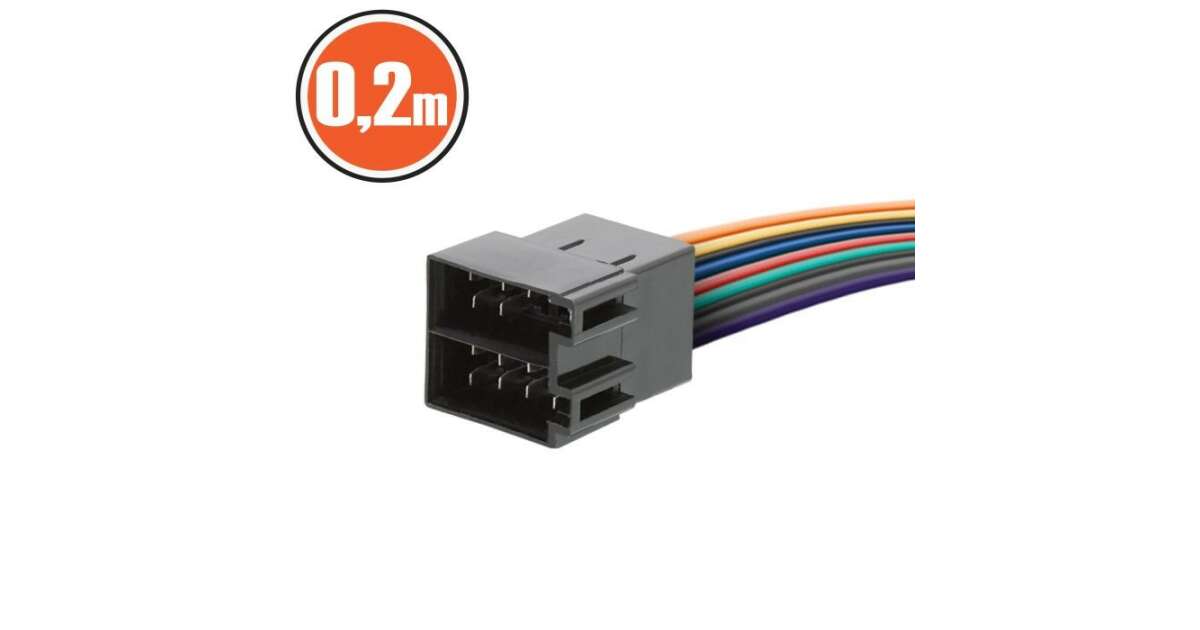

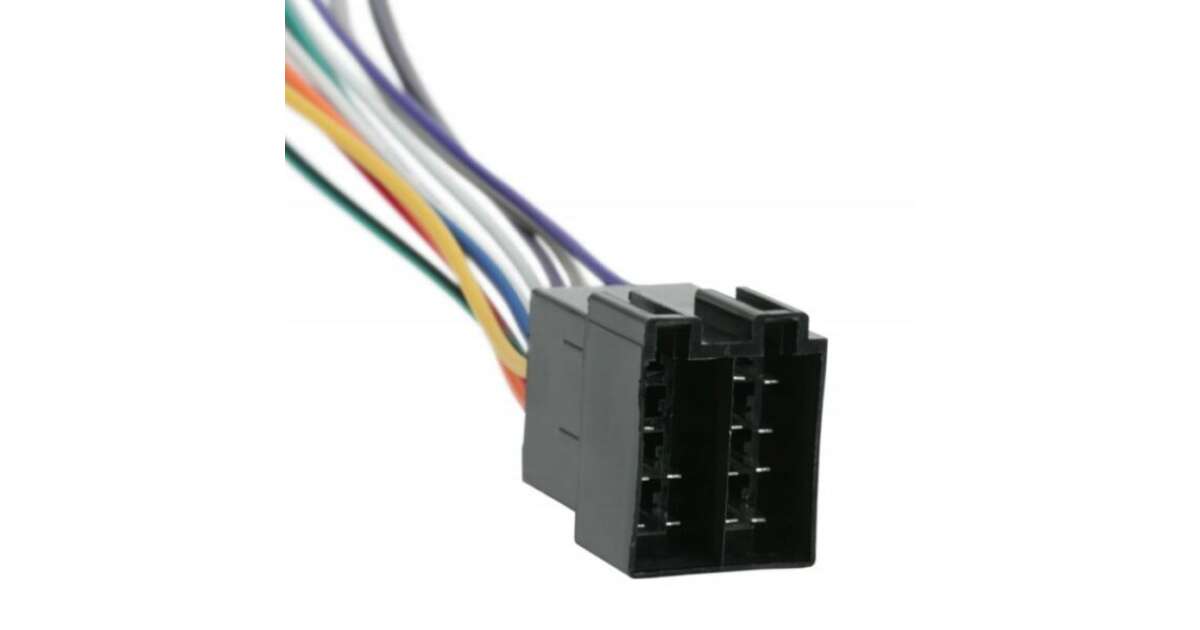

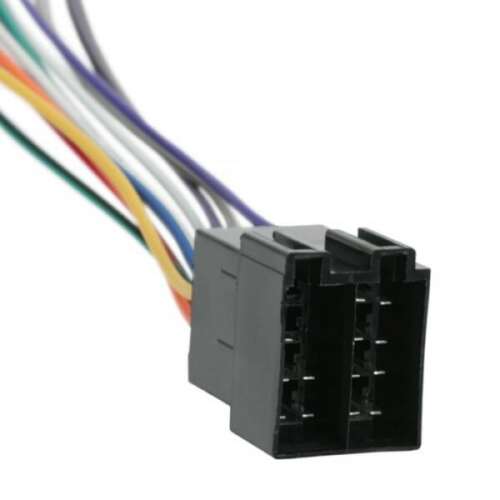

ISO Car Radio Connector Plug with 0.2m Cable - Easy Installation 🚗
This ISO connector plug is the perfect solution for replacing or installing a car radio. With its 0.2-meter cable, it easily connects to your vehicle's electrical system. The clear wiring instructions make installation quick and easy, so you can replace or install your car radio in a flash.
Features:
- Cable Length: 0.2 meters
- Connector Type: ISO
- Easy Installation: Clear wiring instructions

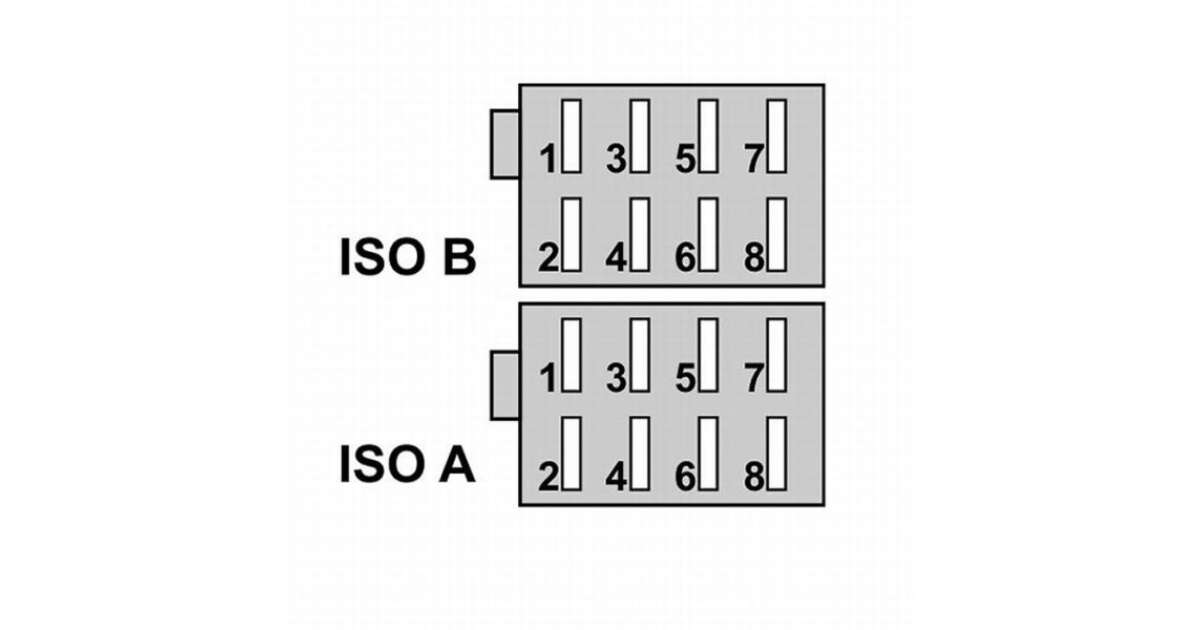

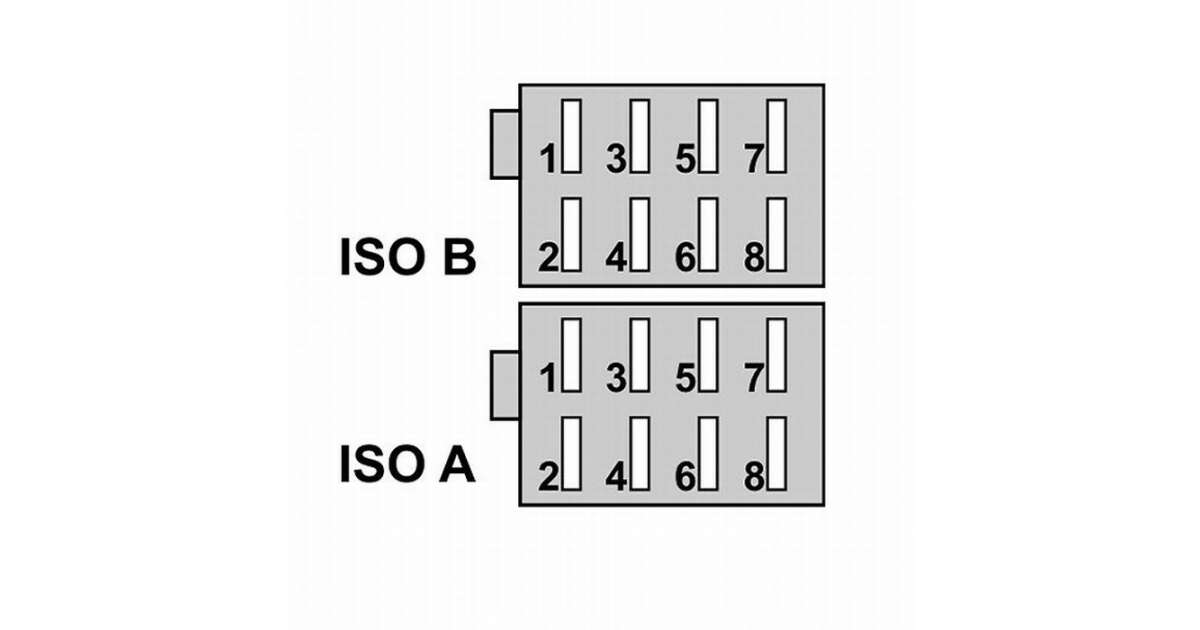

Wiring Diagram:
| Pin | ISO B | Function |
|---|---|---|
| B1 | Right Rear (+) | Speaker (+) |
| B2 | Right Rear (-) | Speaker (-) |
| B3 | Right Front (+) | Speaker (+) |
| B4 | Right Front (-) | Speaker (-) |
| B5 | Left Rear (+) | Speaker (+) |
| B6 | Left Rear (-) | Speaker (-) |
| B7 | Left Front (+) | Speaker (+) |
| B8 | Left Front (-) | Speaker (-) |
| A1 | No connection | |
| A2 | Mute Phone | Phone mute |
| A3 | No connection | |
| A4 | Constant 12V (memory) | Memory power |
| A5 | Electric Antenna | Antenna control |
| A6 | Switched Illumination | Display illumination |
| A7 | Switched +12V | Switched 12V |
| A8 | Ground (-) | Ground |
Easy to install, saving you time and energy!
Article number: 20198
