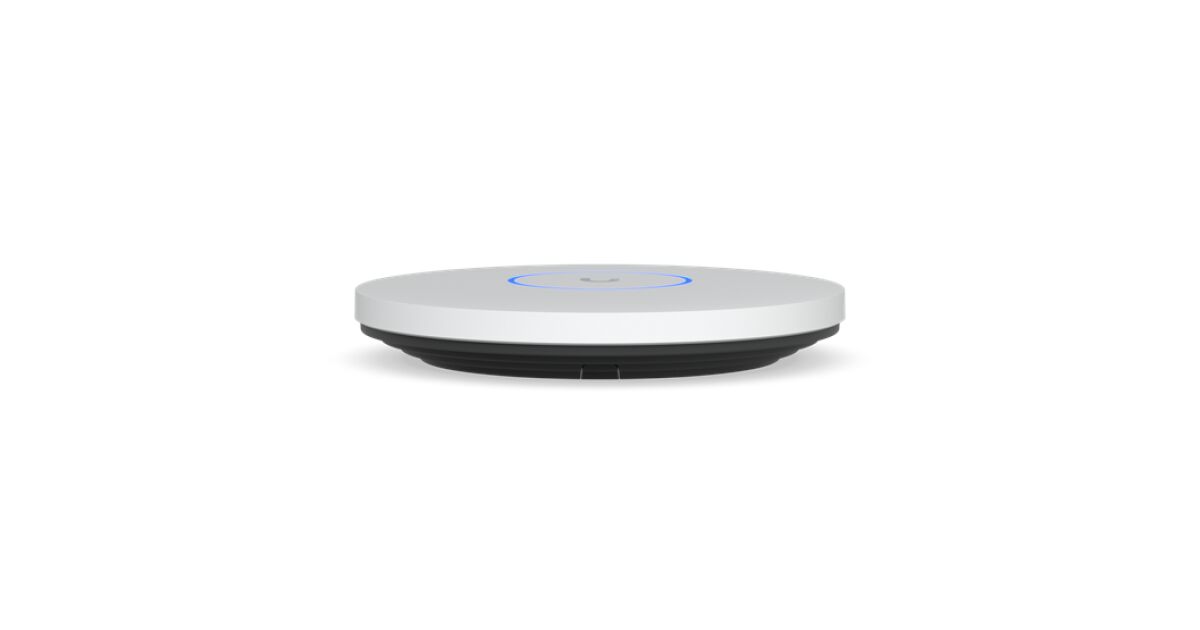

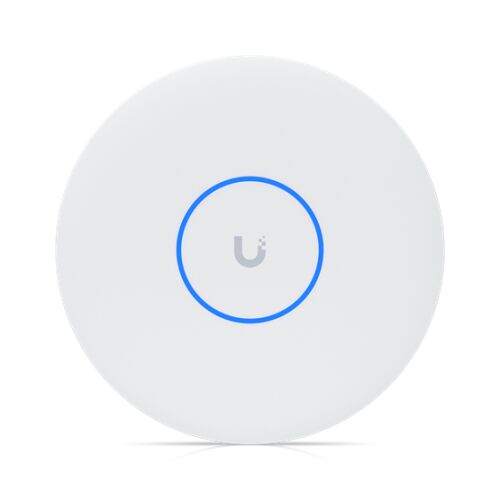

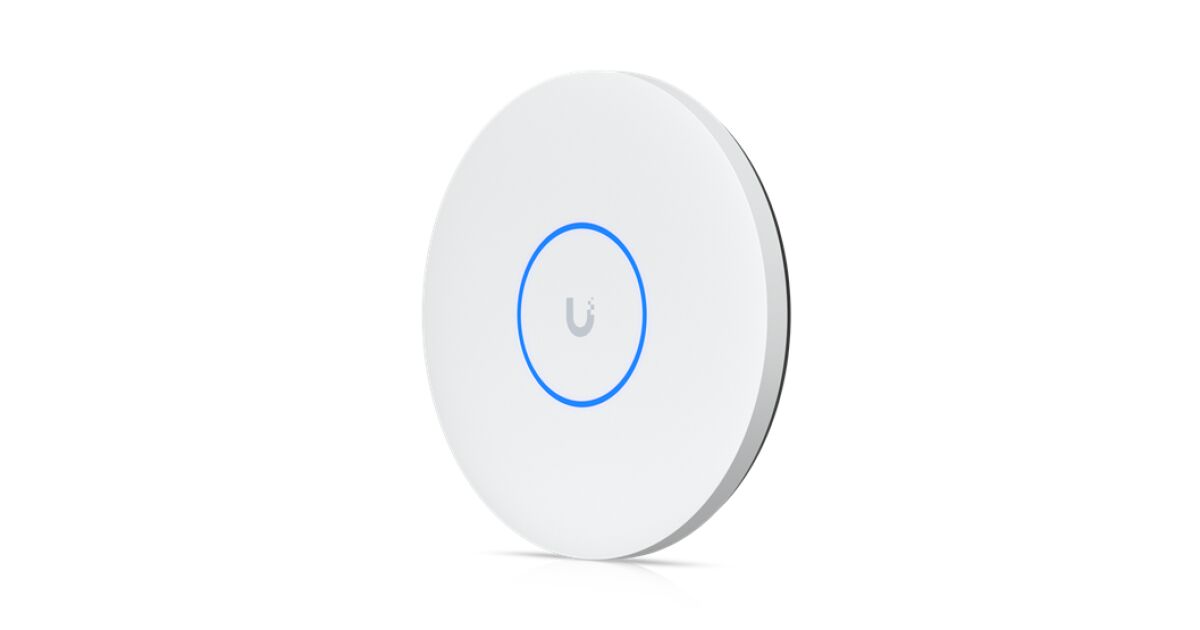

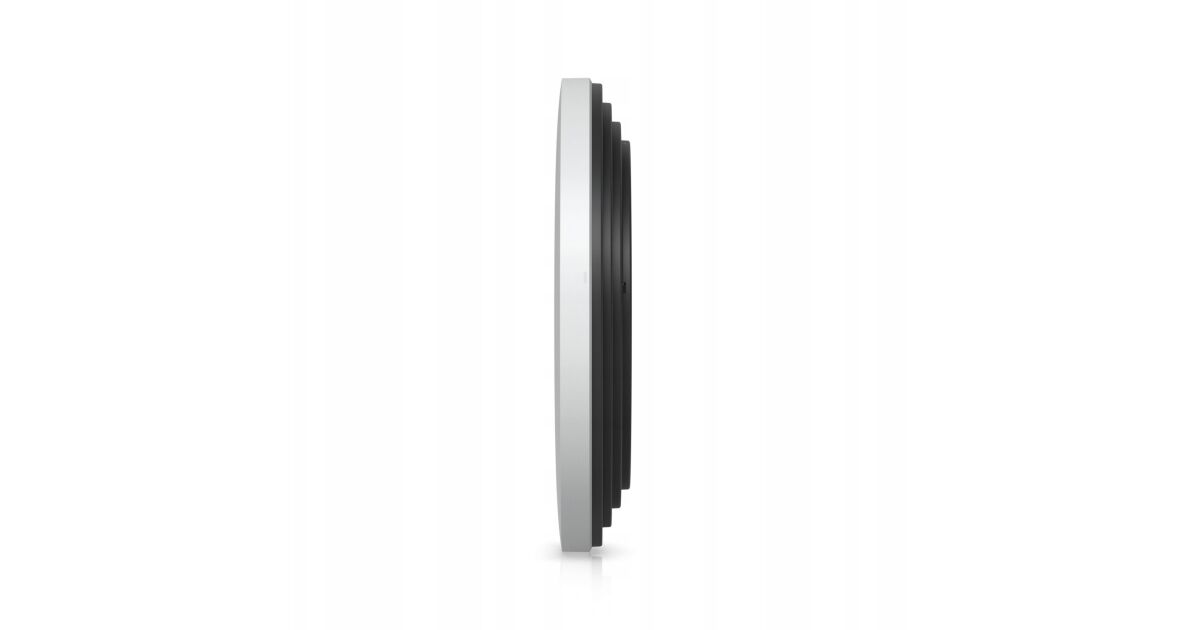

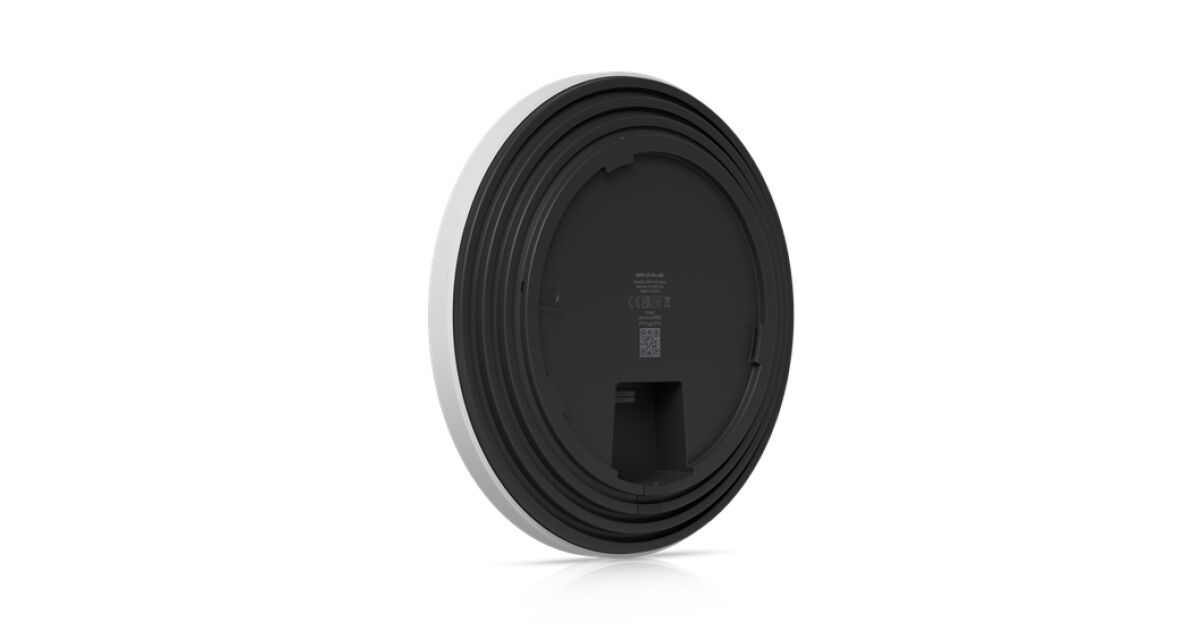

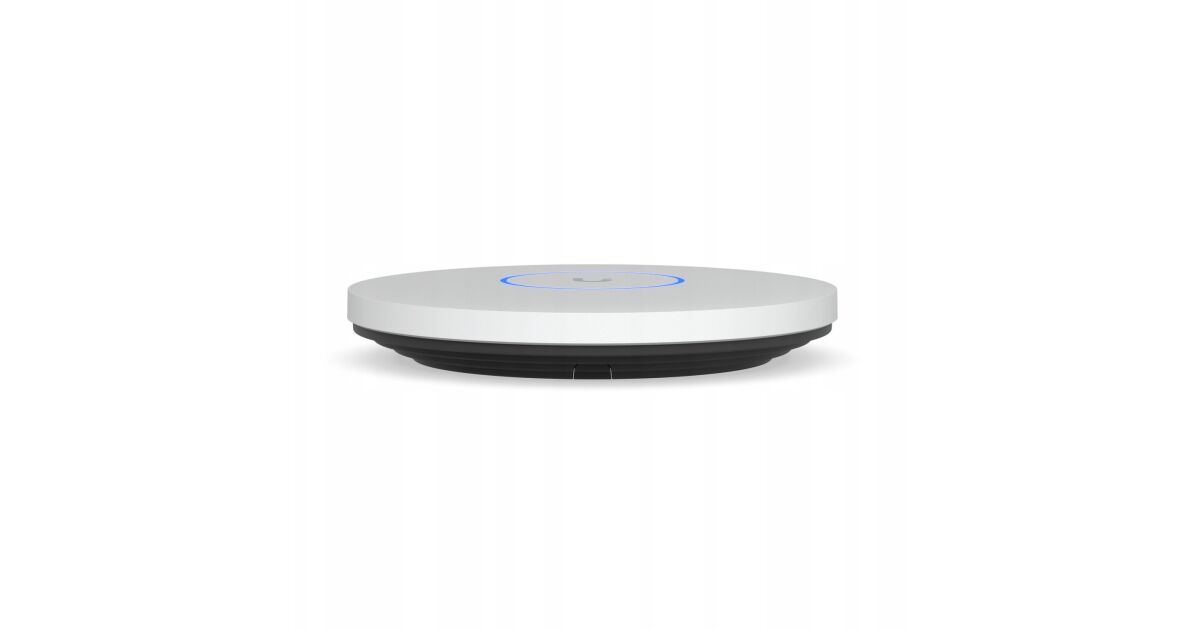

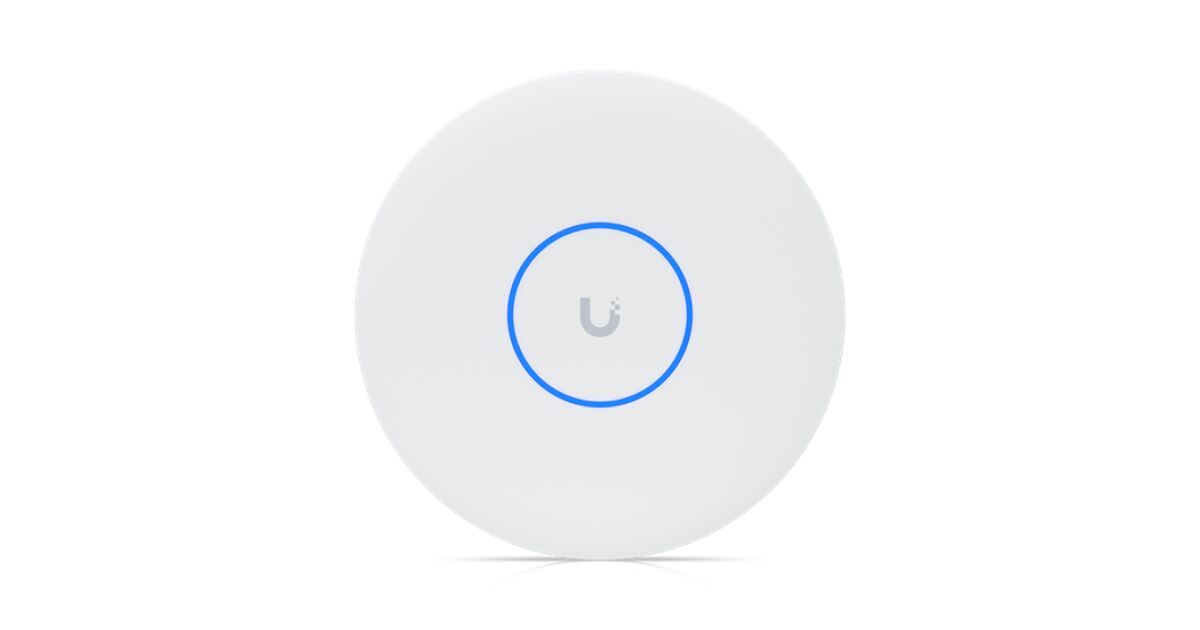

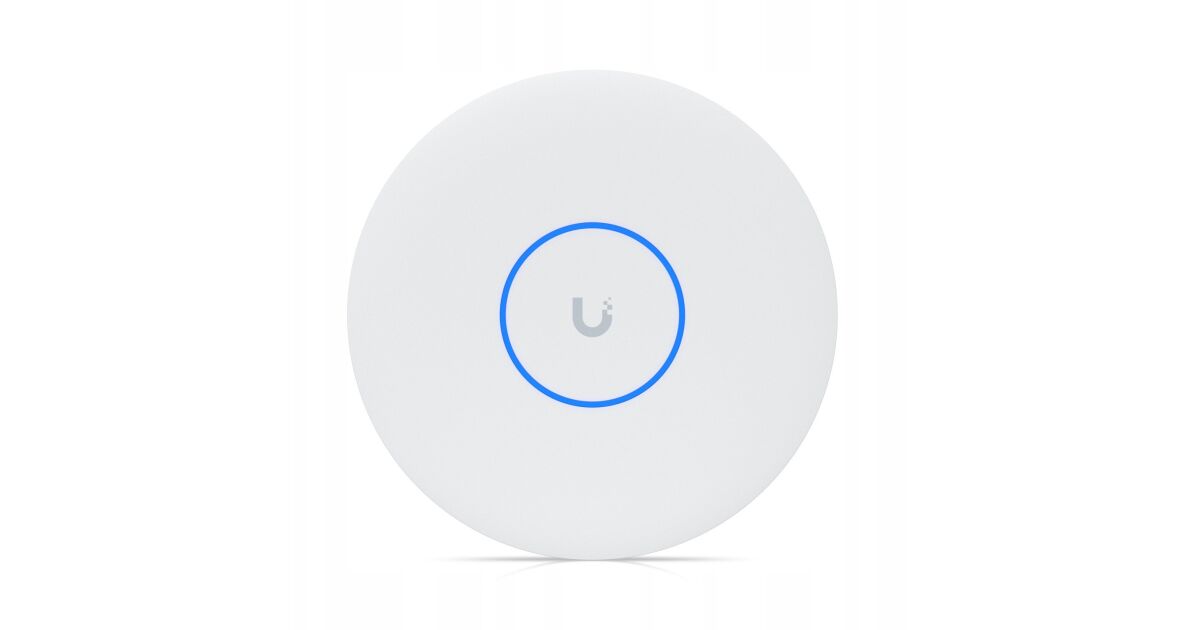

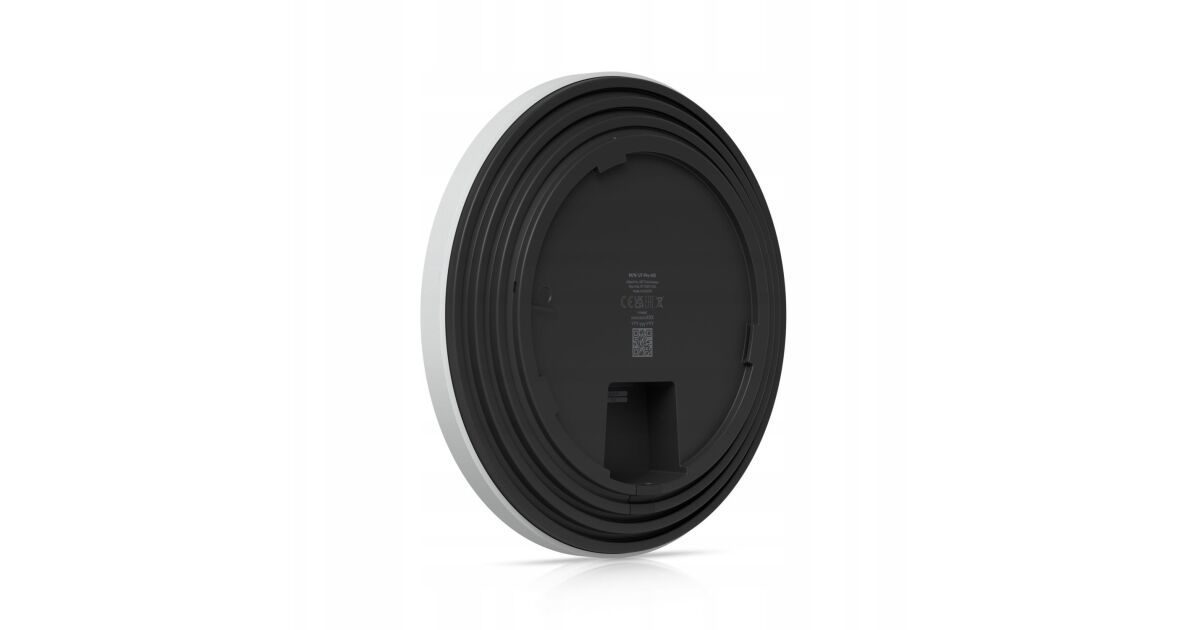

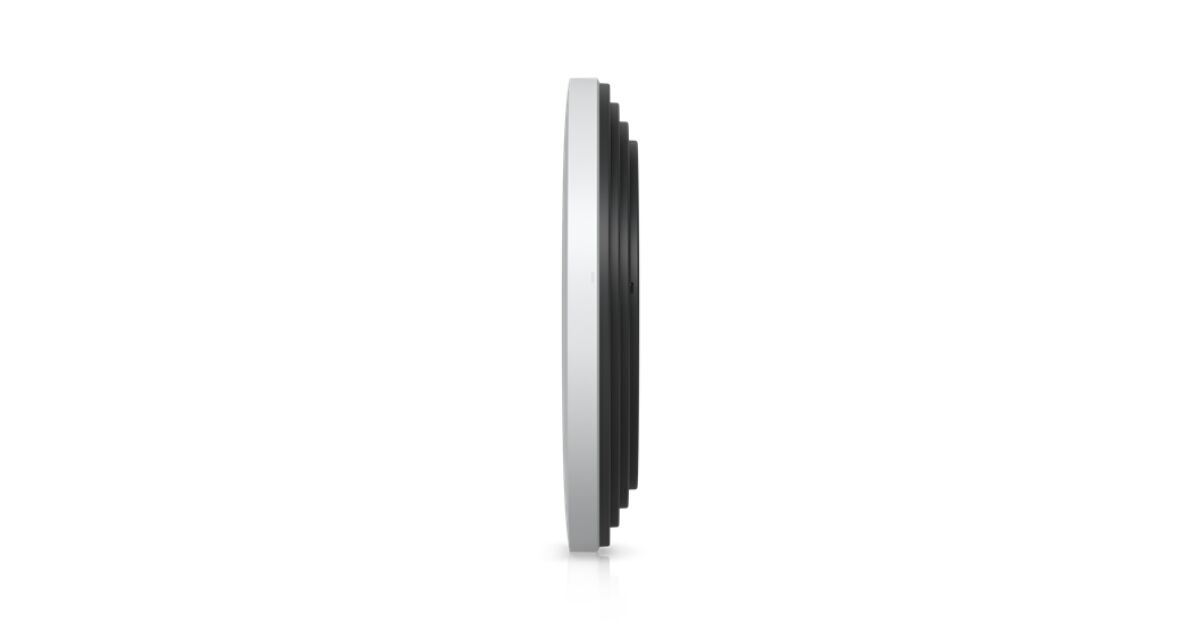

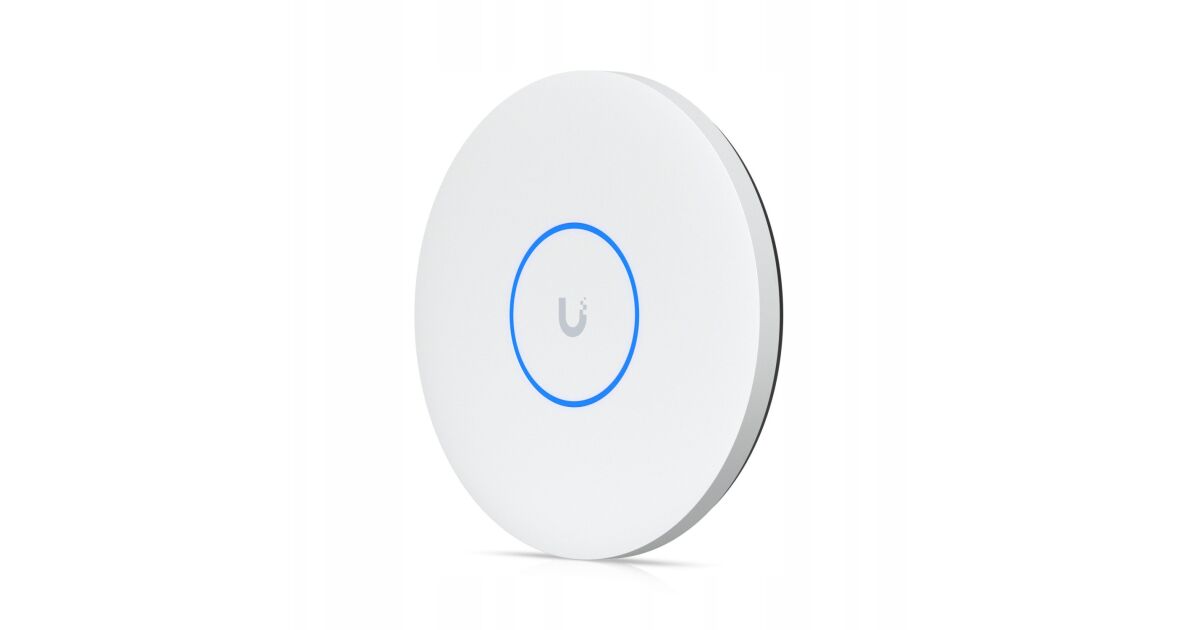

Ubiquiti UniFi U7 Pro XG Access point (WiFi 7, without power)

Dimensions

O206 x 32.5 mm (O8.1 x 1.3")





WiFi standard

WiFi 7





Spatial Streams (Spatial Fibre)

6





Coverage area

140 m² (1,500 ft²)





Max. number of clients

300+





Uplink

10 GbE





Fixing

Ceiling, wall (Lite Mount included)





Power supply

PoE+





Power





MIMO







6 GHz:

2x2 (DL/UL MU-MIMO)





5 GHz:

2x2 (DL/UL MU-MIMO)





2.4 GHz:

2x2 (DL/UL MU-MIMO)





Max. data rates







6 GHz:

5.8 Gbps (BW320)





5 GHz:

4.3 Gbps (BW240)





2.4 GHz:

688 Mbps (BW40)





Antenna gain







6 GHz:

6 dBi





5 GHz:

5 dBi





2.4 GHz:

4 dBi





Max. TX power







6 GHz:

24 dBm





5 GHz:

26 dBm





2.4 GHz

23 dBm





Max. BSSIDs

8 per radio





Supported data rates







802.11be (WiFi 7):

6 GHz: 7.3 Mbps - 5.8 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/320)



5 GHz: 7.3 Mbps - 4.3 Gbps (MCS0-MCS13 NSS1-4, EHT 20/40/80/160/240)





802.11ax (WiFi 6):

7.3 Mbps - 2.4 Gbps





802.11ac (WiFi 5)

6.5 Mbps - 1.7 Gbps





802.11n:

6.5 Mbps - 300 Mbps





Features





Wireless Mesh

Yes





Band control

Yes





802.11v BSS transition management

Yes





802.11r Fast Roaming

Yes





802.11k RRM

Yes





Advanced radio management

Yes





Hotspot Authentication Portal







Voucher authentication

Yes





-Payment based authentication

Yes





-External portal support

Yes





-Vendor network isolation

Yes





-Private pre-shared key

Yes





WiFi speed limit

Yes





RADIUS over TLS (RadSec)

Yes





Dynamic RADIUS-assigned VLAN

Yes





Hardware





Max. power consumption

22W





Supported voltage range

42.5-57V DC

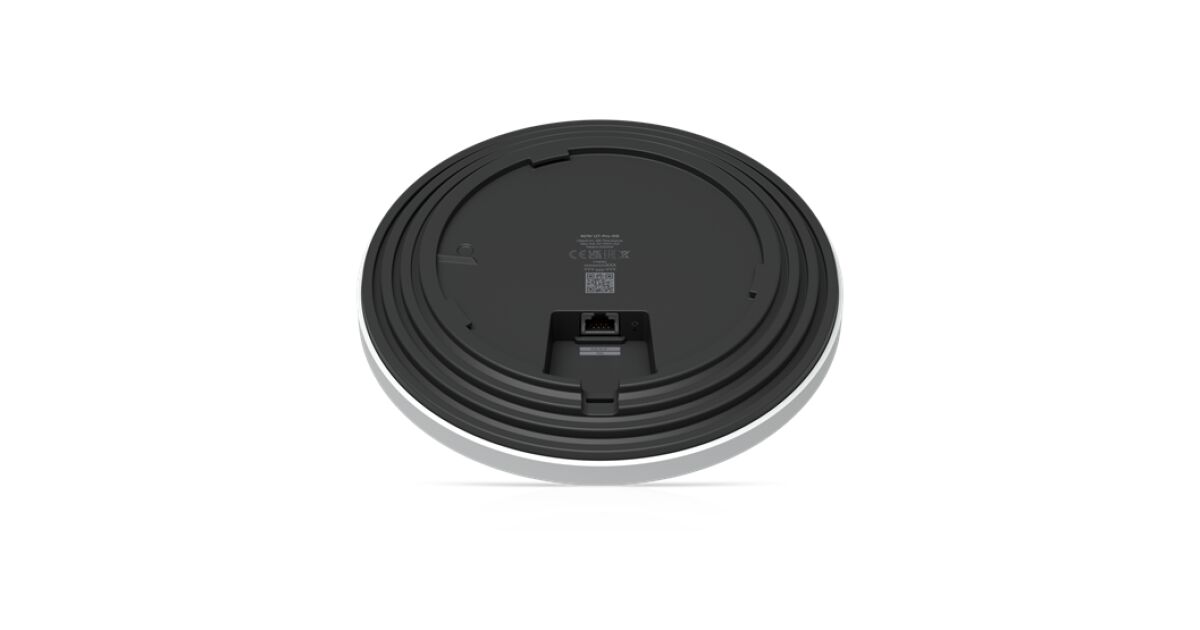

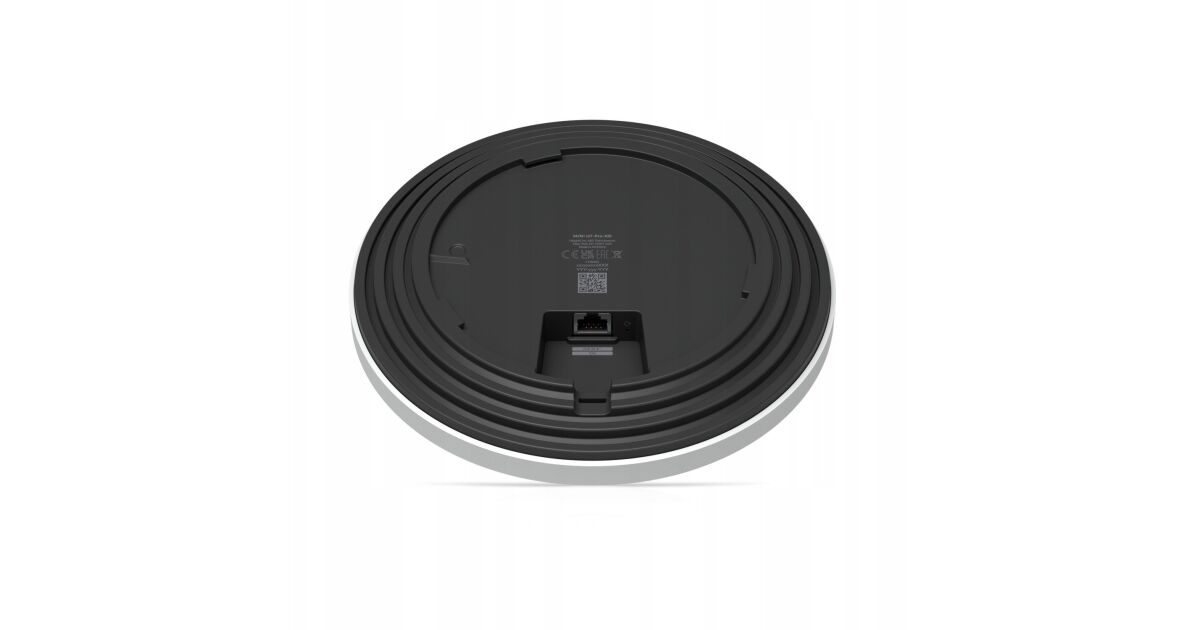

Network interface

(1) 10 GbE RJ45 port





Weight

750 g (1.7 lb)





Material

UV resistant polycarbonate, aluminium alloy





Fixing material

Stainless steel (SUS304), galvanized steel (SGCC)





LEDs

White/Blue





Channel bandwidth

HT/VHT/HE/EHT 20/40/80/160/240/320 MHz





NDAA compliant

Yes





Certificates

CE, FCC, IC





Operating temperature

-30-40 °C (-22-104 °F)





Operating humidity

5-95% non-condensing





Software





Application requirement

UniFi Network 9.0.114+ (white), 9.1.120+ (black)
