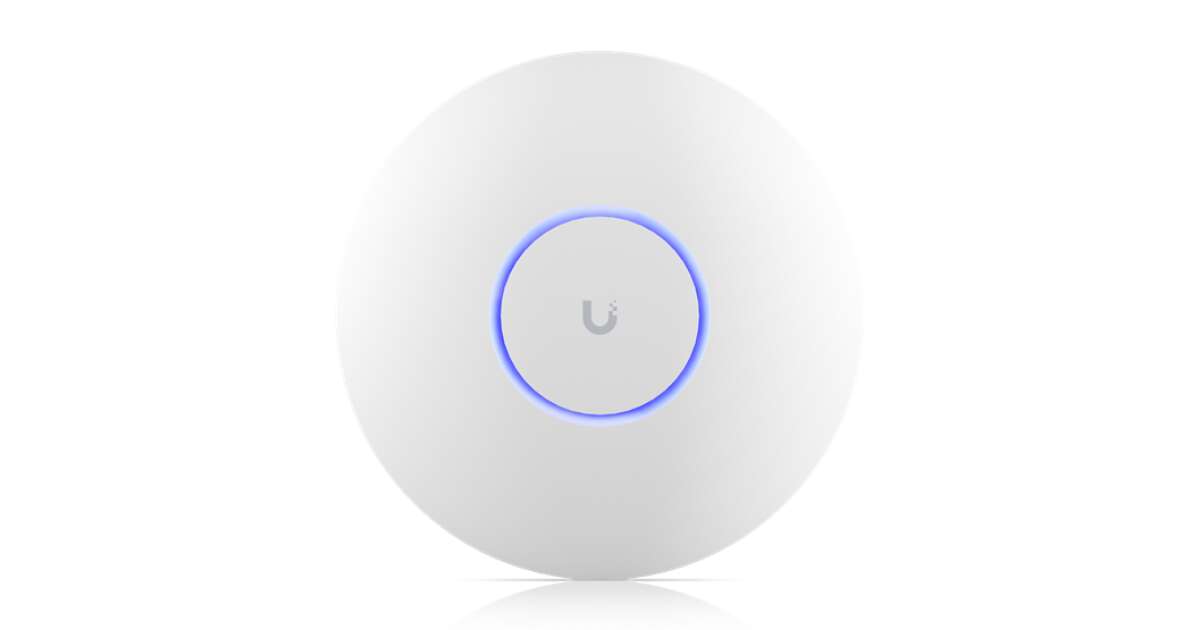

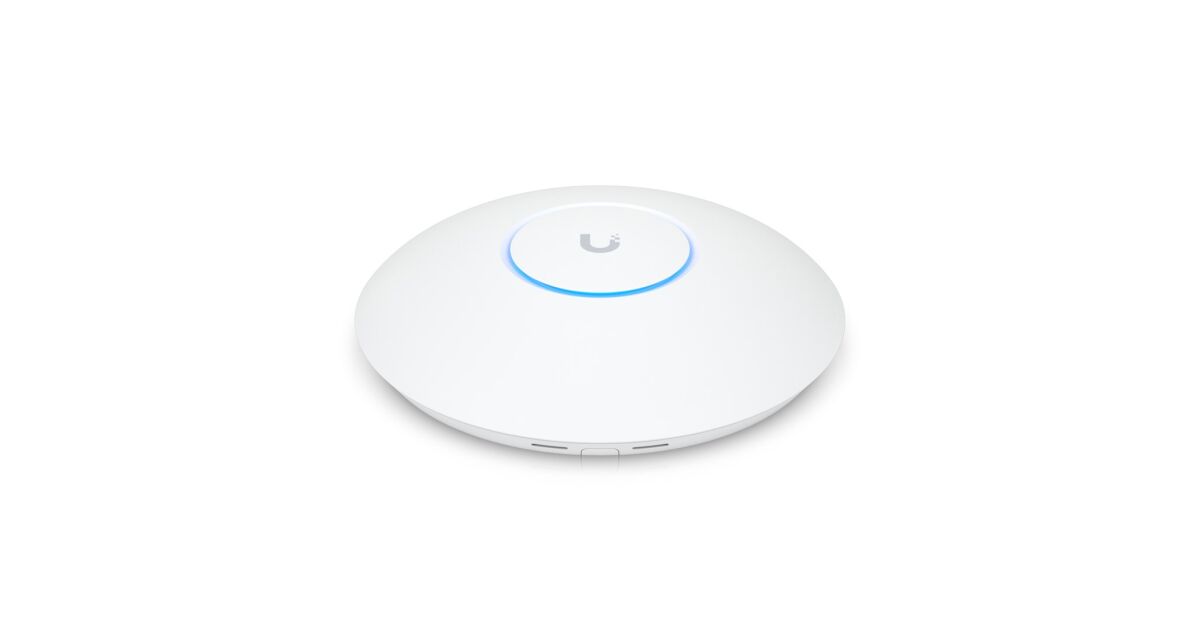

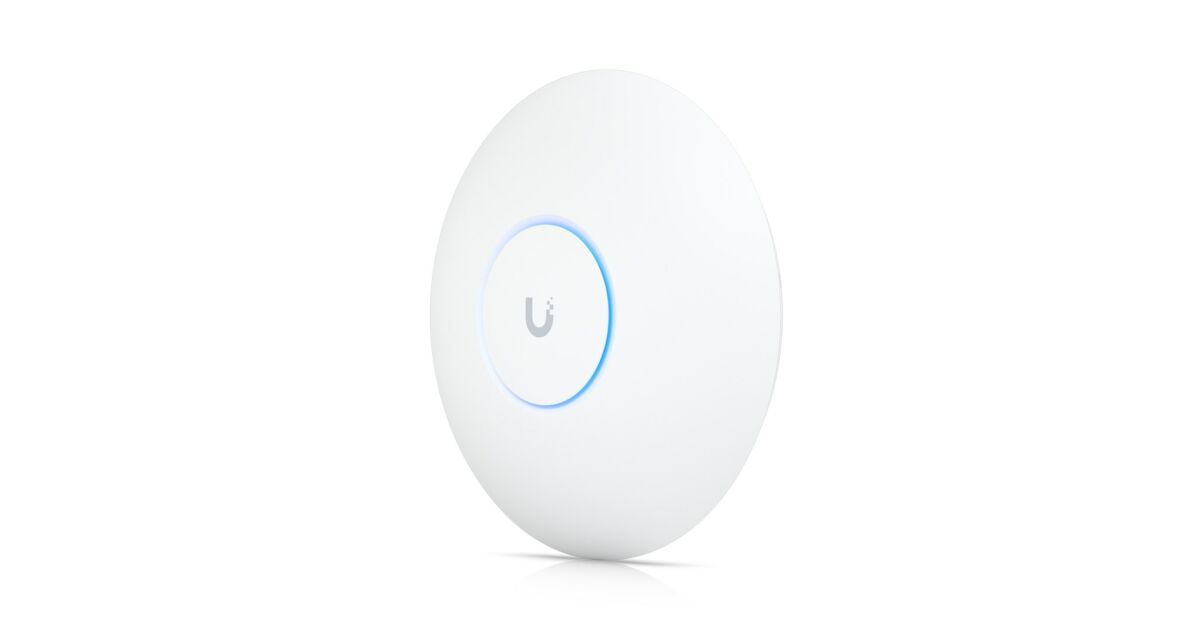

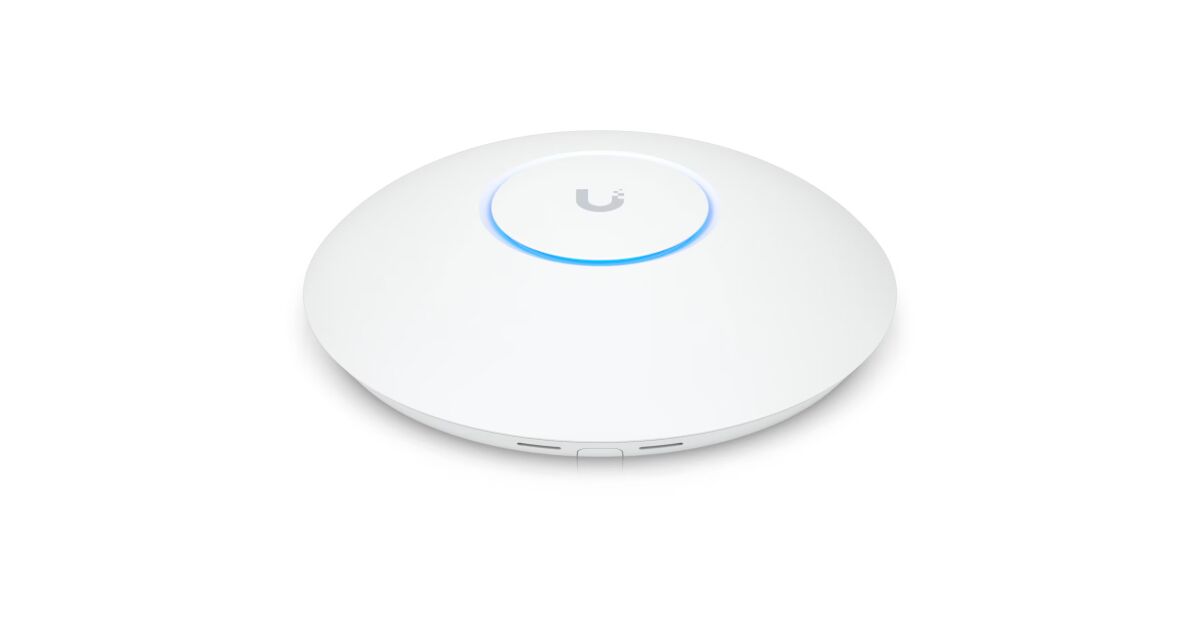

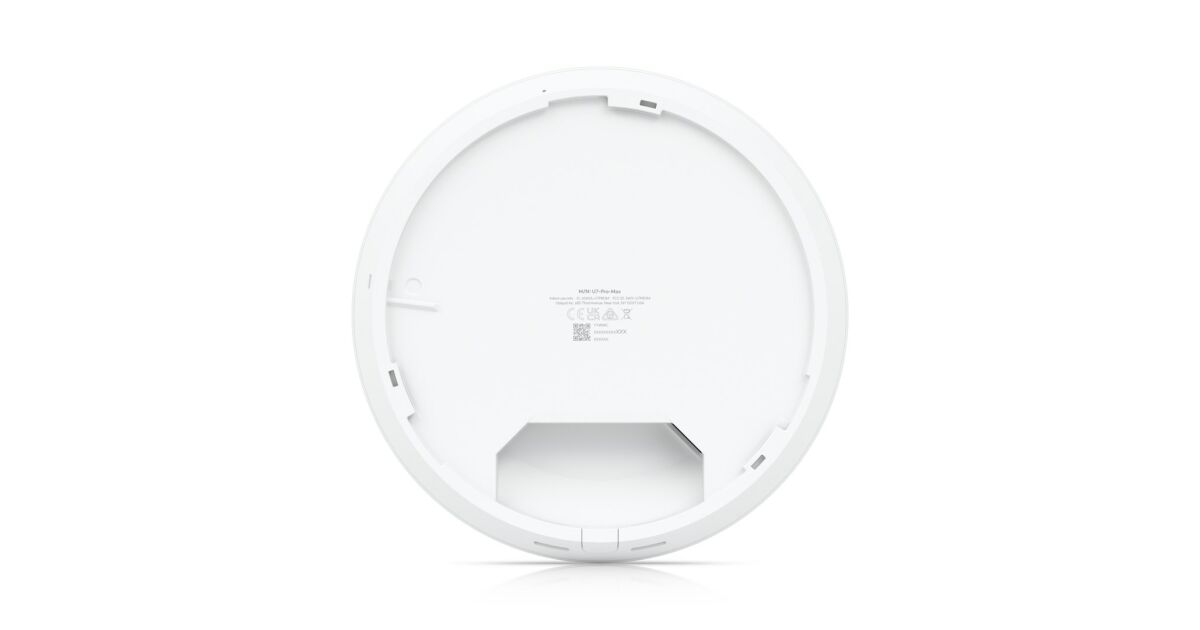

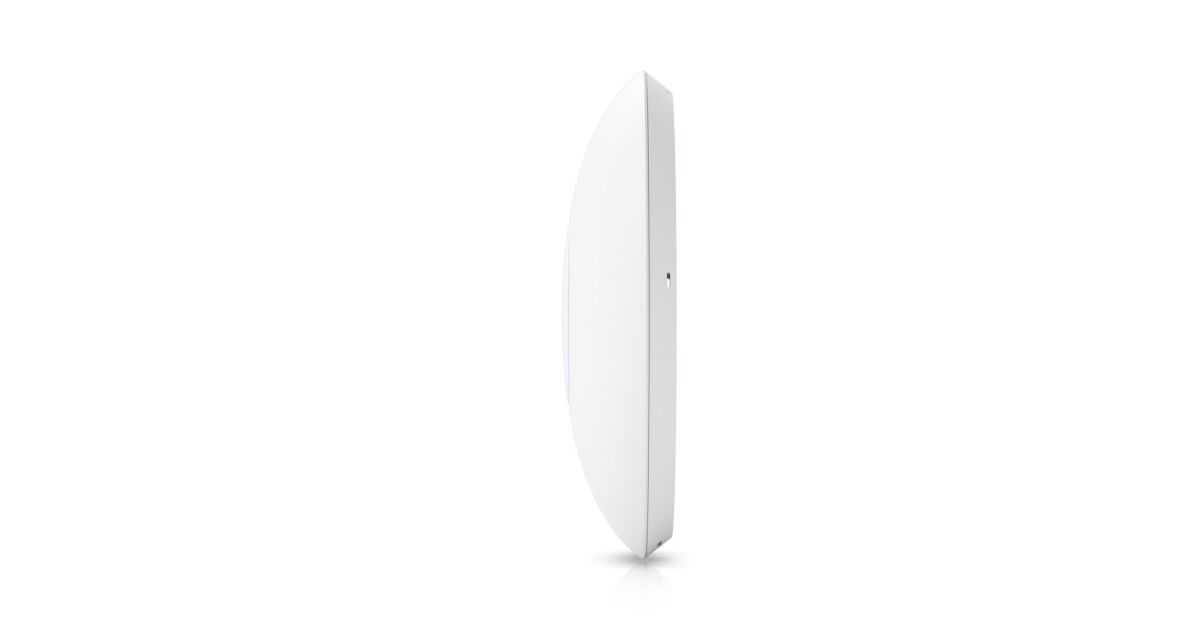

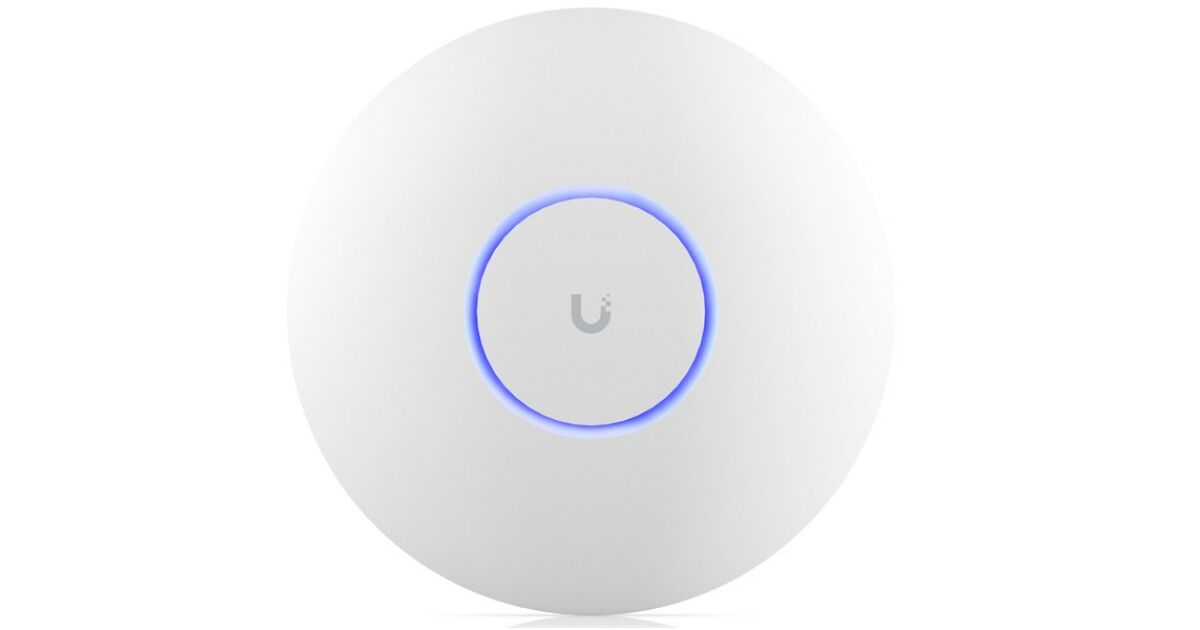

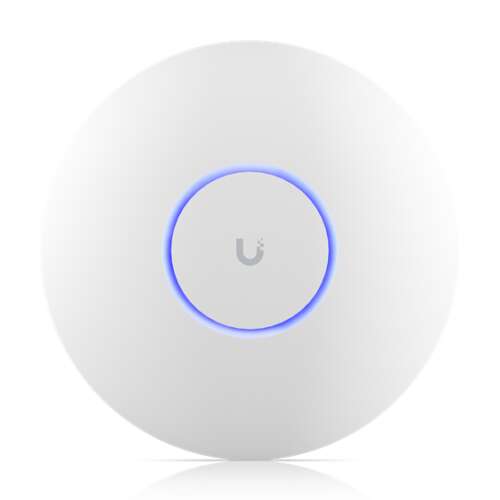

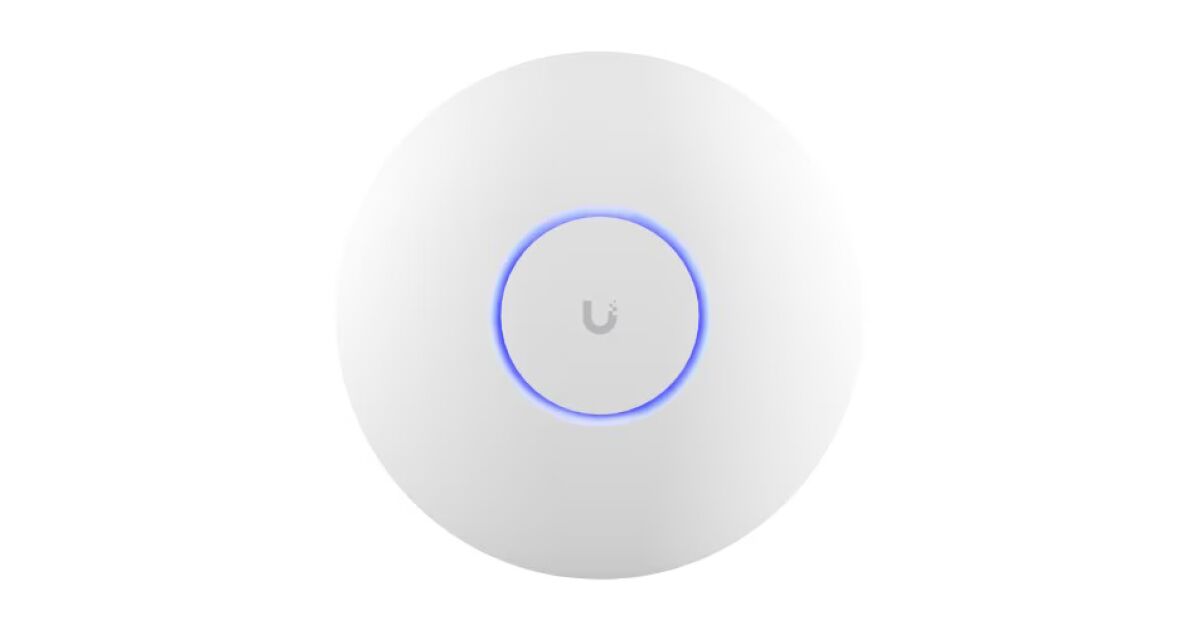

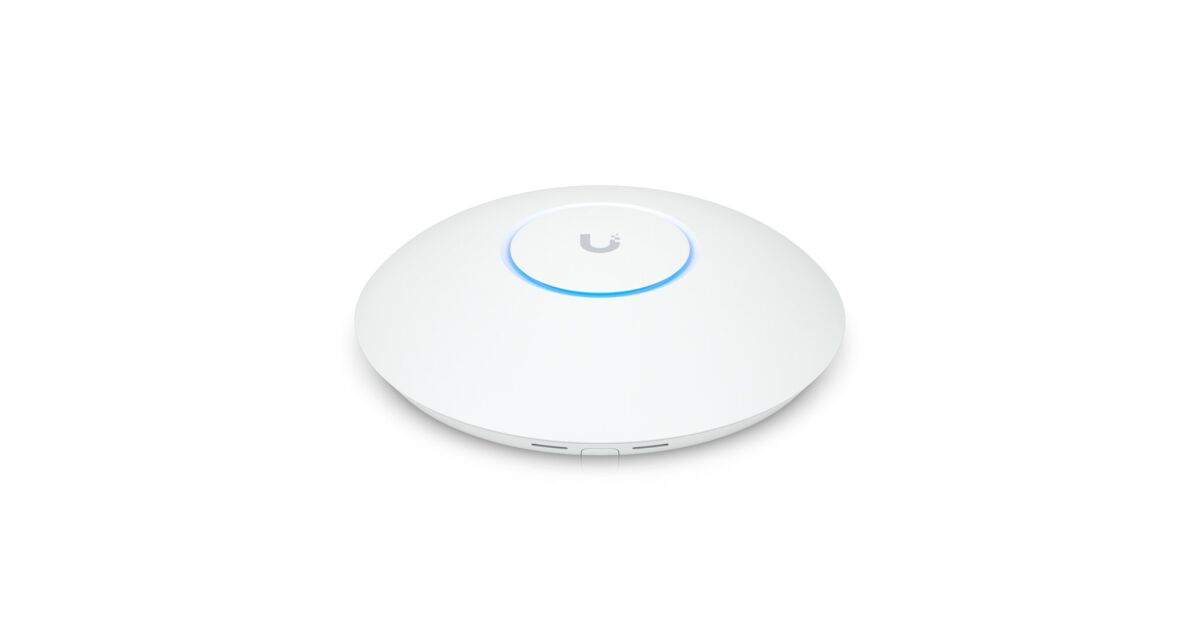

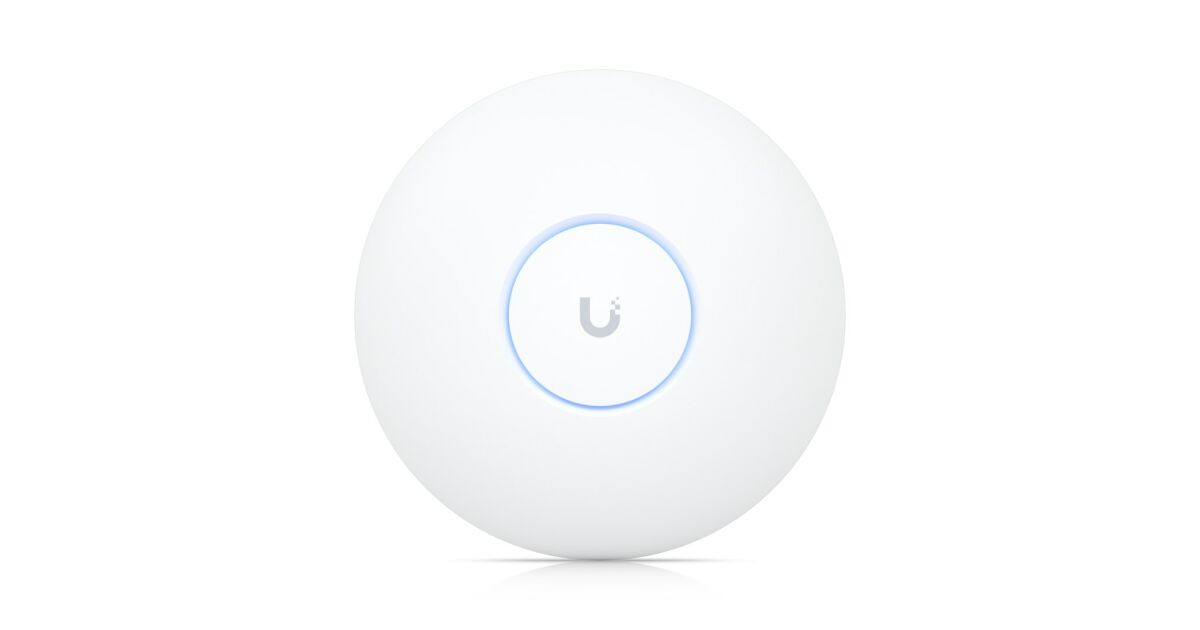

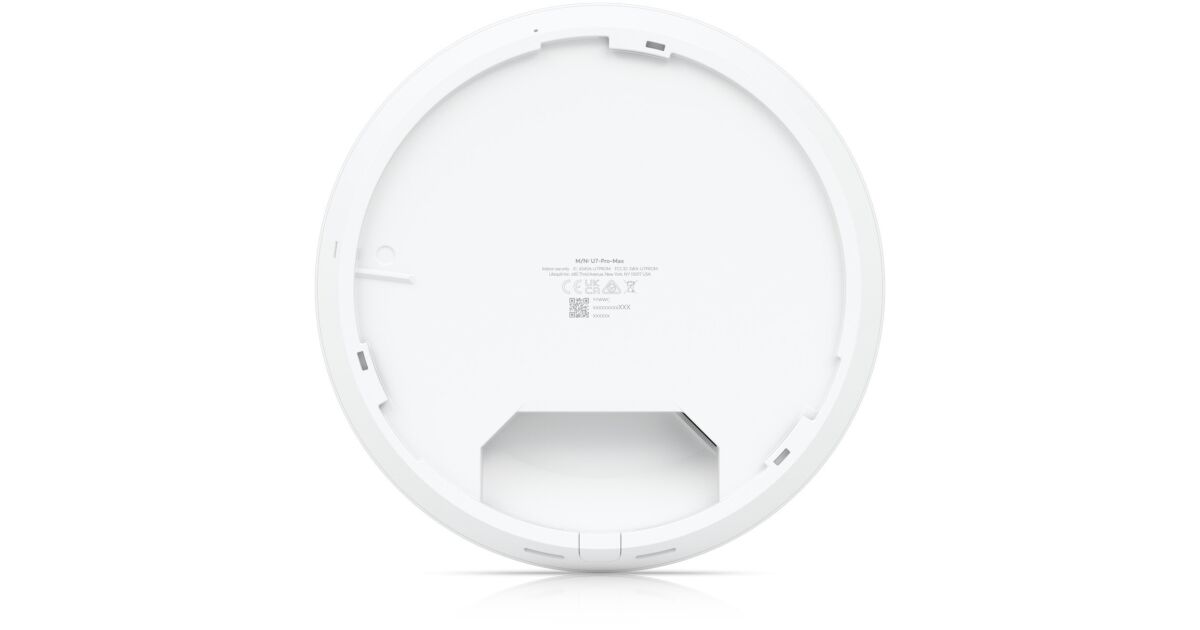

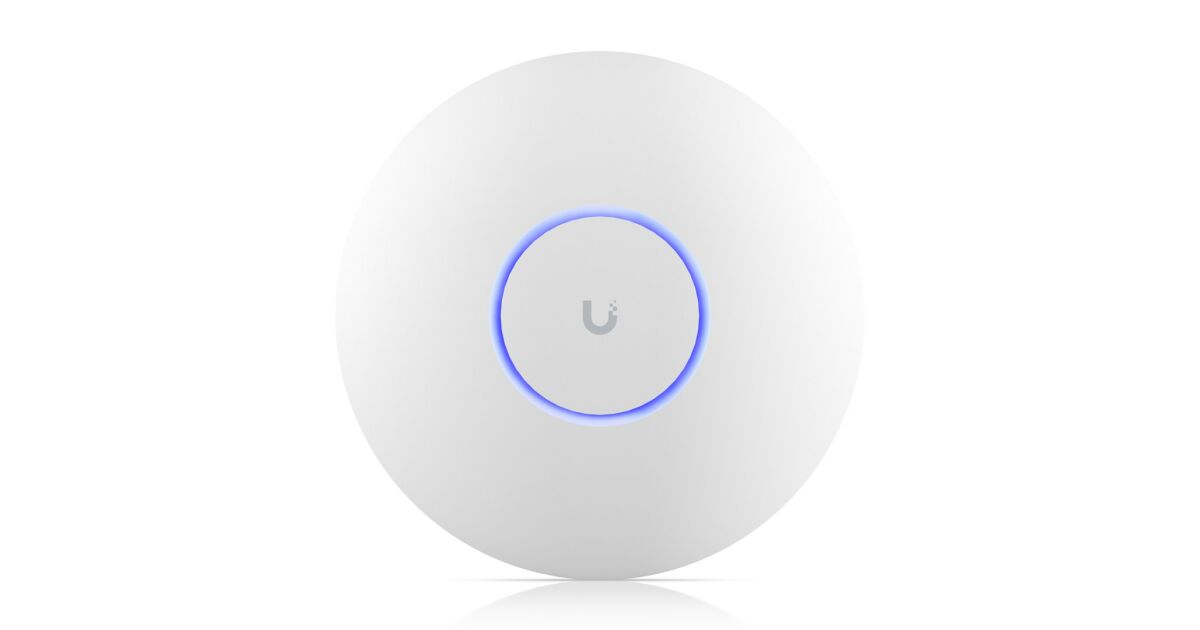

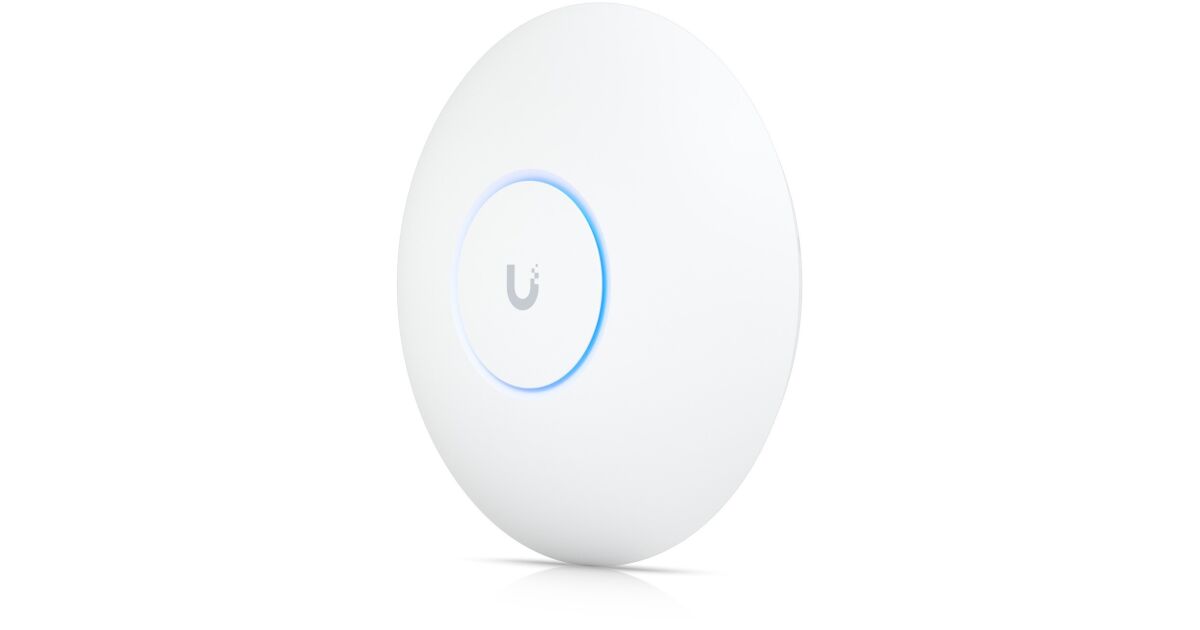

Ubiquiti UniFi 7 PRO MAX access point, 2.5GbE (WiFi 7, without power)

Specifications

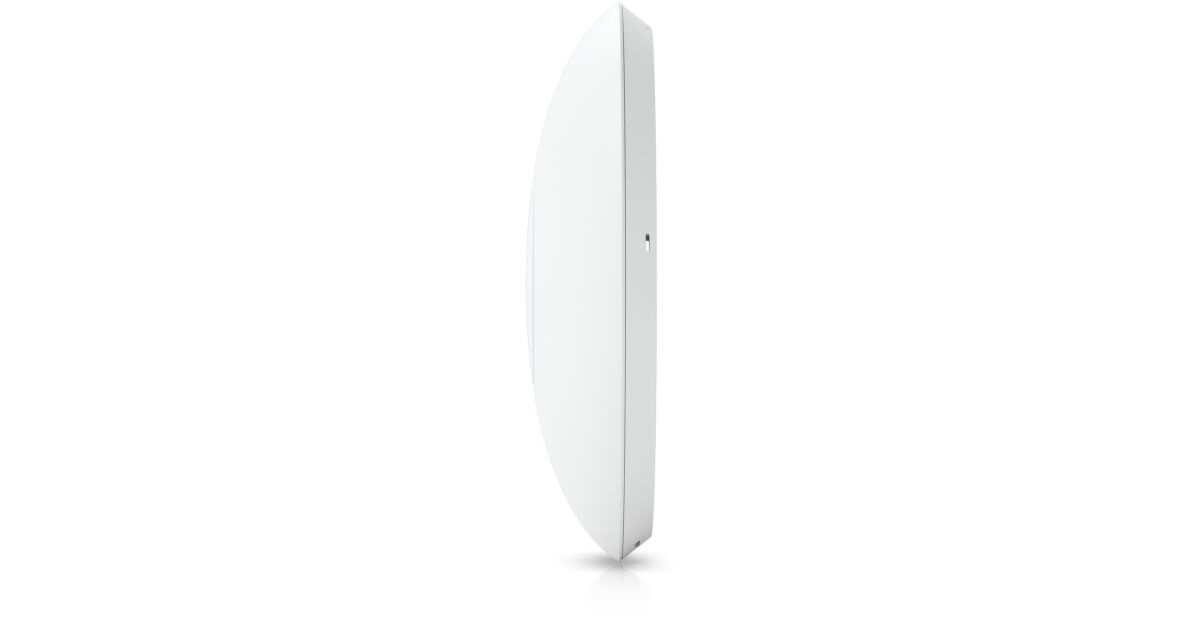

Dimensions

O206 x 46 mm (O8.1 x 1.8")





Weight

680 g (1.5 lb)





Enclosure material

Polycarbonate, aluminium





Mounting material

Stainless steel (SUS304), galvanized steel (SGCC)





Hardware





Network interface

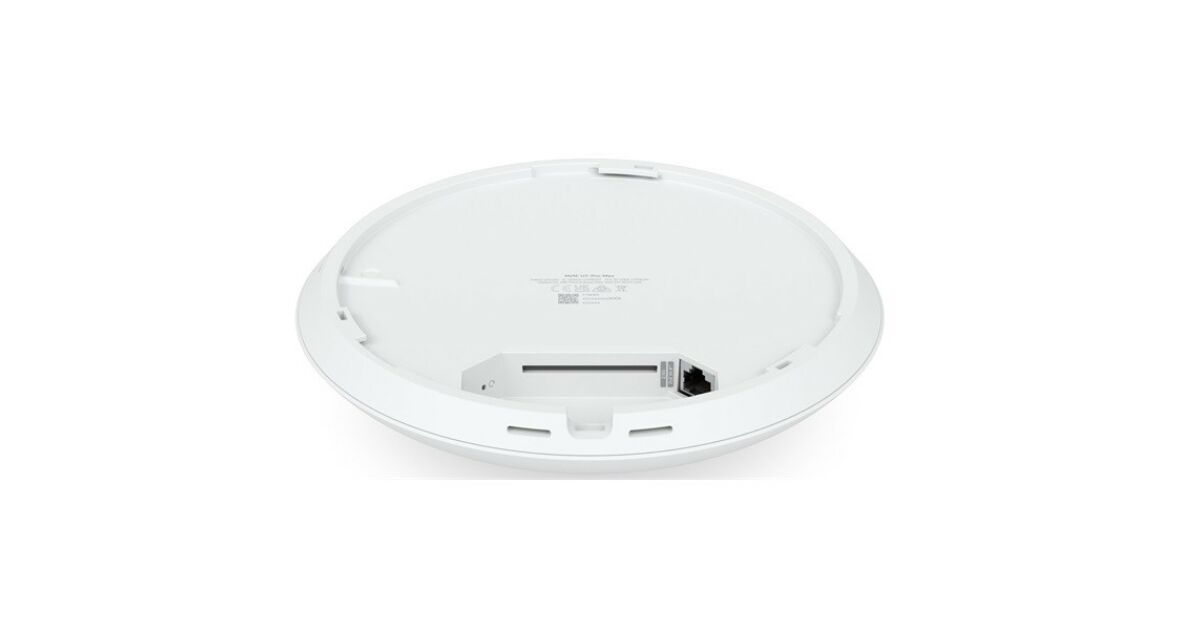

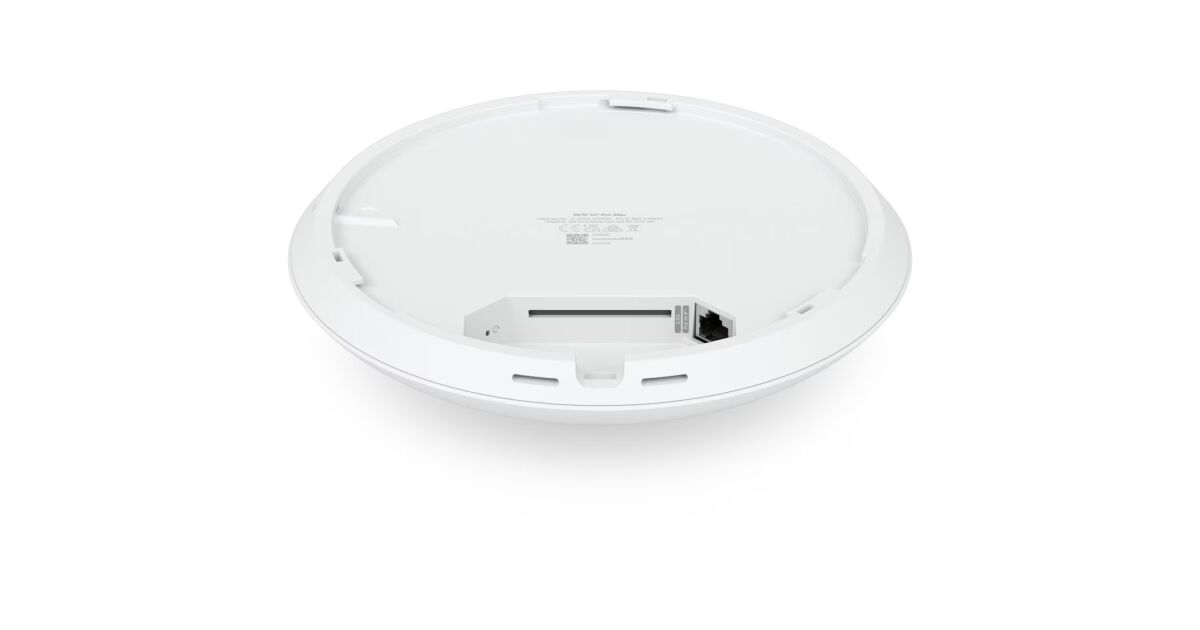

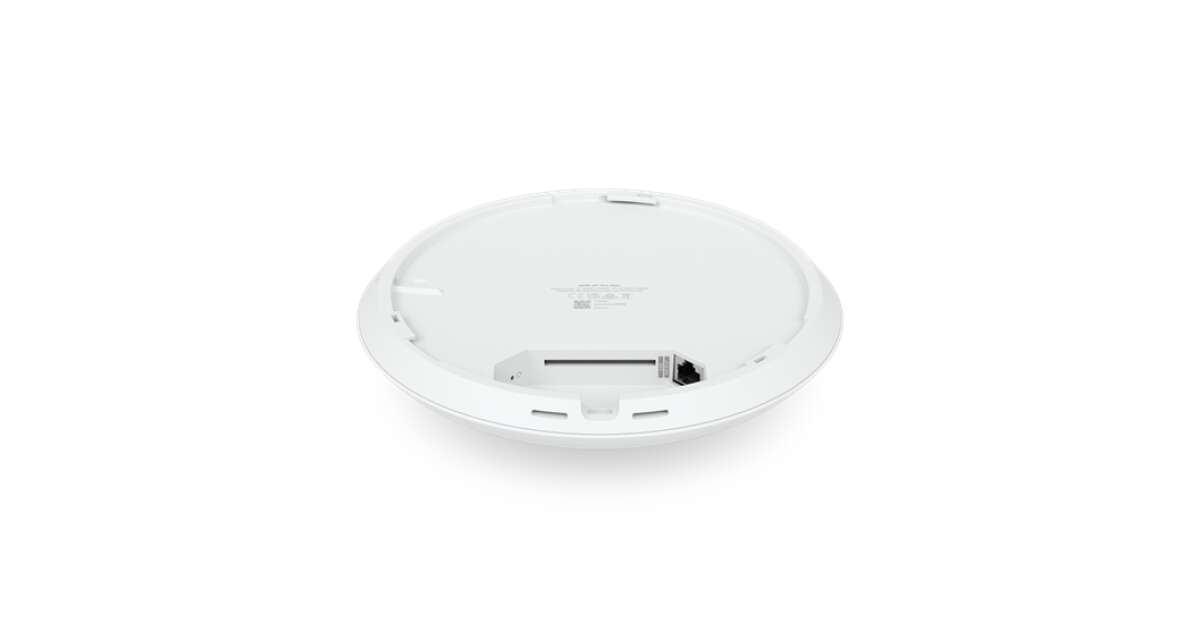

(1) 1/2.5 GbE RJ45 connector





User interface

Ethernet







Power supply

PoE+





Power supply

UniFi PoE switch





Supported voltage range

44-57V DC





Max. power consumption

25 W





Max. TX power

2.4 GHz

5 GHz

6 GHz





23 dBm

29 dBm

23 dBm





MIMO

2.4 GHz

5 GHz

6 GHz





2 x 2 (DL/UL MU-MIMO)

4 x 4 (DL/UL MU-MIMO)

2 x 2 (DL/UL MU-MIMO)





Transmission speed

2.4 GHz

5 GHz

6 GHz





688 Mbps (BW40)

8.6 Gbps (BW240)

5.7 Gbps (BW320)





Antenna gain

2.4 GHz

5 GHz

6 GHz





4 dBi

6 dBi

5.9 dBi





Led

White/blue





Button

Reset to factory settings

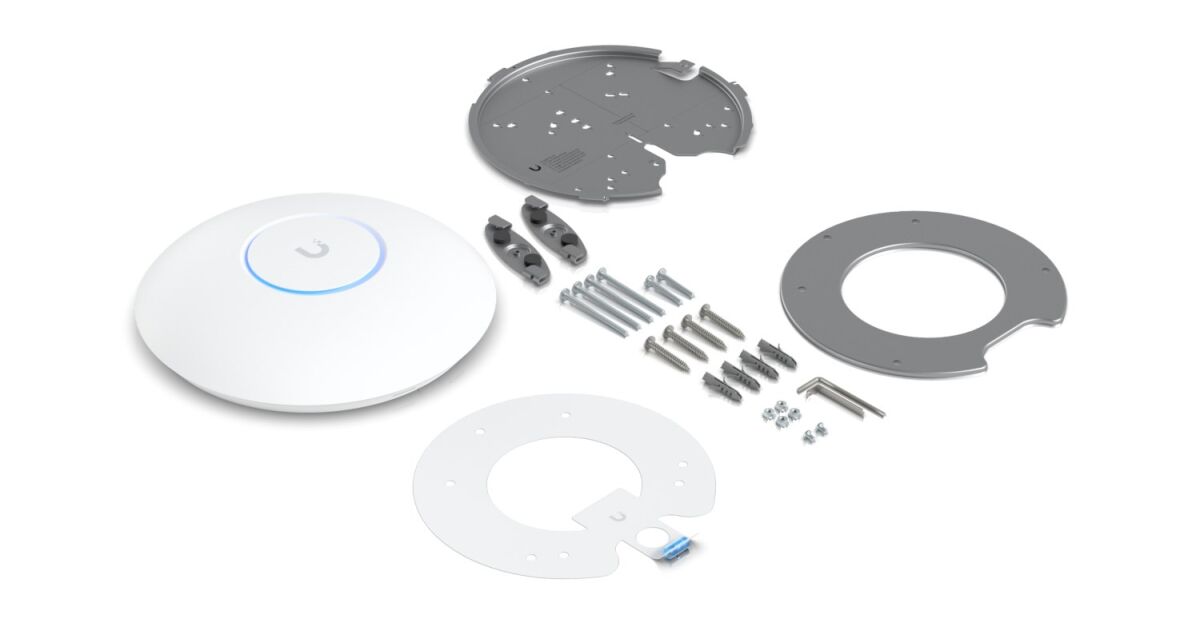

Mounting

Wall, ceiling (accessory)





Ambient operating temperature

-30-60°C (-22-140°F)





Ambient humidity

5-95% unchanged







Certificates



CE, FCC, IC





Software





WiFi standards

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)





Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)





BSSID

8 per radio





VLAN

802.1Q





Advanced QoS

Per-user speed limit





Guest traffic isolation

Supported





Concurrent clients

500+





Supported data transfer speeds





802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps





802.11b

1, 2, 5.5, 11 Mbps





802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps





802.11n

6.5 Mbps - 300 Mbps (MCS0 - MCS15, HT 20/40)





802.11ac

6.5 Mbps - 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)





802.11ax (WiFi 6/6E)

7.3 Mbps - 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)





802.11be (WiFi 7)



5 GHz



6 GHz





7.3 Mbps - 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

7.3 Mbps - 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)





Application requirements





UniFi network

8.2.93 and later versions
