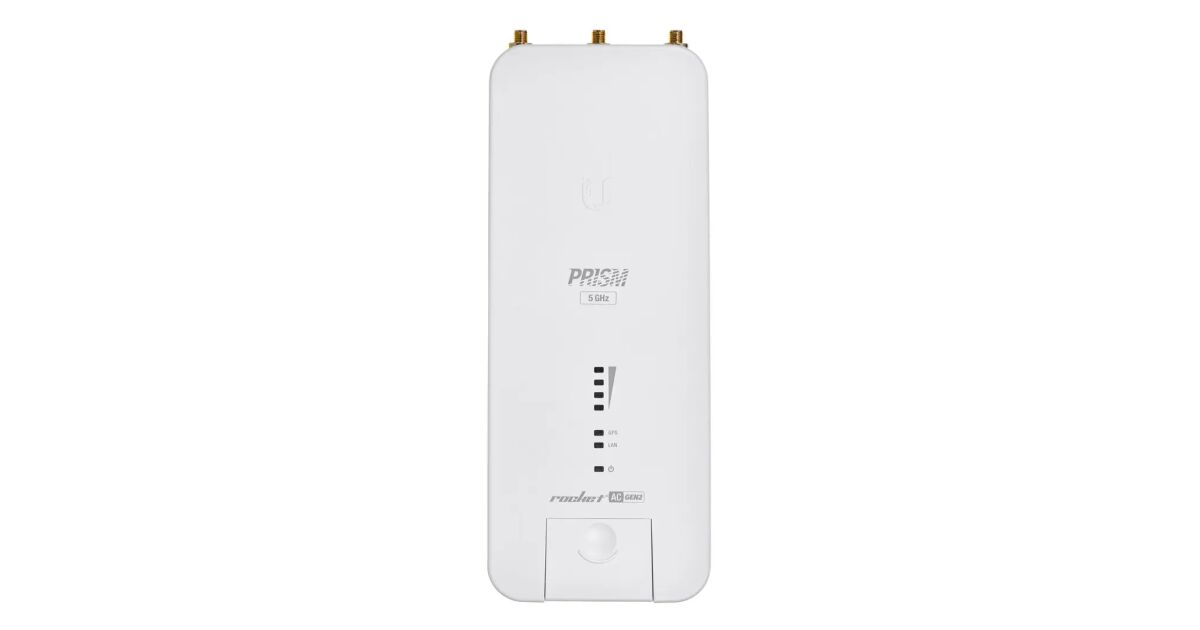

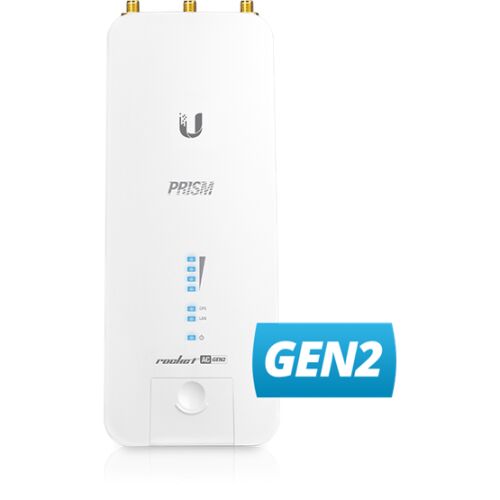

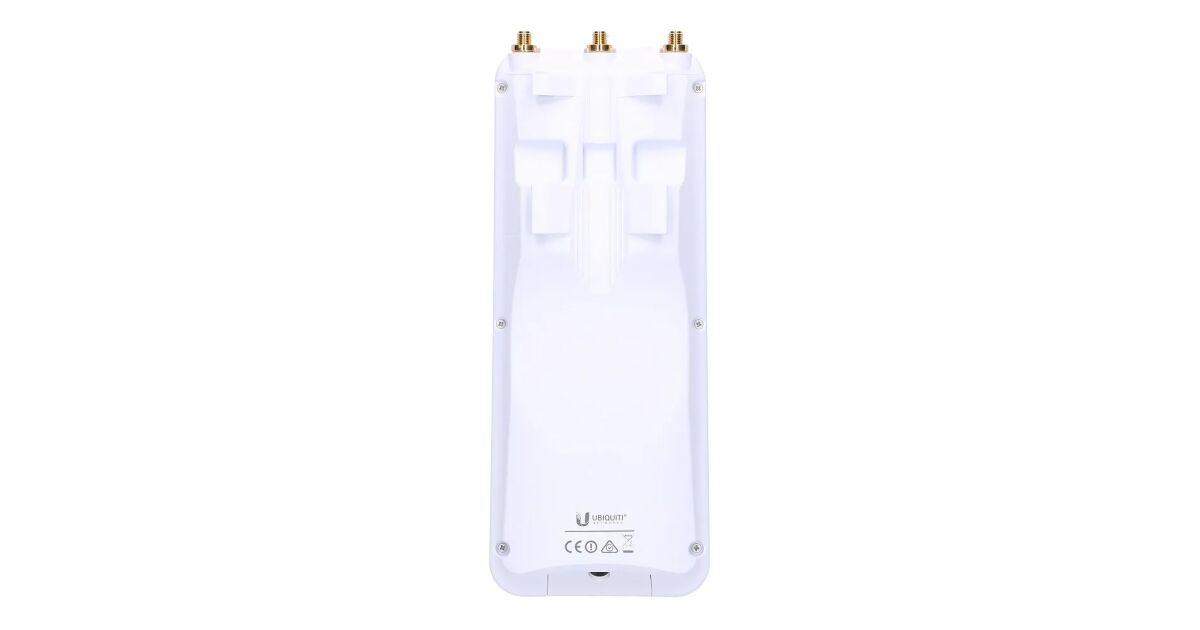

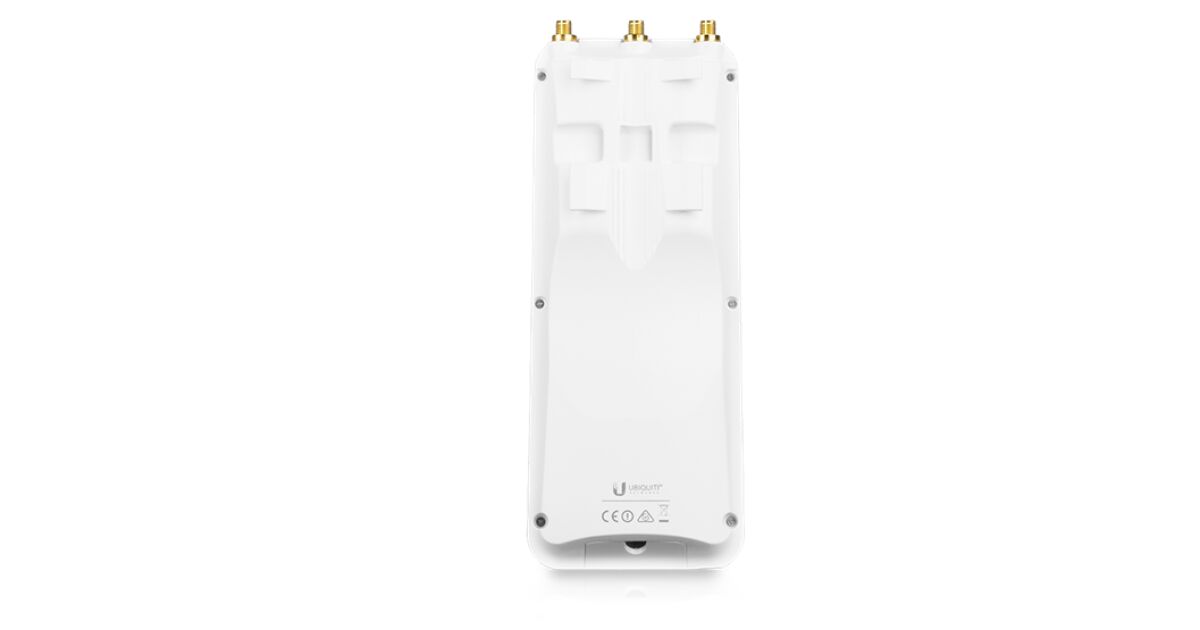

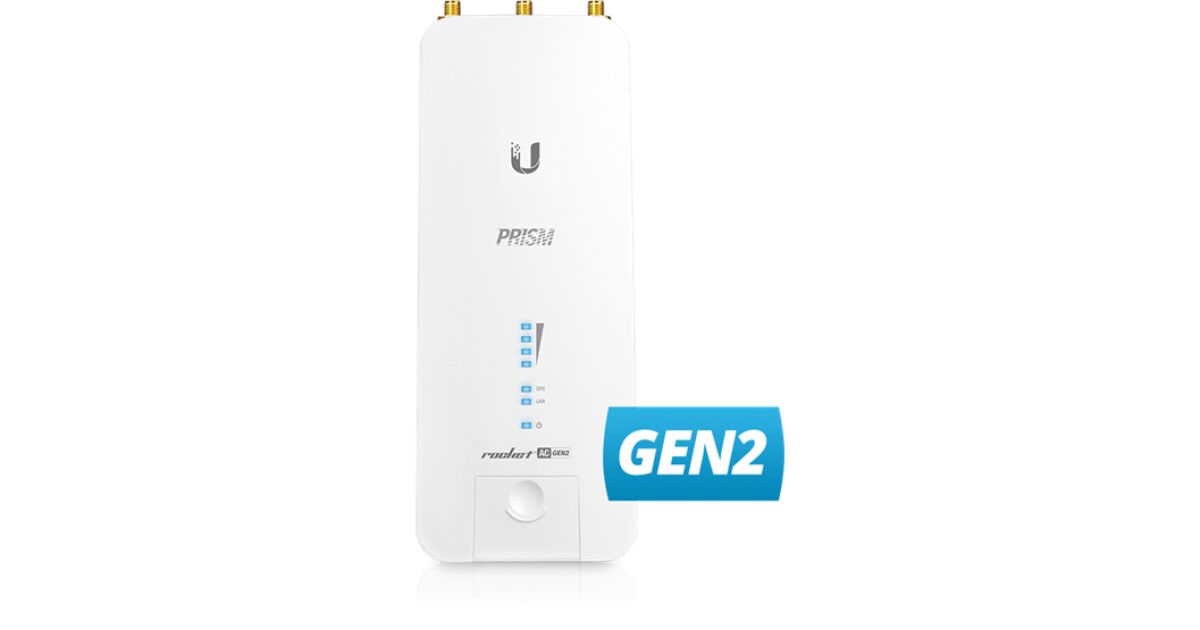

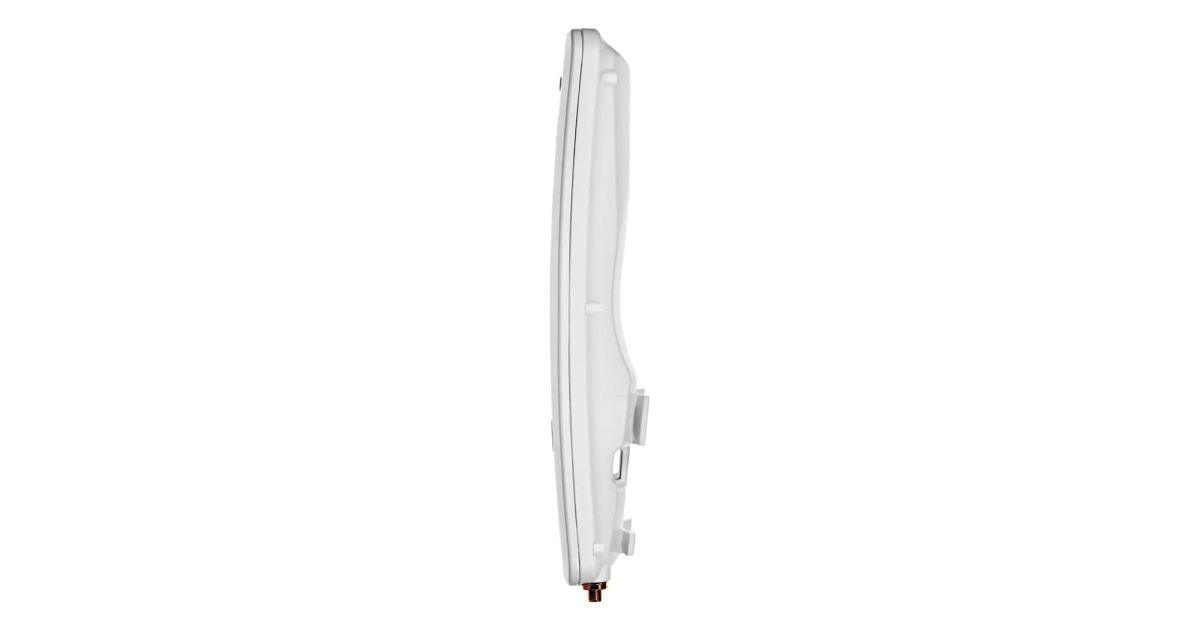

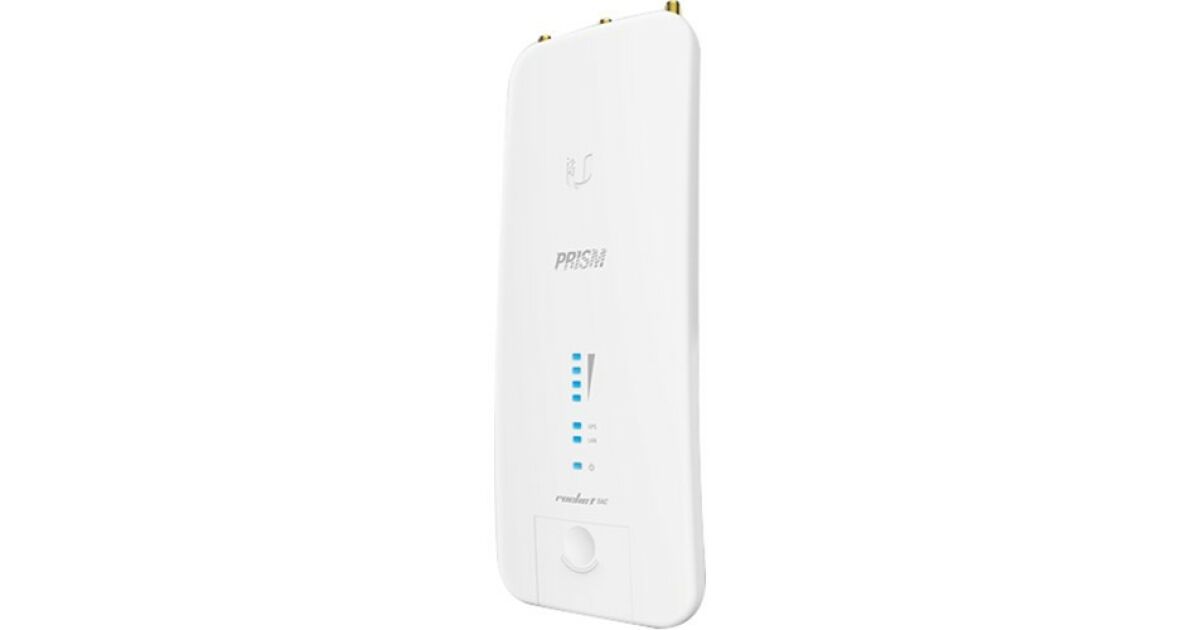

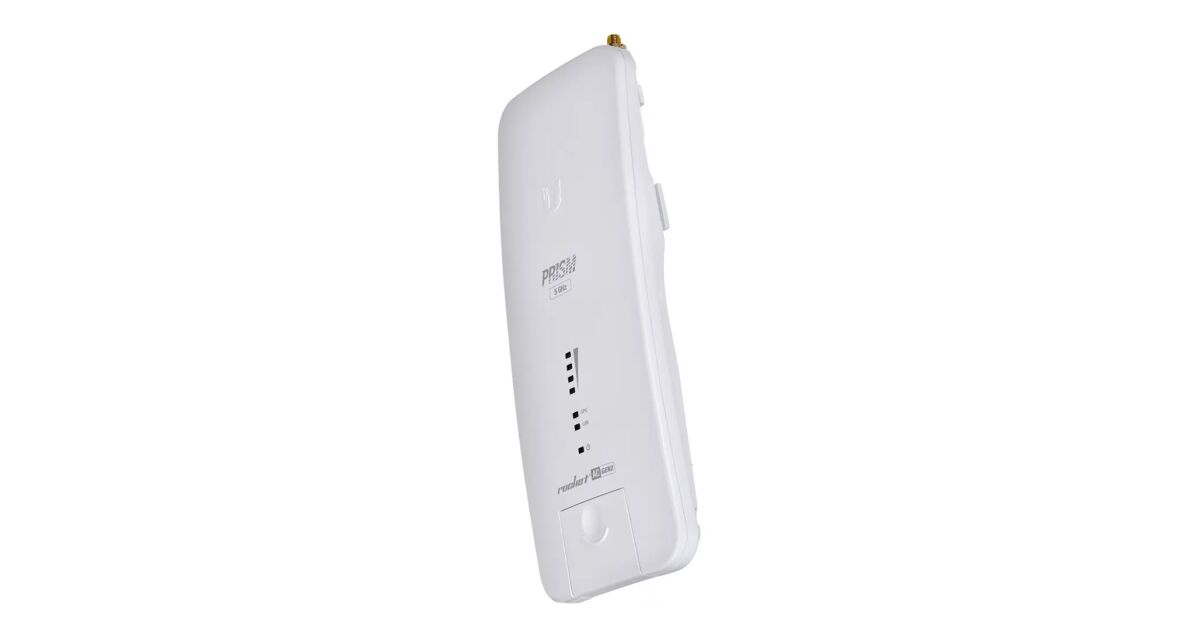

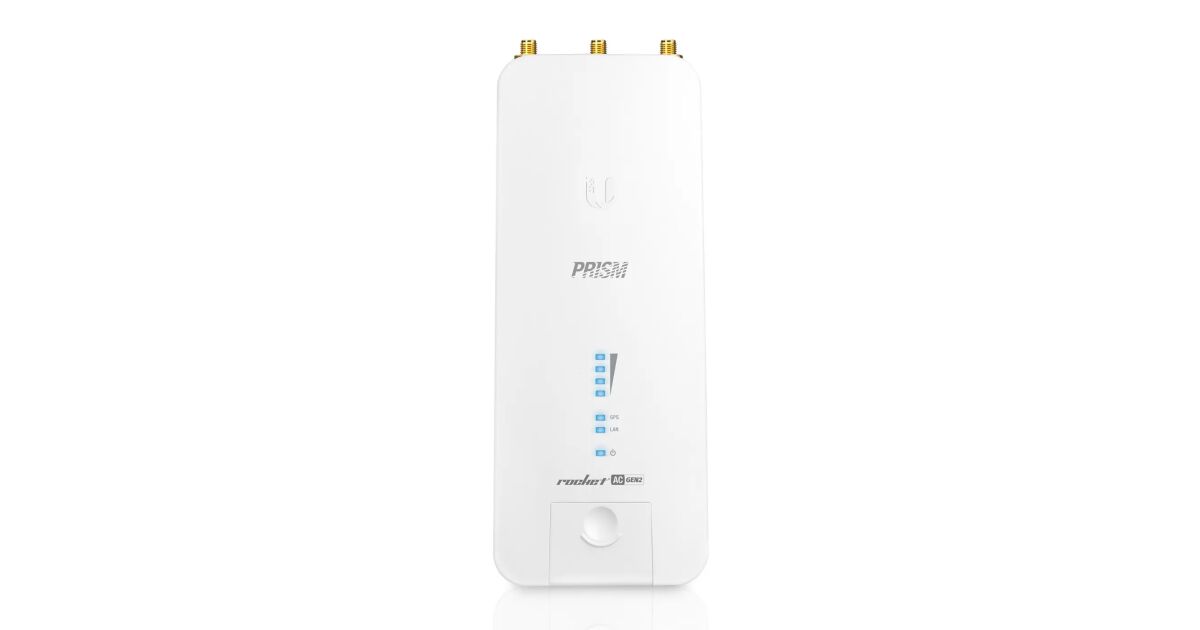

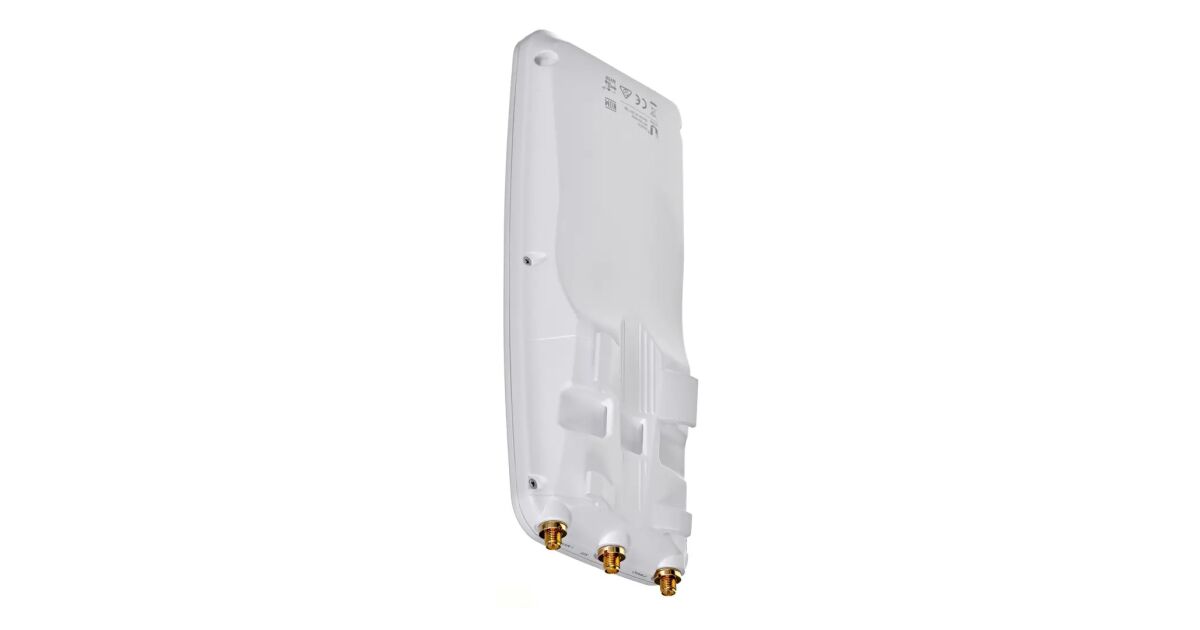

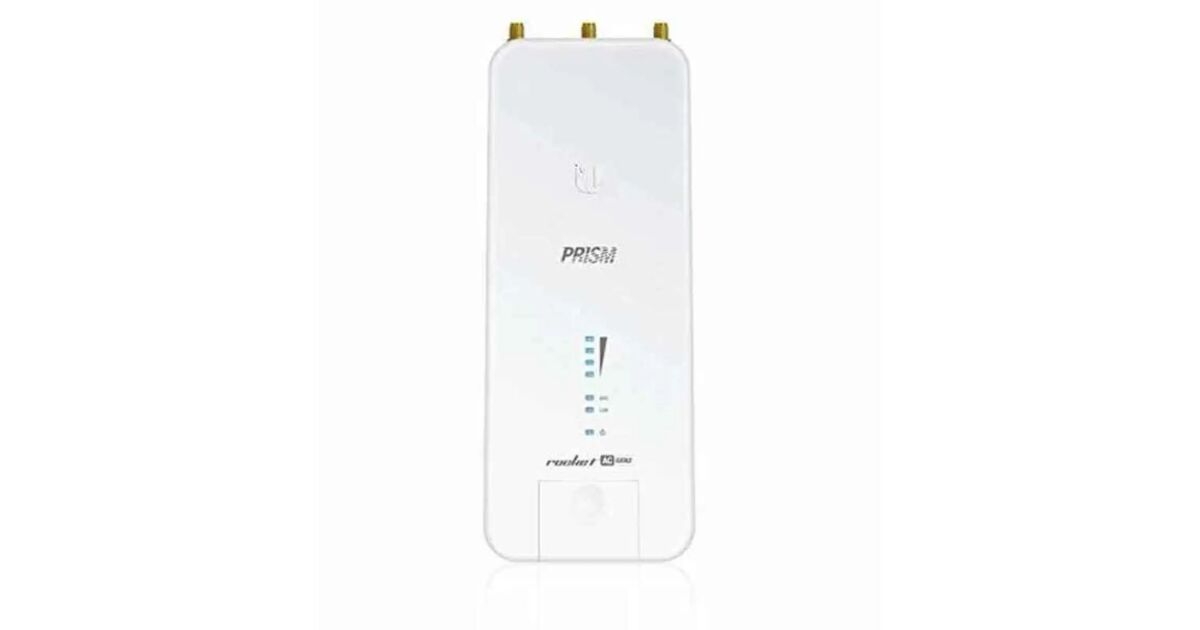

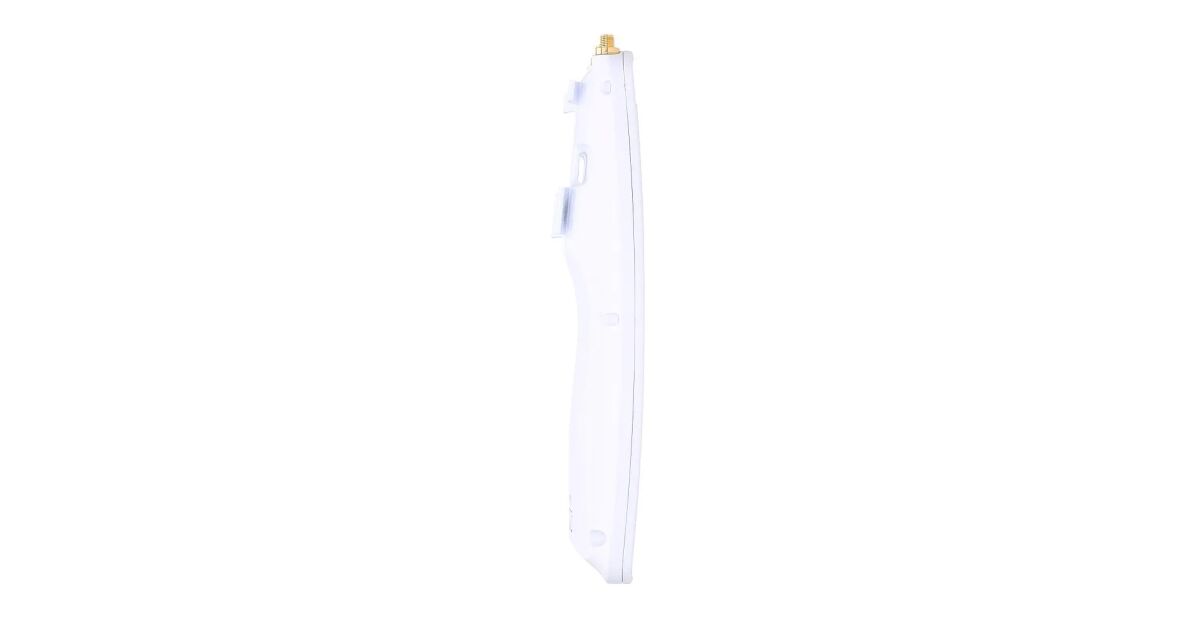

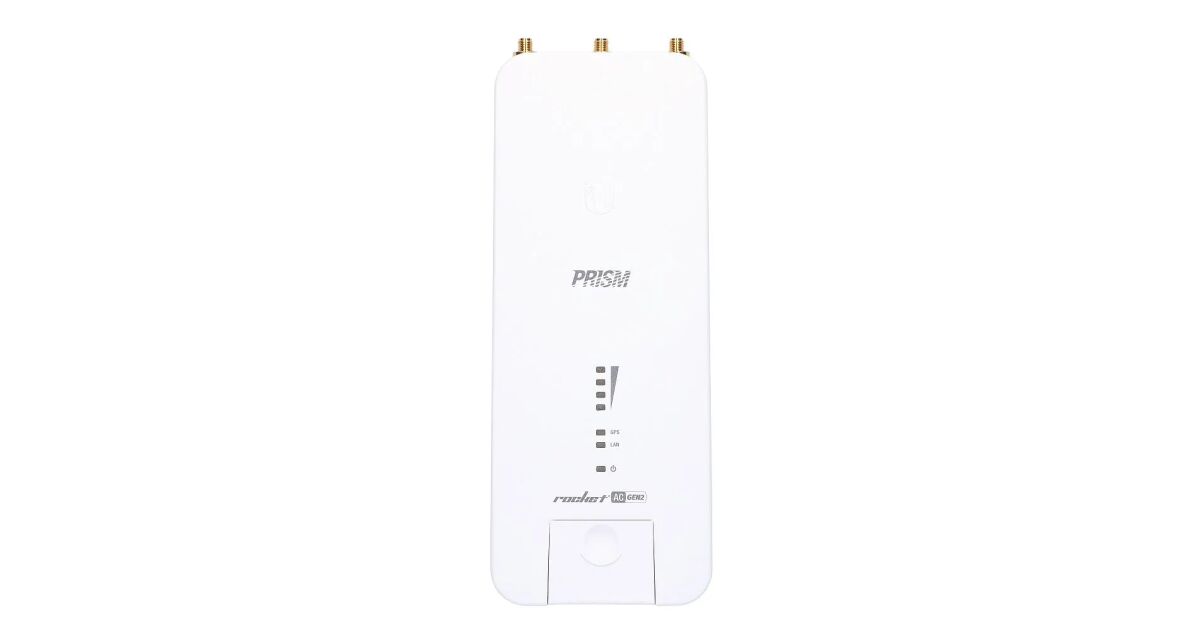

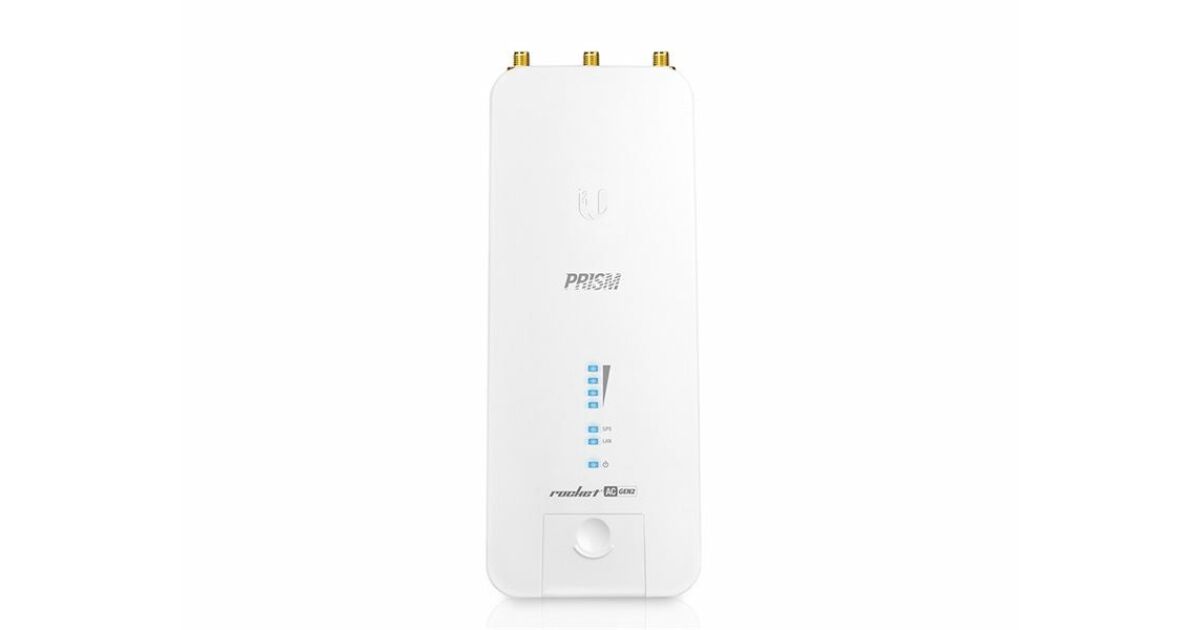

Ubiquiti Rocket AC Gen2 5Ghz radio with airPrism active RF filter

Specifications





Mechanical





Dimensions

88 x 40 x 230 mm (3.5 x 1.6 x 9.1")





Weight

400 g (14.1 ounces)





Enclosure material

Cast aluminium





Installation

Column mounting (kit included)





Wind load

342,5 N at 200 km/h (77 lbf at 125 mph)





Hardware

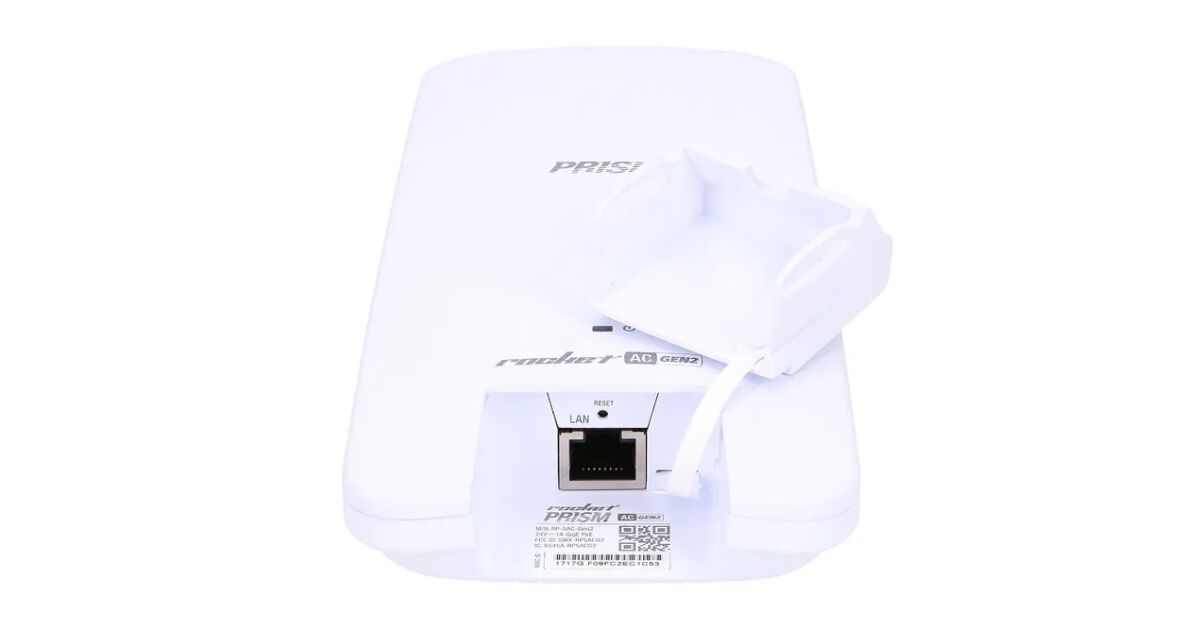

Network interface

(1) GbE RJ45 port

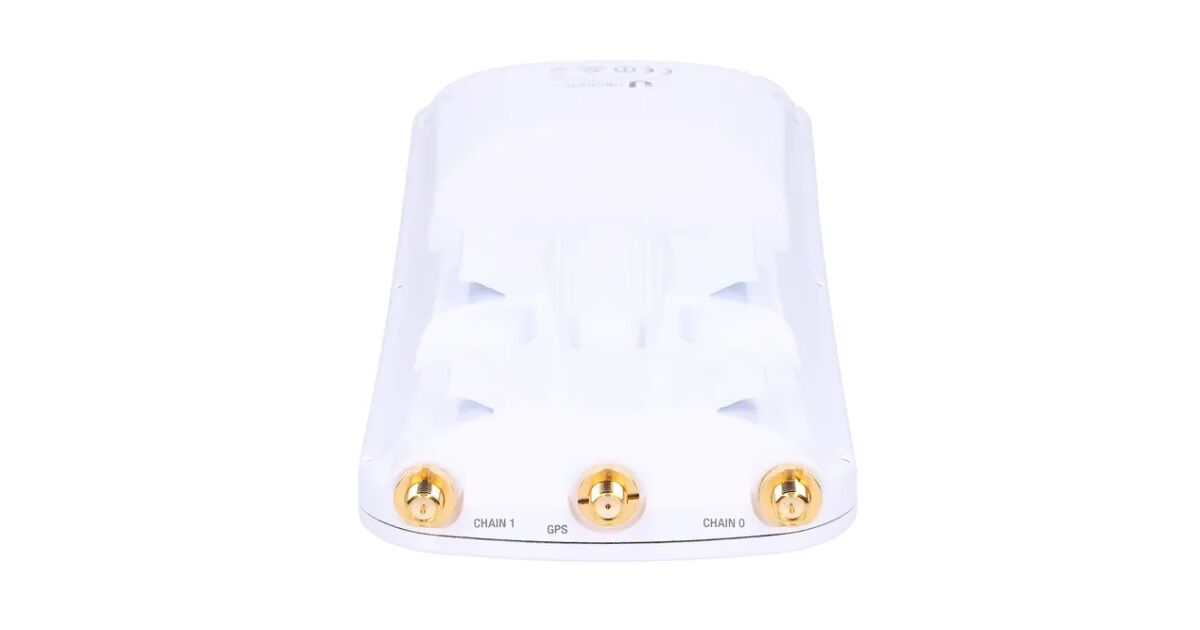

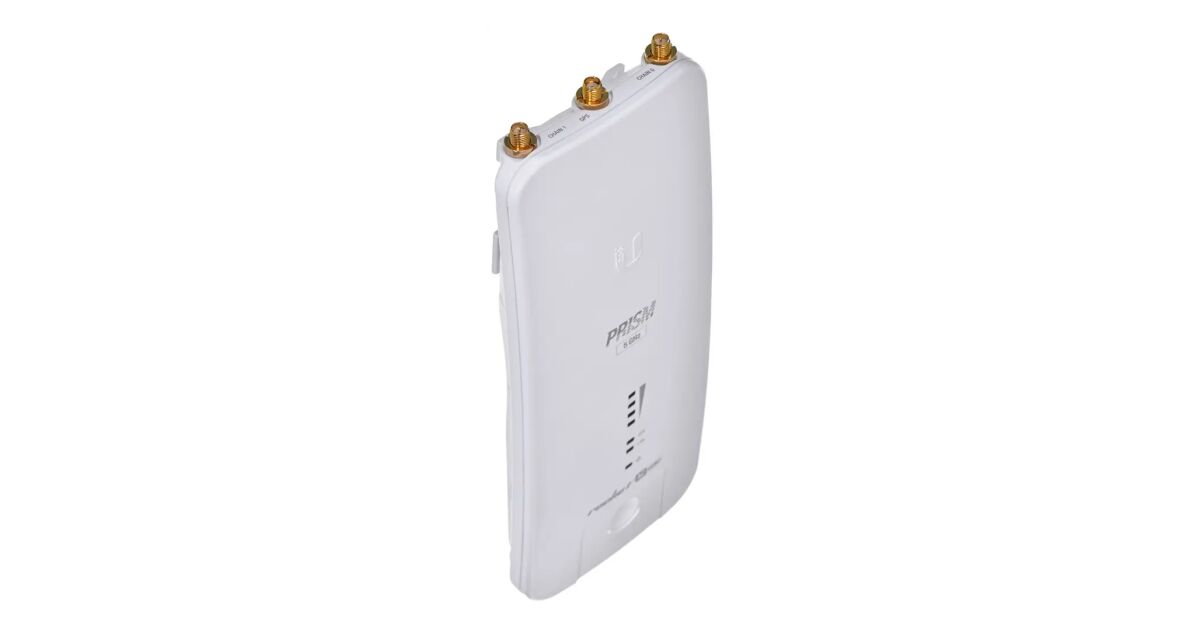

RF connectors

(2) RP-SMA (waterproof)

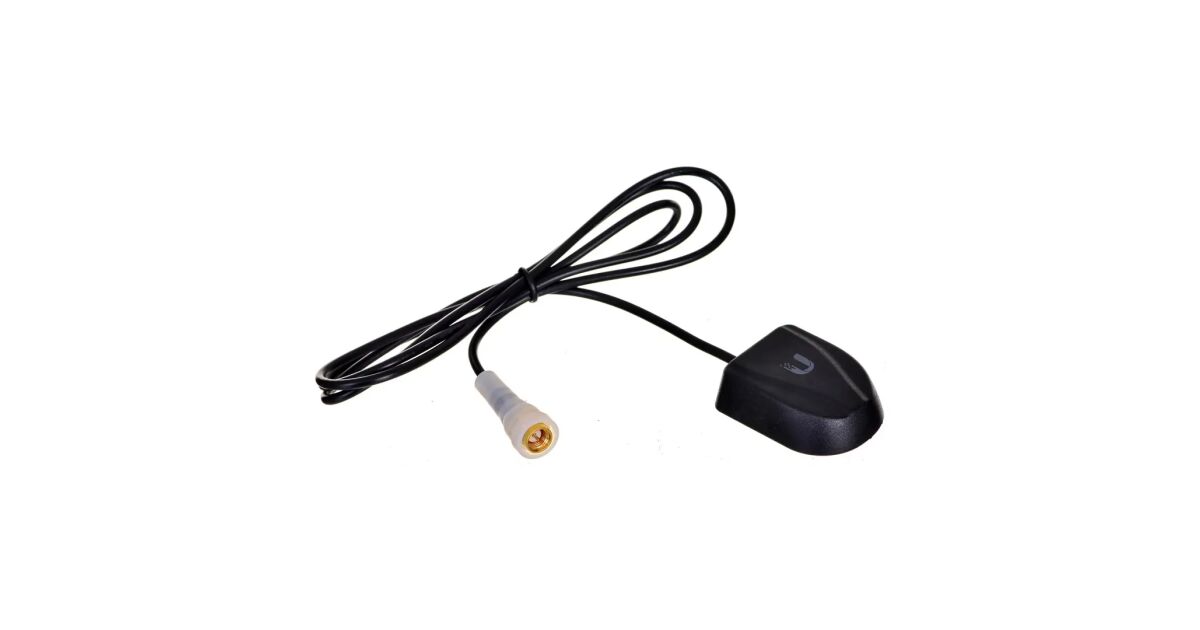

(1) GPS (waterproof)





Power supply mode

Passive PoE 2-pair (4, 5+; 7, 8 return)





Power supply

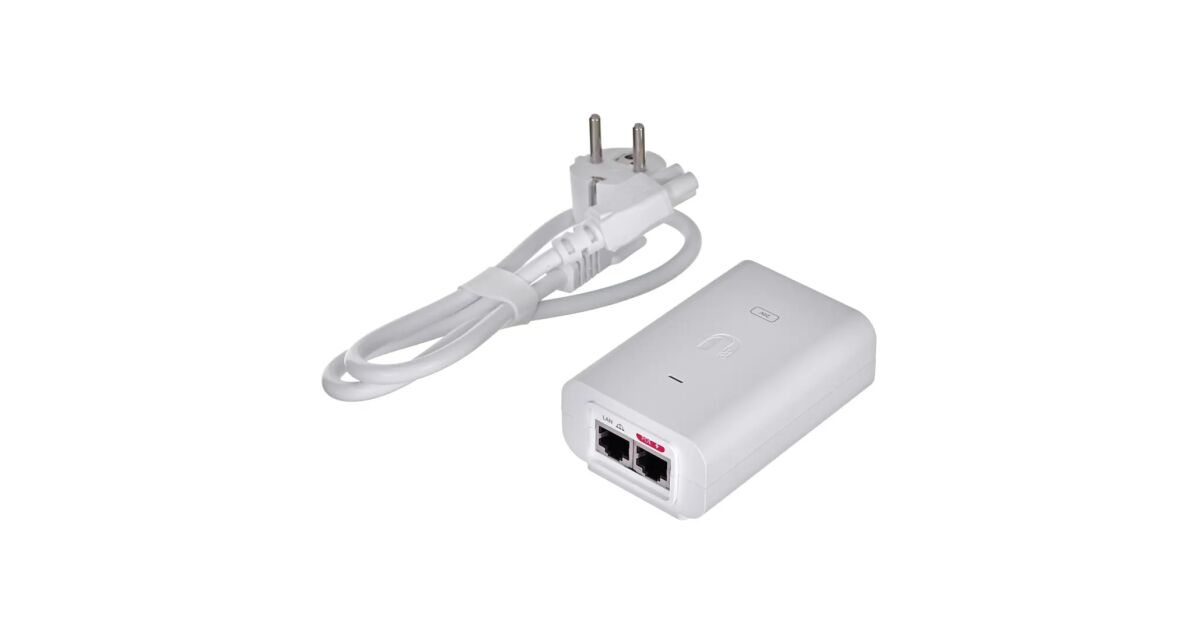

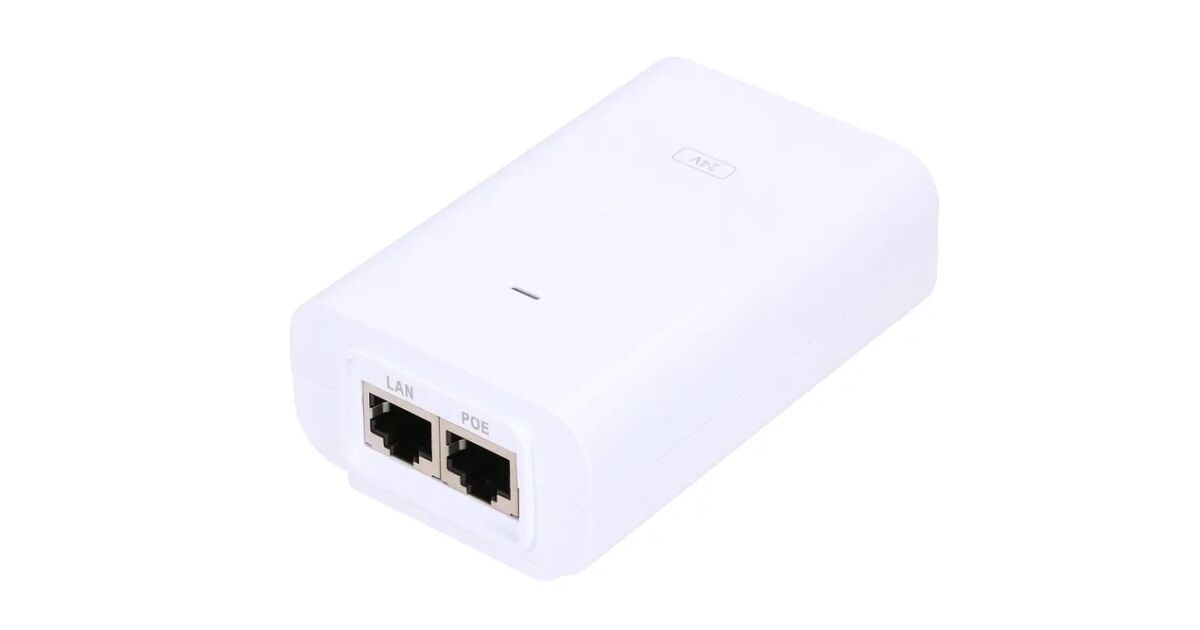

24V, 1A gigabit PoE adapter (included)





Supported voltage range

18-27V DC





Max. power consumption

9,5W

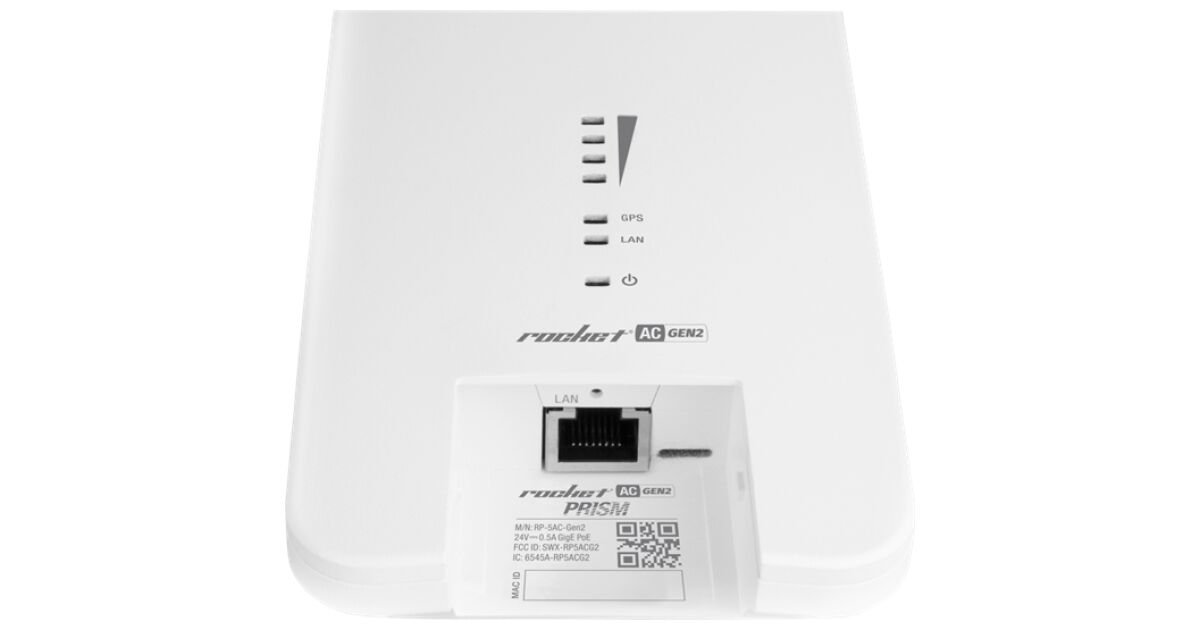

LEDs

(4) Speed: software adjustable for individual RSSI levels



GPS, LAN, power supply





Vibration and shock

ETSI300-019-1.4





Ambient operating temperature

-40 - 80° C (-40 - 176° F)





Ambient operating humidity

5 - 95% non-condensing





Certificates

CE, FCC, IC, RoHS





Software





Modes

Access Point, Station





Channel sizes







PtP mode

10/20/30/40/50/60/80 MHz





PtMP mode

10/20/30/40 MHz





Services

Web server, SNMP, SSH server, telnet, ping watchdog, DHCP, NAT, bridge, routing





Tools

airMagic, airView, antenna alignment tool, discovery tool, site survey, ping, tracking, speed test





Distance setting

Dynamic Ack and Ackless mode





Power setting

Software adjustable UI or CLI





Security

WPA2 AES only





QoS

Supports packet level classification at WMM and user level: High/Medium/Low





High/Maximum High/Maximum Low

Uptime, packet errors, data speeds, wireless distance, Ethernet connection speed





Ubiquiti specific features

30/50/60 MHz channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode





Operating frequency (MHz)





Worldwide

5150-5875 MHz





USA







U-NII-1

5150-5250 MHz





U-NII-2A

5250-5350 MHz





U-NII-2C

5470-5725 MHz





U-NII-3

5725-5850 MHz





Management radio (MHz)





Worldwide

2412-2472 MHz





USA

2412-2462 MHz
